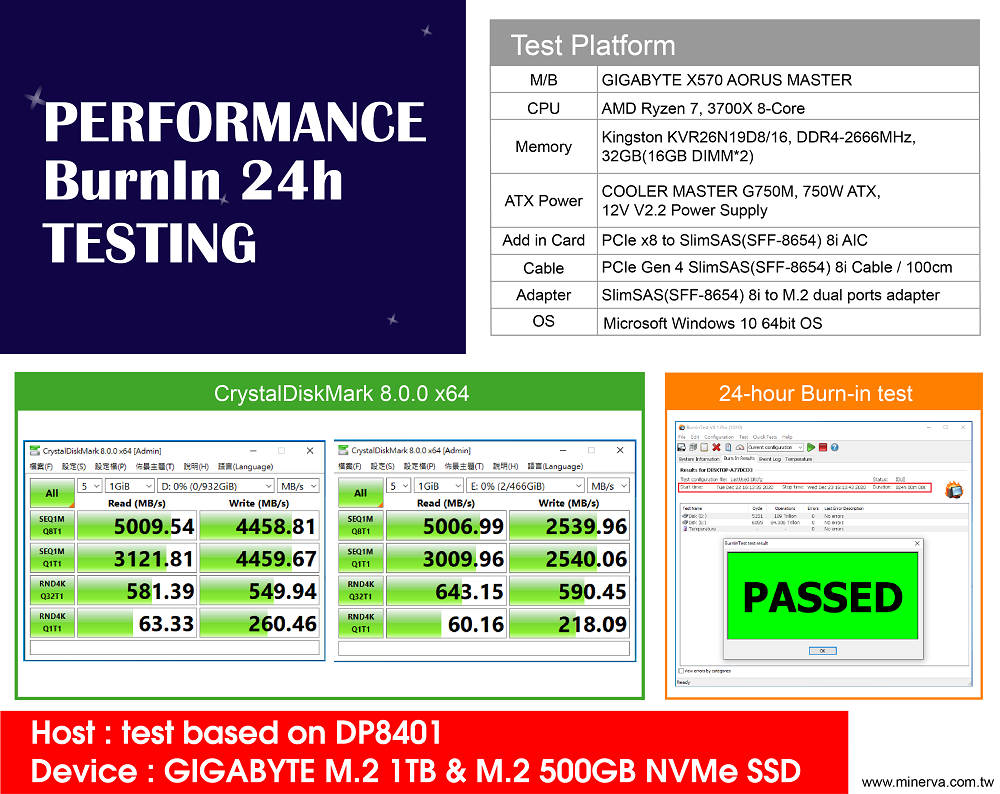

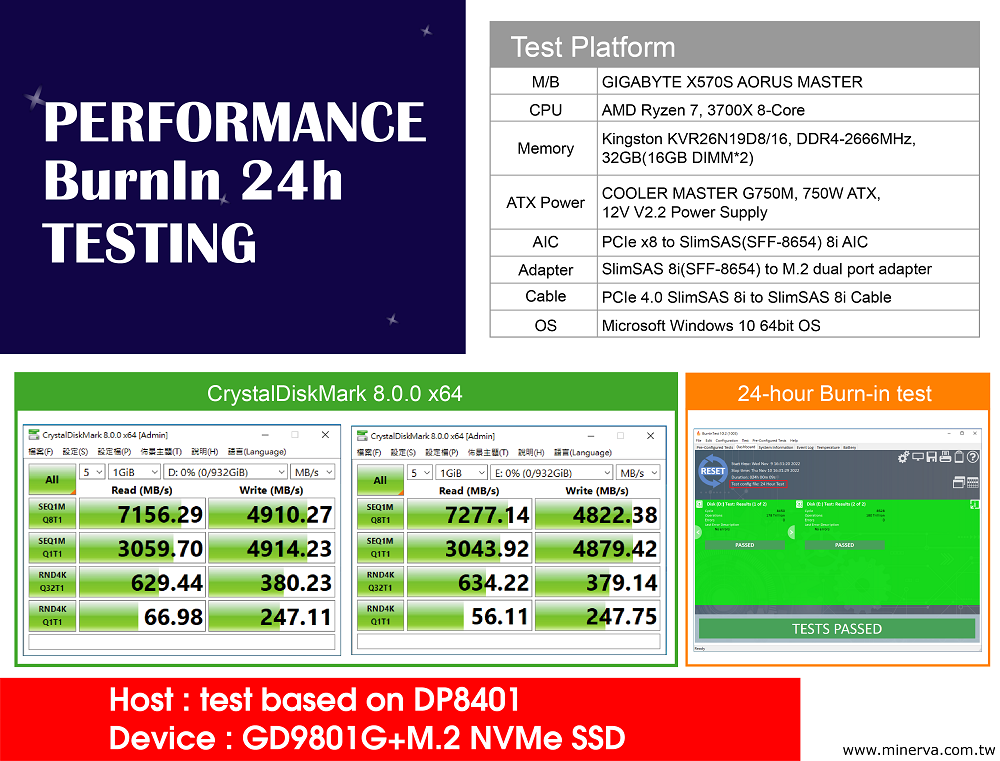

Test report for SlimSAS 8i Cable 100cm
2D drawing

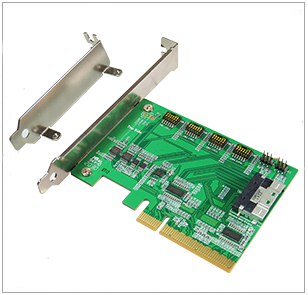

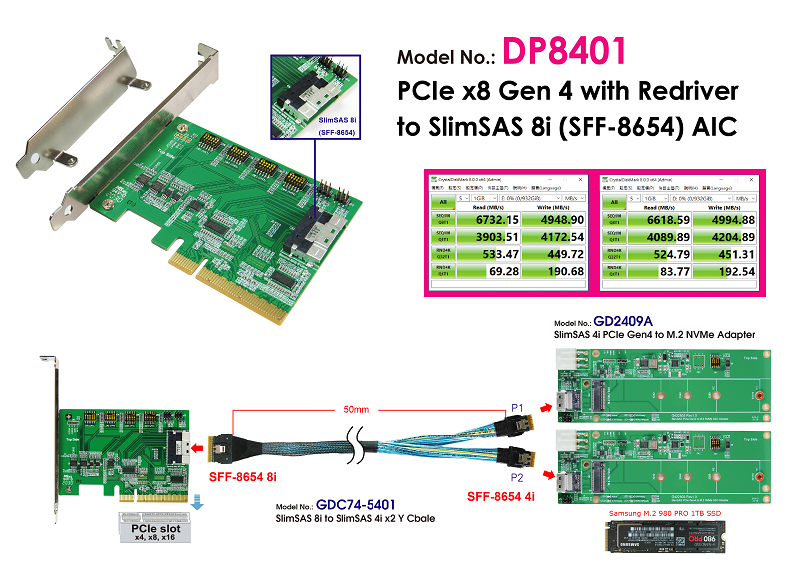

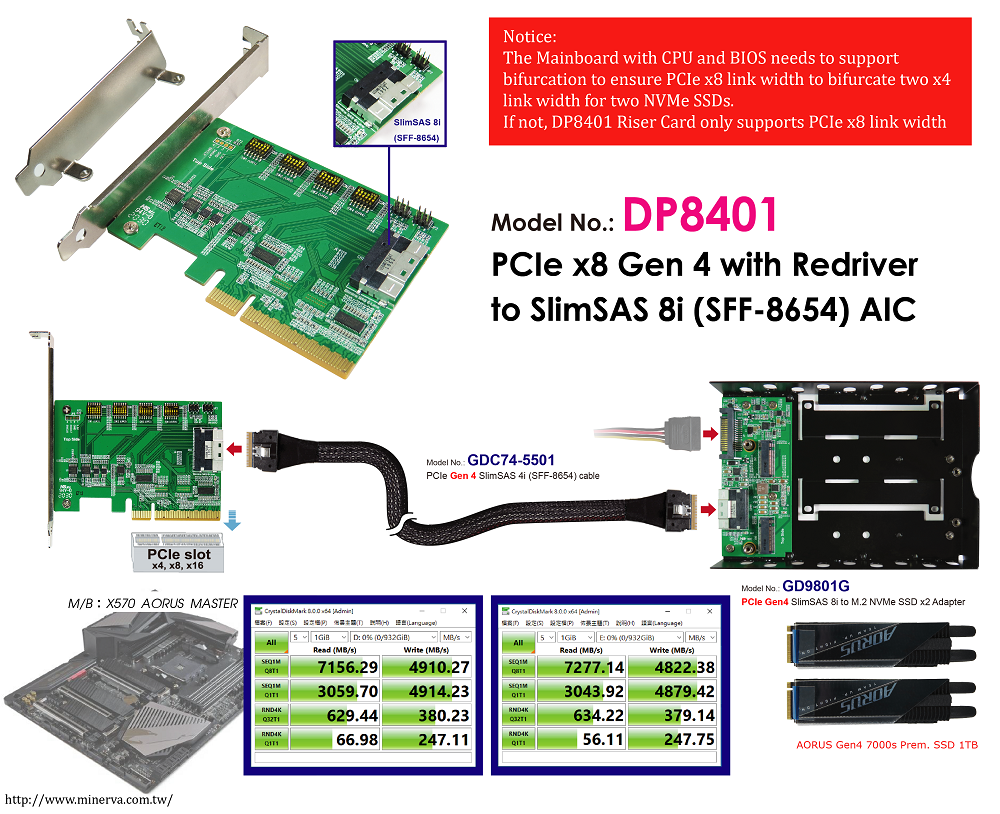

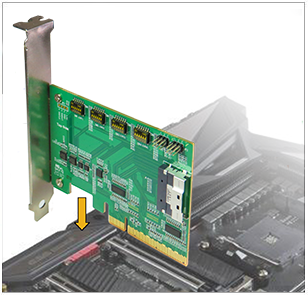

- SlimSAS 8i (SFF-8654) to PCI Express 4.0 convert

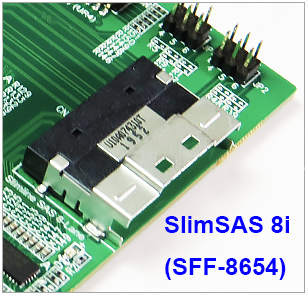

- Built-in SFF-8654 8i connector, pin-out defined by SFF-9402 Rev1.1

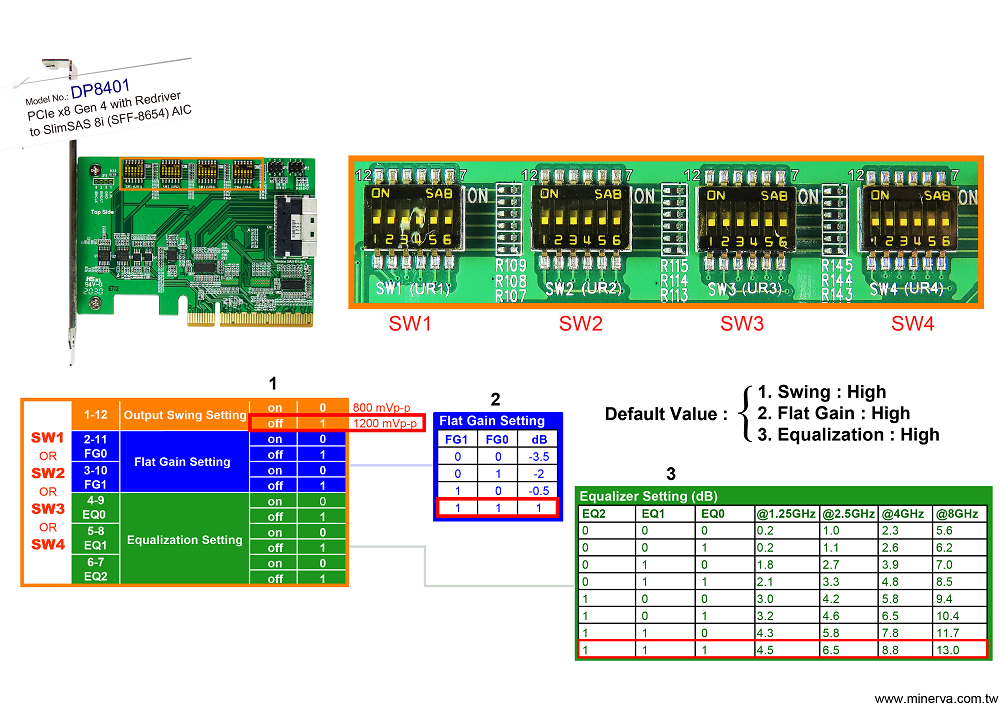

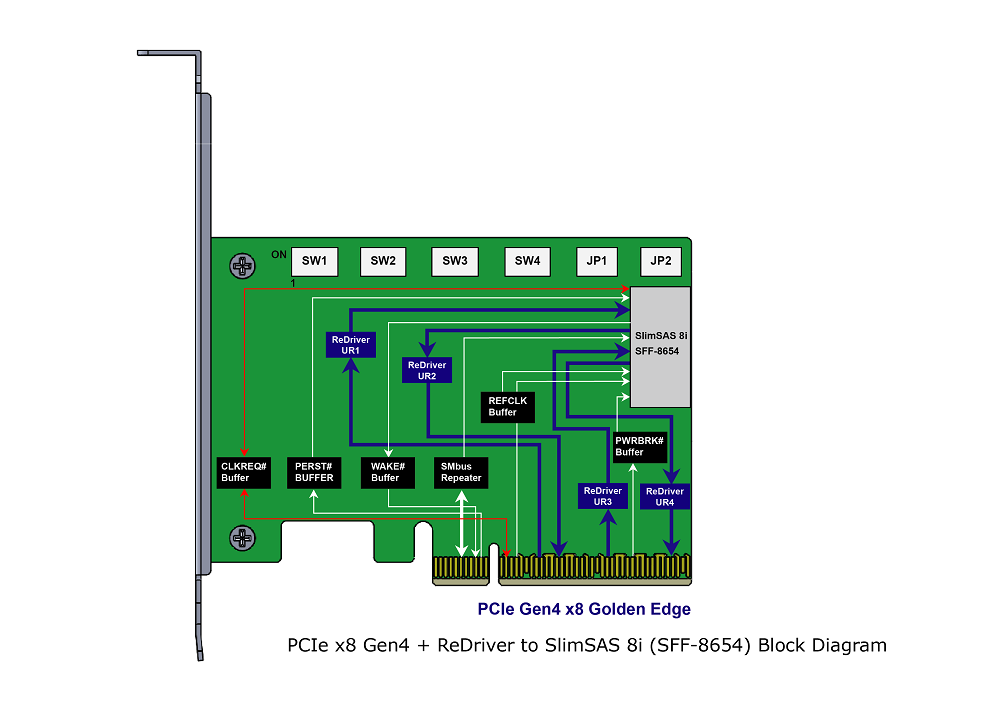

- Built-in PCIe ReDriver to extend PCIe Gen4, 16GT/s 8 Lanes differential pair signals
- Built-in PCIe 100MHz Clock buffer to drive longer trace length and longer length cable
- Built-in PCIe SMCLK, SMDAT bidirectional buffer repeater
- Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
- Built-in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
- Built-in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
- Built-in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
- D1 Green LED on indicates AIC ready
