- M.2 NVMe to PCI Express 4.0 conver

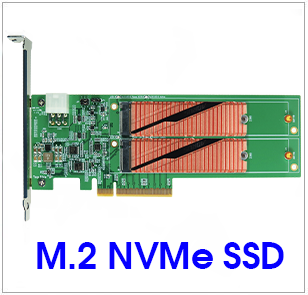

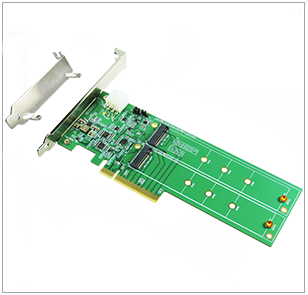

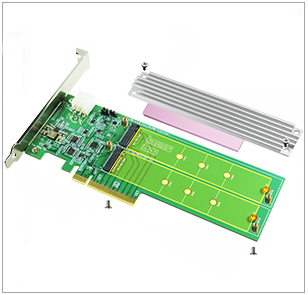

- Built-in two M.2 M-key Females connector

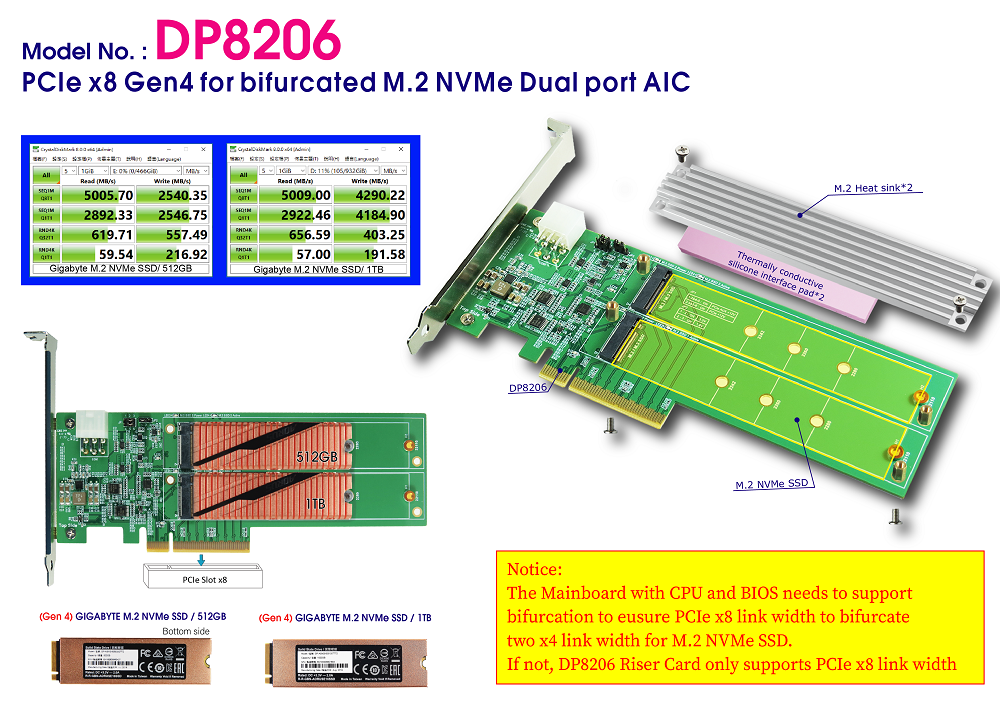

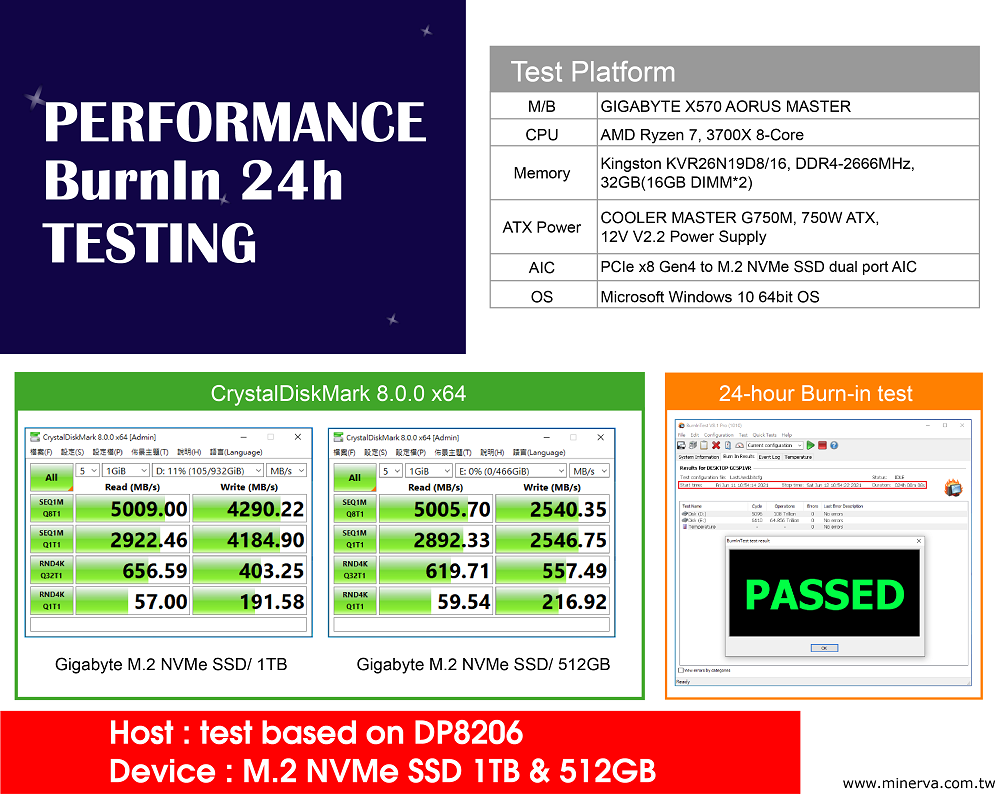

- DP8206 can be offered in two x4 data link width configurations (need CPU and BIOS both support) for dual port M.2 connector.

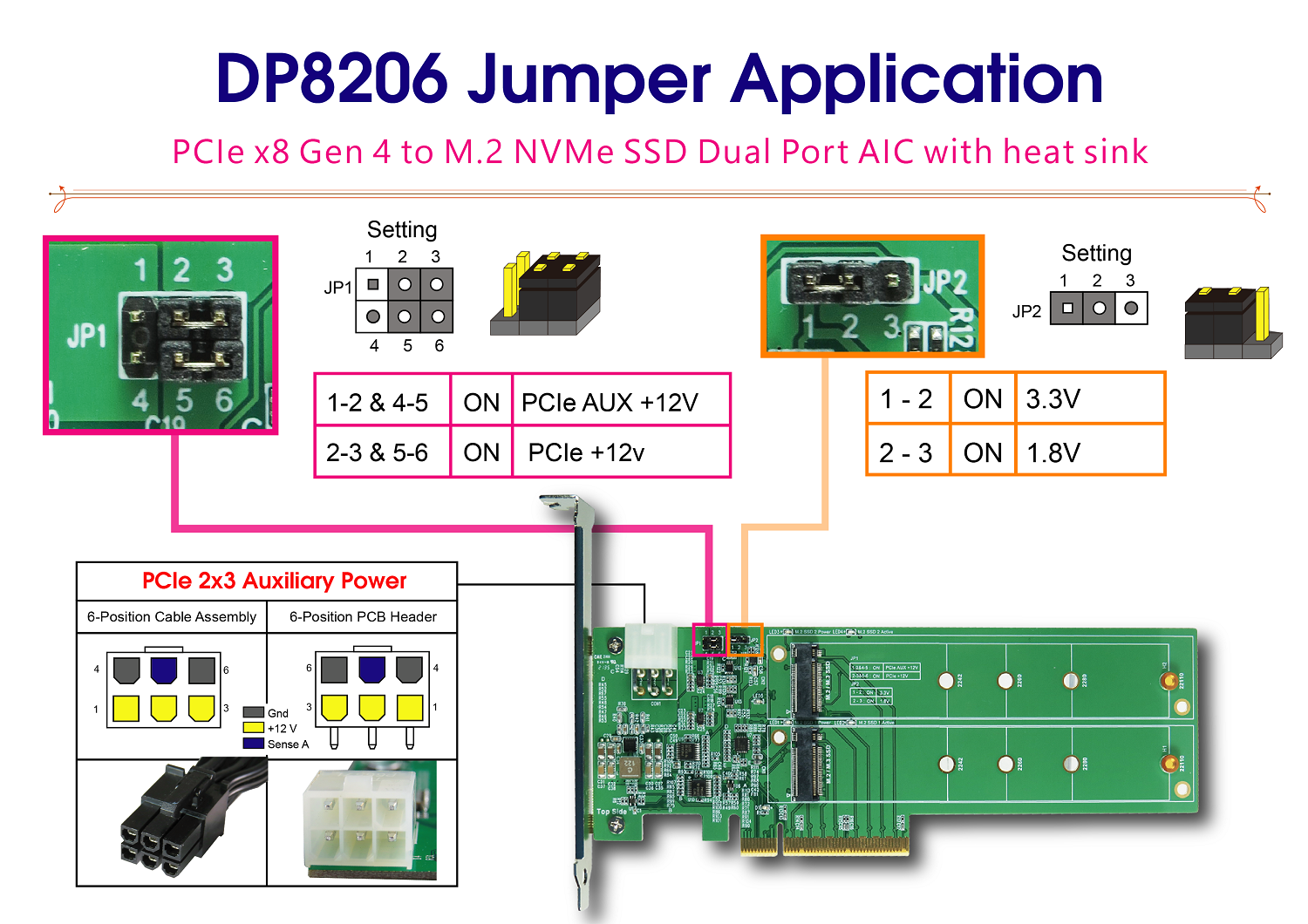

- Supports power input from PCIe CEM +12V or external PCIe 12V AUX Power
- Supports Server BMC management

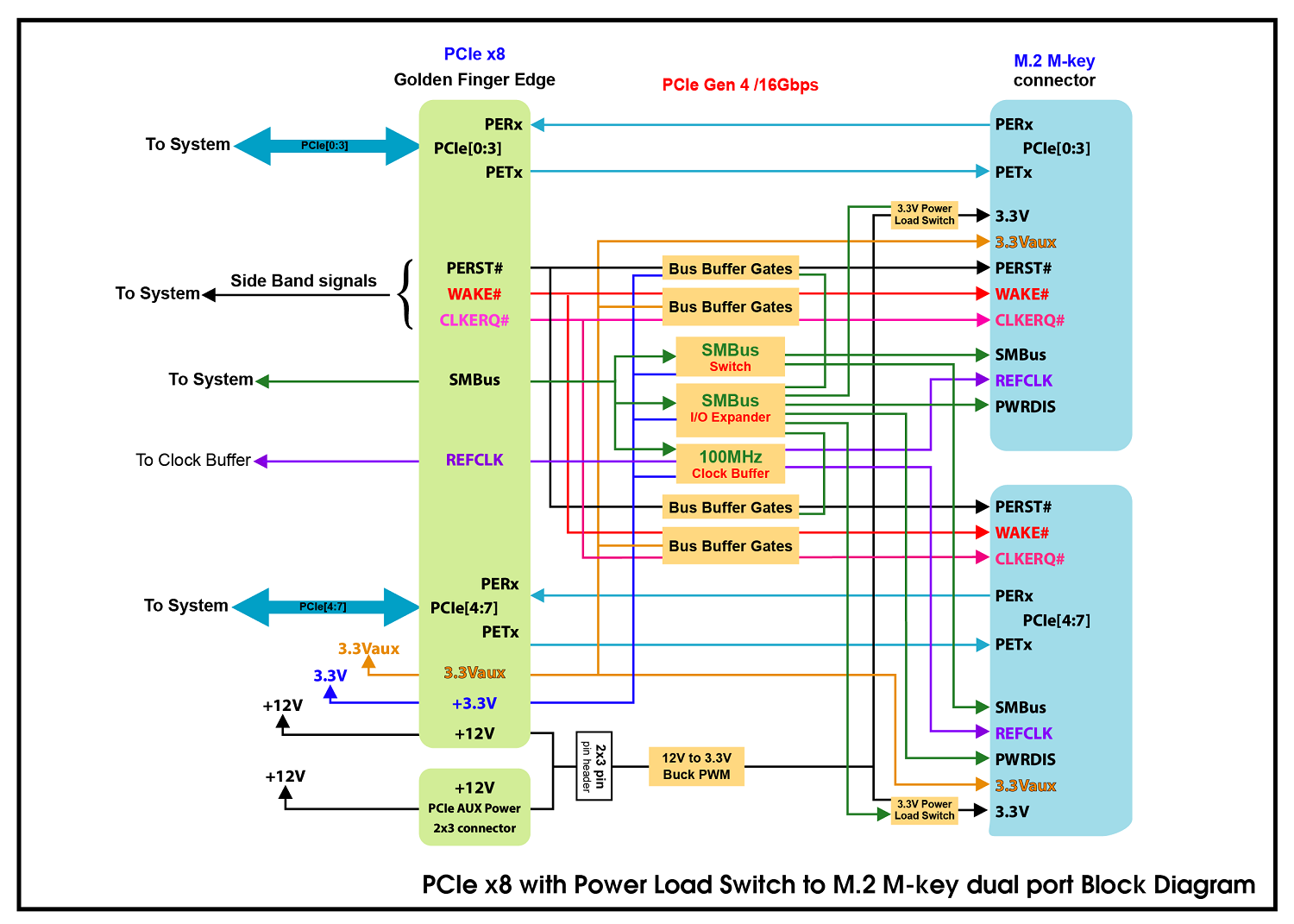

- Built-in SMBus Switch(Address: 0xE2) for M.2 SSD SMBus, Clock buffer SMBus communication
- Built-in SMBus I/O Expander(Address: 0x40) for M.2 PWRDIS control
- Supports PCIe PERST# for OOB(out of band) management to remote M.2 SSD Reset
- Supports 3.3V Power Rail for OOB(out of band) management to disable M.2 SSD Power
- Supports PCIe REFCLK Buffer fan out(Address: 0xD8) for M.2 dual port, it shall be buffered and fanned out to the individaul M.2 module
- Built-in WAKE# Auto-Direction Sensing Between PCIe CEM and M.2 SSD
- Built-in CLKREQ# Auto-Direction Sensing Between PCIe CEM and M.2 SSD
- PWM synchronous buck converter Power IC
- ◆8A maximum output current
- ◆Short circuit protection
- ◆ln-rush current suppression
- ◆Thermal shutdown protection
- ◆ESD HBM (Human Body Mode)/2KV
- Each M.2 port is with 5A current Load switch Power to protect M.2 NVMe SSD
- LED1, LED3 Green LED on indicates M.2 NVMe SSD power ready
- LED2, LED4 RED LED Blinking indicates M.2 SSD active status
