- M.2 NVMe to PCI Express 4.0 conver

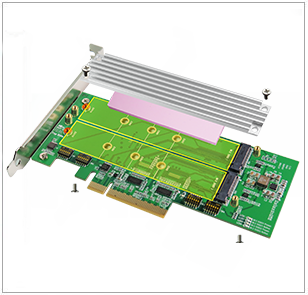

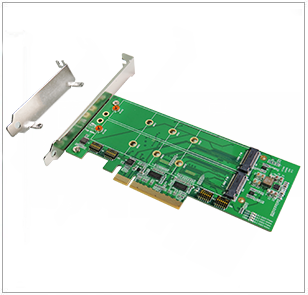

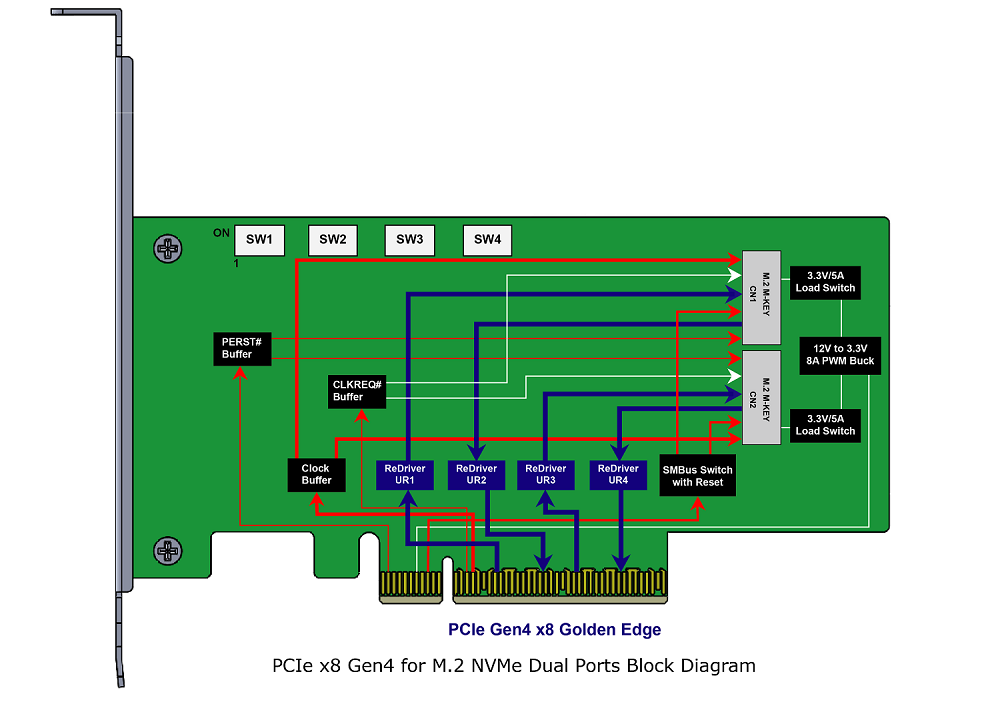

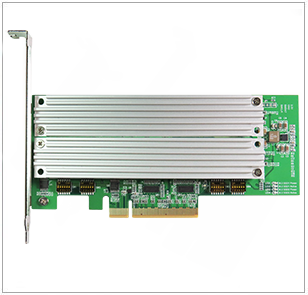

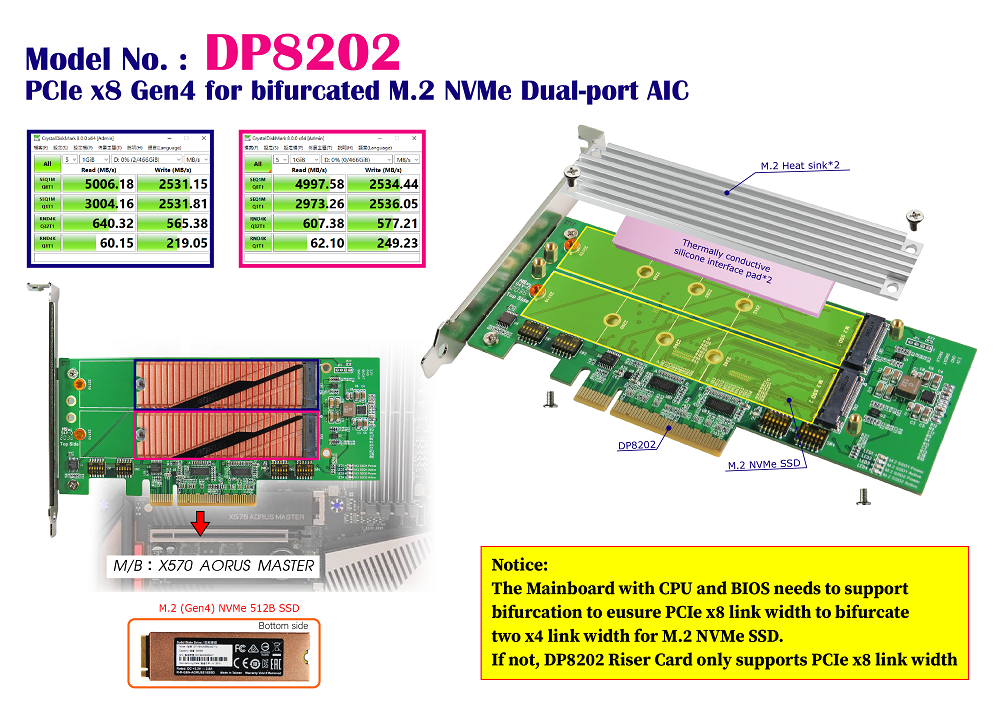

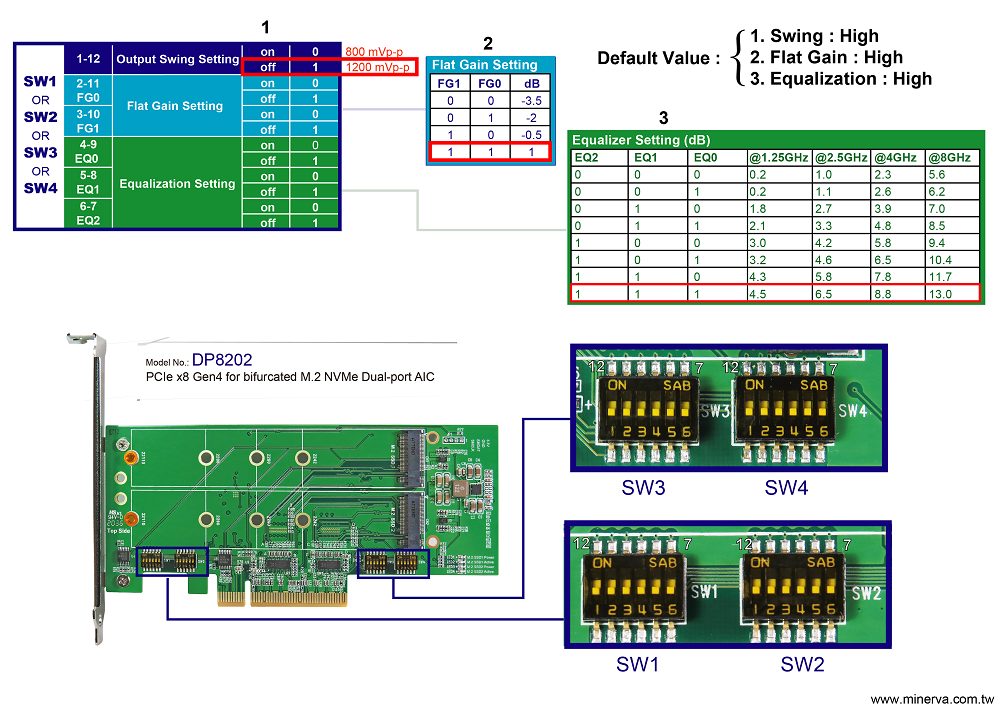

- DP8202 can be offered in two x4 data link width configurations (need CPU and BIOS both support) for dual-port M.2 connector.
- Built- in 100MHz Clock buffer to drive longer trace lengths and longer cable
- Built- in SMCLK, SMDAT bidirectional buffer repeater
- Built- in SMBUS I/O Expander for SMBRST# & PWRDIS control
- Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
- Connect WAKE# from PCIe GF to M.2 connector
- Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
- PWM synchronous buck converter Power IC
- 8A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
- Each M.2 port is with 5A current Load switch Power to protect M.2 NVMe SSD

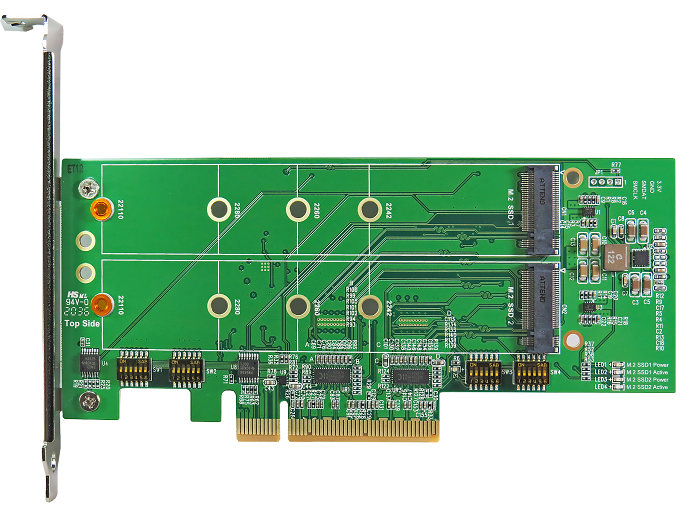

- LED1, LED3 Green LED on indicates M.2 NVMe SSD power ready
- LED2, LED4 RED LED Blinking indicates M.2 SSD active status
