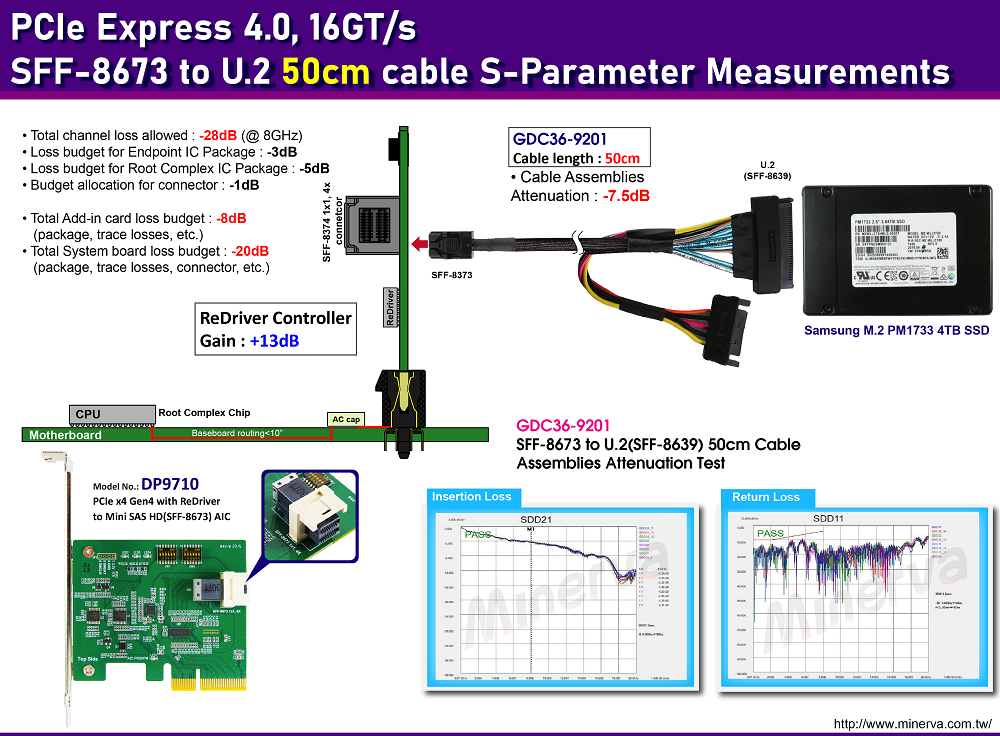

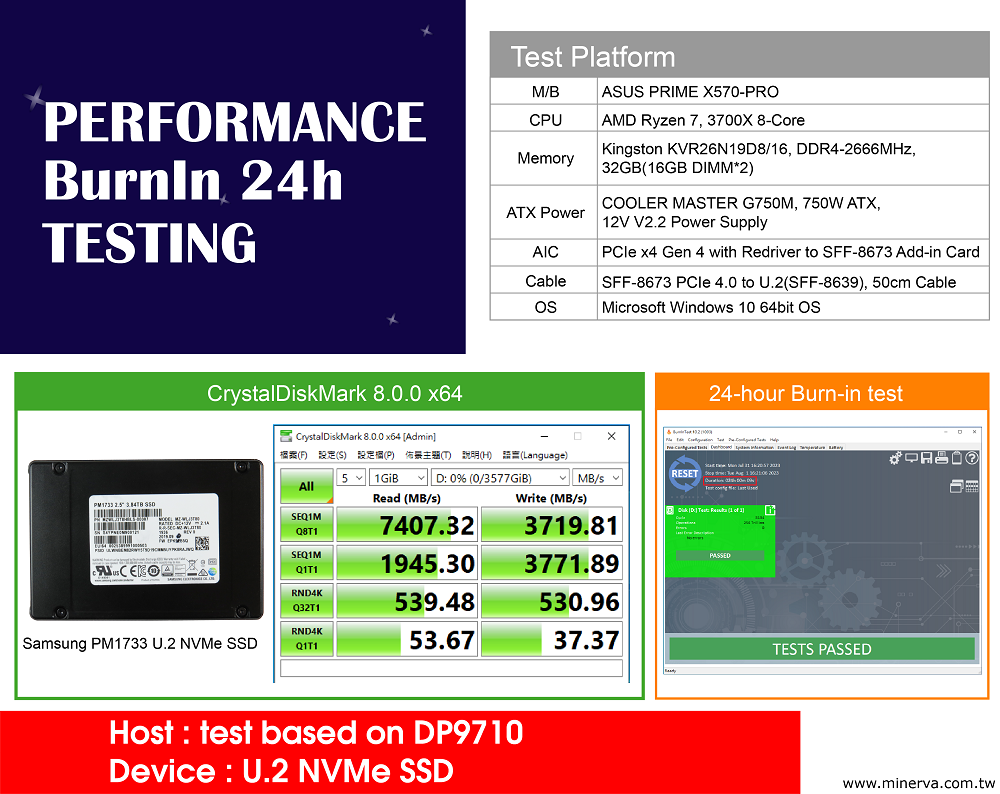

Test report for GDC36-9201

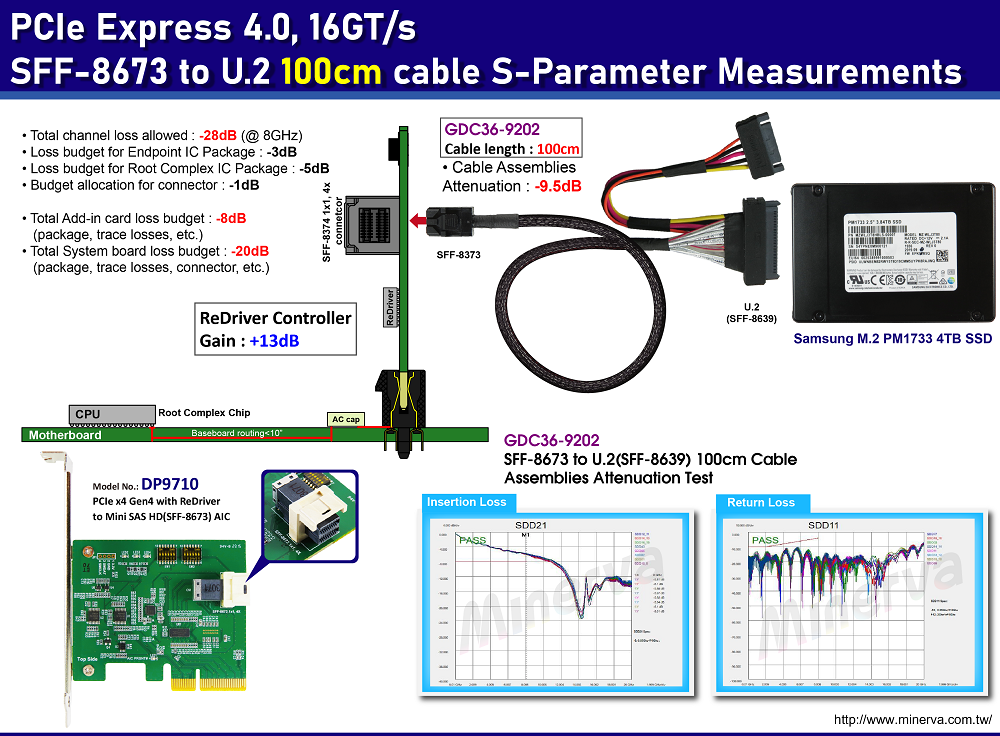

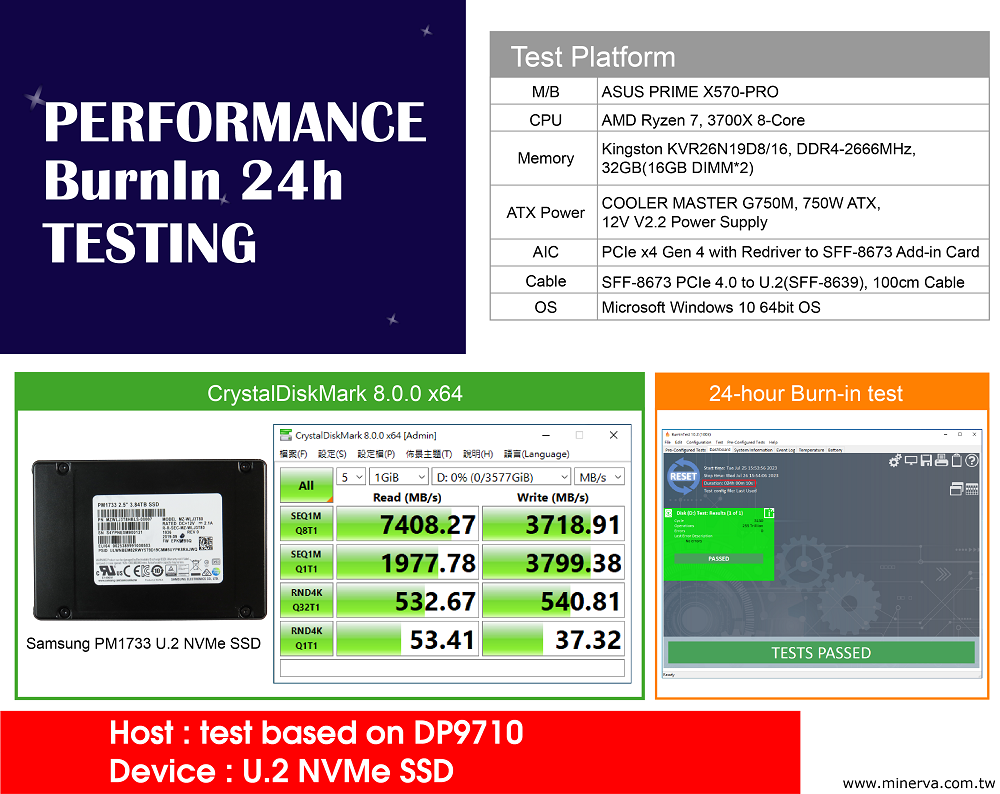

Test report for GDC36-9202
2D drawing

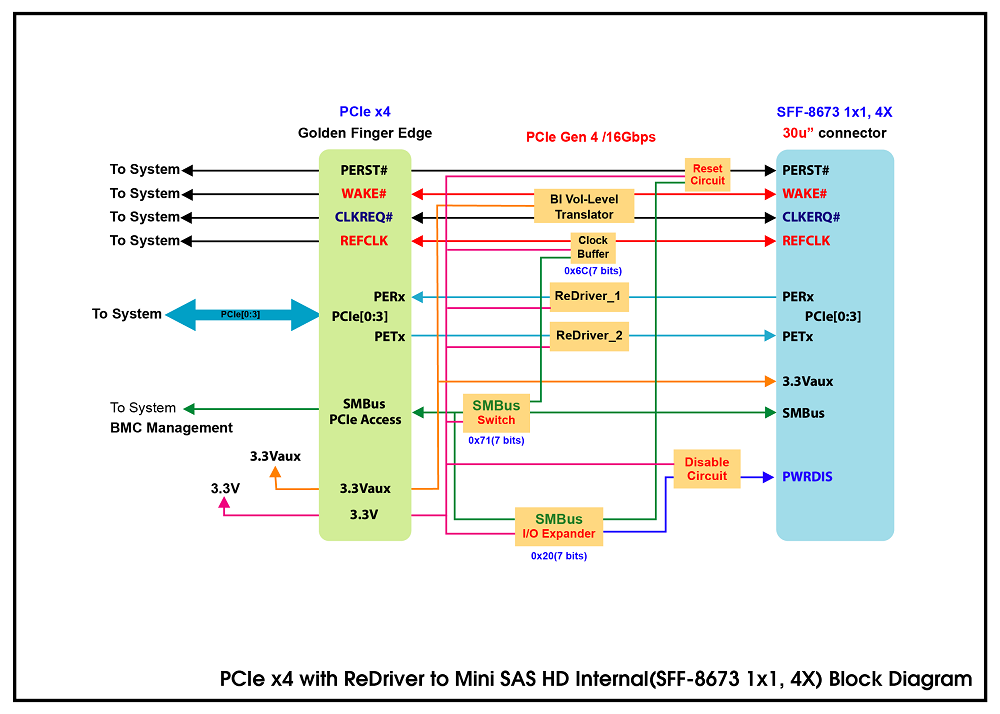

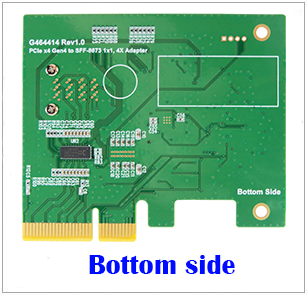

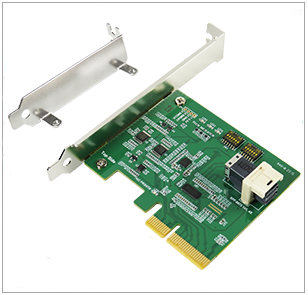

- Supports Server BMC management
- Supports Industrial Grade temerature range
- Mini SAS HD 1x1, 4X to PCI Express x4 Gen4 convert

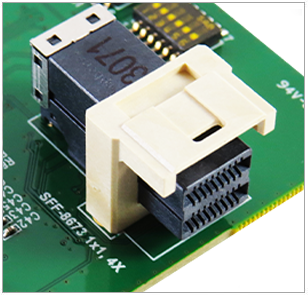

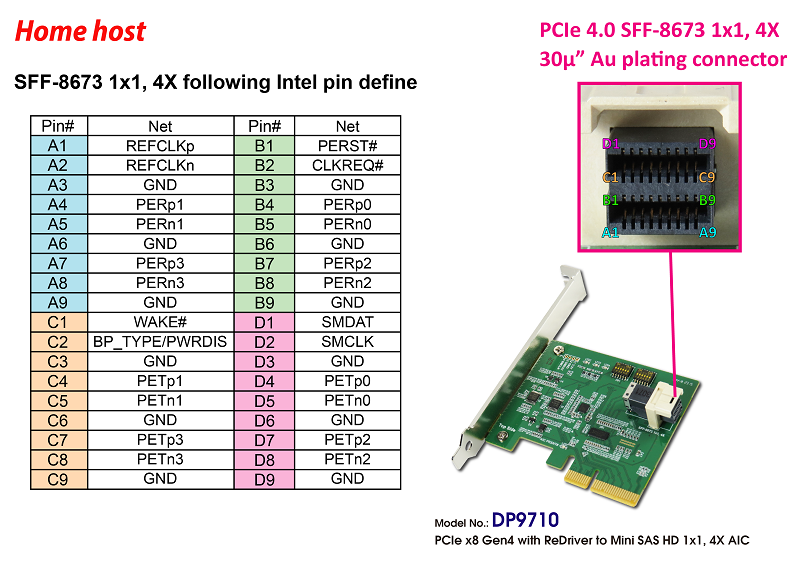

- Built- in SFF-8673, 30u” connector

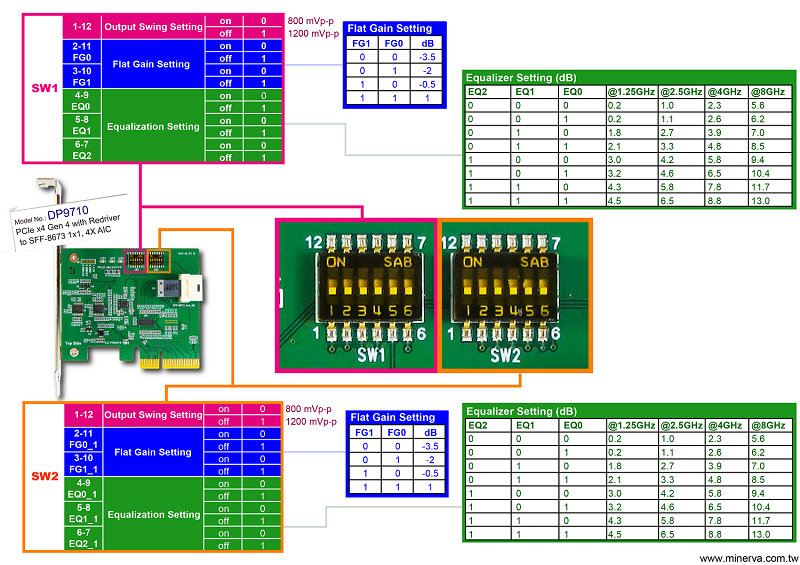

- Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width, and may provides programmable linear equalization, output swing and flat gain
- Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and more longer cable, Address: 0x6C(7 bits)
- Built- in SMBus Switch, Address: 0x71(7 bits)
- Built- in SMBus I/O Expander, Address: 0x20(7 bits) for Mini SAS HD PWRDIS control
- Supports PCIe PERST# for OOB(out of band) management to remote Mini SAS HD Reset
- Built- in WAKE# bidirectional voltage-level translator for Open-Drain output to be used longer PCB trace lengths and longer cable
- Built- in CLKREQ# bidirectional voltage-level translator for Open-Drain output to be used longer PCB trace lengths and longer cable
- LED1 Green LED on indicates AIC ready
- LED2 Red on to off indicates PCIe WAKE# signals(LED OFF-NORMAL)
- LED3 Red on to off indicates PCIe CLKREQ# signals(LED OFF-NORMAL)
- LED4 Red on to off indicates PCIe PERST# signals(LED OFF-NORMAL)
