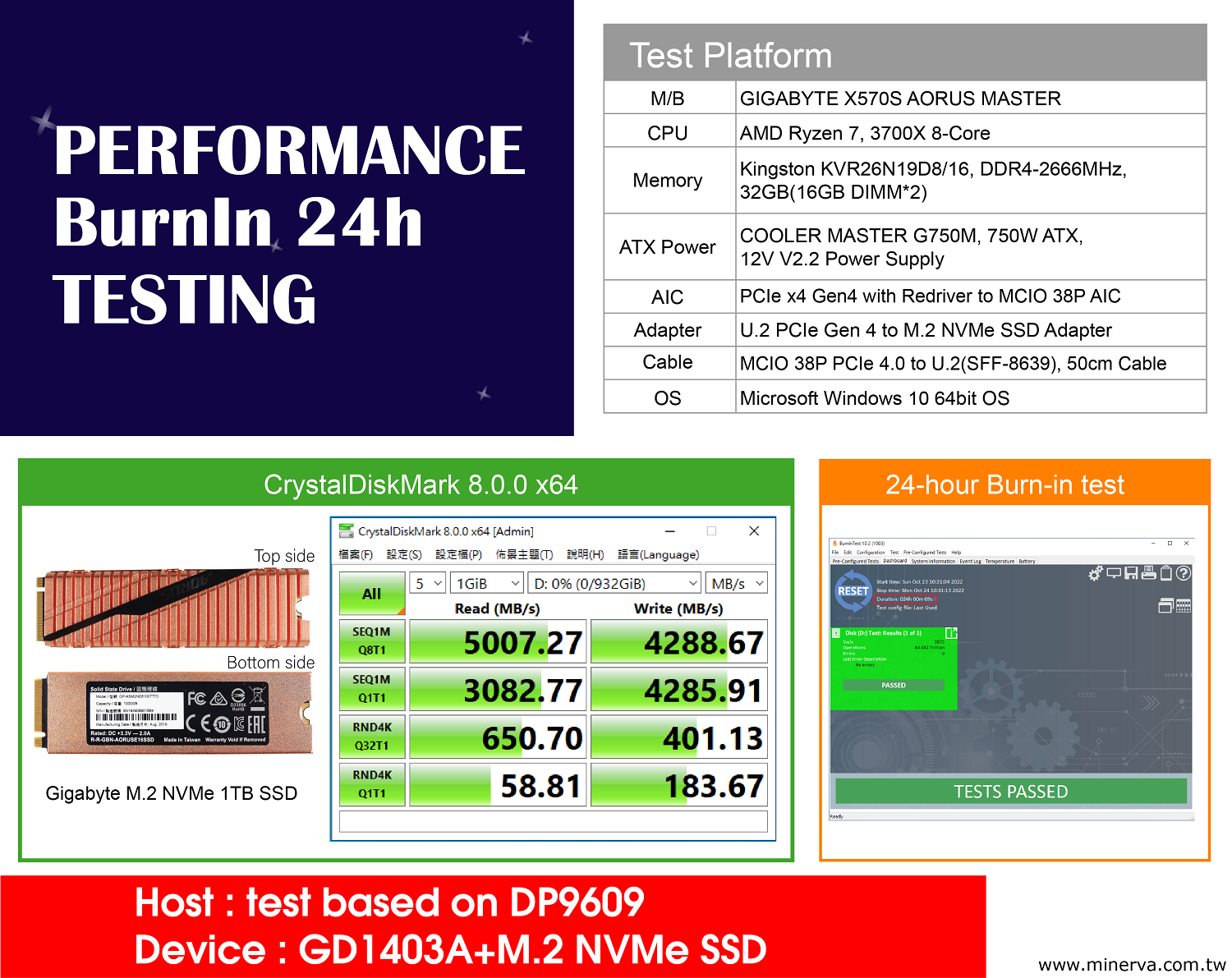

Test Report for GDC83-4201+M.2

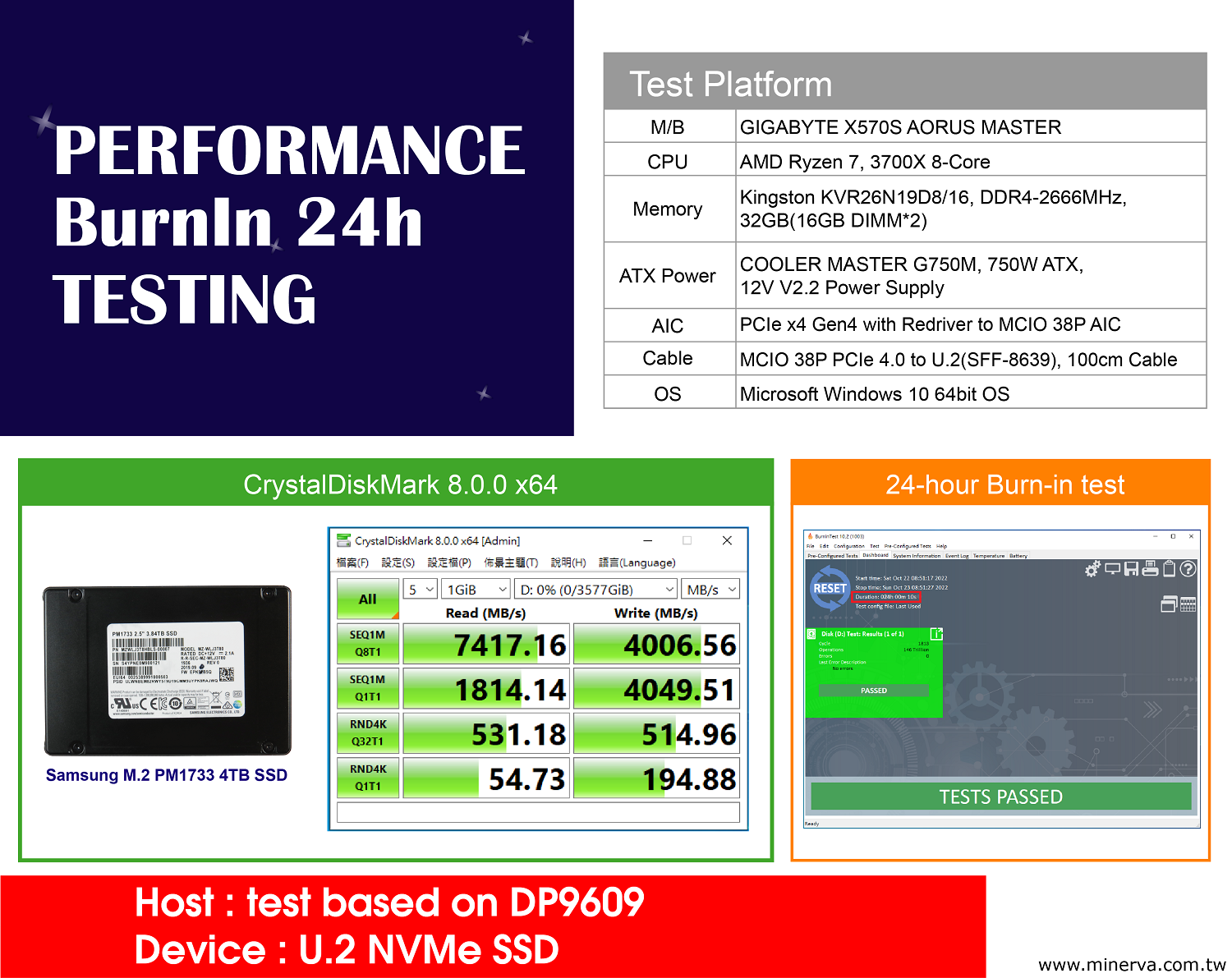

Test Report for GDC83-4202+GD1403A+U.2
2D drawing
- Supports Server BMC management
- Supports Industrial Grade temerature range

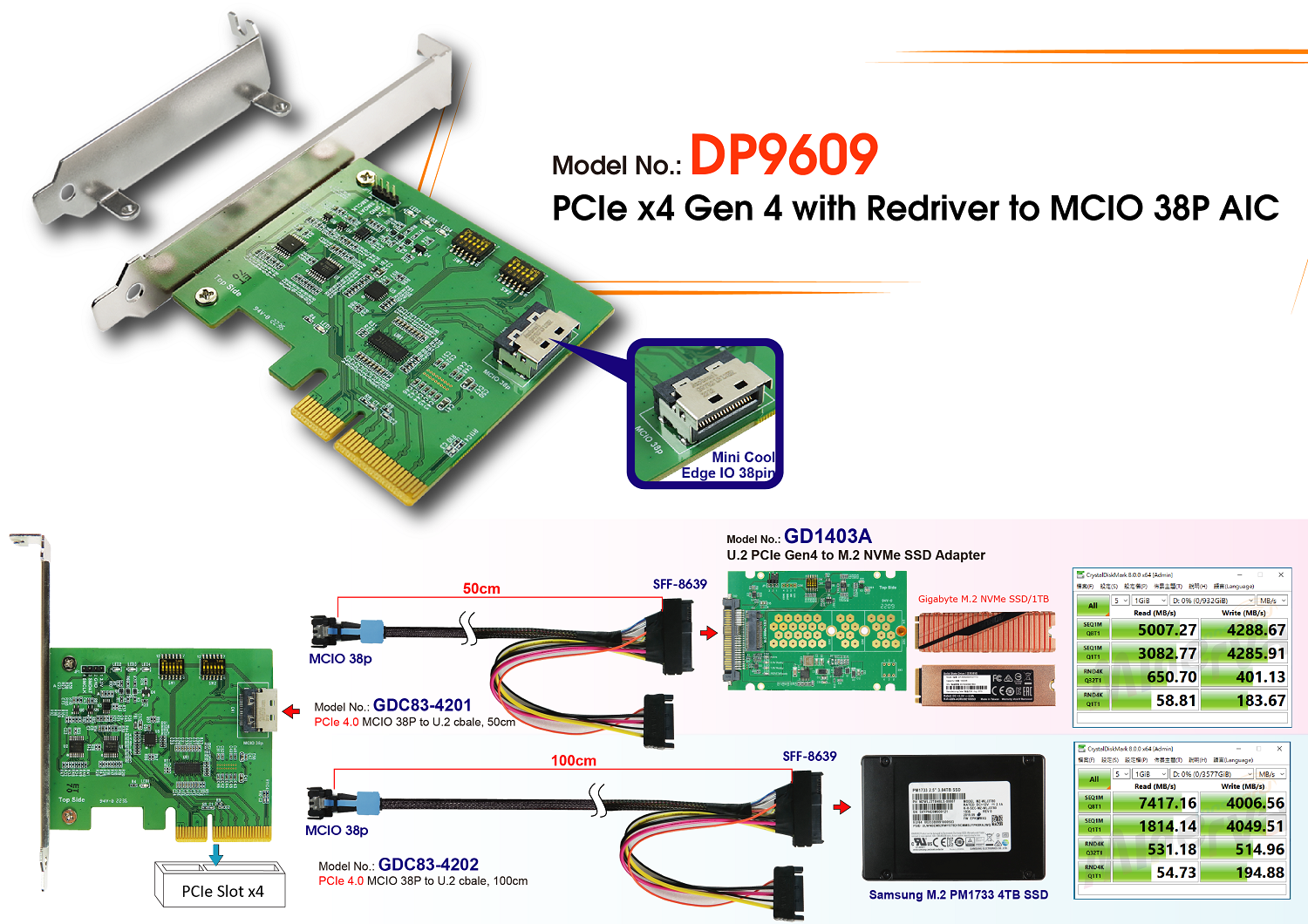

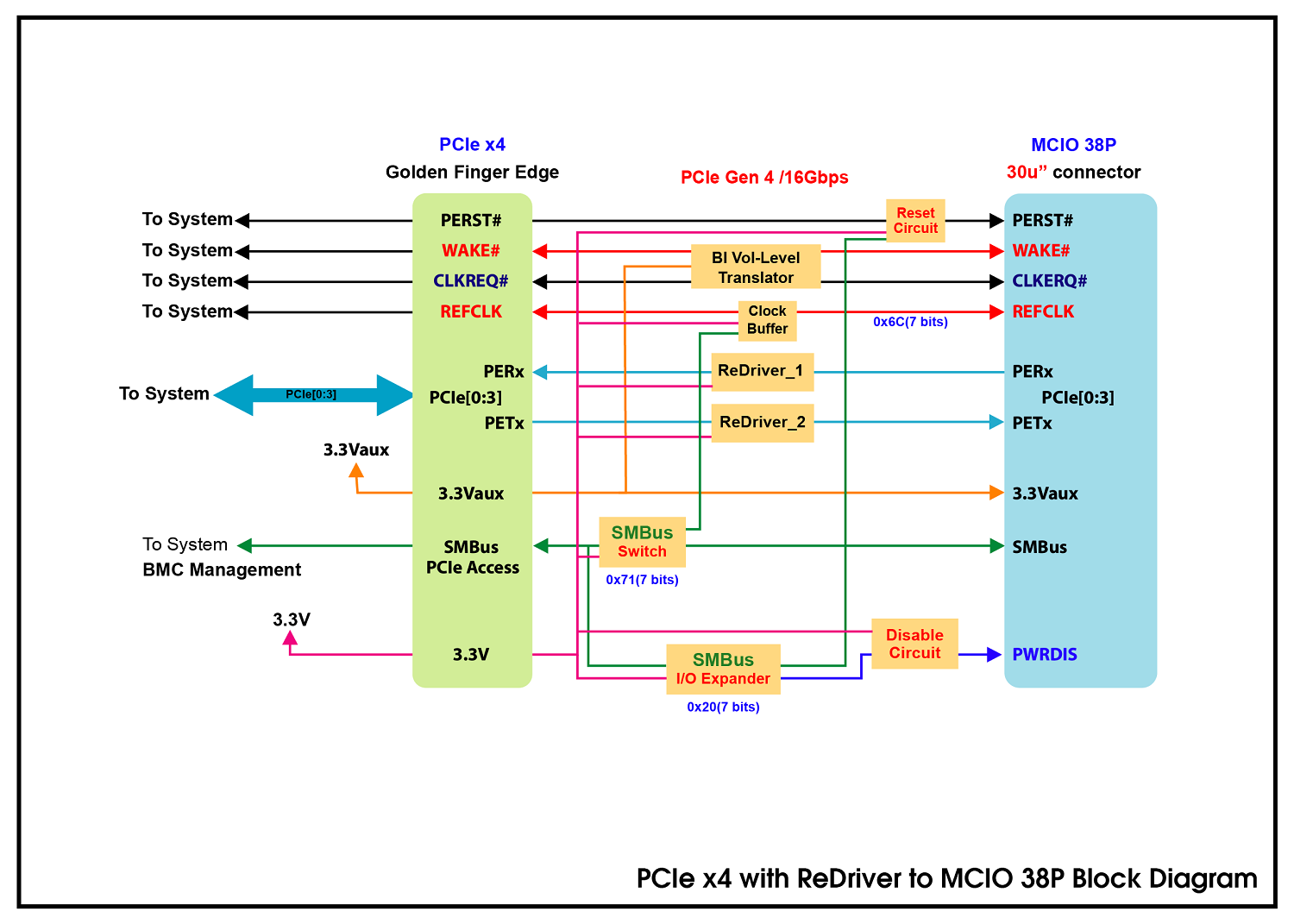

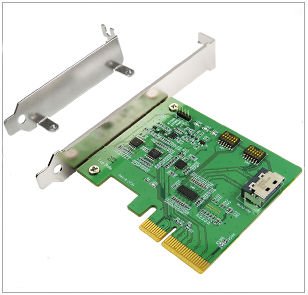

- MCIO 38P to PCI Express x4 Gen4 convert

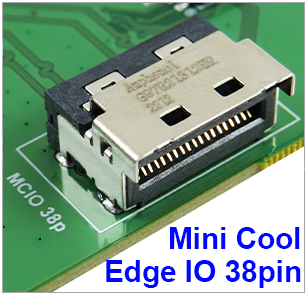

- Built- in SFF-TA-1016/MCIO 38P, 30u”connector

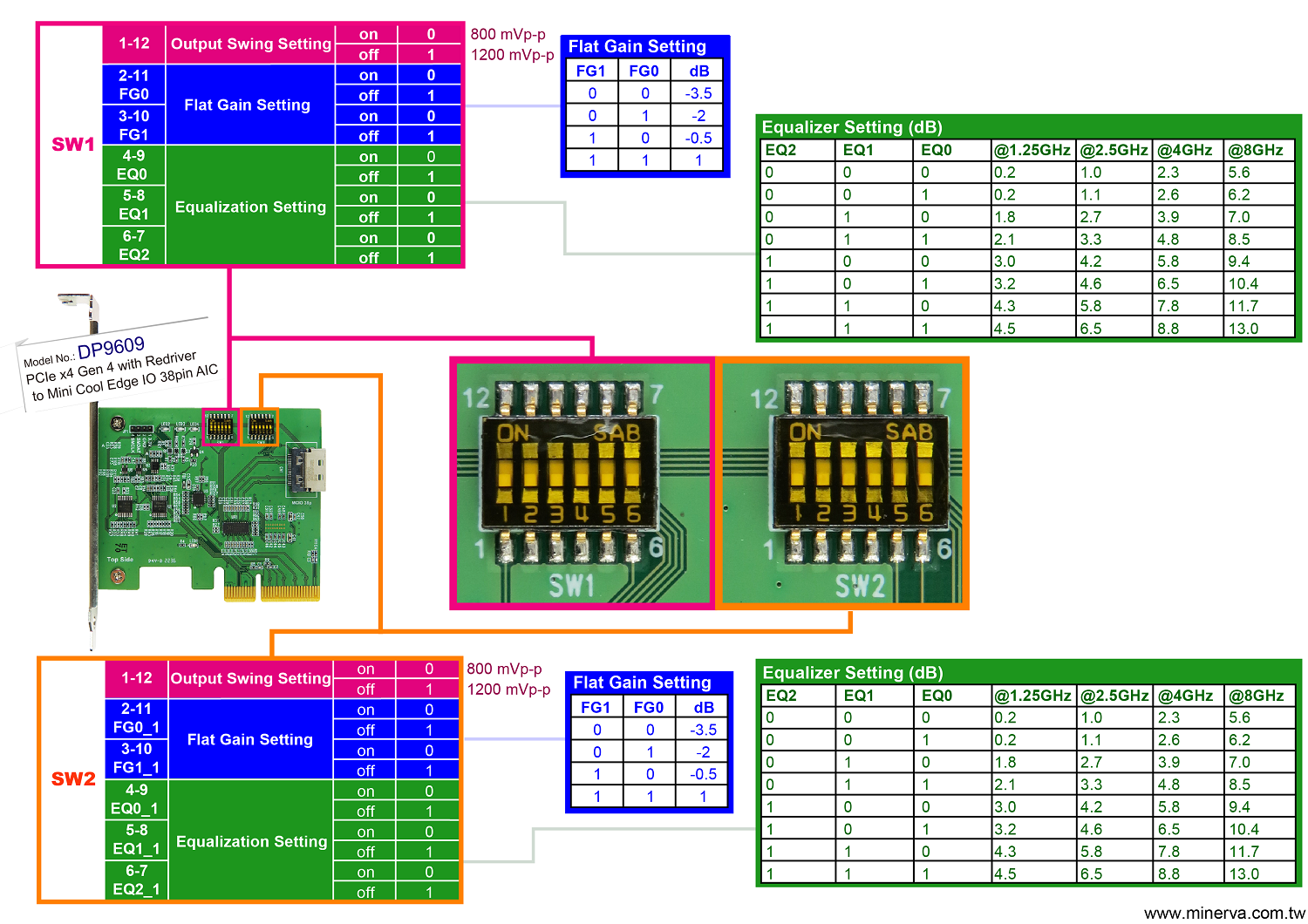

- Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width, and may provides programmable linear equalization, output swing and flat gain
- Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and more longer cable, Address: 0x6C(7 bits)
- Built- in SMBus Switch, Address: 0x71(7 bits)
- Built- in SMBus I/O Expander, Address: 0x20(7 bits) for MCIO 38P PWRDIS control
- Supports PCIe PERST# for OOB(out of band) management to remote MCIO 38P Reset
- Built- in WAKE# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and more longer cable
- Built- in CLKREQ# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and more longer cable

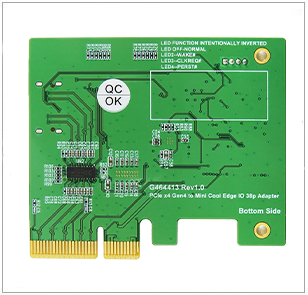

- LED1 Green LED on indicates AIC ready
- LED2 Green LED on to off indicates PCIe WAKE# signals
- LED3 Green LED on to off indicates PCIe CLKREQ# signals
- LED4 Green LED on to off indicates PCIe PERST# signals
