specifications

PDF

Datasheet

PDF

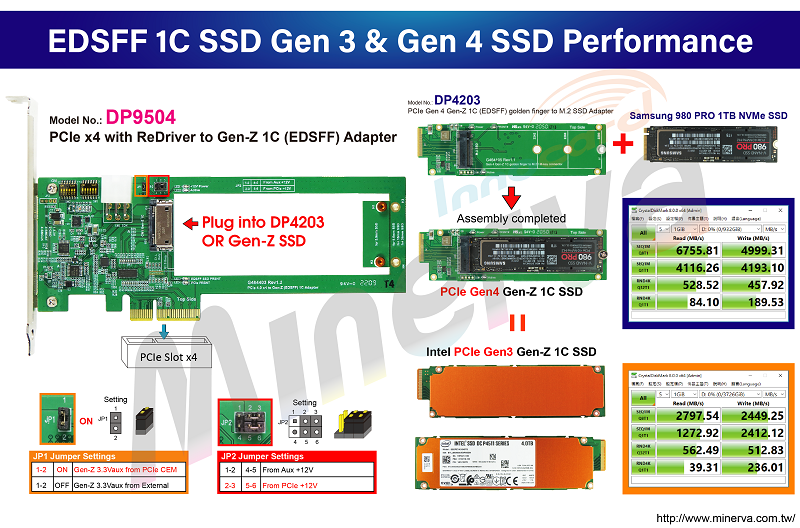

Test report for DP4203+M.2 SSD

PDF

Test report for U.2 SSD

PDF

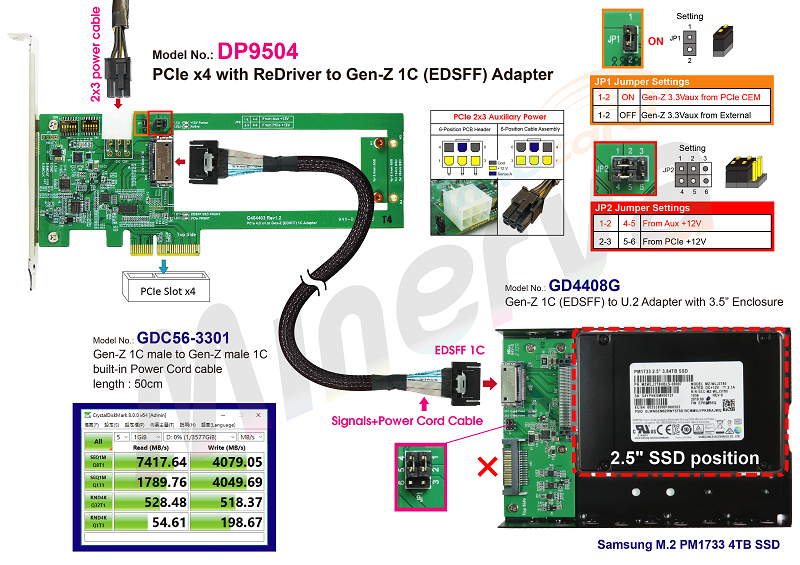

Test report for Gen-Z 1C Male Power Cord, 50cm cable+GD4408G

PDF

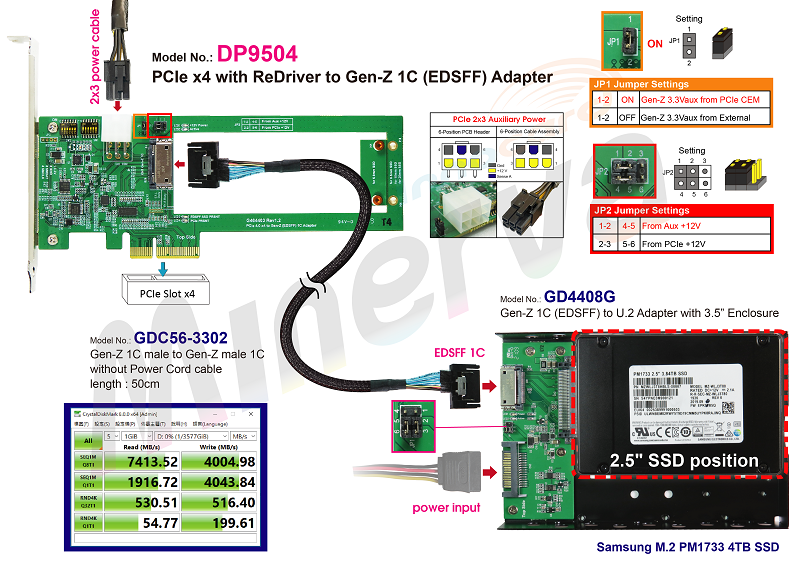

Test report for Gen-Z 1C Male No Power Cord, 50cm cable+GD4408G

PDF

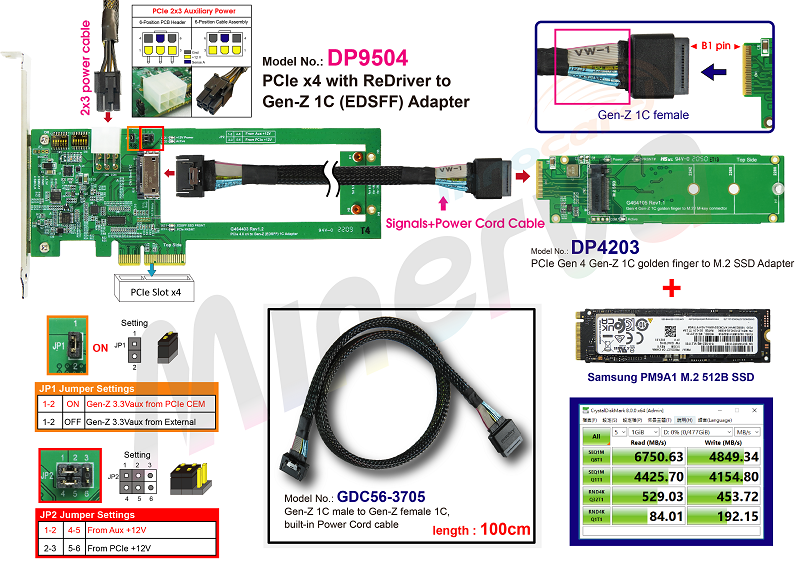

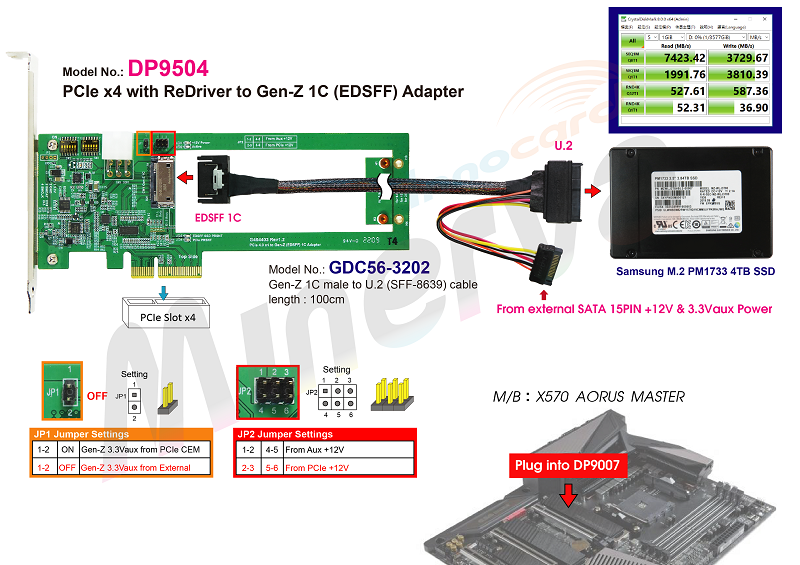

Test report for Gen-Z 1C Male to Female, 100cm cable + DP4203

PDF

DP9504-2D drawing









specifications

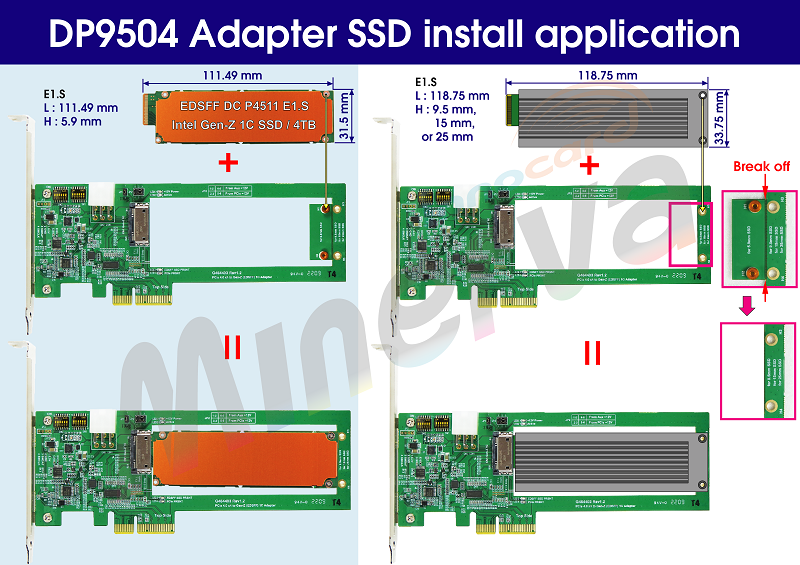

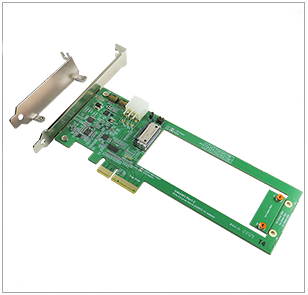

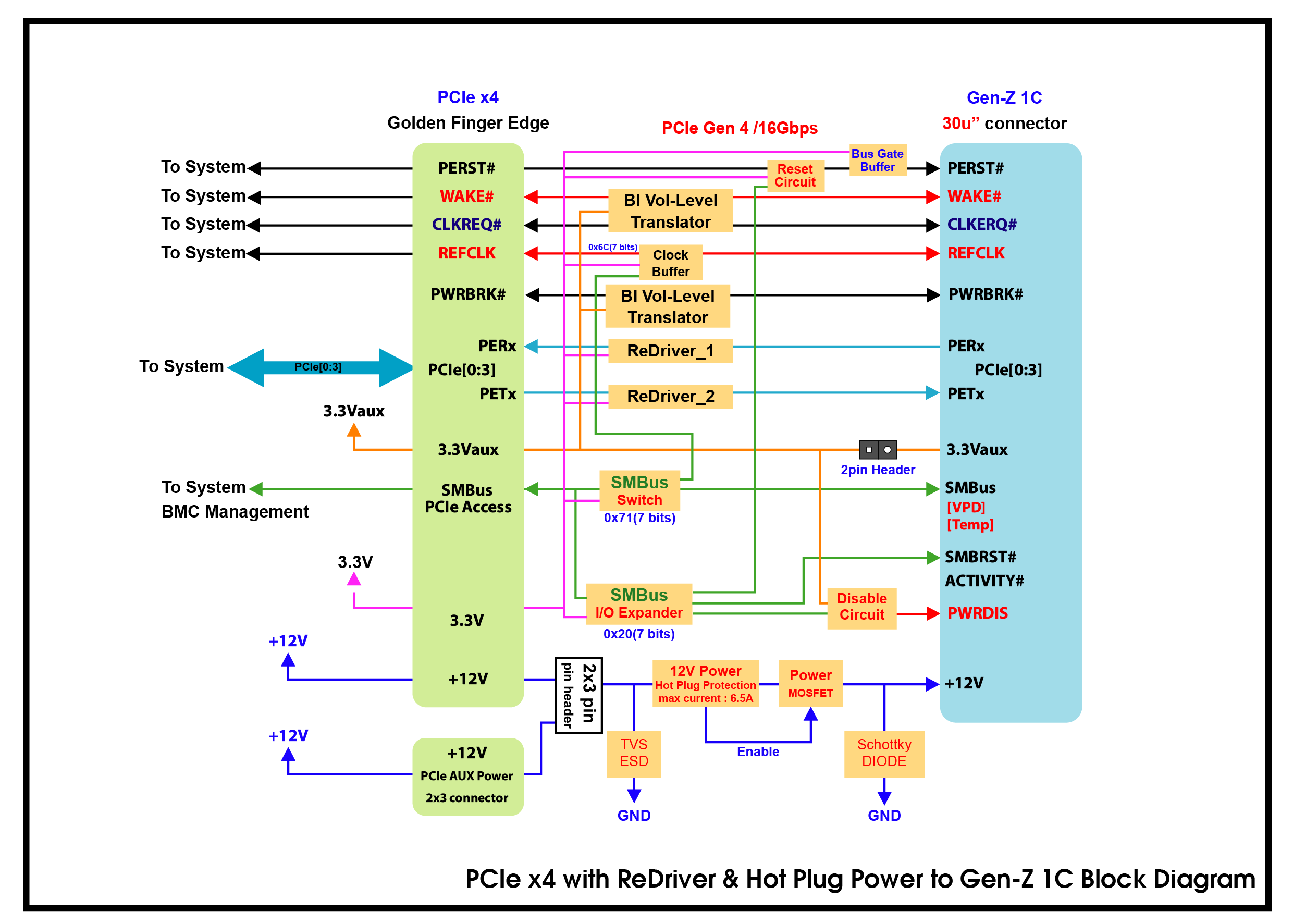

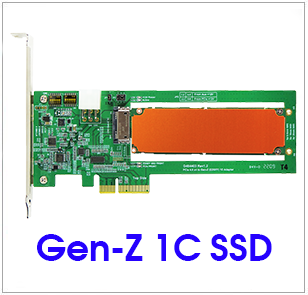

  • Gen-Z 1C (EDSFF) to PCI Express 4.0 x4 convert
  • Supports Server BMC management
  • Supports Industrial Grade temerature range
  • Gen-Z 1C (EDSFF) to PCI Express 4.0 x4 convert

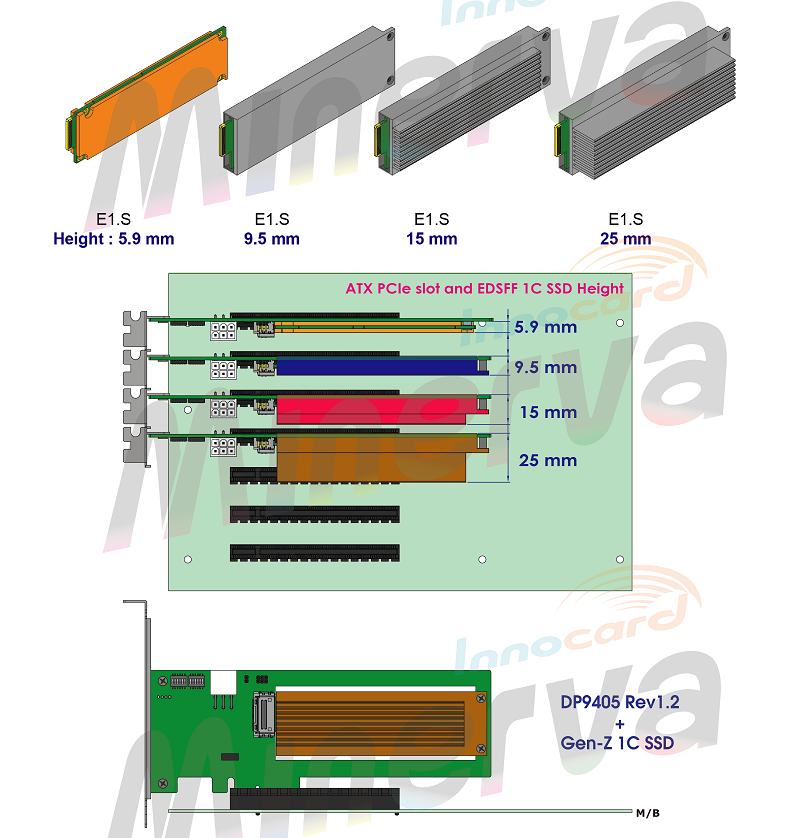

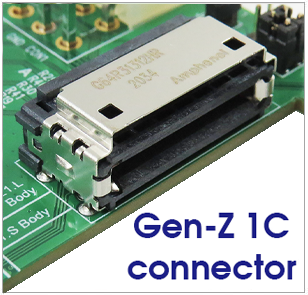

  • Built- in EDSFF 1C with latch connector

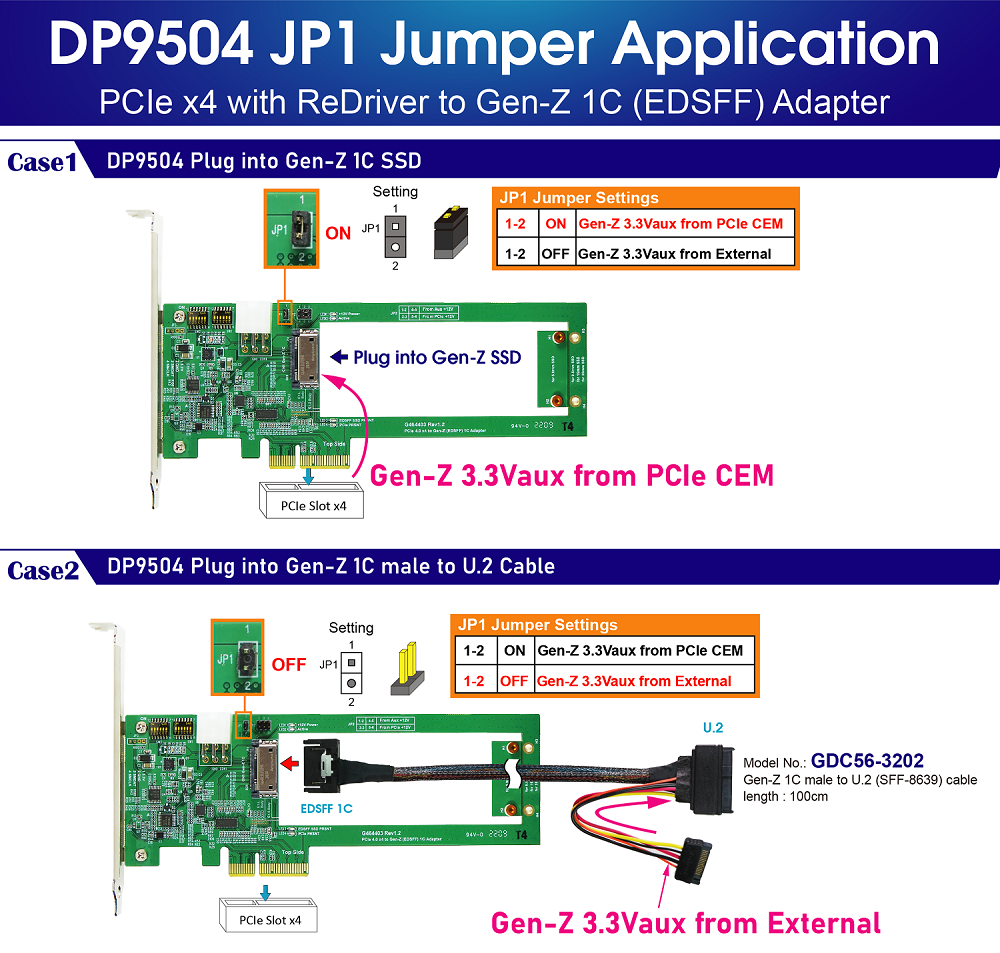

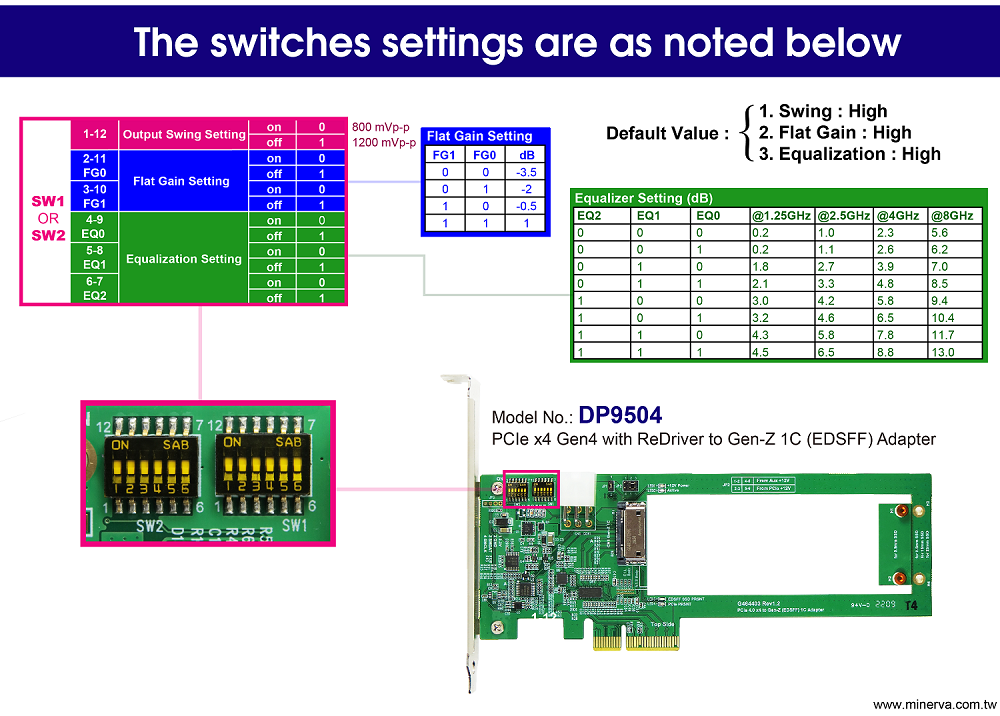

  • Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
  • Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable(Address: 0x20/7 bits)
  • Built- in SMBus Switch, Address: 0x71(7 bits)
  • -- Gen-Z SMBus control -- PCIe 100MHz Clock buffer control
  • Built- in SMBUS I/O Expander, Address: 0x20(7 bits)
  • -- Gen-Z PWRDIS control -- Gen-Z SMBRST# control
  • Supports PCIe PERST# for OOB(out of band) management to remote Gen-Z Reset
  • Built- in WAKE# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and over longer cable
  • - Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  • Built- in CLKREQ# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and longer over cable
  • - Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
  • Built- in PWRBRK# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and longer over cable
  • - Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

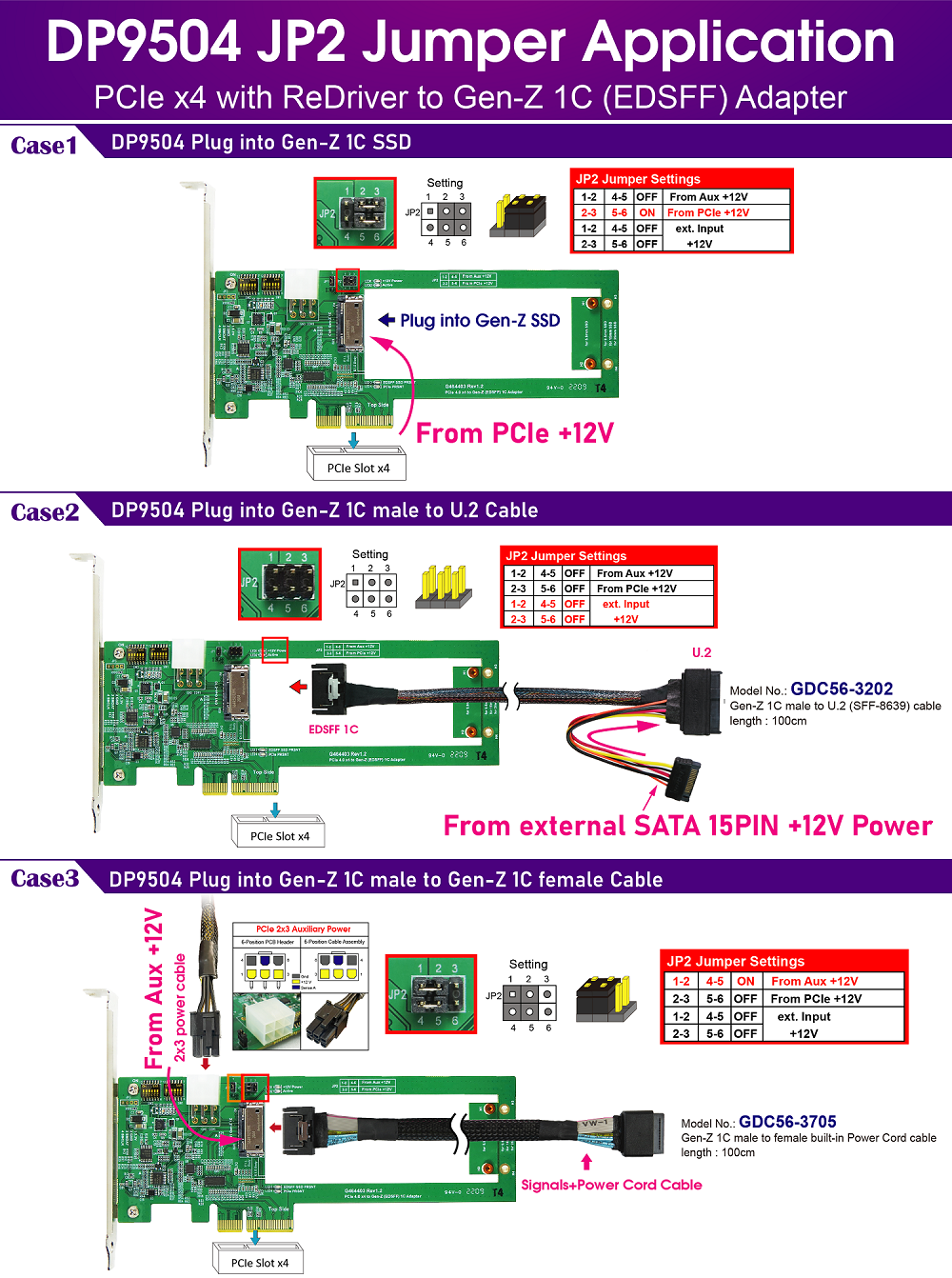

  • Built-in 12V Hot Plug Power with eFuse protection for U.3 NVMe SSD
  • ◆ Programmable Current Limit: 6.5A
  • ◆ Programmable Inrush Current Slew Rate
  • ◆ Thermal shutdown protection and fault alert
  • ◆ Back-to-Back (B2B) FET Operation
  • Built-in 12V input with 400W TVS(TRANSIENT VOLTAGE SUPPRESSOR) ESD protection
  • Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32 m ohm
  • Built-in 12V output with SCHOTTKY BARRIER Power Rectifier



specifications
