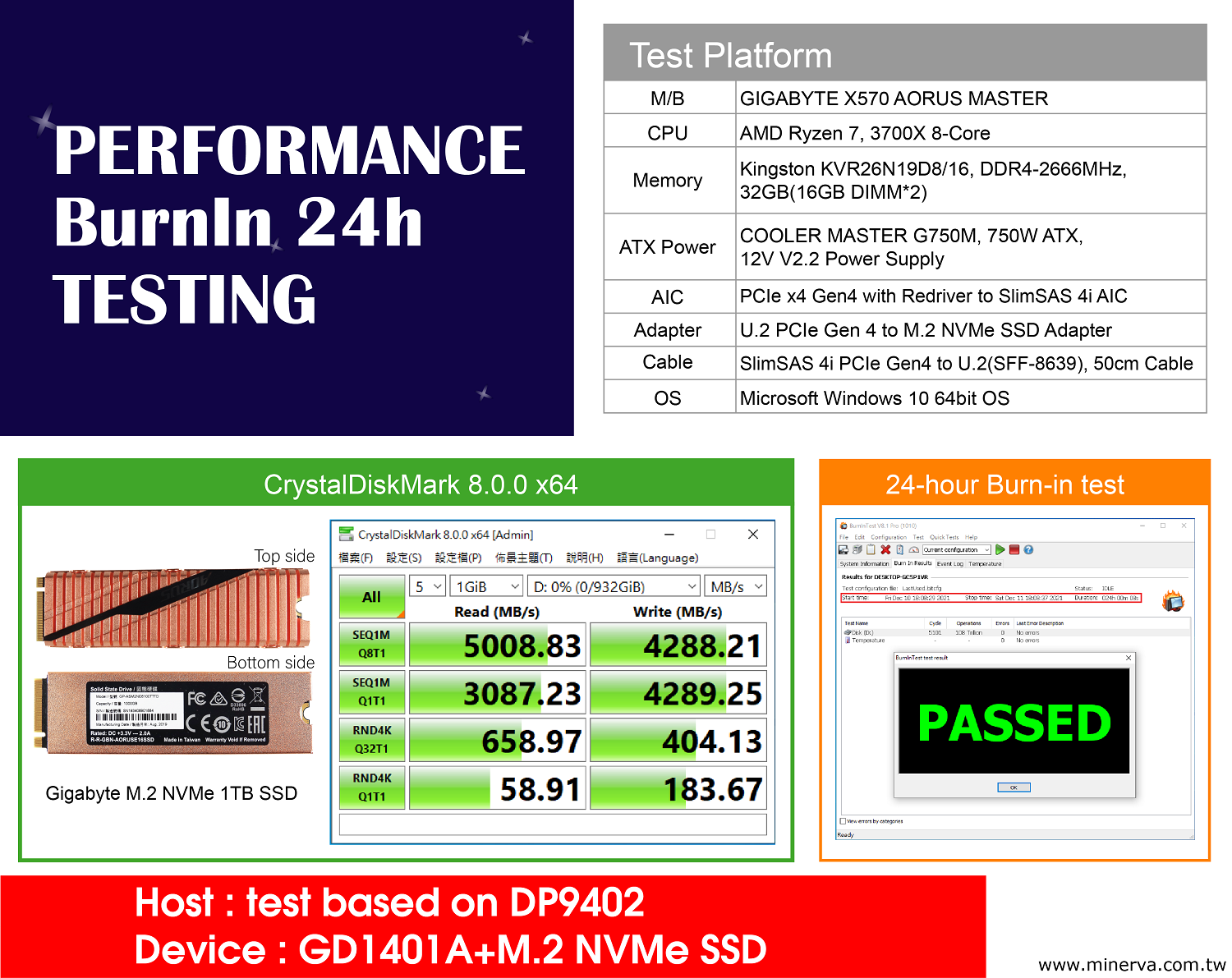

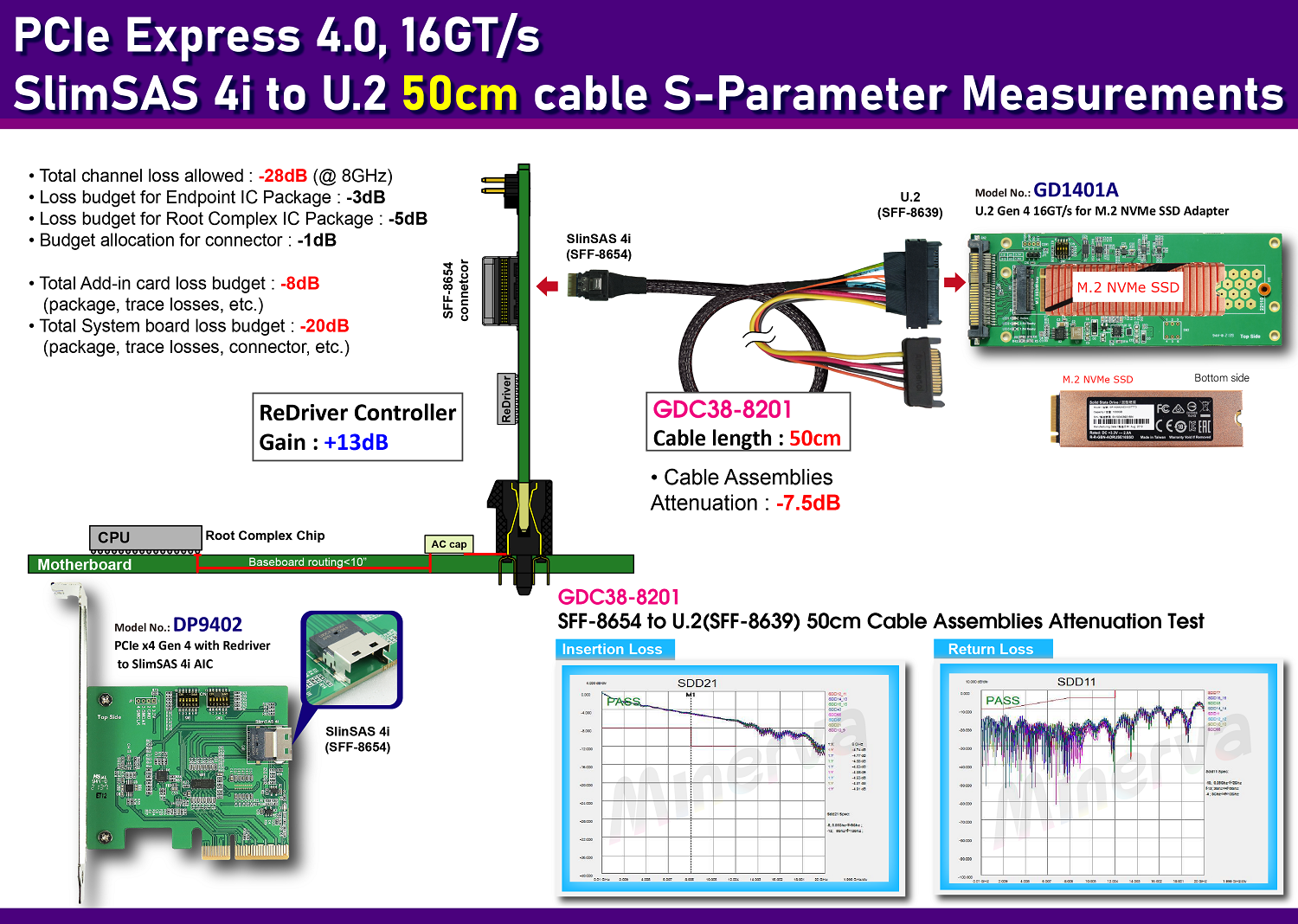

Test Report

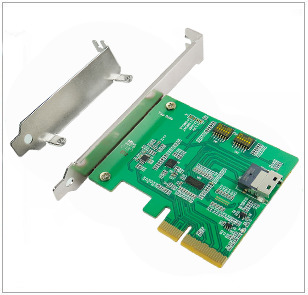

DP9402-2D drawing

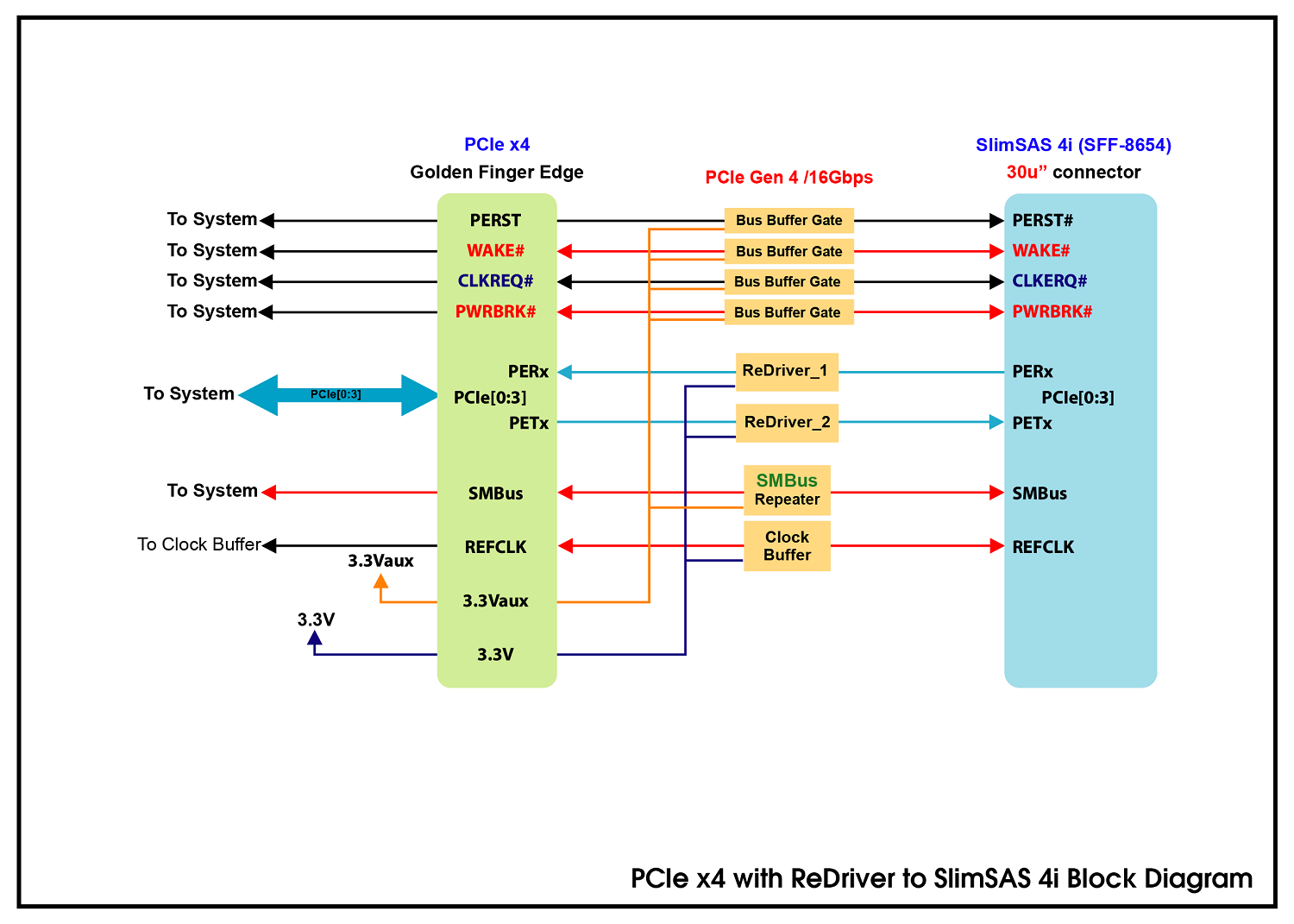

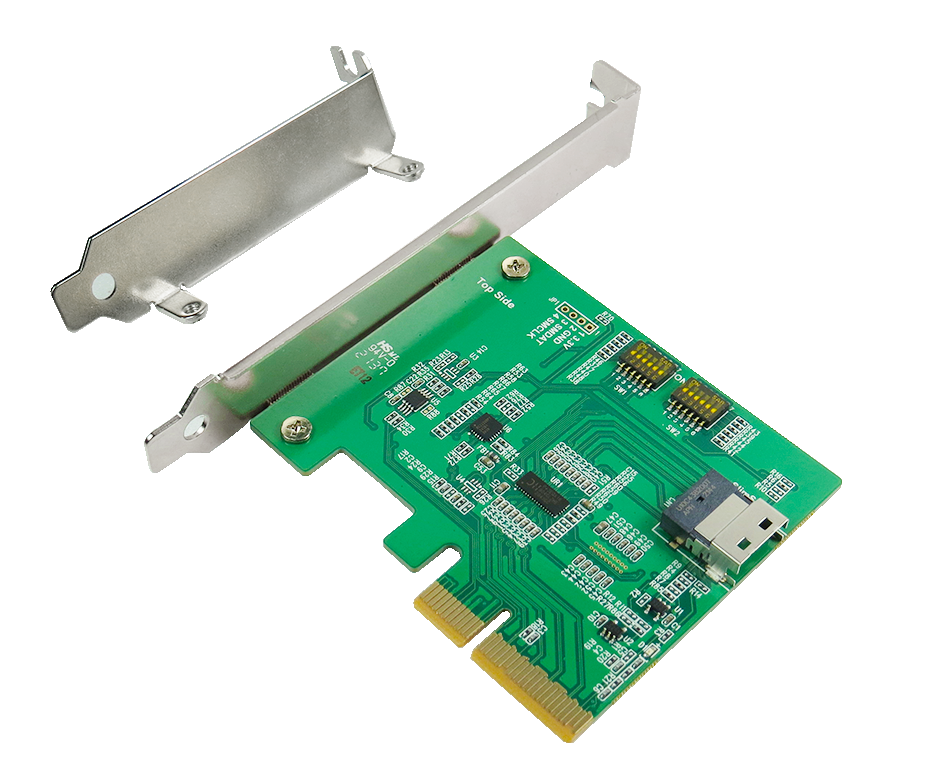

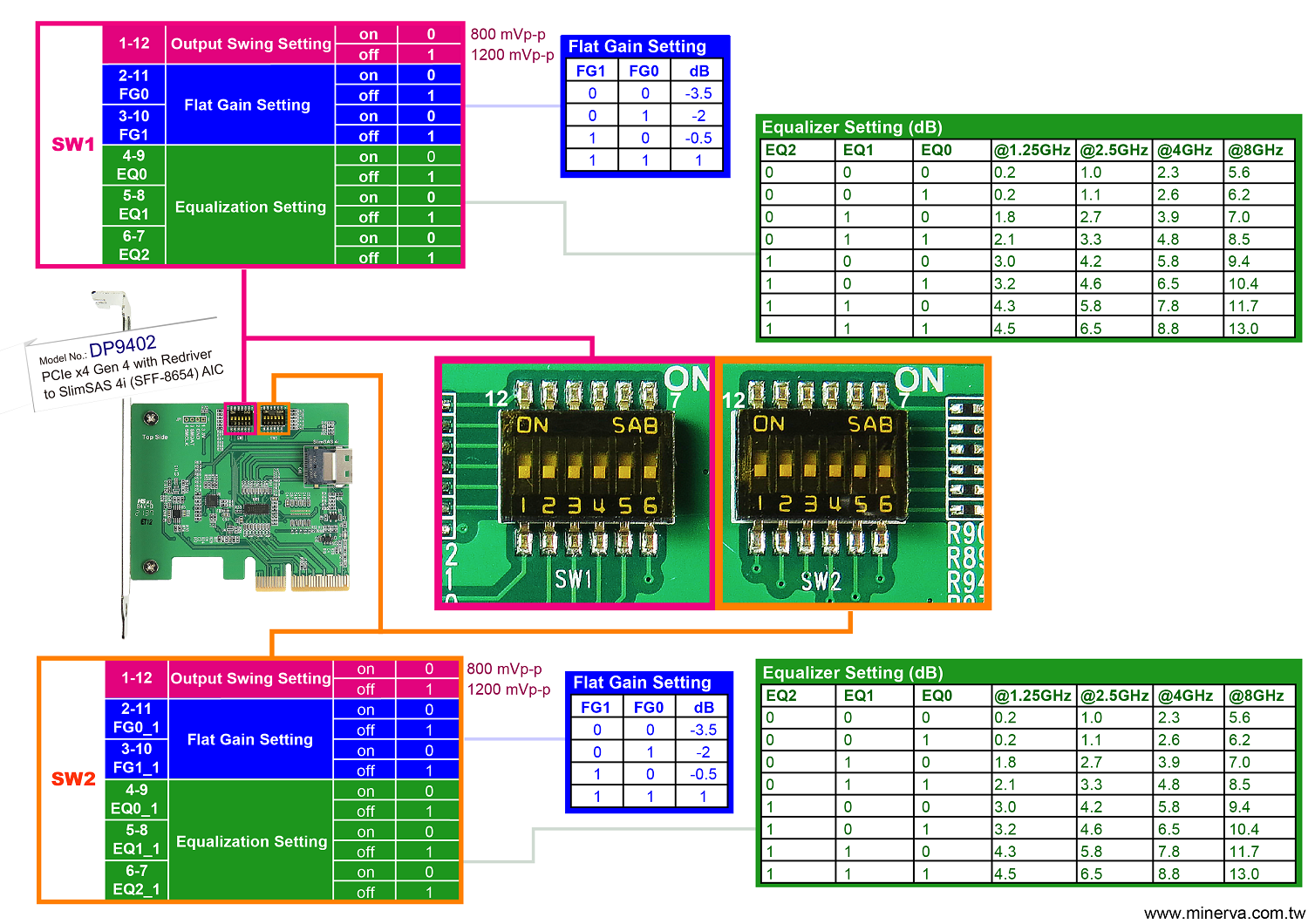

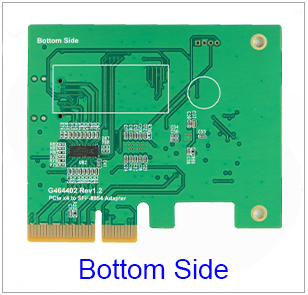

- SlimSAS 4i (SFF-8654) to PCI Express 4.0 x4 convert

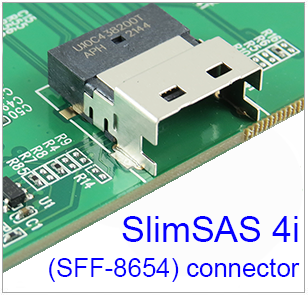

- Built- in SFF-8654 connector, pin-out defined by SFF-9402 Rev1.1
- Built- in PCIe 4.0 ReDriver to extend PCIe x4 data width link signals
- Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
- Built- in PCIe SMBus bidirectional buffer repeater
- Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
- Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
- Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
- Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
- D3 Green LED on indicates AIC ready
