specifications

PDF

Datasheet

PDF

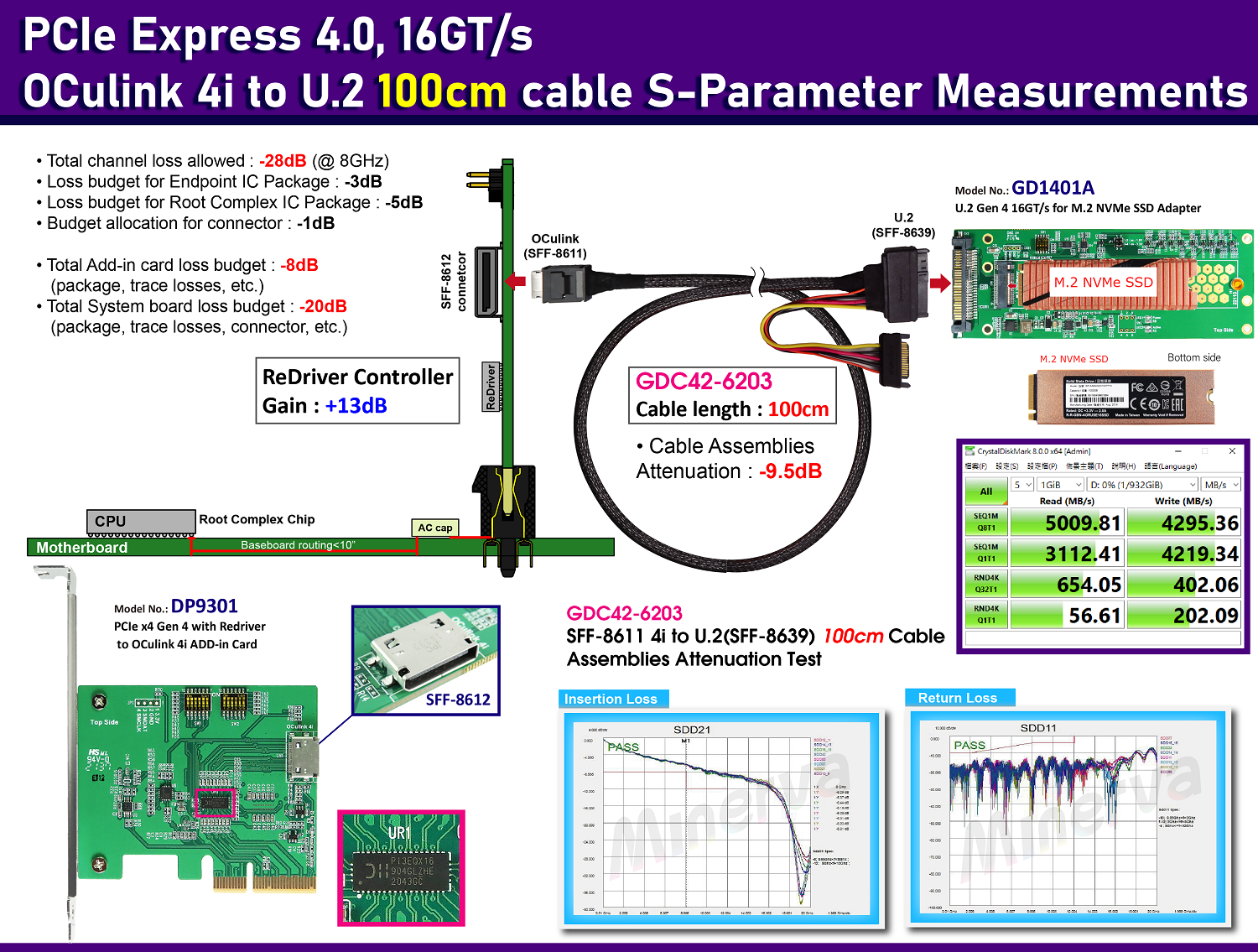

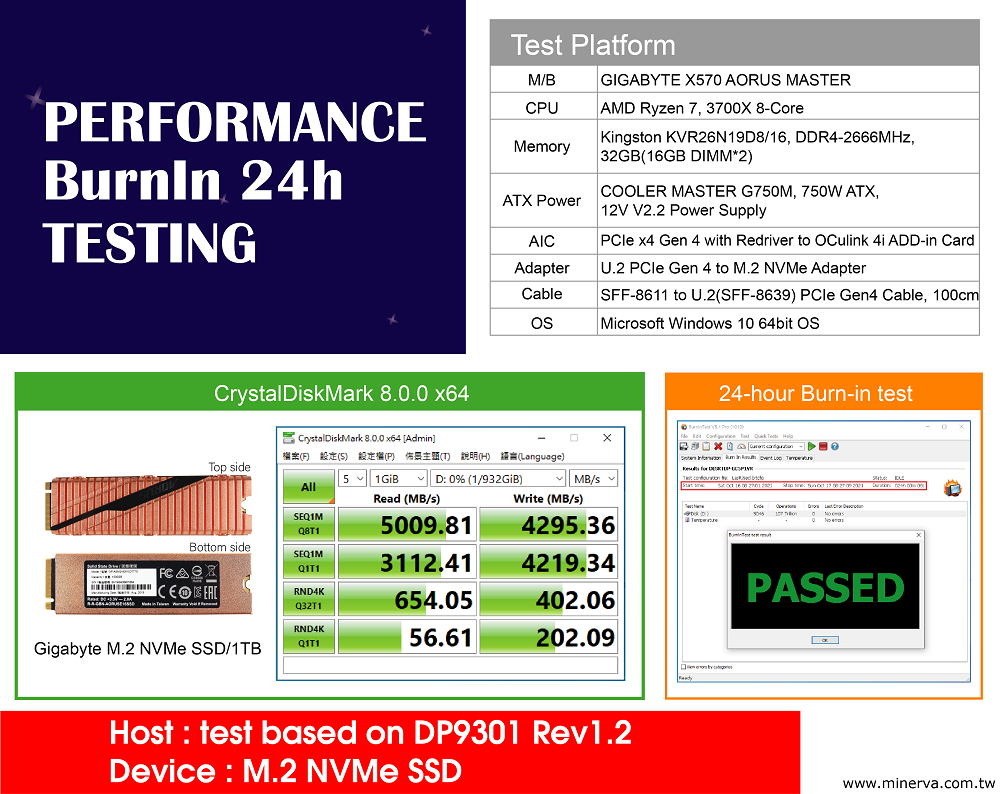

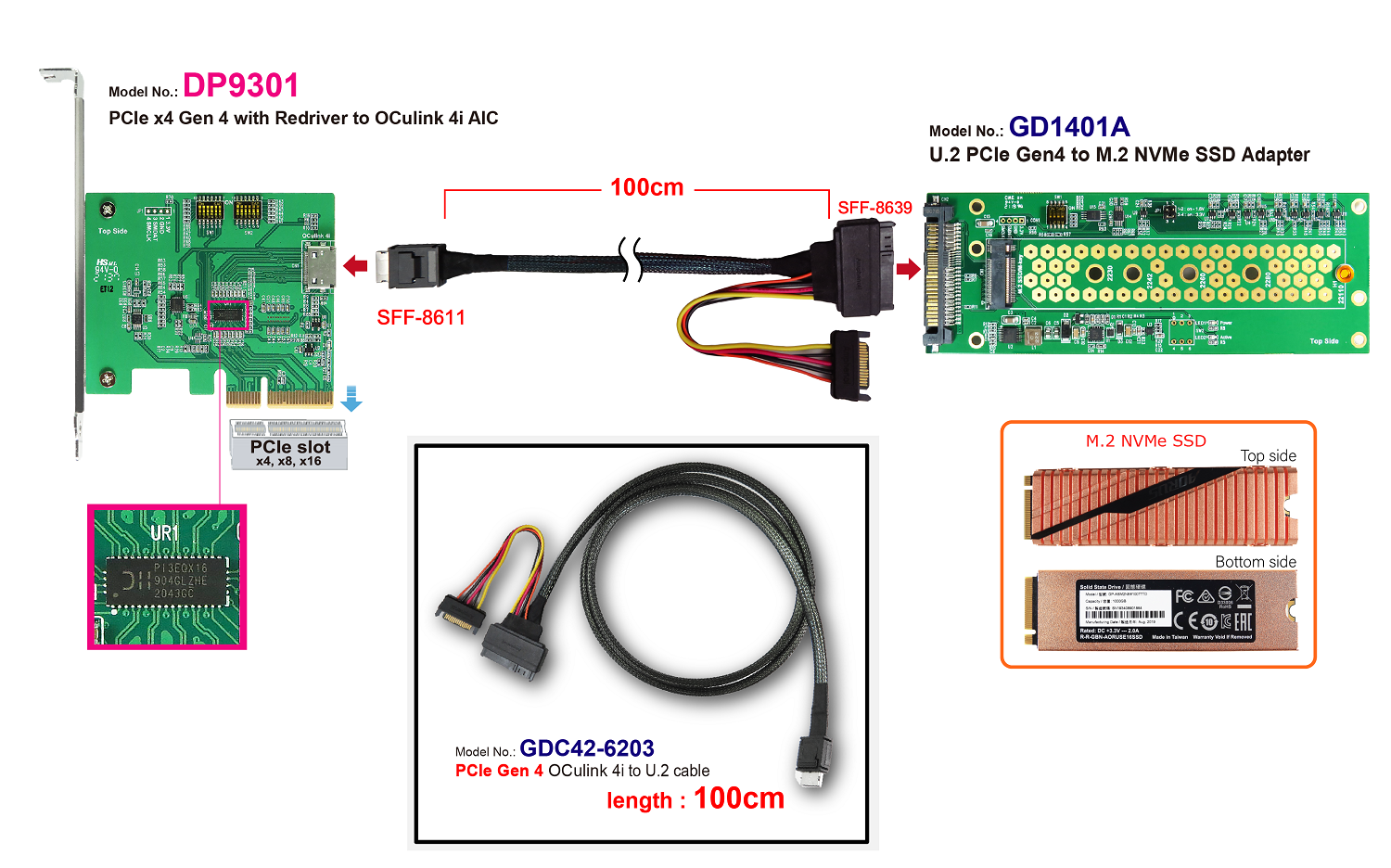

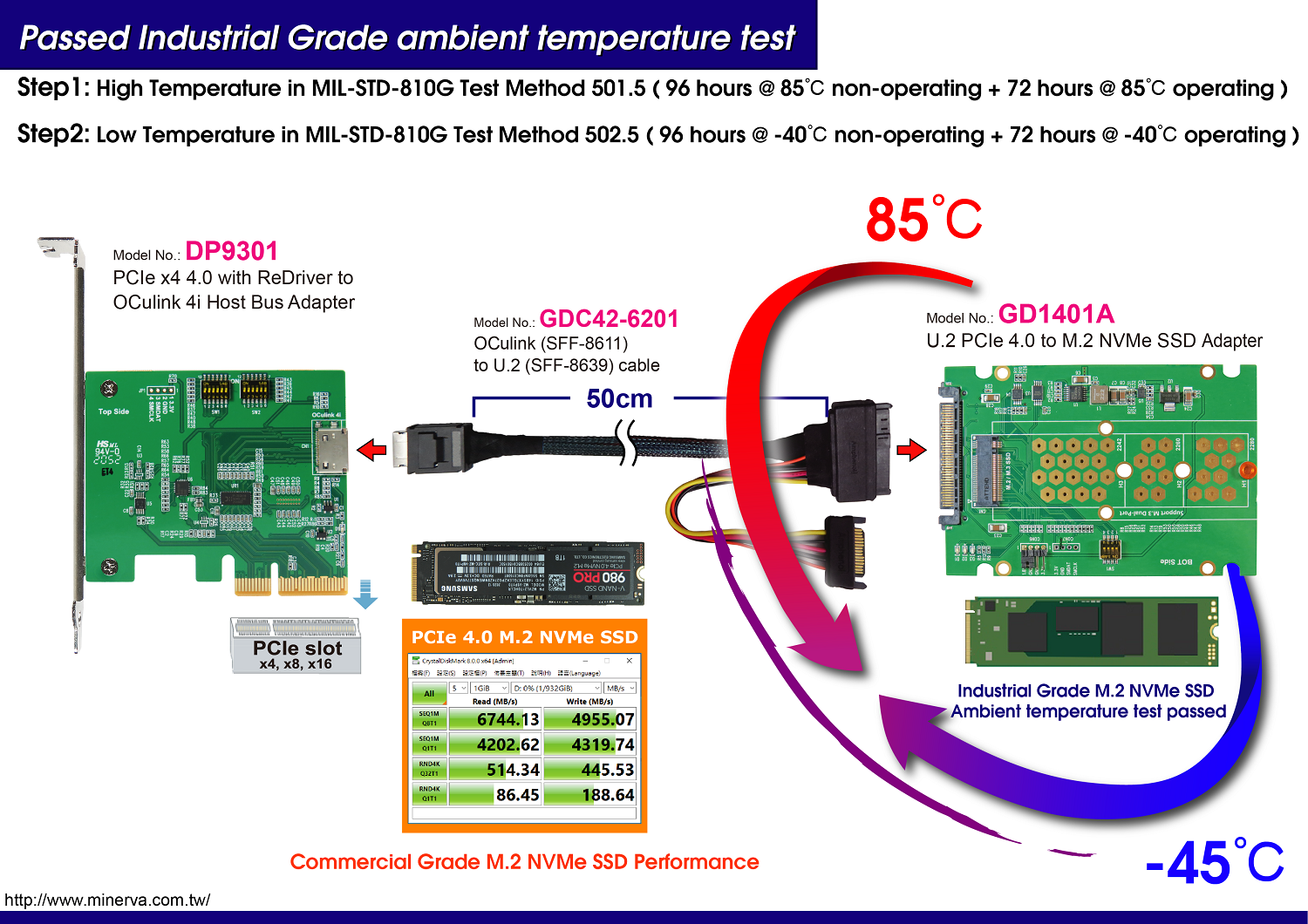

DP9301 Rev1.2 (Diodes) + 11 to U.2(100cm)+GD1401A+M.2 1TB

PDF

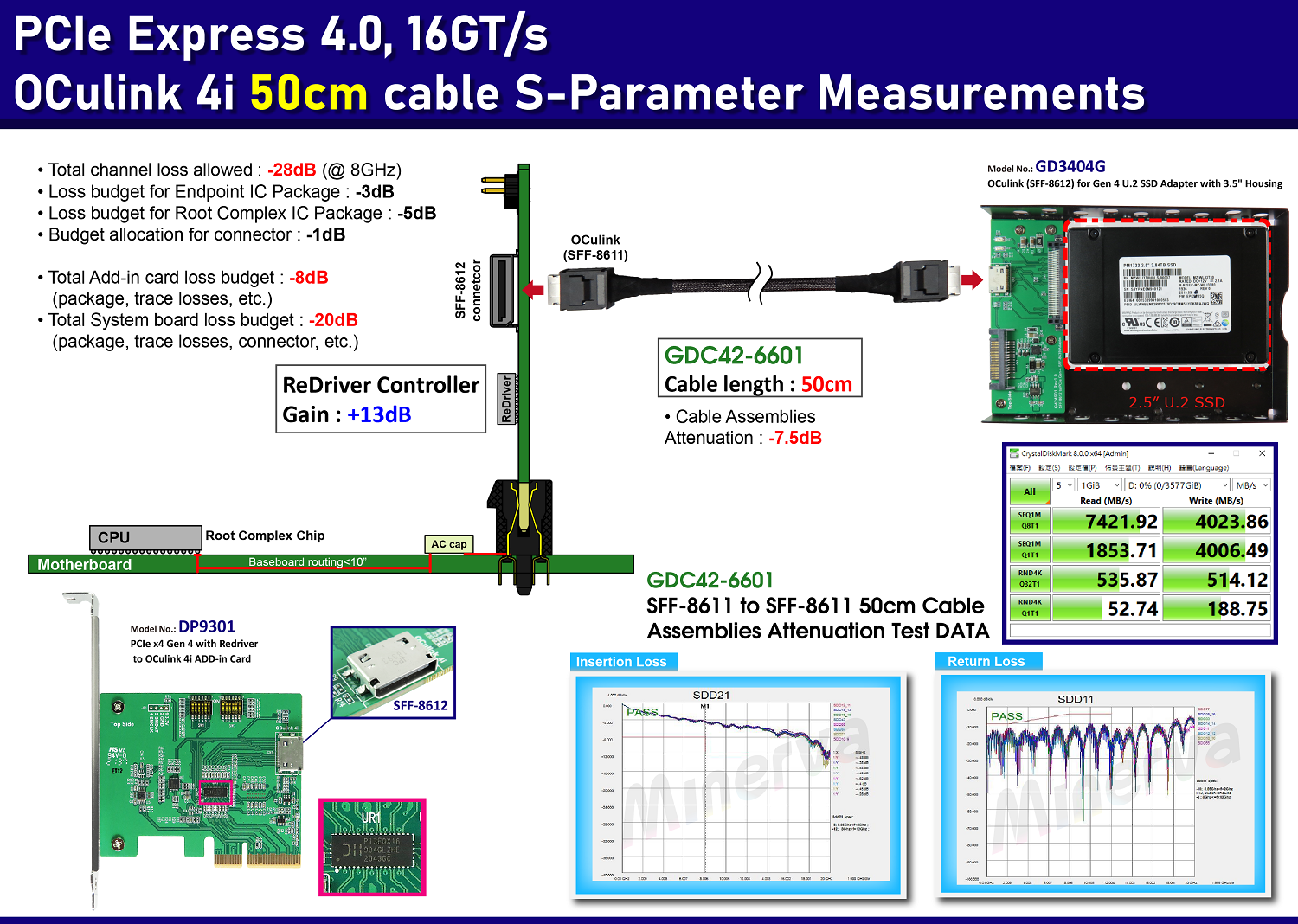

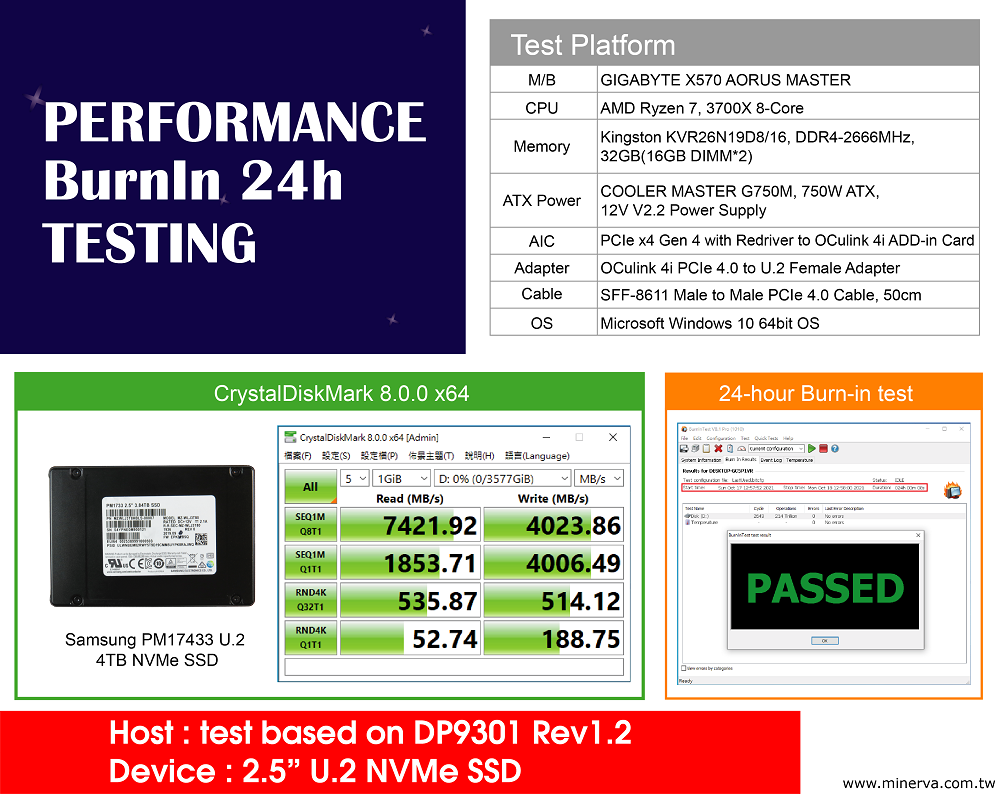

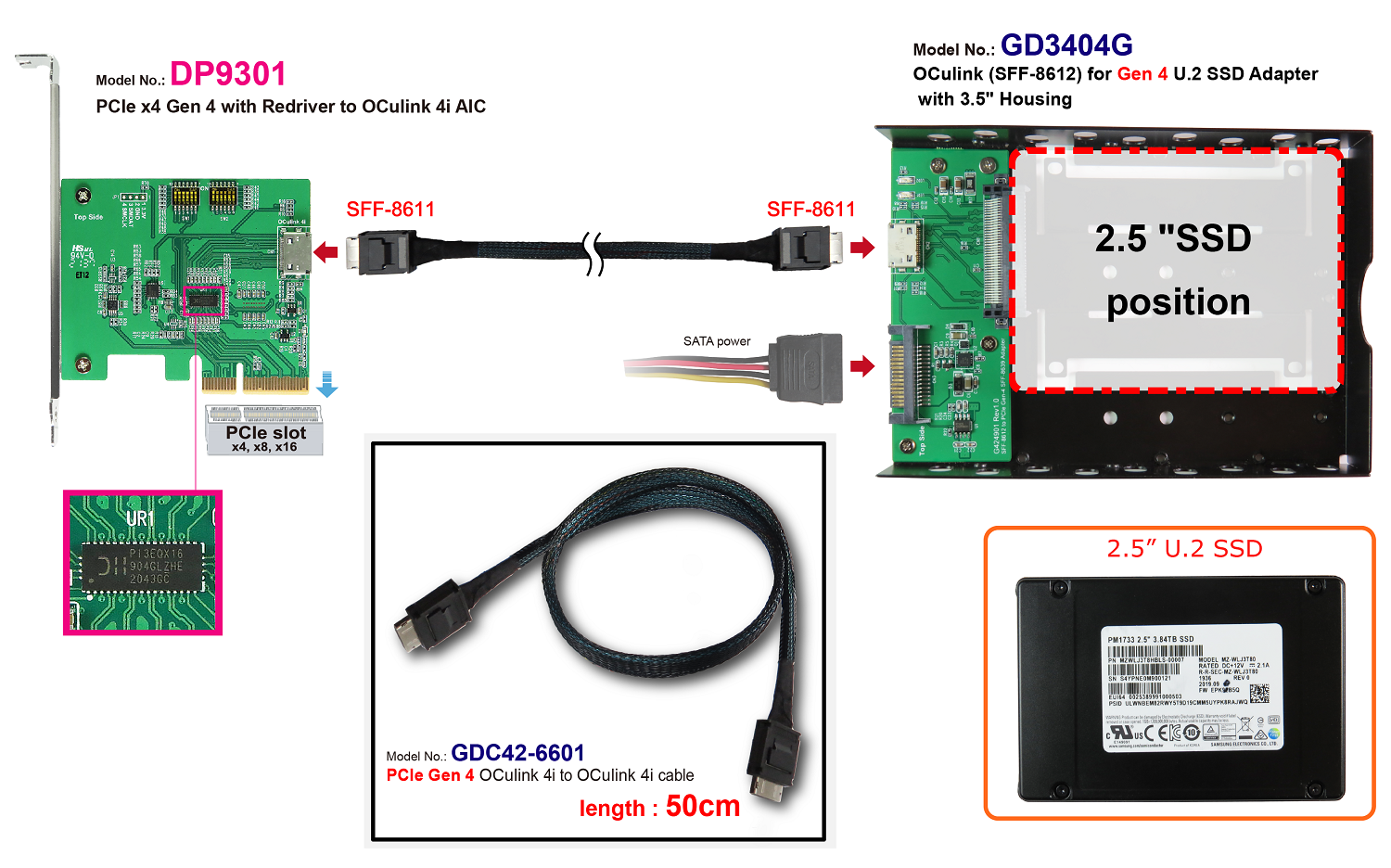

DP9301 Rev1.2 (Diodes) +GD3404G+11 to 11(50cm)+U.2 4TB

PDF

DP9301Rev 1.2 (Z4DB) +11 to U.2(100cm)+GD1401A+M.2 1TB

PDF

DP9301Rev1.2(Z4DB) +GD3404G+11 to 11(50cm)+U.2 4TB

PDF

DP9301-2D drawing









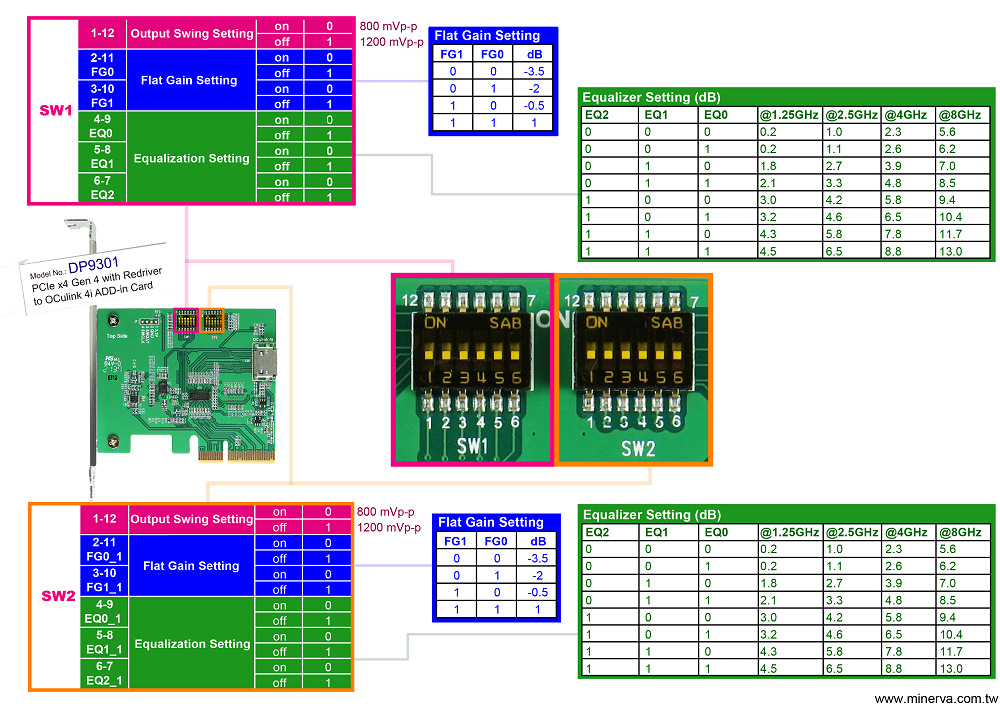

specifications

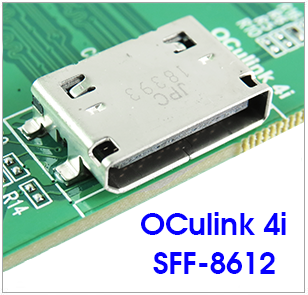

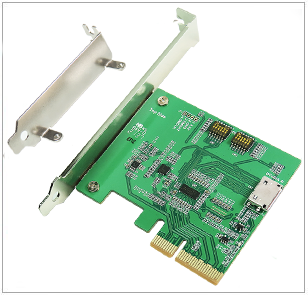

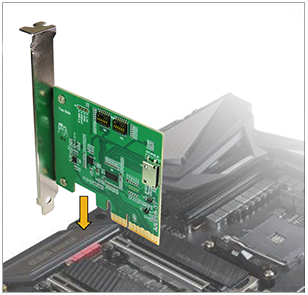

  • Oculink4i (SFF-8612) to PCIe convert
  • Built- in SFF-8612 connector, pin-out defined by SFF-9402 Rev1.1
  • Built- in PCIe ReDriver to extend PCIe Gen 4, 16GT/s differential pair signals
  • Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
  • Built- in PCIe 3.3V SMCLK, SMDAT bidirectional buffer repeater
  • Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
  • Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
  • Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
  • Built- in PWRBRK# Bus Buffer Gate to be used over longer trace lengths and longer over cable
  • D3 Green LED on indicates Host Bus Adapter ready
