- Supports Server BMC management
- Supports Industrial Grade temerature range

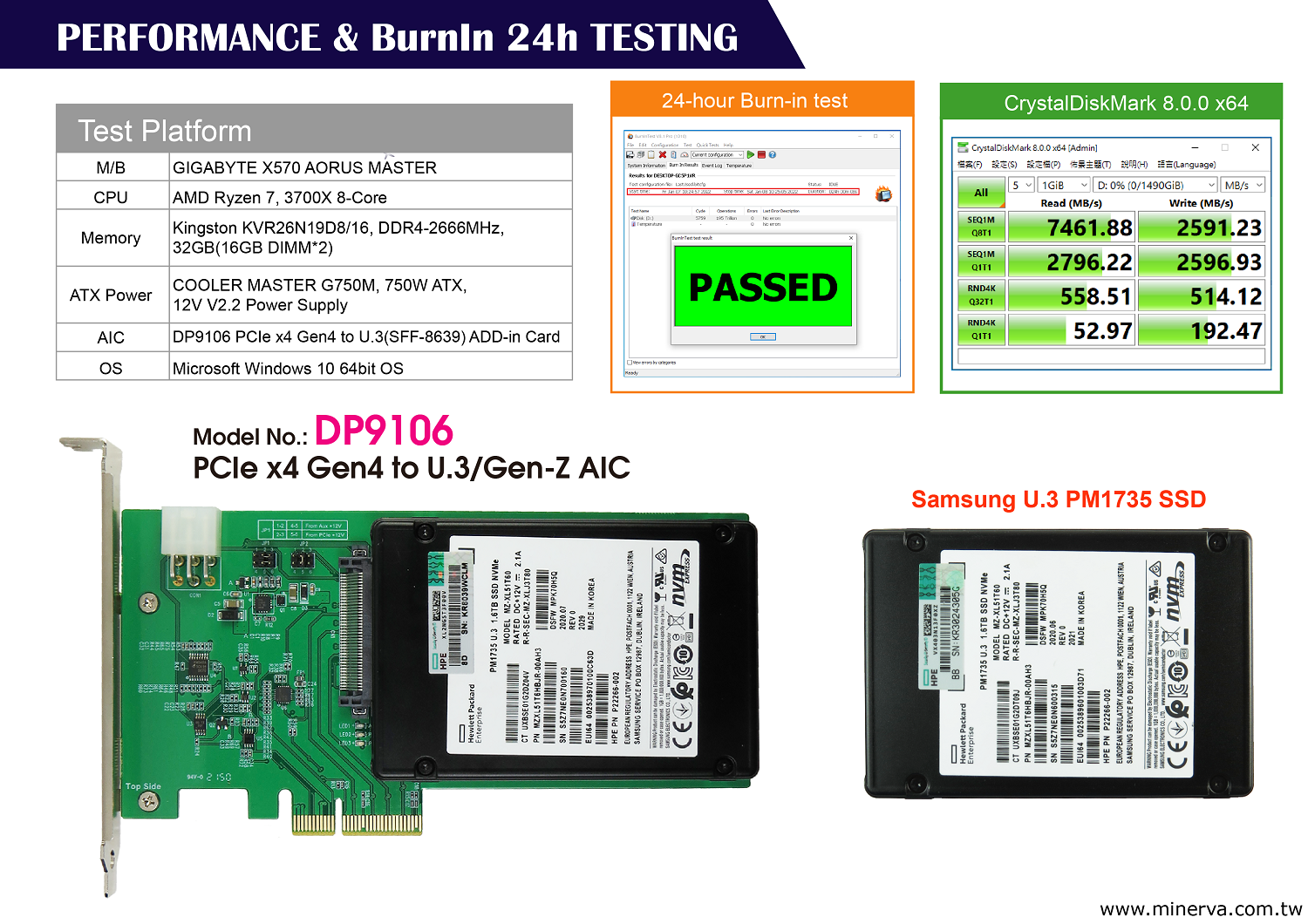

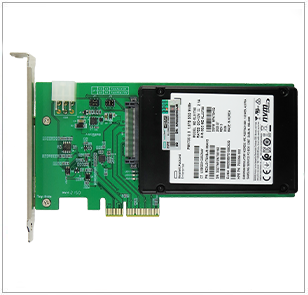

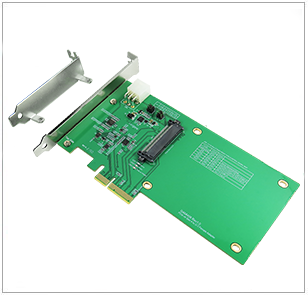

- U.3/Gen-Z (SFF-8639) to PCI Express 4.0 x4 convert

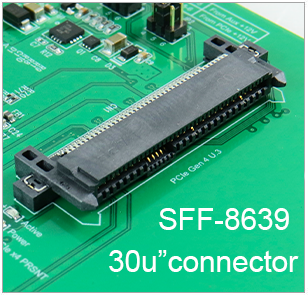

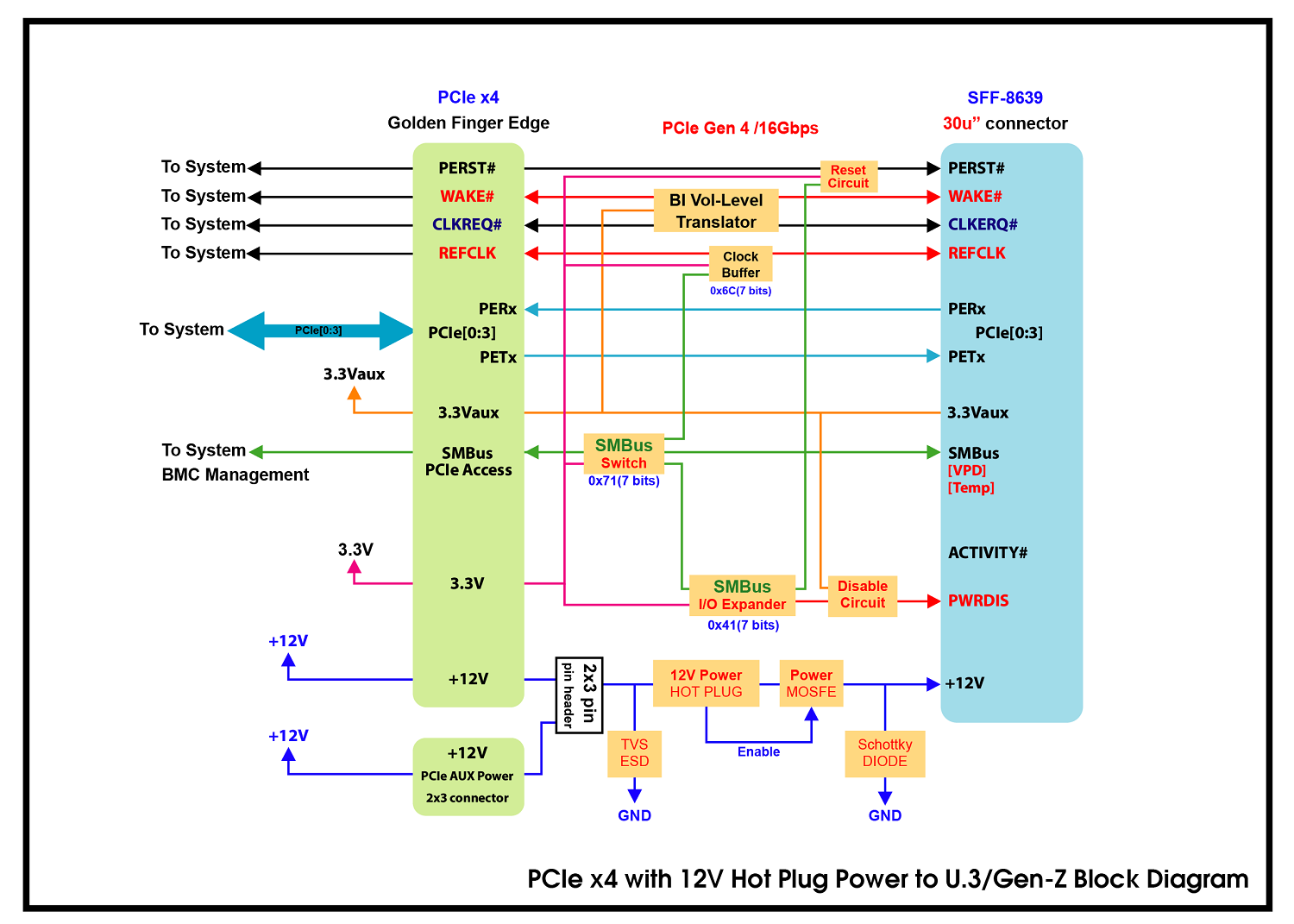

- Built- in SFF-8639, 30u”connector
- Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable, Address: 0x6C(7 bits)
- Built- in SMBus Switch, Address: 0x71(7 bits)
- Built- in SMBus I/O Expander, Address: 0x41(7 bits) for U.3/Gen-Z SSD PWRDIS control
- Supports PCIe PERST# for OOB(out of band) management to remote U.3/Gen-Z SSD Reset
- Built- in WAKE# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and over longer cable - Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- Built- in CLKREQ# bidirectional voltage-level translator for Open-Drain output to be used over longer trace lengths and longer over cable - Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

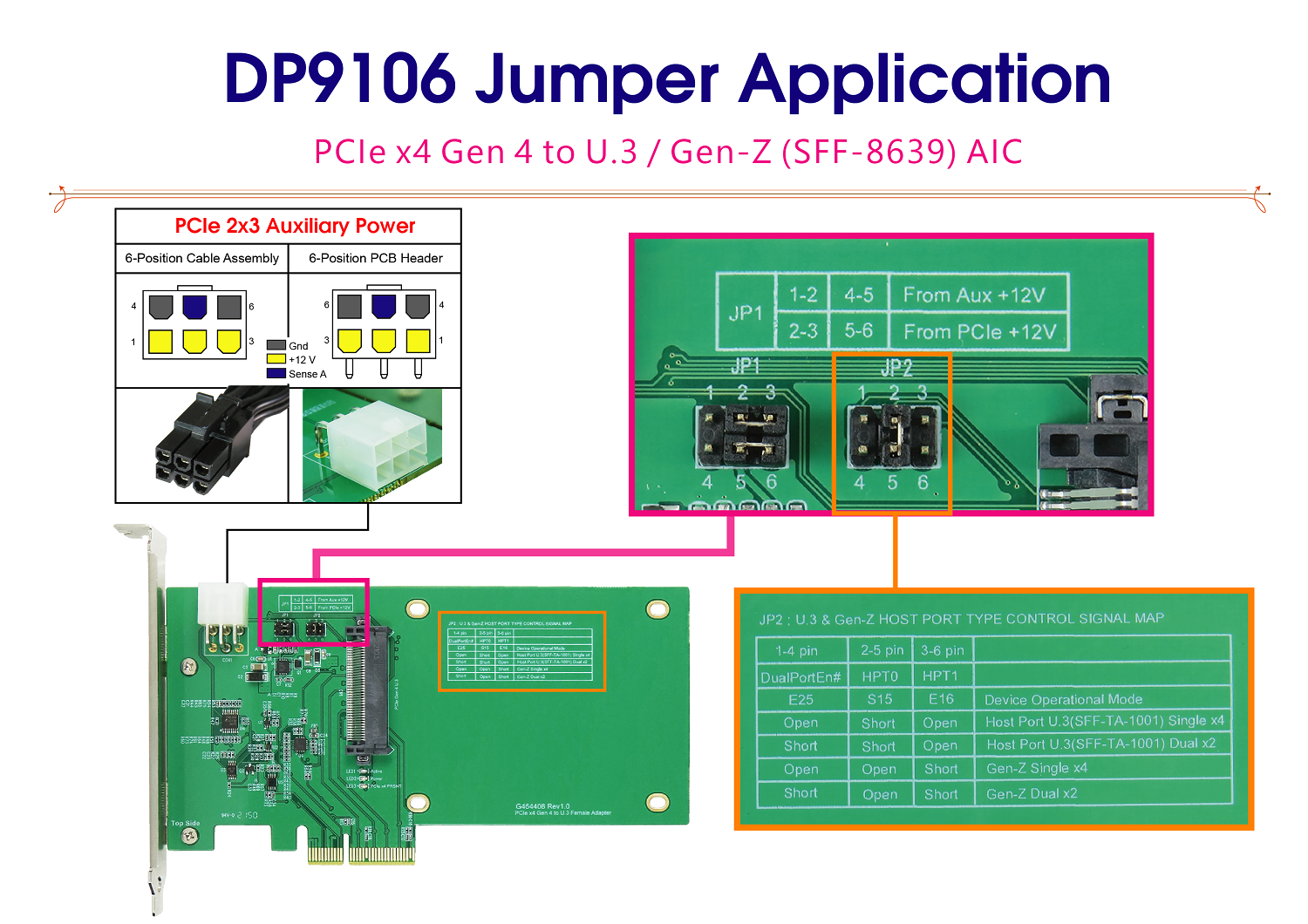

- Built-in 12V Hot Plug Power with eFuse protection for U.3 NVMe SSD
- ◆Programmable Current Limit: 6.5A
- ◆Programmable Inrush Current Slew Rate
- ◆Thermal shutdown protection and fault alert
- ◆Back-to-Back (B2B) FET Operation
- Built-in 12V input with 400W TVS(TRANSIENT VOLTAGE SUPPRESSOR) ESD protection
- Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32 m ohm
- Built-in 12V output with SCHOTTKY BARRIER Power Rectifier
