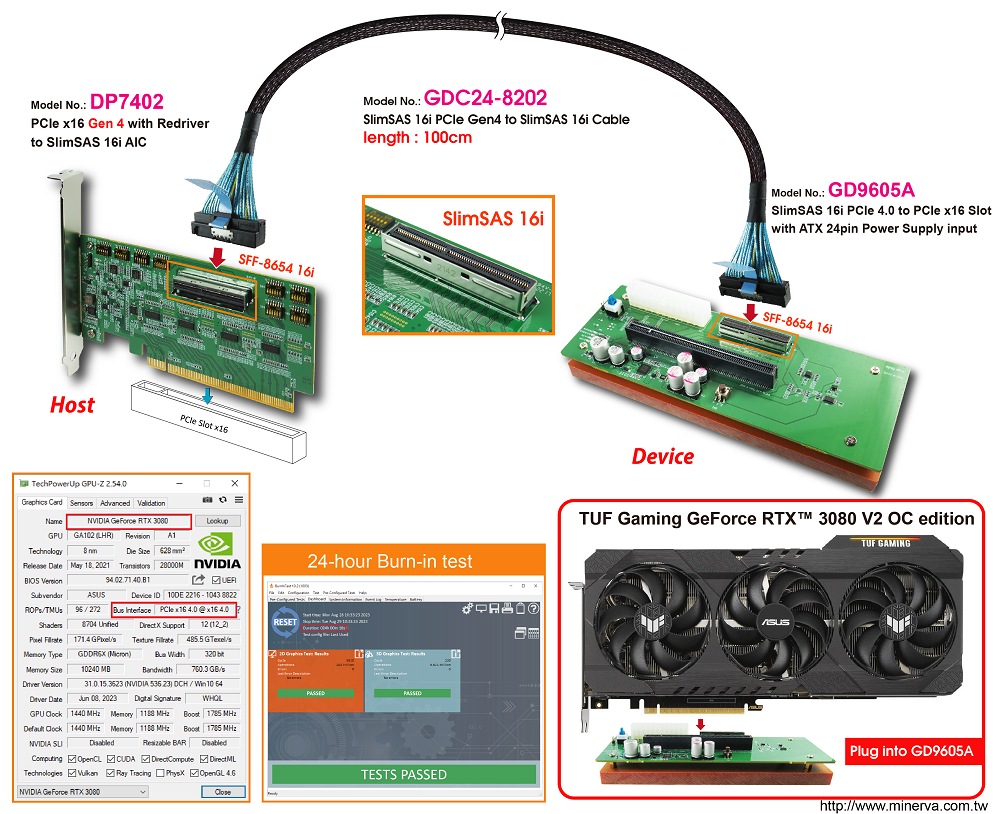

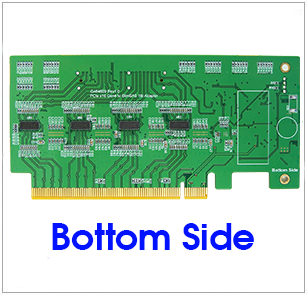

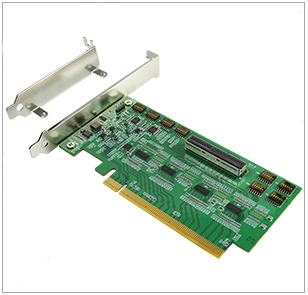

- SlimSAS 16i(SFF-8654) to PCIe x16 Gen4 convert

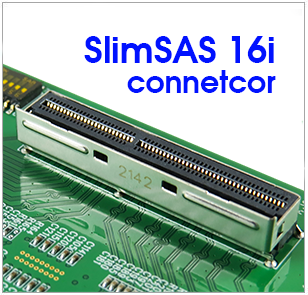

- Built-in SlimSAS 16i(SFF-8654) connector

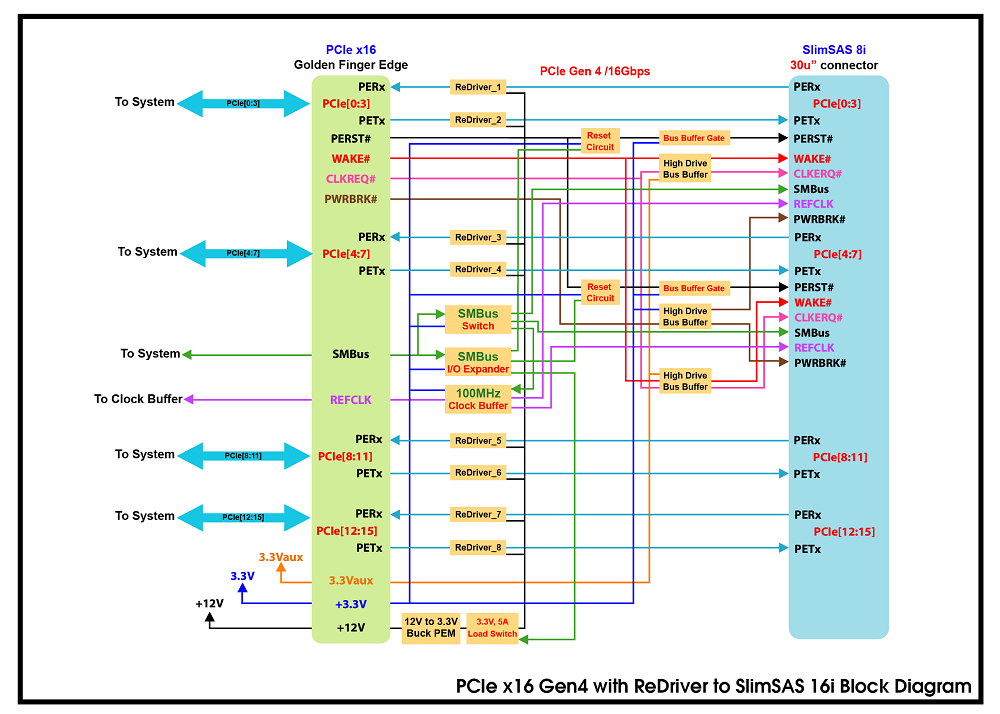

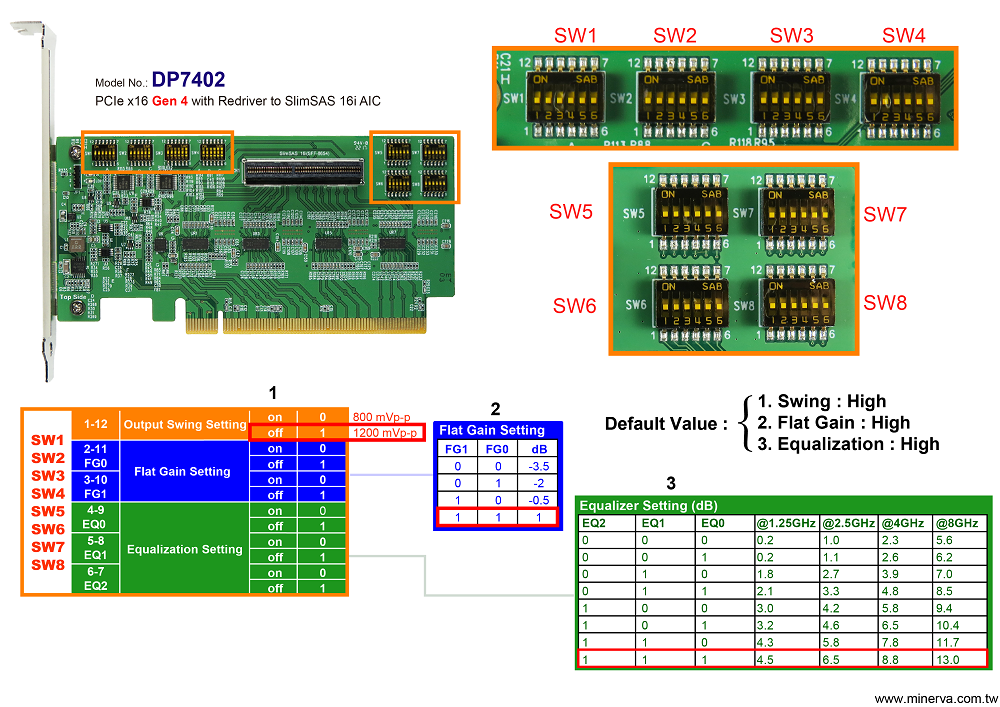

- Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width.
- The PCIe 16 lanes can be bifurcated into four x4 or two x8 link width to support different system topologies
- Built-in PCIe 4.0 100MHz Clock 2-output Fanout buffers(Address: 0x6C) for two x4 to drive longer cable length. It may be buffered and fanned out to the SlimSAS 16i(SFF-8654) clock pin.
- Built-in SMBus Switch(Address: 0x70) with Reset Funtion for SlimSAS 16i(SFF-8654) SMBus communication
- Built-in SMBus I/O Expander(Address: 0x20) for OOB(out of band) management to remote SlimSAS 16i (SFF-8654) Reset signals.
- Supports PCIe PERST# management to control SlimSAS 16i(SFF-8654) Reset signals.
- Built-in PERST# Bus Buffer to be used over longer cable length.
- Built-in WAKE# Auto-Bidirectional Bus Buffer to be used over longer cable length.
- Built-in CLKREQ# Auto-Bidirectional Bus Buffer to be used over longer cable length.
- Built-in PWRBRK# Bus Buffer to be used over longer cable length.
- Built-in 12V to 3.3V, 5.5A PWM Power controller
- Built-in 3.3V Power Load Switch for ReDriver controller Power Protection.
- D1 Green LED on indicates AIC ready
- LED1 Green LED on indicates AIC 3.3V ready
