specifications

PDF

Datasheet

PDF

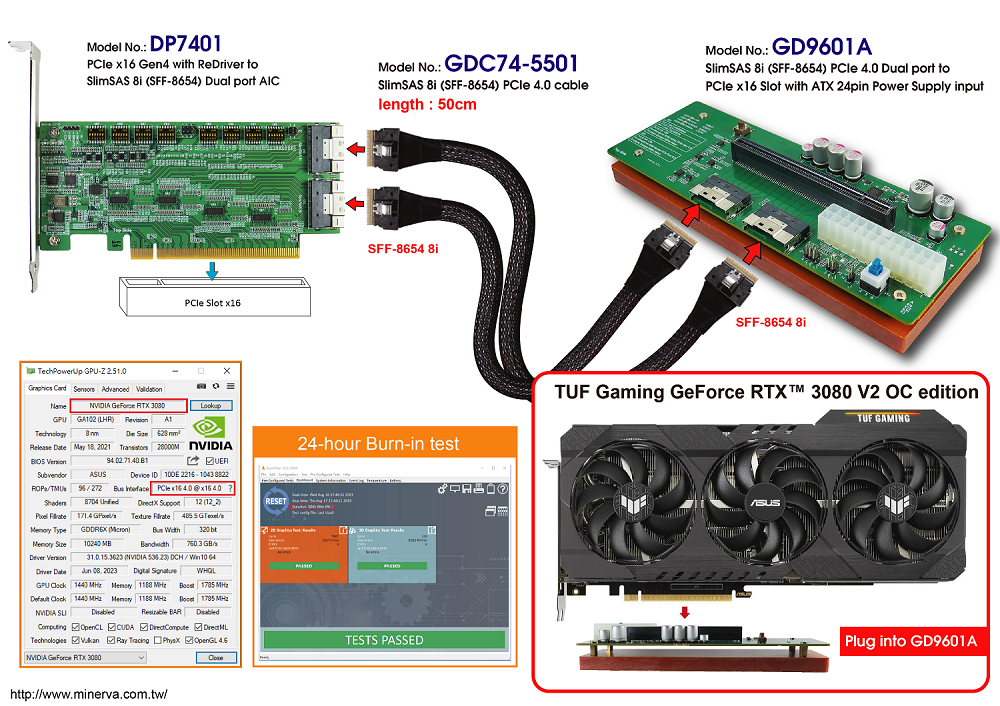

Test report for ASUS TUF RTX3080

PDF

Test report for GCD74-5501+GD9801G

PDF

Test report for PCIe lane 0~lane 7

PDF

Test report for PCIe lane 8~lane 15

PDF

2D drawing









specifications

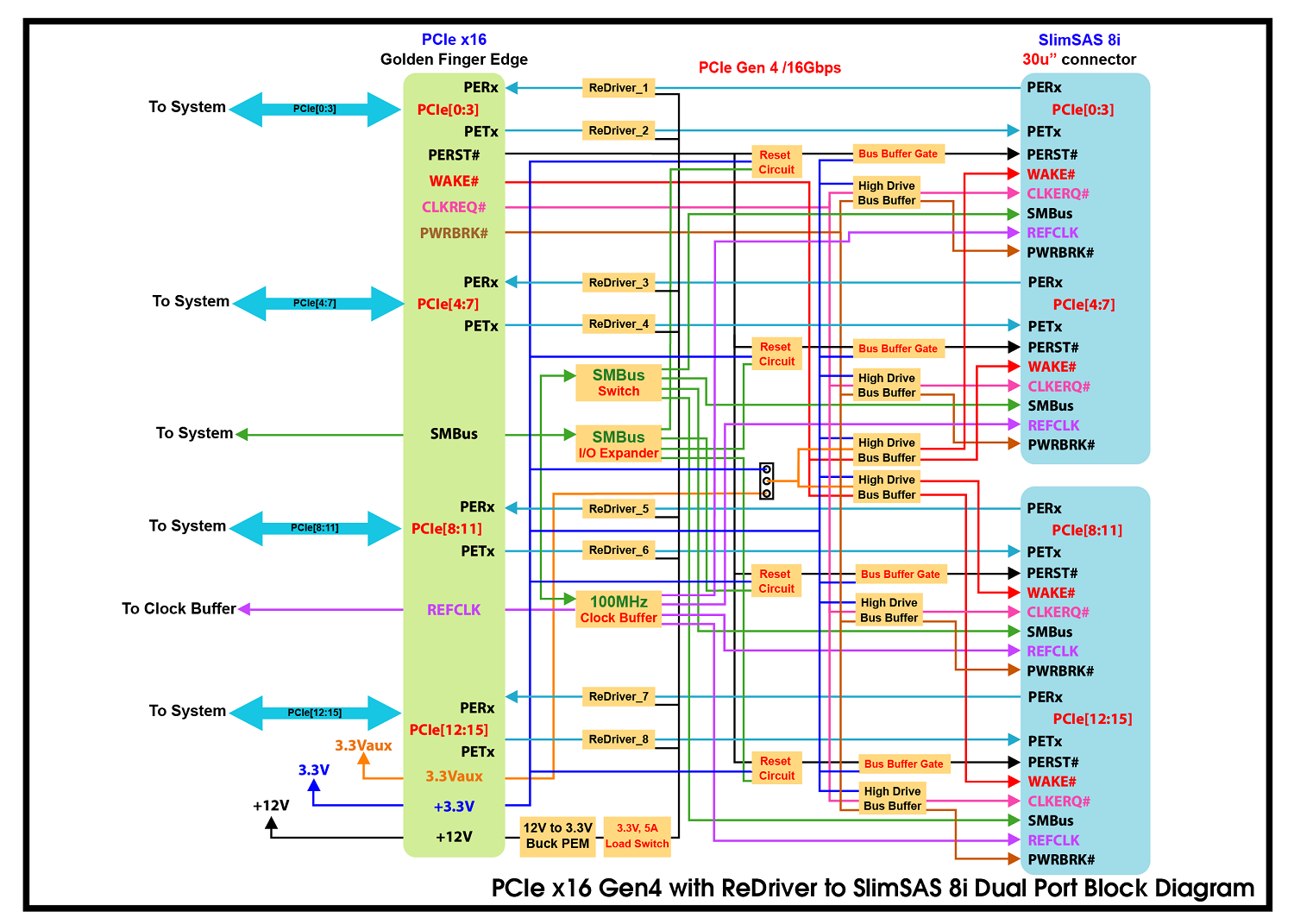

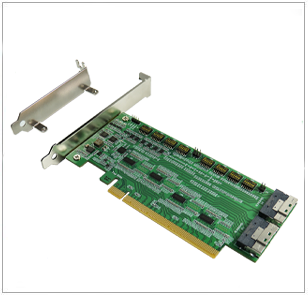

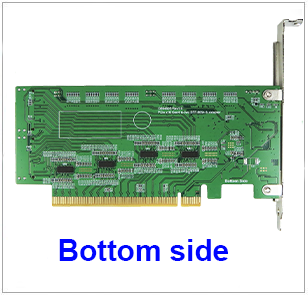

  • SlimSAS 8i (SFF-8654) to PCIe x16 Gen4 convert

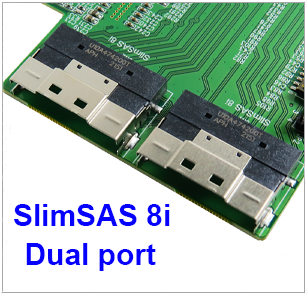

  • Built-in SFF-8654 8i connector x2pcs, pin define by SFF-9402 Rev1.1

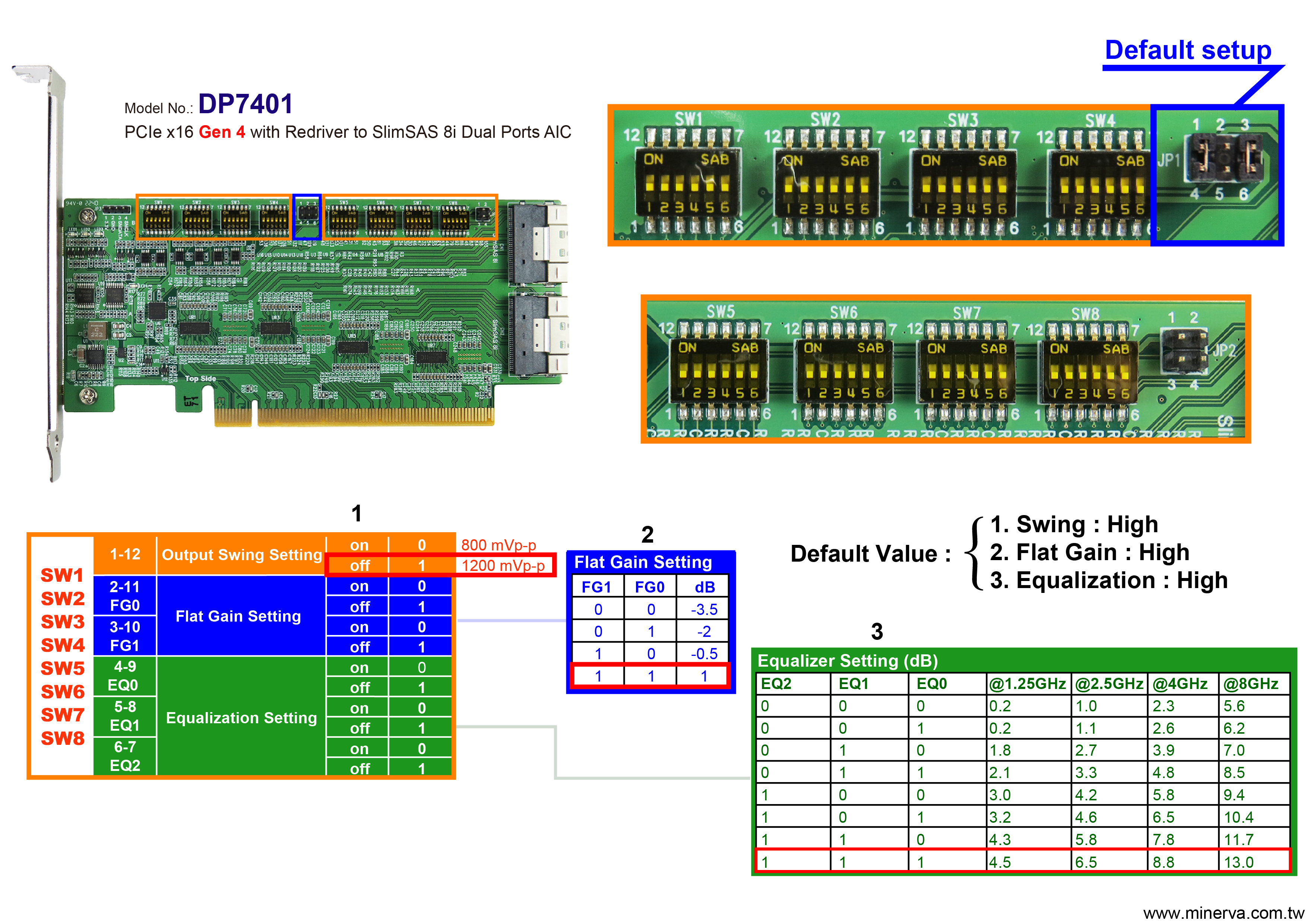

  • Built-in ReDriver to extend PCIe 4.0, 16GT/s 16 lanes differential pair signals data link width.
  • The PCIe 16 lanes can be bifurcated into four x4 link width to support different system topologies
  • Built-in PCIe 100MHz Clock buffer(Address: 0x6C) for SlimSAS 8i(SFF-8654) to drive longer cable length. It may be buffered and fanned out to the SlimSAS 8i(SFF-8654) clock pin.
  • Built-in SMBus Switch(Address: 0x70) with Reset Funtion for SlimSAS 8i(SFF-8654) SMBus communication
  • Built-in SMBus I/O Expander(Address: 0x20) for OOB(out of band) management to remote SlimSAS 8i (SFF-8654) Reset signals.
  • Supports PCIe PERST# management to control SlimSAS 8i(SFF-8654) Reset signals.
  • Built-in PERST# Bus Buffer to be used over longer cable length.
  • Built-in WAKE# Auto-Bidirectional Bus Buffer to be used over longer cable length.
  • Built-in CLKREQ# Auto-Bidirectional Bus Buffer to be used over longer cable length.
  • Built-in PWRBRK# Bus Buffer to be used over longer cable length.
  • Built-in 12V to 3.3V, 5.5A PWM Power controller
  • Built-in 3.3V Power Load Switch for ReDriver controller Power Protection.
  • The WAKE# signals power supply can choose +3.3V or 3.3VAUX, the default is 3.3VAUX
  • LED1 Green LED on indicates AIC ready
  • LED4 Green OFF indicates PERST# Normal (Function intentionally inverted)
