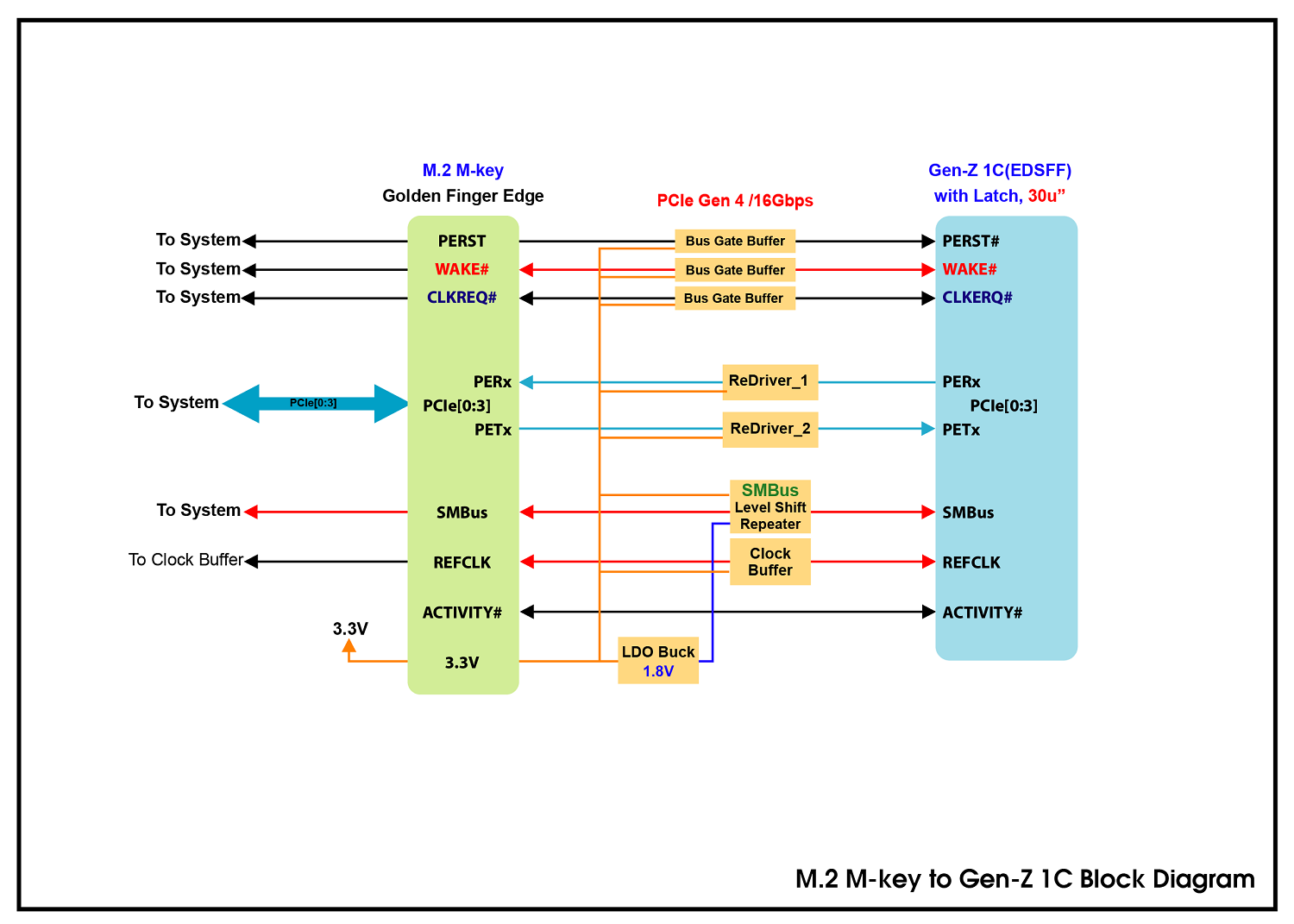

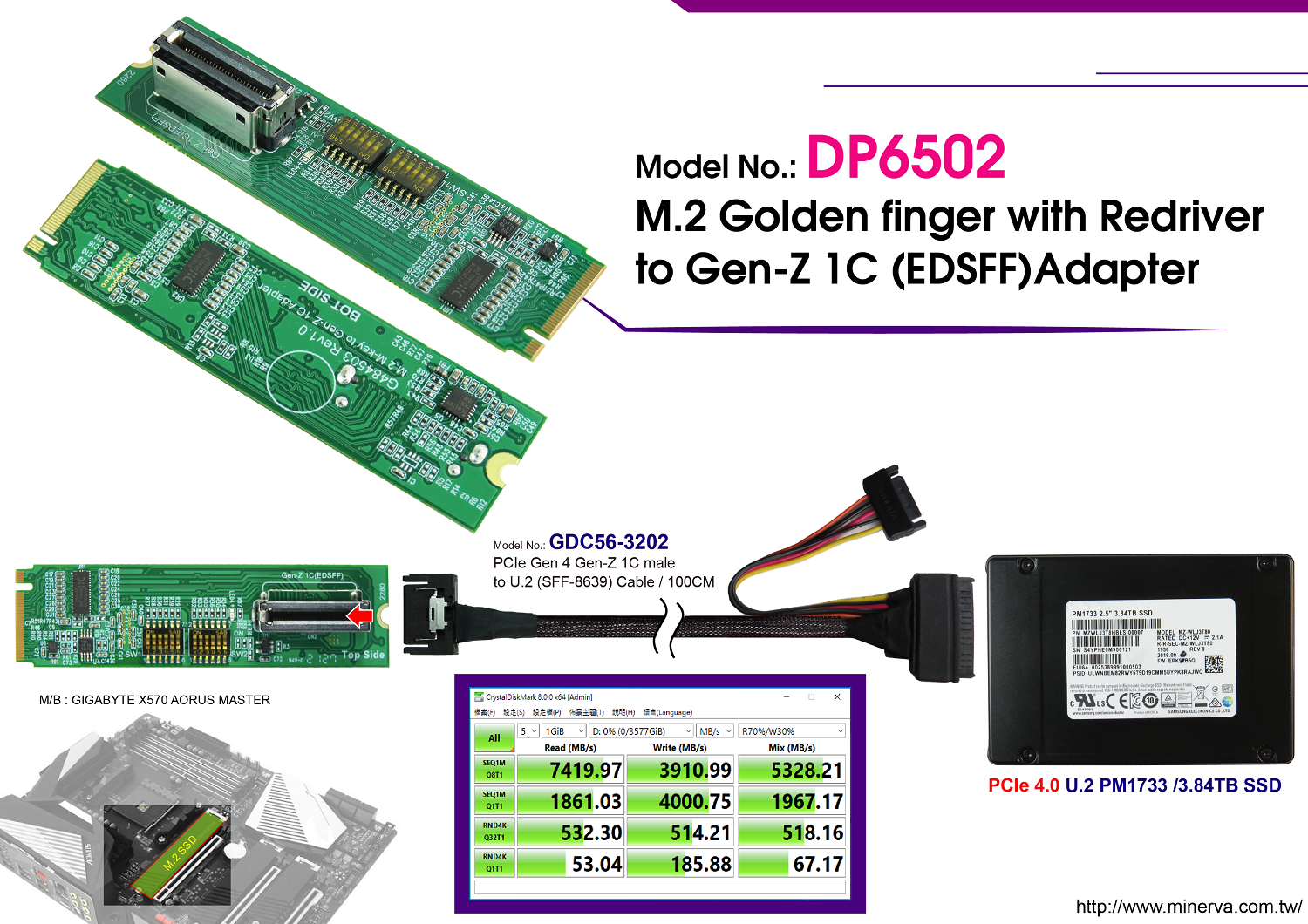

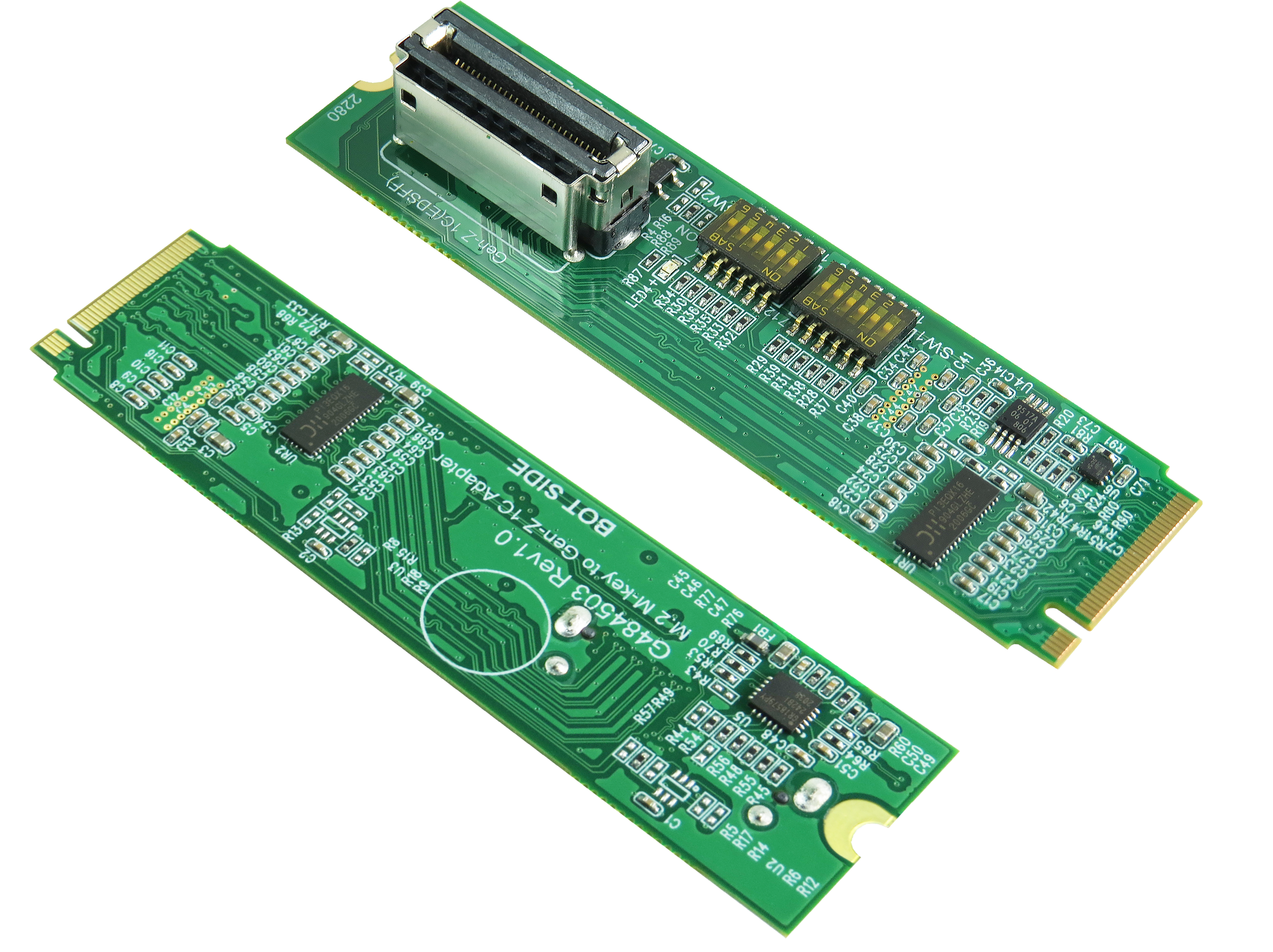

- Gen-Z 1C(EDSFF) to PCI Express 4.0 M.2 4-Lane convert
- Built- in Gen-Z 1C(EDSFF) connector

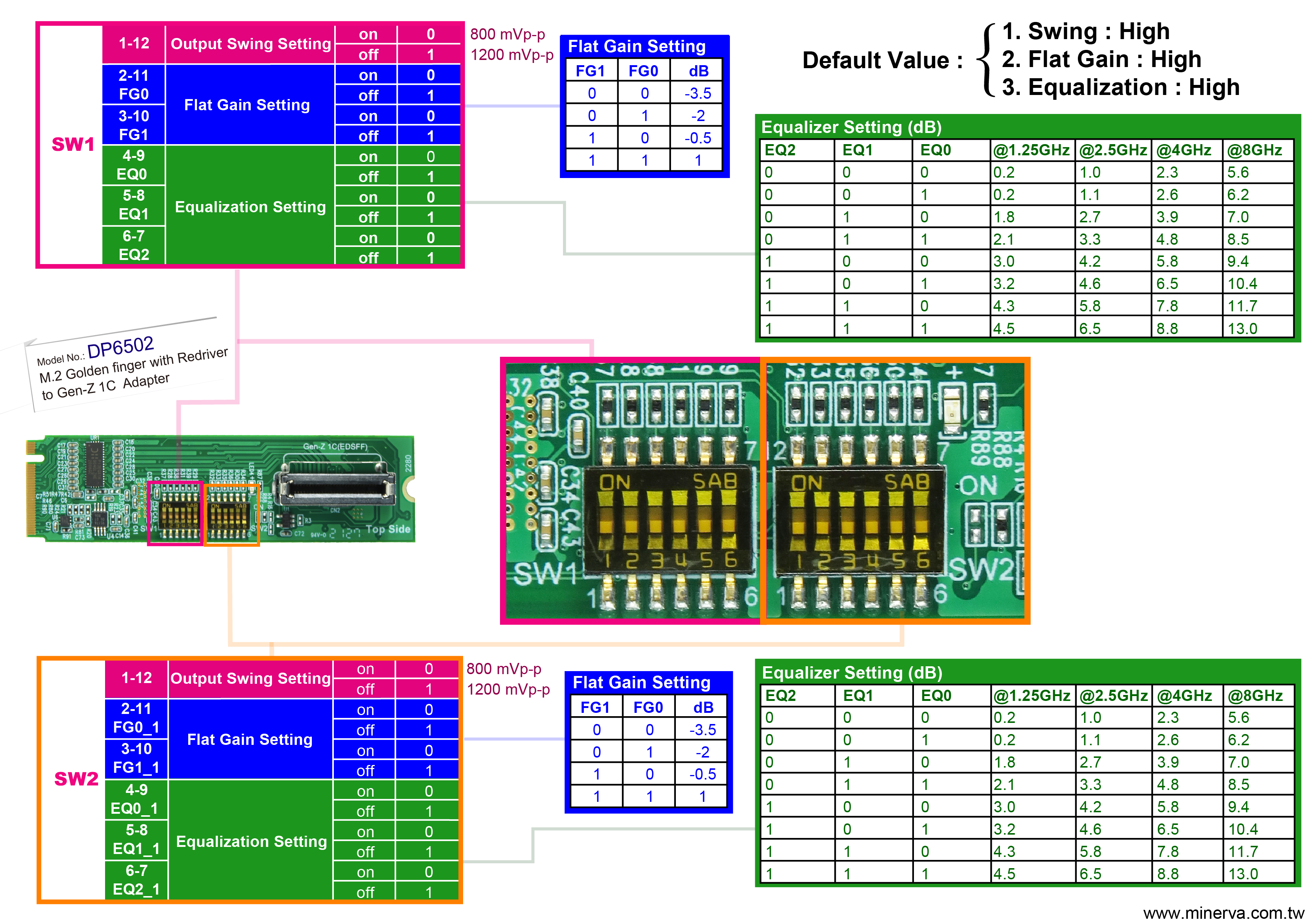

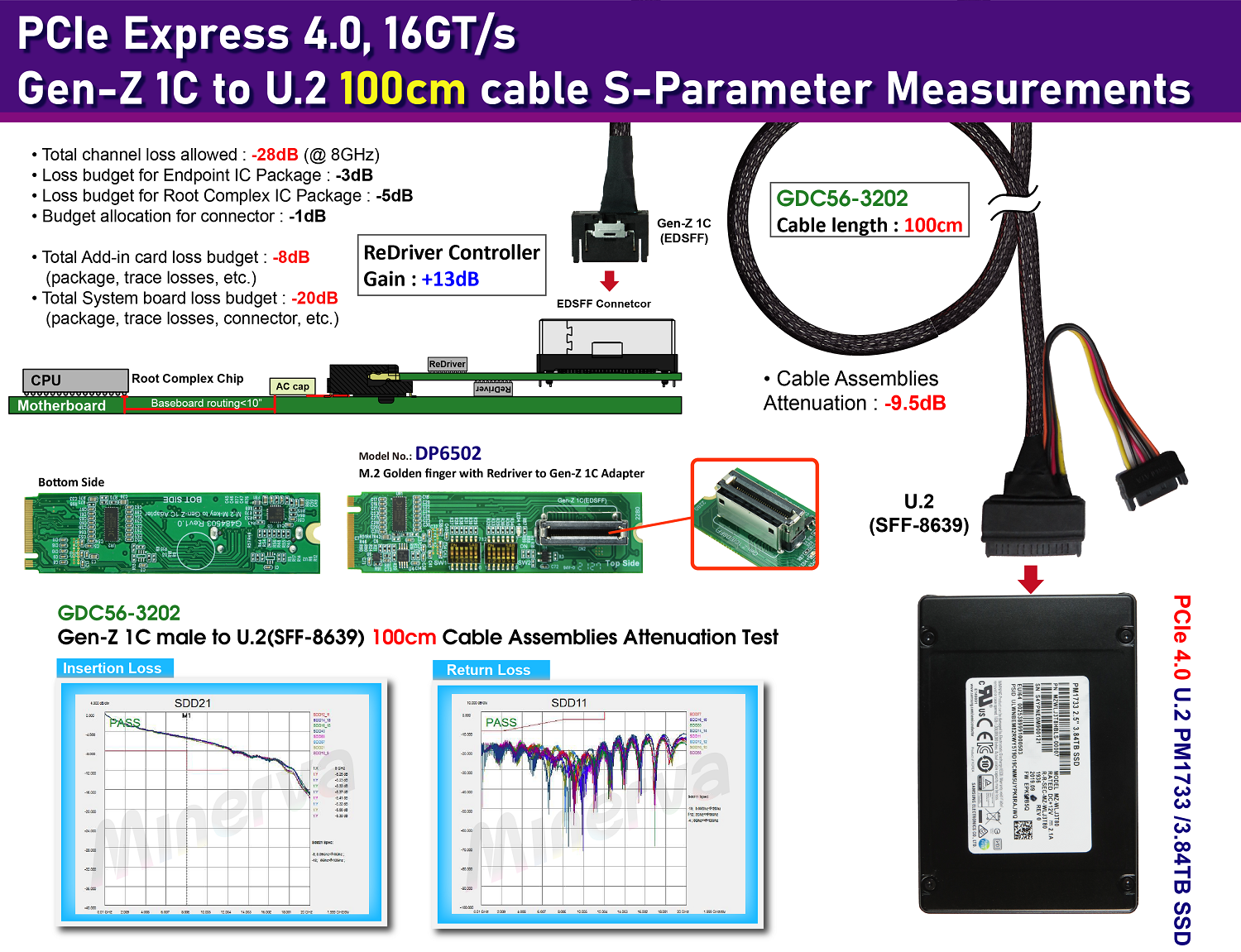

- Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
- Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
- Built- in SMBCLK, SMBDAT bidirectional buffer repeater
- Built- in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable
- Built- in WAKE# Bus Buffer Gate to be used over longer trace lengths and over longer cable
- Built- in CLKREQ# Bus Buffer Gate to be used over longer trace lengths and longer over cable
