Datasheet

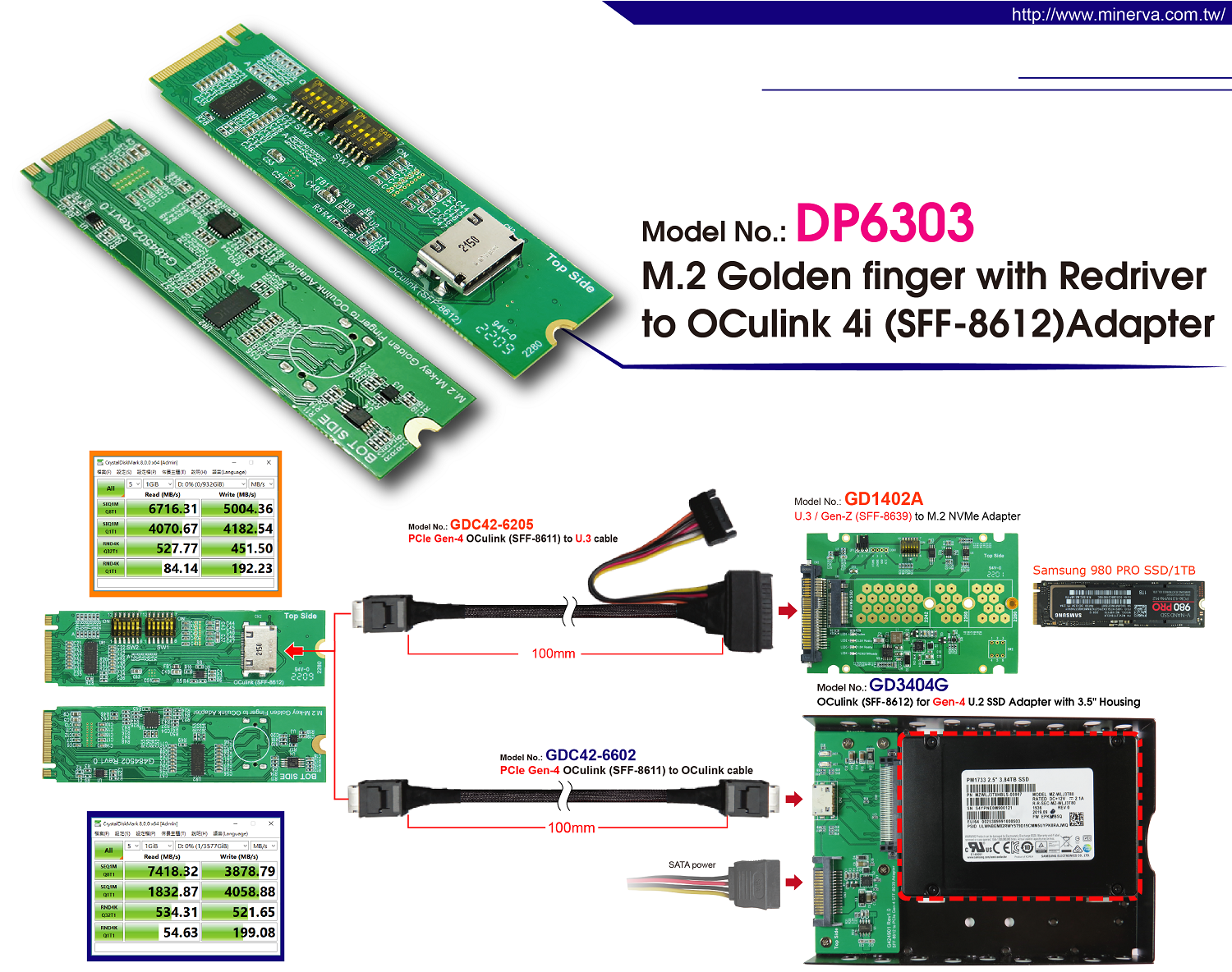

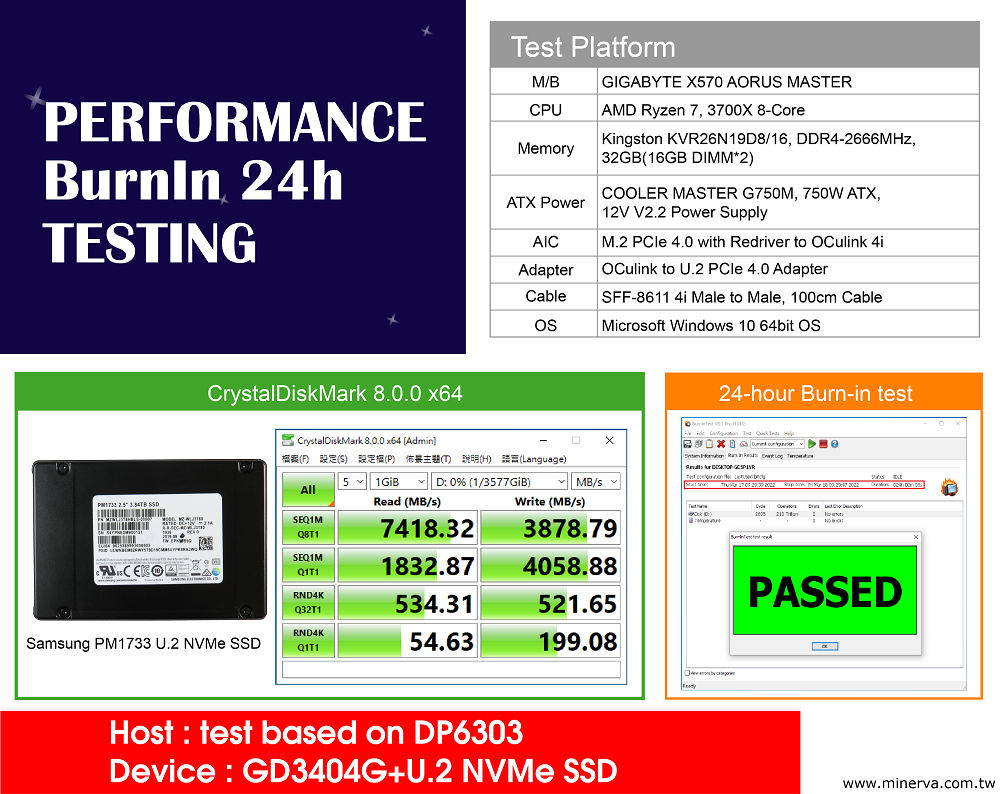

Test report for GDC42-6602 + GD3404G + U.2 SSD

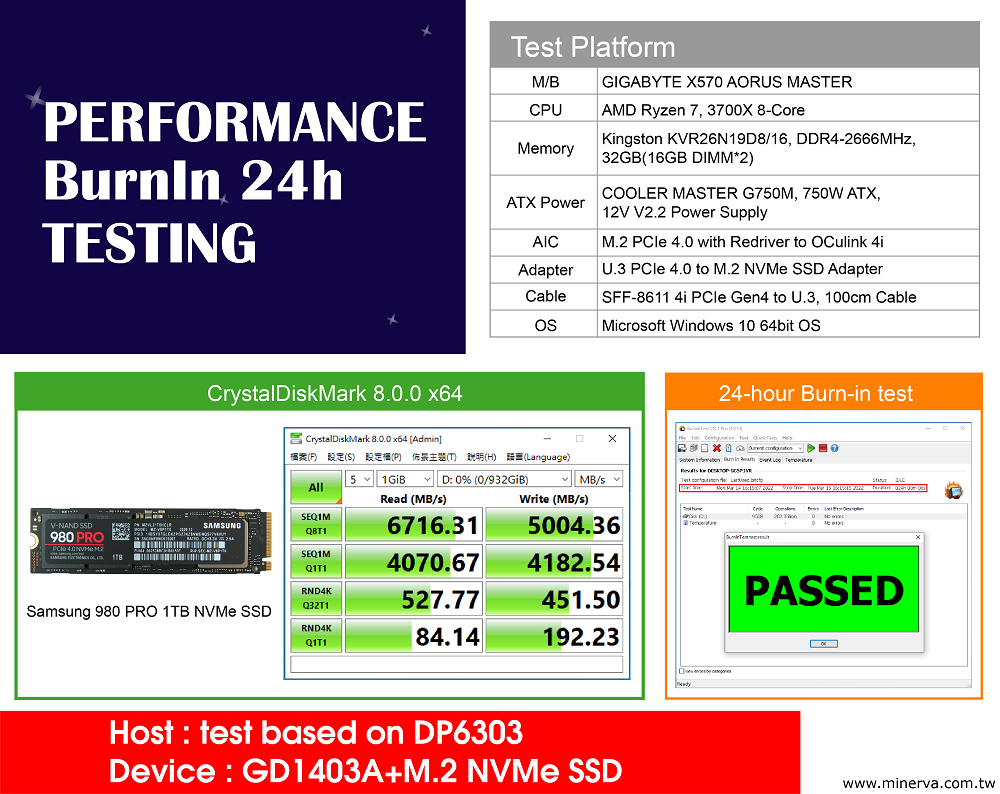

Test report for GDC42-6205 + GD1402A + M.2 NVMe SSD
Test report for GDC38-8601 + GD2409A + M.2 NVMe SSD
2D drawing

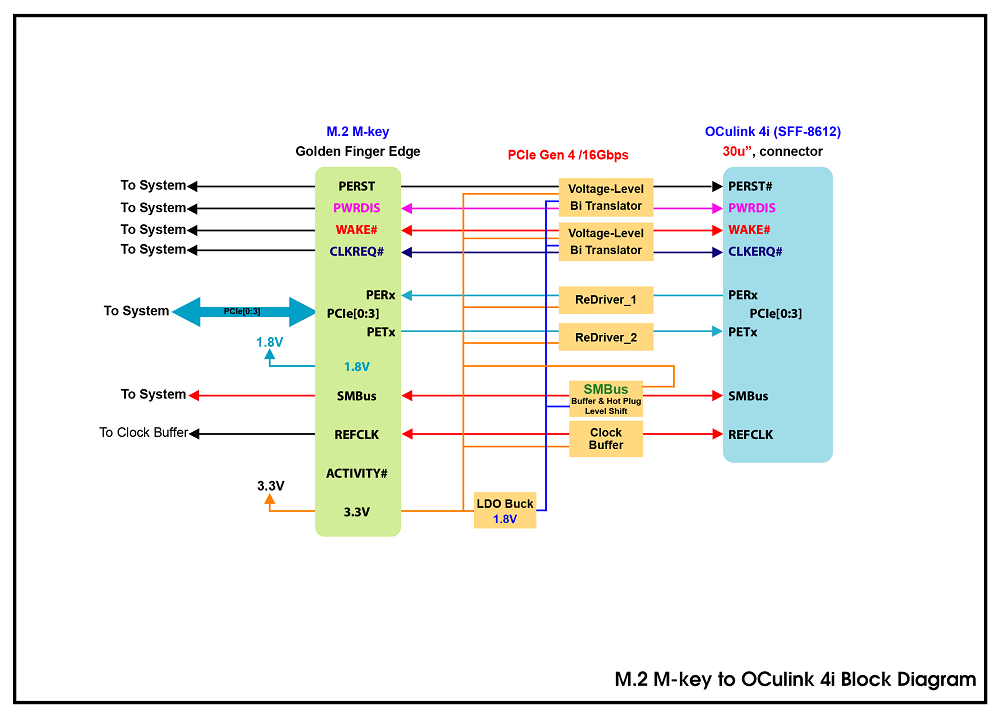

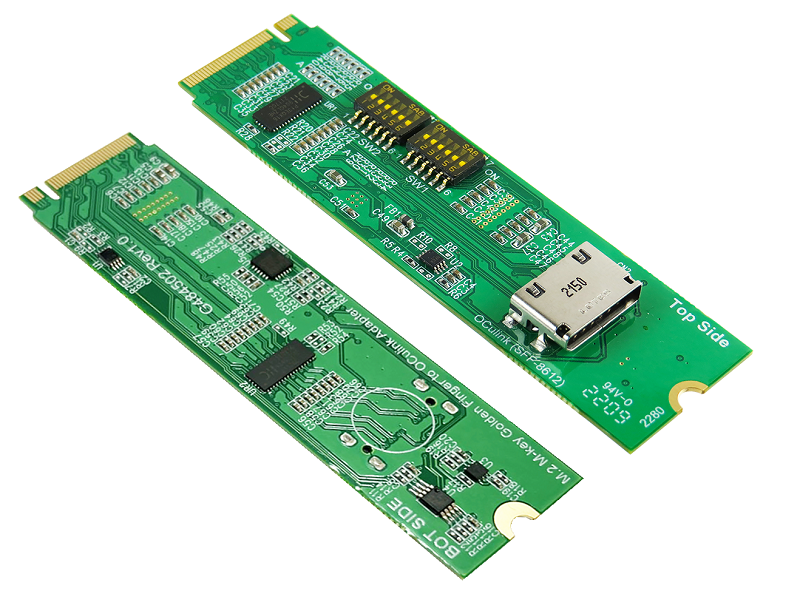

- OCulink 4i (SFF-8612) to M.2 PCIe 4.0 convert
- Built- in SFF-8612 connector, pin-out defined by SFF-9402 Rev1.1

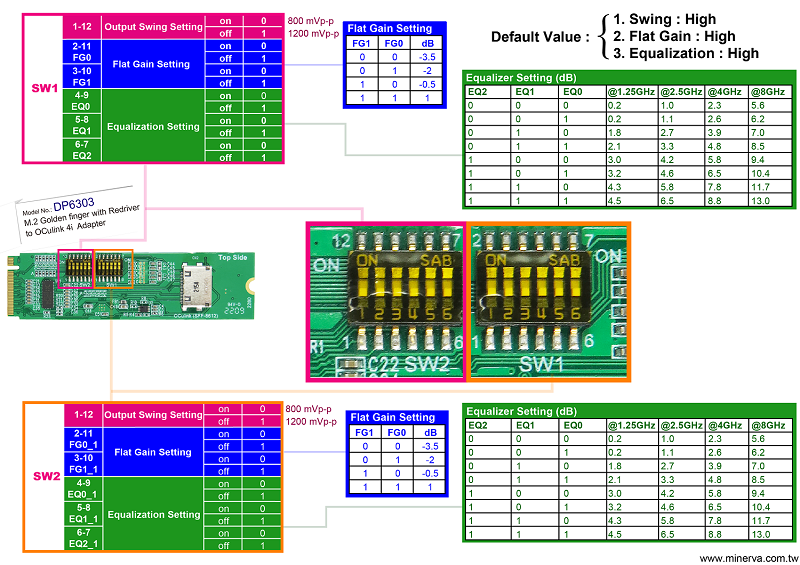

- Built- in PCIe ReDriver to extend PCIe Gen4, 16GT/s differential pair signals
- Built- in PCIe 100MHz Clock buffer to drive longer trace lengths and longer cable
- Built- in SMBus bidirectional buffer repeater and Voltage level shift
- Built- in PERST# Bidirectional Voltage-Level Translator
- Built- in WAKE# Bidirectional Voltage-Level Translator
- Built- in CLKREQ# Bidirectional Voltage-Level Translator
- M.2 CLKREQ# signal is tied to SFFF-8612 B13 pin
- Built- in PWRDIS Bidirectional Voltage-Level Translator
- M.2 PWRDIS signal is tied to SFFF-8612 A9 pin
