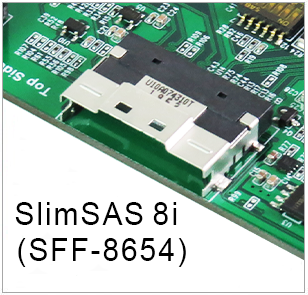

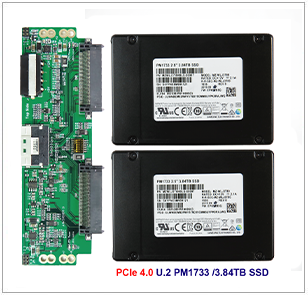

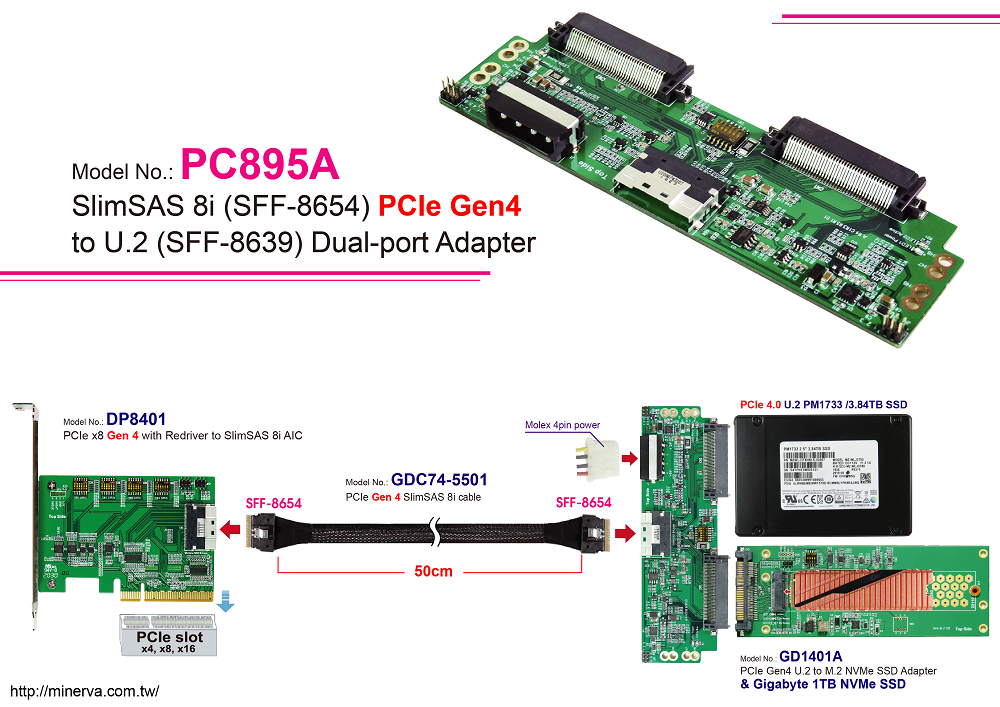

U.2 dual ports to SlimSAS 8i (SFF-8654) convert
Built-in SlimSAS 8i, 15” connector, pin-out defined by SFF-9402 Rev1.1

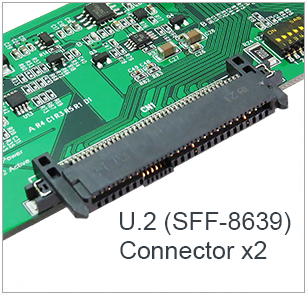

Built-in two U.2 SFF-8639, 30” connector
Built-in two 12V Hot Plug Power with eFuse protection for U.2 dual ports
◆ Programmable Current Limit: 6.5A
◆ Programmable Inrush Current Slew Rat
◆ Thermal shutdown protection and fault alert
◆ Back-to-Back (B2B) FET Operation

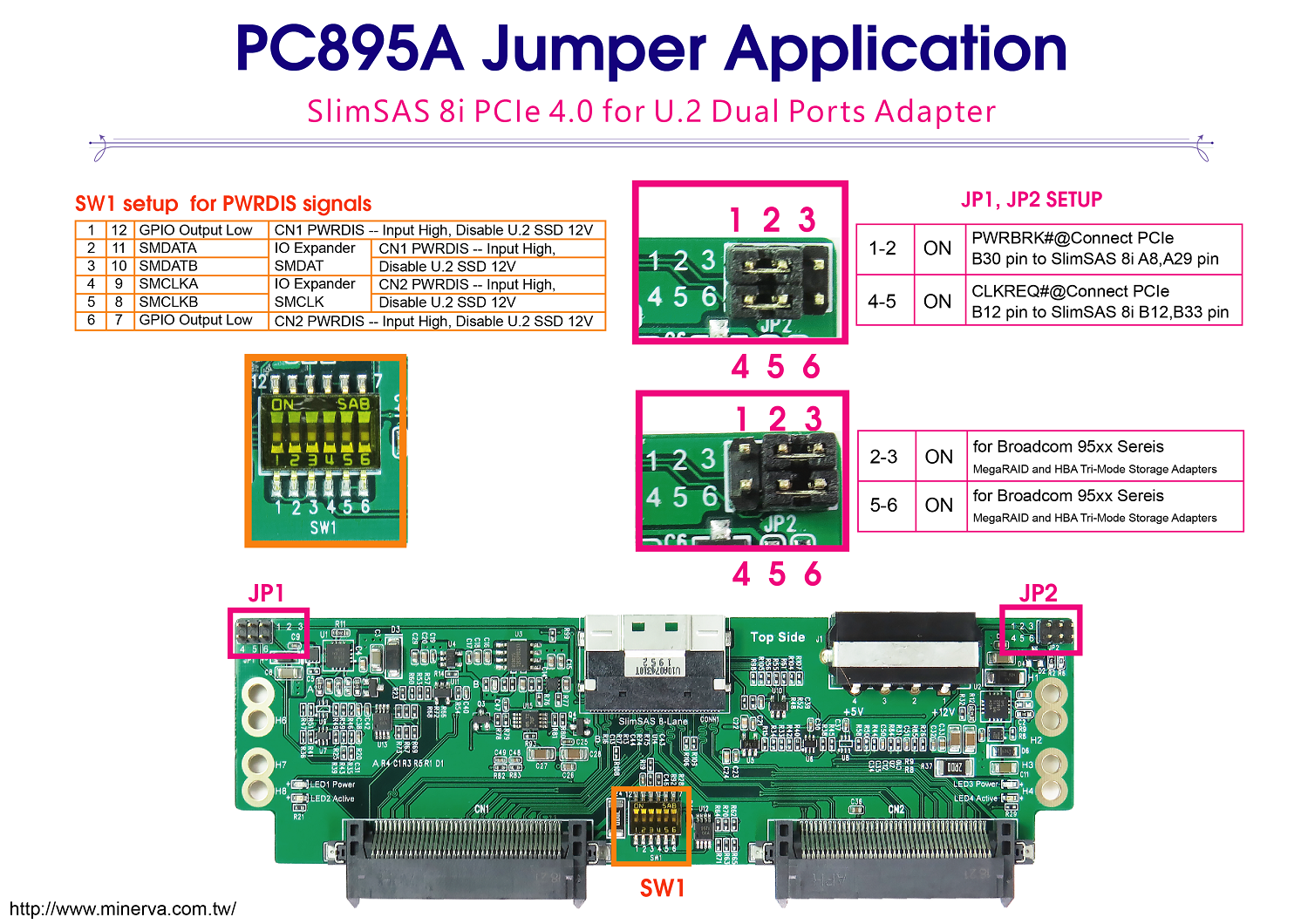

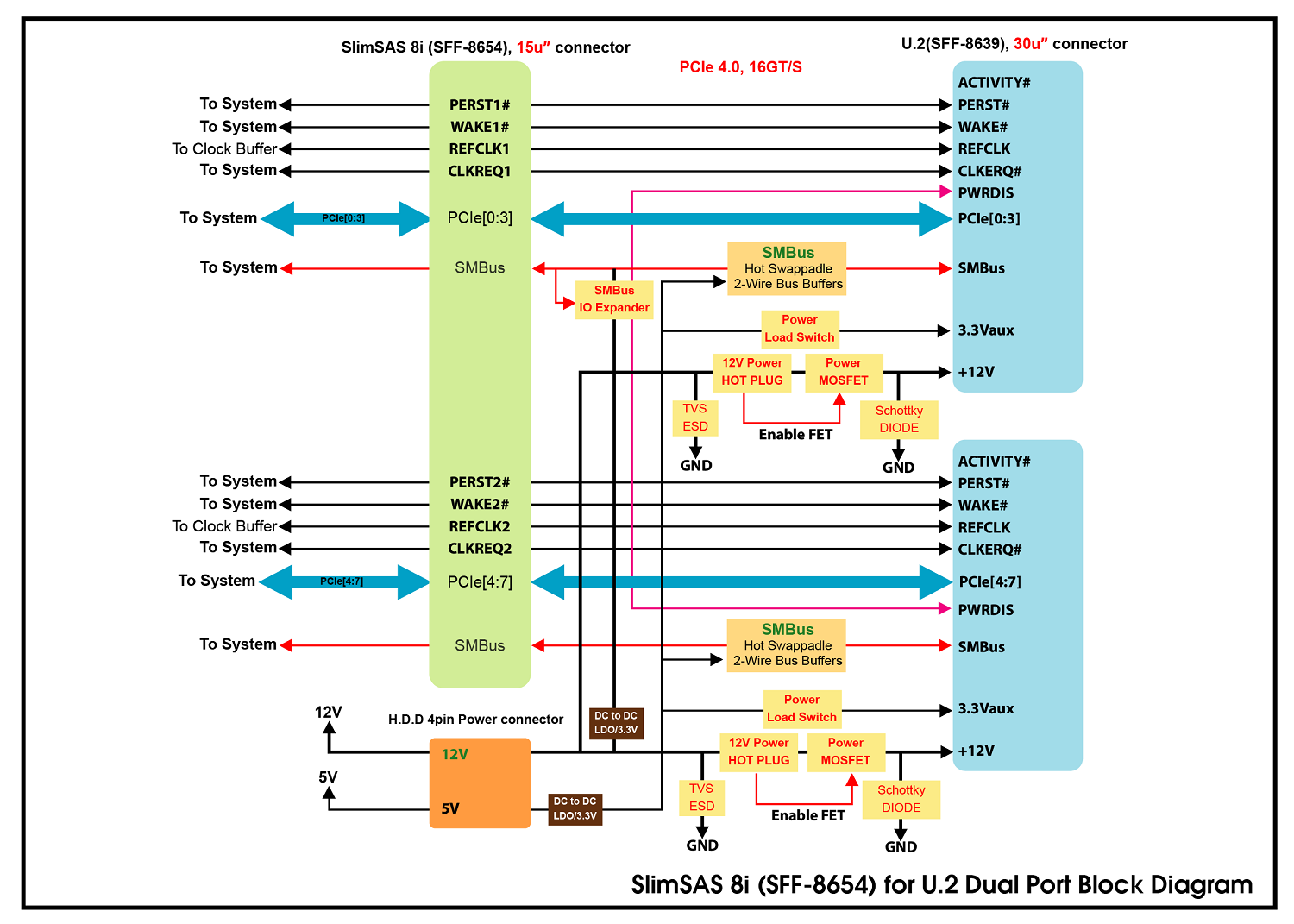

Supports U.2 to PCIe CLKREQ#, WAKE#
Supports U.2 PWRDIS Implementation
Built-in SMBus Hot Swappable 2-Wire Bus Buffer
Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
LED2, LED4 Green LED on indicates U.2 NVMe SSD power ready
LED1, LED3 RED LED Blinking indicates U.2 active status
