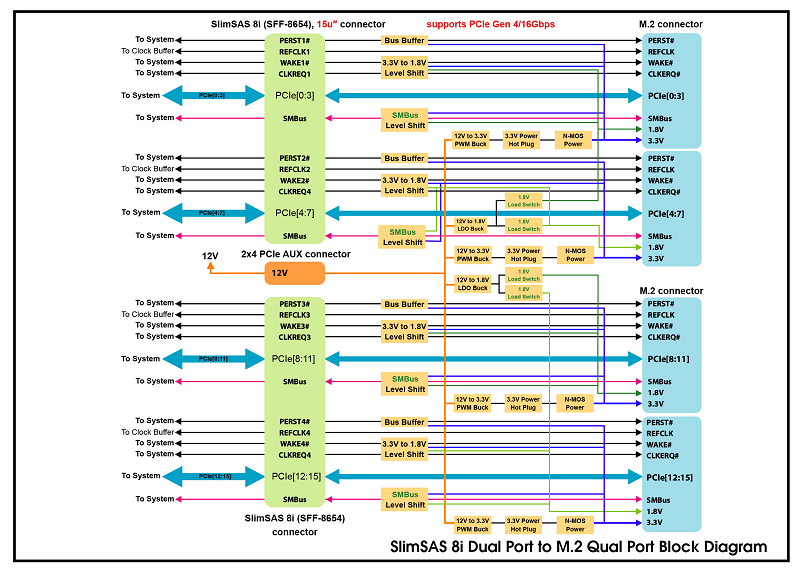

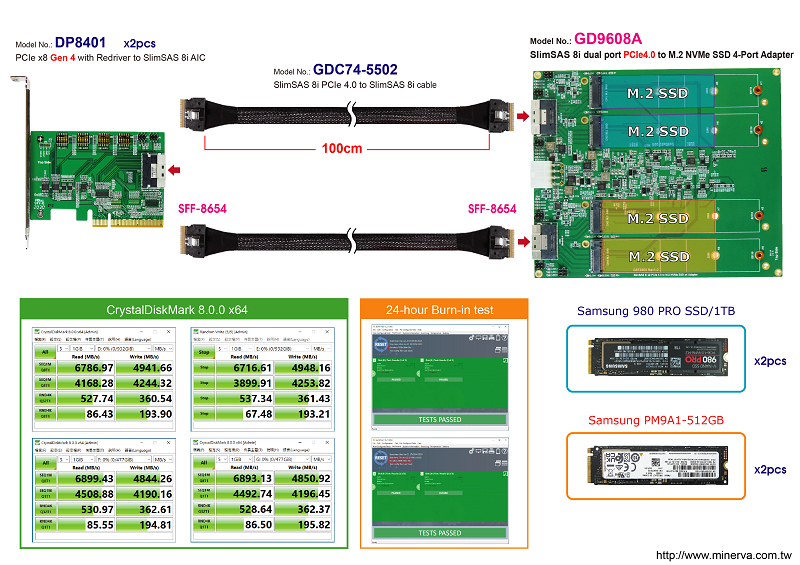

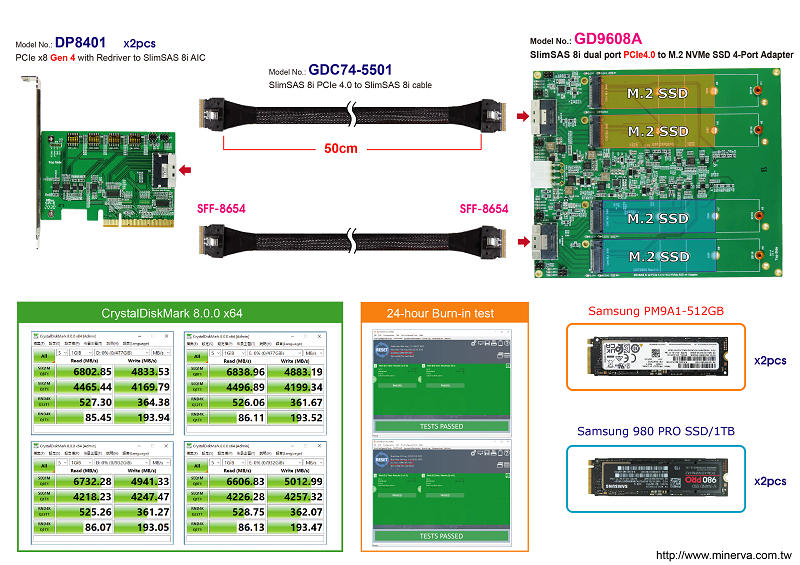

M.2 quad port to SlimSAS 8i(SFF-8654) dual port convert

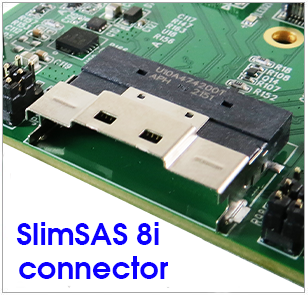

Built-in two SFF-8654 8i connector, pin-out defined by SFF-9402 Rev1.1

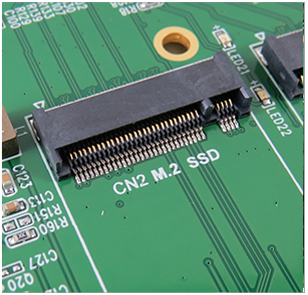

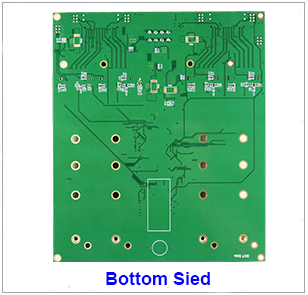

Built-in four M.2 M-key connector

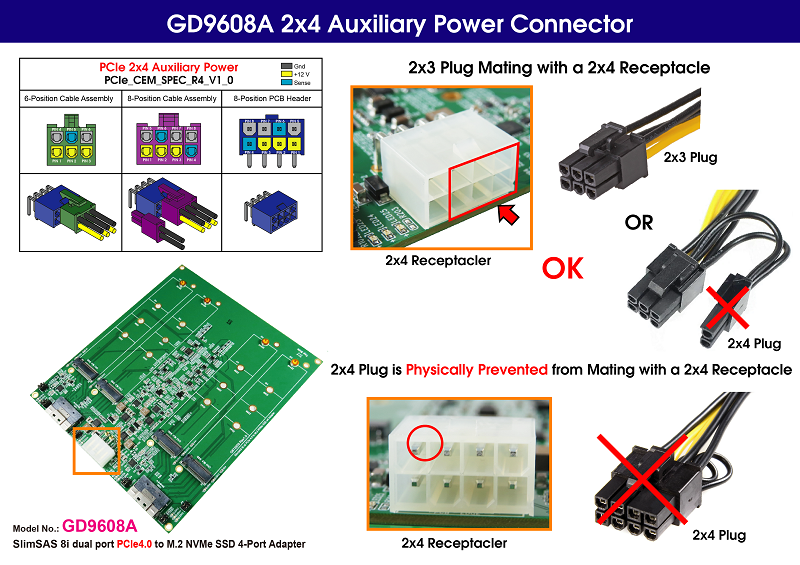

12V to 3.3V PWM synchronous buck converter Power for individual M.2 connector
◆ 5.5A maximum output current
◆ Over Current Protection
◆ Under Voltage Protection
◆ Under voltage lock out protection (UVLO) monitors
◆ Thermal shutdown protection
◆ ESD Human Body Mode(HBM)/2KV
Built-in 3.3V Hot Plug Power with eFuse protection for individual M.2 connector
◆ Programmable Current Limit: 6.5A
◆ Programmable Inrush Current Slew Rate
◆ Thermal shutdown protection and fault alert
◆ Back-to-Back (B2B) FET Operation
Supports M.2 PERST# Signal 3.3V and 1.8V voltage level shift
Supports M.2 CLKREQ# Signal 3.3V and 1.8V voltage level shift
Supports M.2 WAKE# Signal 3.3V and 1.8V voltage level shift
Supports M.2 /1.8V to PCIe/3.3V SMB_CLK, SMBDATA Level Shift
Supports M.2 /1.8V to PCIe /3.3V SMB_CLK, SMB_DATA isolated, repeater

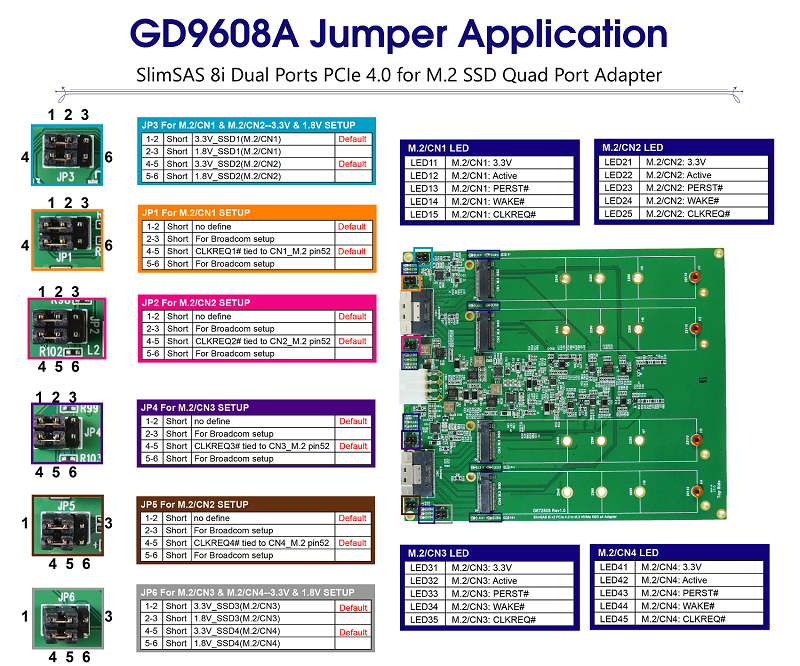

LED11, LED21, LED31, LED41 Green LED on indicates M.2 NVMe SSD power ready
LED12, LED22, LED32, LED42 RED LED Blinking indicates M.2 active status
LED13, LED23, LED33, LED43 Green OFF indicates PERST# Normal (Function intentionally inverted)
LED14, LED24, LED34, LED44 Green OFF indicates WAKE# Normal (Function intentionally inverted)
LED15, LED25, LED35, LED45 Green OFF indicates CLKREQ# Normal (Function intentionally inverted)
