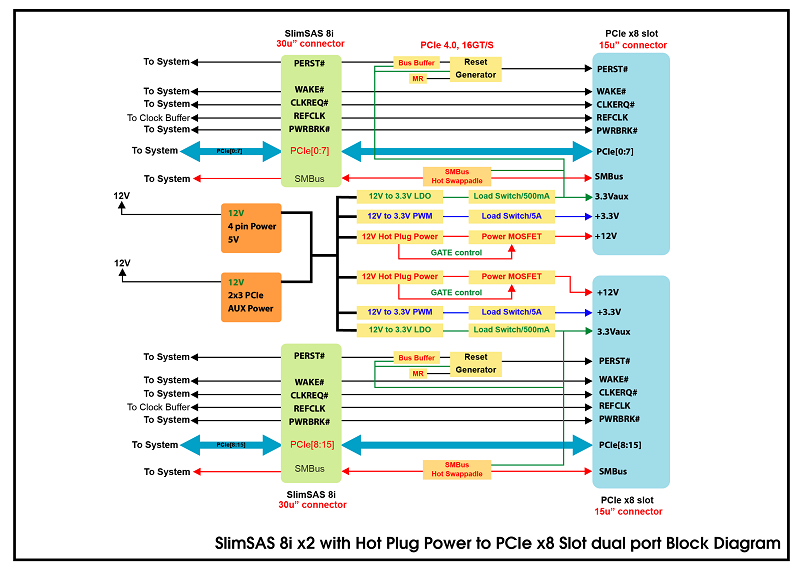

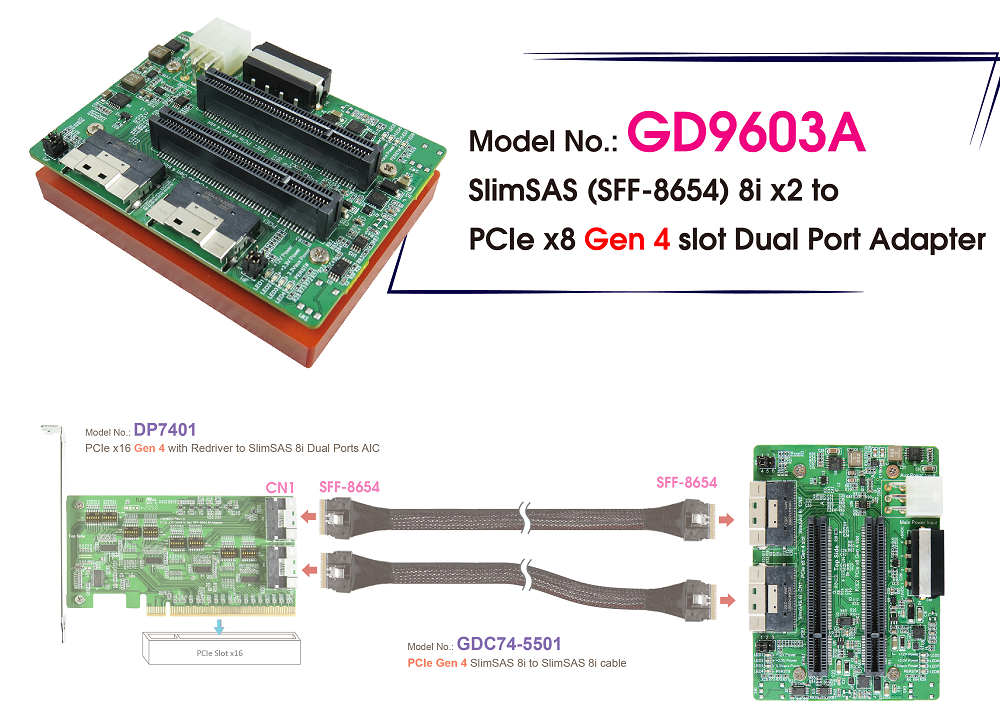

- SlimSAS 8i(SFF-8654) x2 to PCIe x16 convert
- Built-in SlimSAS 8i(SFF-8654), 30u”dual port connector
- Built-in PCIe x8, 15u”dual port Slot
- Built-in PCIe PERST# Bus Buffer
- Support PCIe PERST# manual reset & generator
- Built-in SMBus Hot Swappable 2-Wire Bus Buffer
- Supports I/O card insertion into a live PCIe Solt without corruption of the data and clock busses
- Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V
- ◆ Programmable Current Limit: 6.5A
- ◆ Programmable Inrush Current Slew Rate
- ◆ Thermal shutdown protection and fault alert
- ◆ Back-to-Back (B2B) FET Operation
- Built-in 12V output with 30-V, N channel NexFET power MOSFET, 32m ohm
- Built-in 12V output with Schottky Barrier Power Rectifier
- PWM synchronous 12V to 3.3V buck converter PowerV
- ◆ 4A maximum output current
- ◆ Over Current Protection
- ◆ Under Voltage Protection
- ◆ Under voltage lock out protection (UVLO) monitors
- ◆ Thermal shutdown protection
- ◆ ESD Human Body Mode(HBM)/2KV
- Built-in 3.3V Power Load Switch for PCIe +3.3V
- 12V to 3.3V, 500mA LDO buck converter Power
- Built-in 3.3V Power Load Switch for PCIe 3.3Vaux

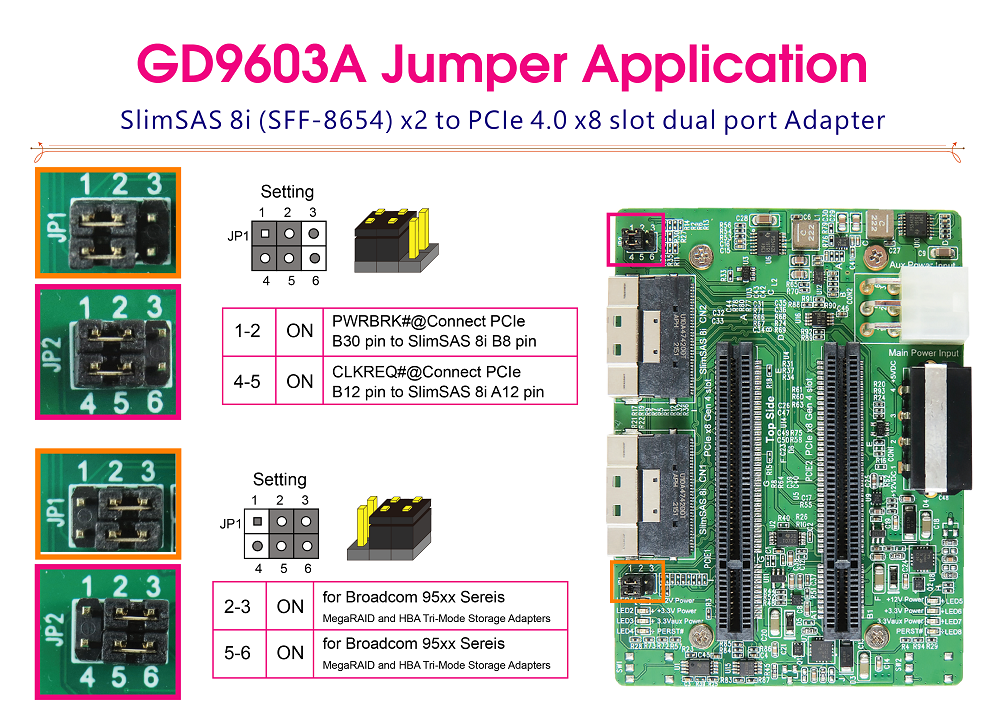

- Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
- Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
- LED1, LED5 PCIe +12V power ready
- LED2, LED6 PCIe +3.3V power ready
- LED3, LED7 PCIe 3.3Vaux power ready
- LED4, LED8 indicate PERST# signal for LED function intentionally inverted (LED OFF - normal)
