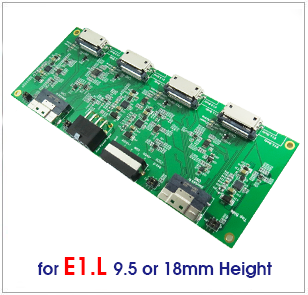

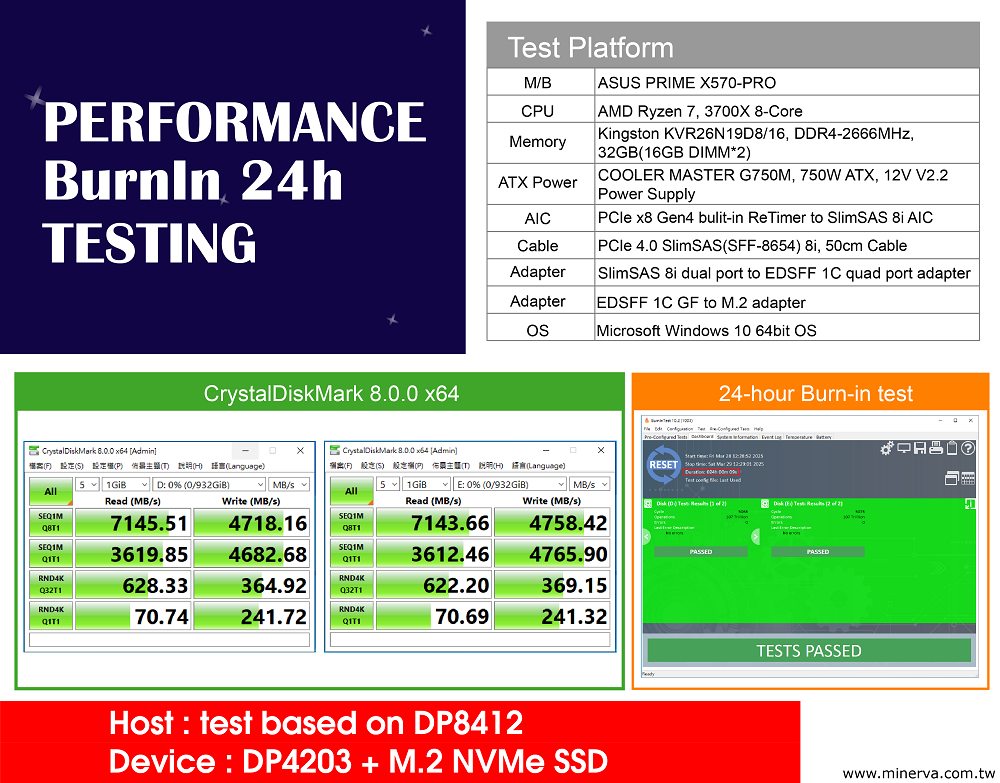

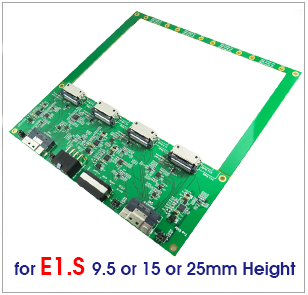

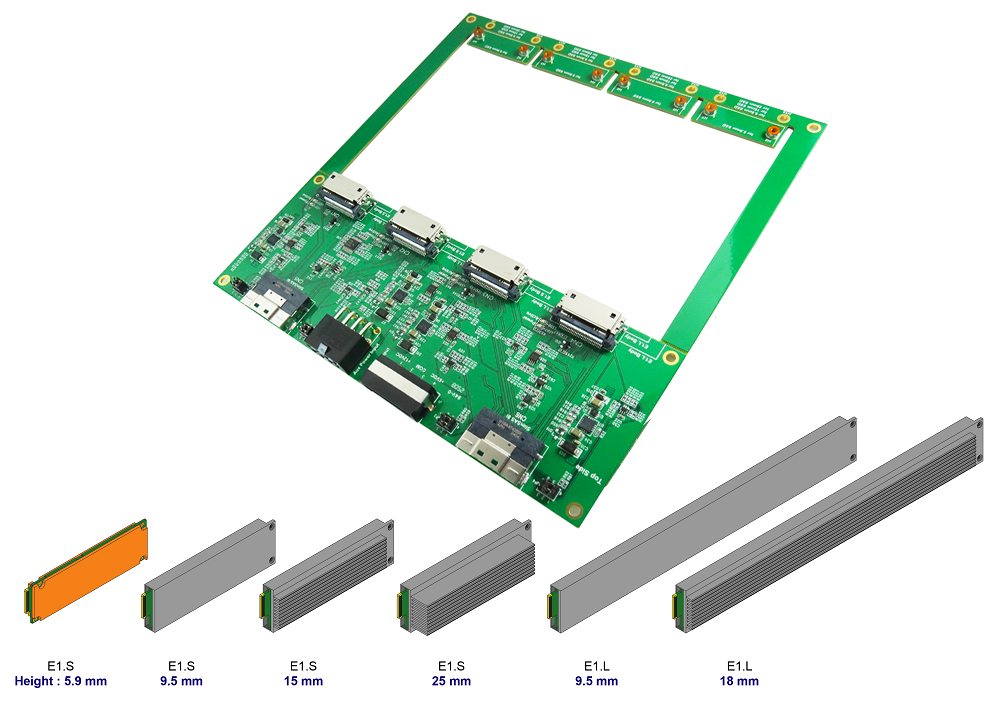

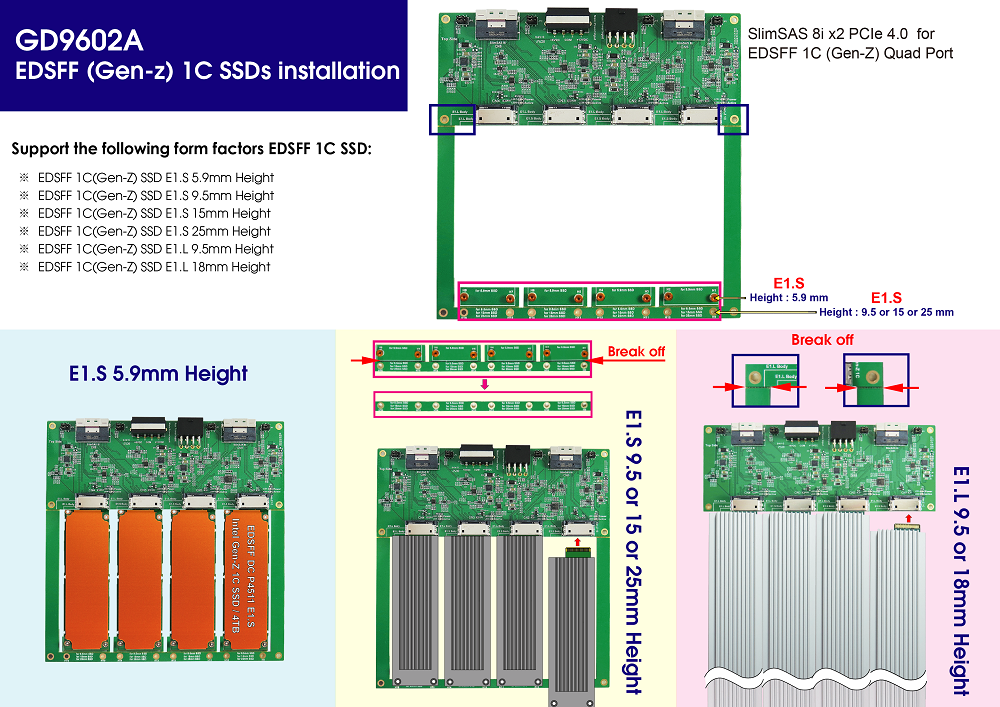

Gen-Z 1C Quad port to SlimSAS 8i(SFF-8654) convert

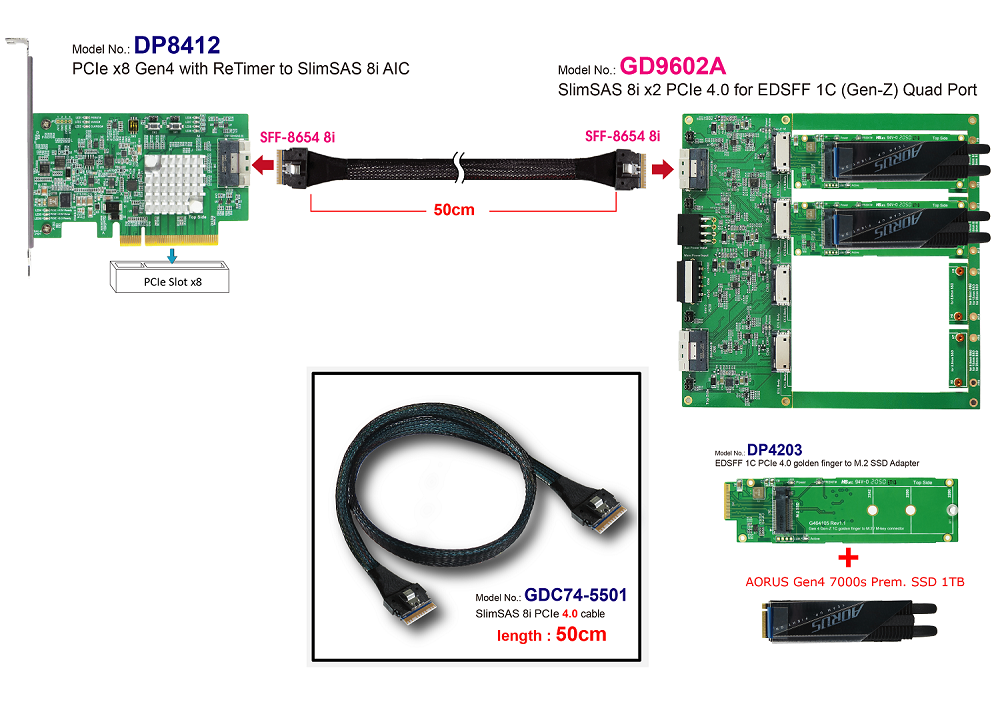

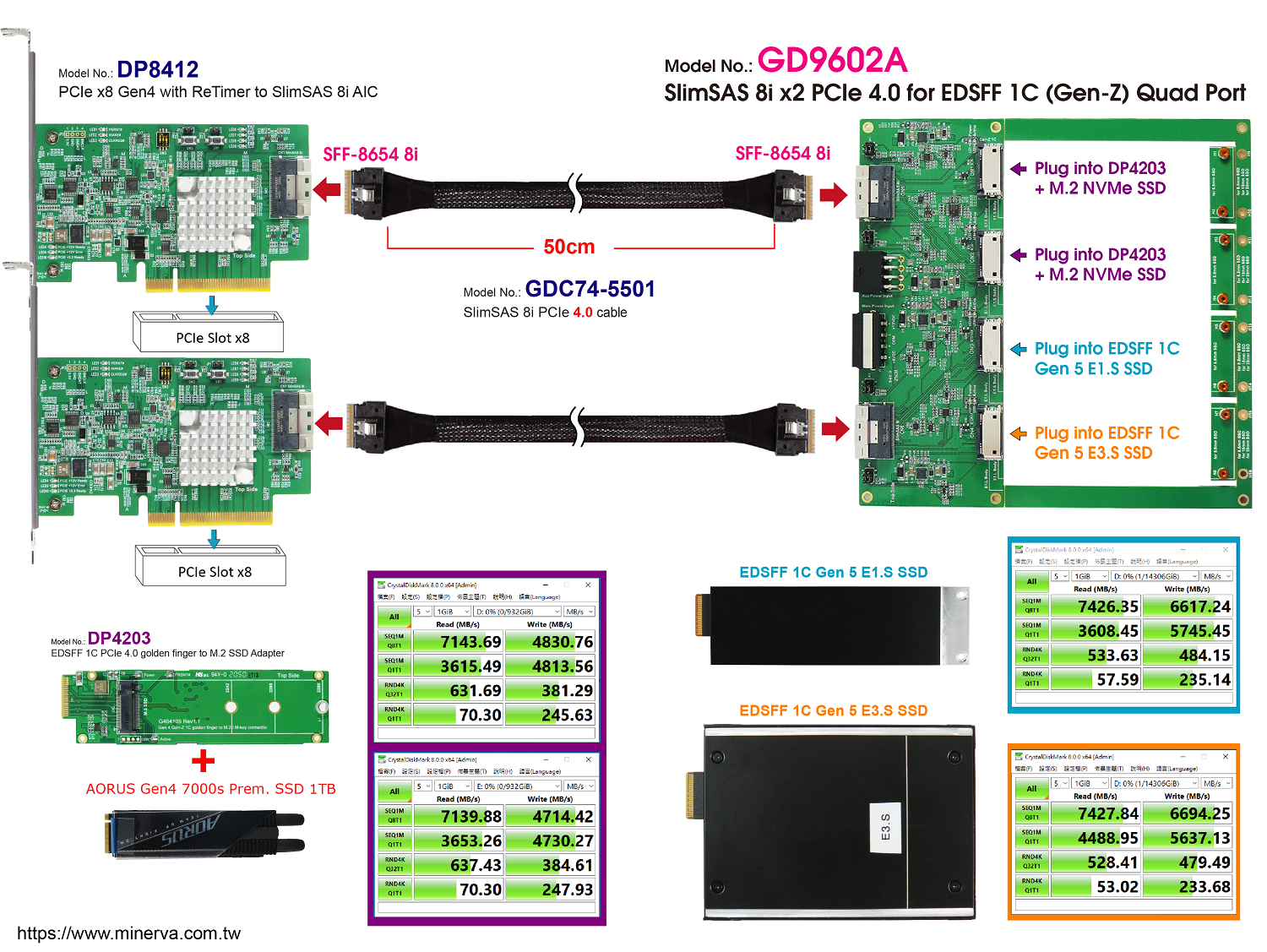

Built-in SFF-8654 8i two connectors, pin-out defined by SFF-9402 Rev1.1
Built-in Gen-Z 1C four connectors
Built-in 12V Hot Plug Power with eFuse protection for each Gen-Z 1C
◆ Programmable Current Limit: 6.5A
◆ Programmable Inrush Current Slew Rate
◆ Thermal shutdown protection and fault alert
◆ Back-to-Back (B2B) FET Operation

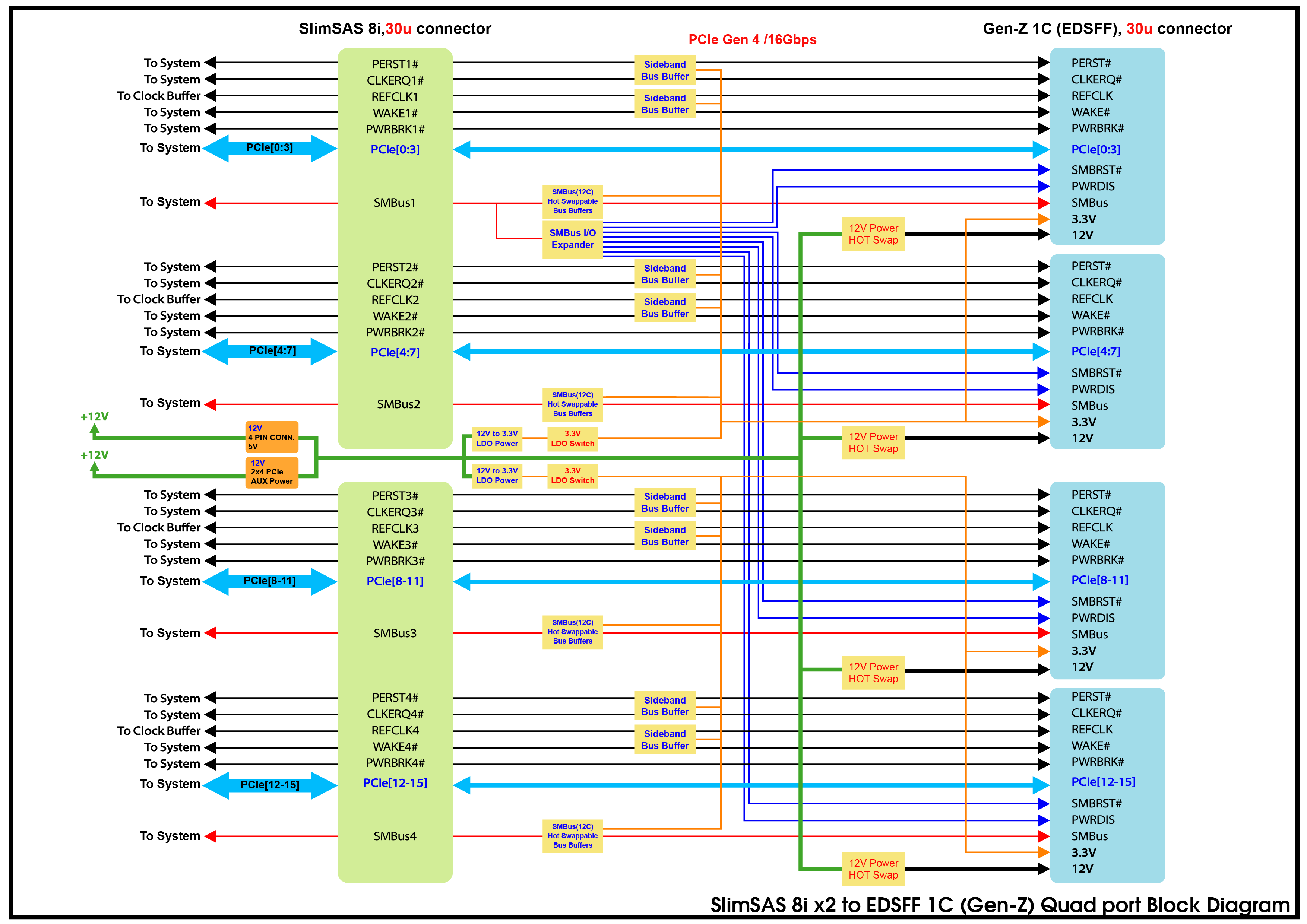

Supports Gen-Z 1C to PCIe CLKREQ#, WAKE#, PWRBRK#
Supports Gen-Z 1C PWRDIS, SMBRST# control
Built-in SMBus Hot Swappable 2-Wire Bus Buffer for each Gen-Z 1C

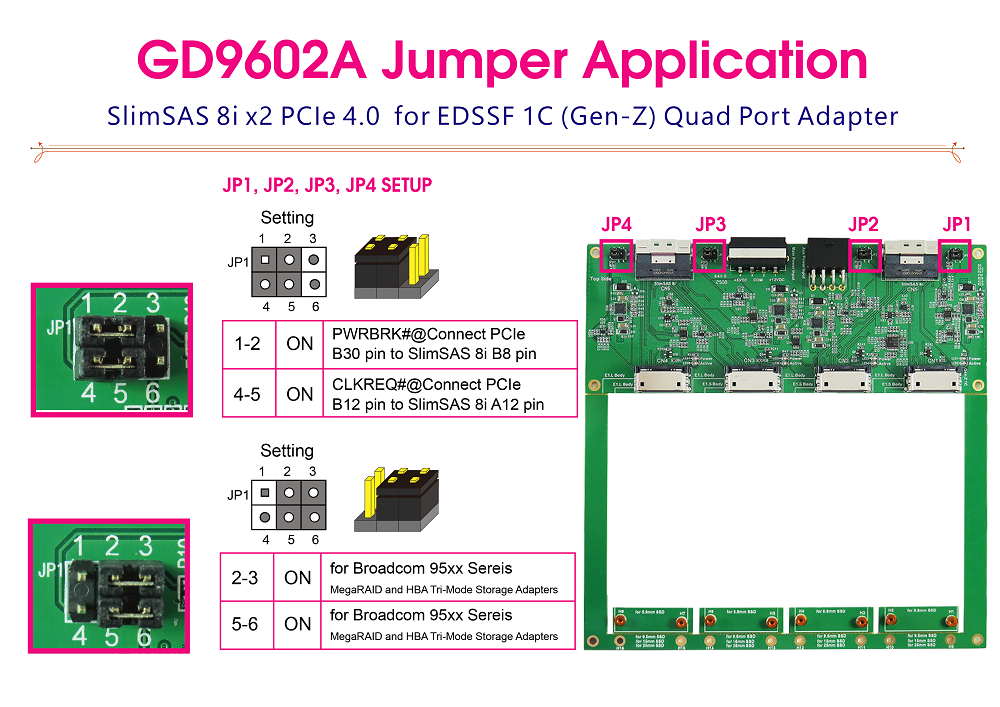

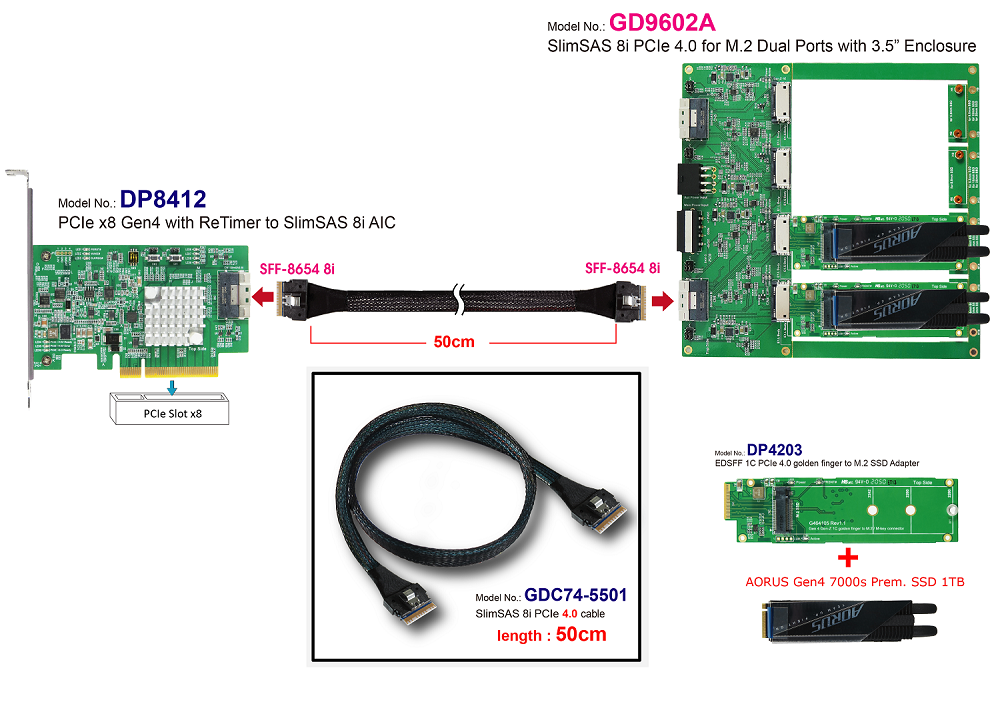

Supports SlimSAS 8i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
Supports SlimSAS 8i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
LED1, LED3,LED5, LED7 Green LED on indicates Gen-Z 1C power ready
LED2, LED4,LED6, LED8 Red LED Blinking indicates Gen-Z 1C active status
