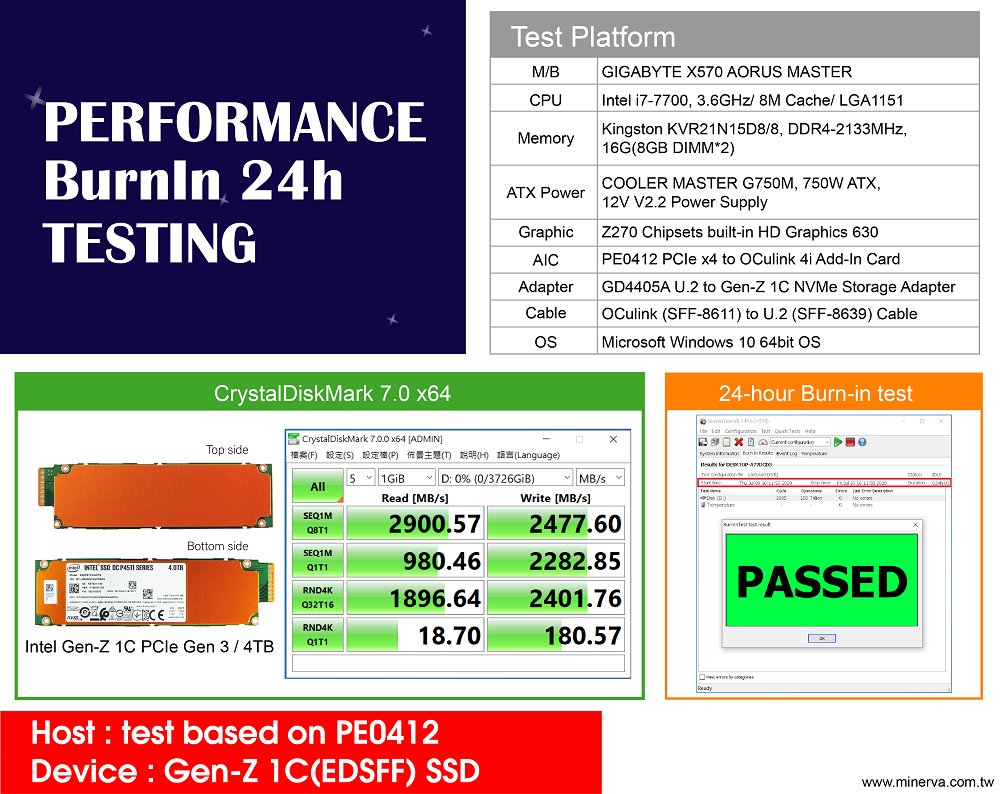

GD4405A Test report for Intel EDSFF 4TB SSD (PCIe Gen 3)

PDF

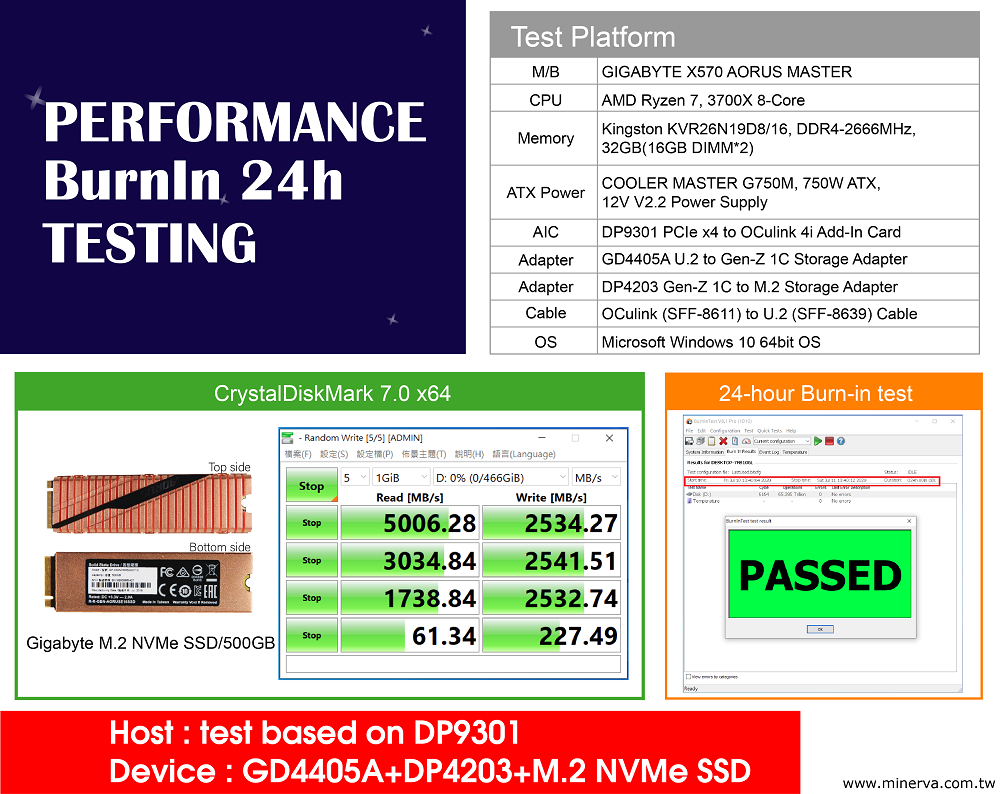

GD4405A Test report for PCIe Gen 4 M.2 NVMe 512GB SSD

PDF

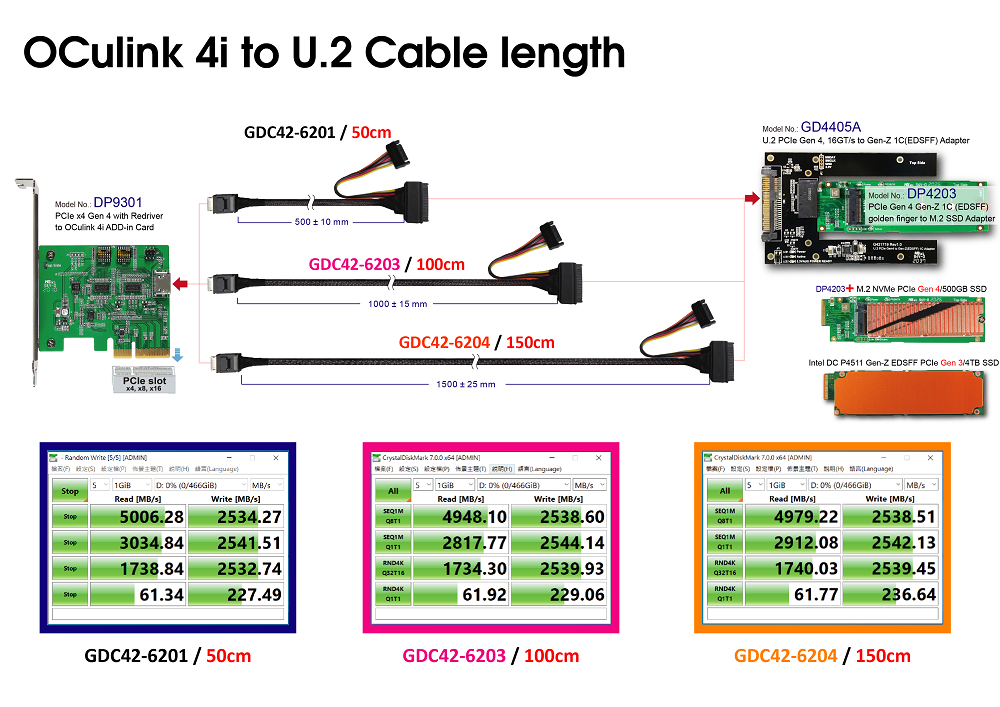

GD4405A Test report for OCuolink to U.2 cable/100cm (PCIe Gen 4)

PDF

GD4405A Test report for OCuolink to U.2 cable/150cm (PCIe Gen 4)

PDF

GD4405A-2D drawing

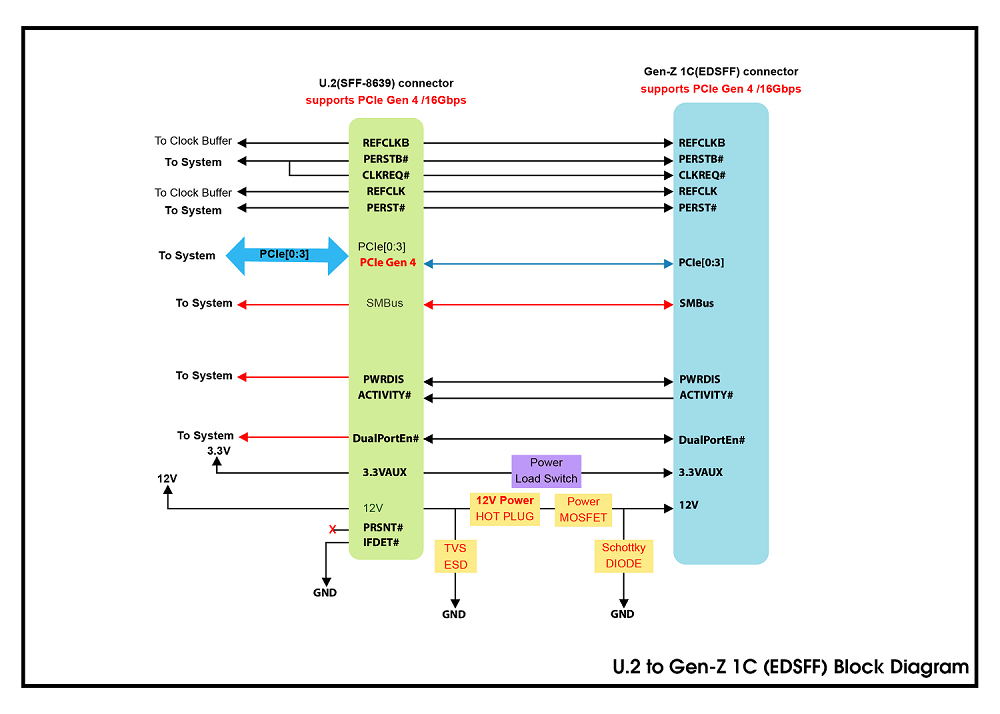

specifications



  • Built-in 12V Hot Plug Power IC with eFuse protection circuit
  • Built-in U.2(SFF-8639) Male connector
  • Built-in Gen-Z(EDSFF) 1C Connector
  • Supports SMB_CLK/ SMB_DATA
  • Supports PWRDIS
  • Supports DualPortEn
  • LED1 RED LED Blinking indicates Gen-Z SSD active status
  • LED2 GREEN indicates 12V Power Ready
  • LED3 GREEN indicates 3.3Vaux Power Ready
  • JP1 pin header must be to setup on, when Host does not supply 3.3Vaux

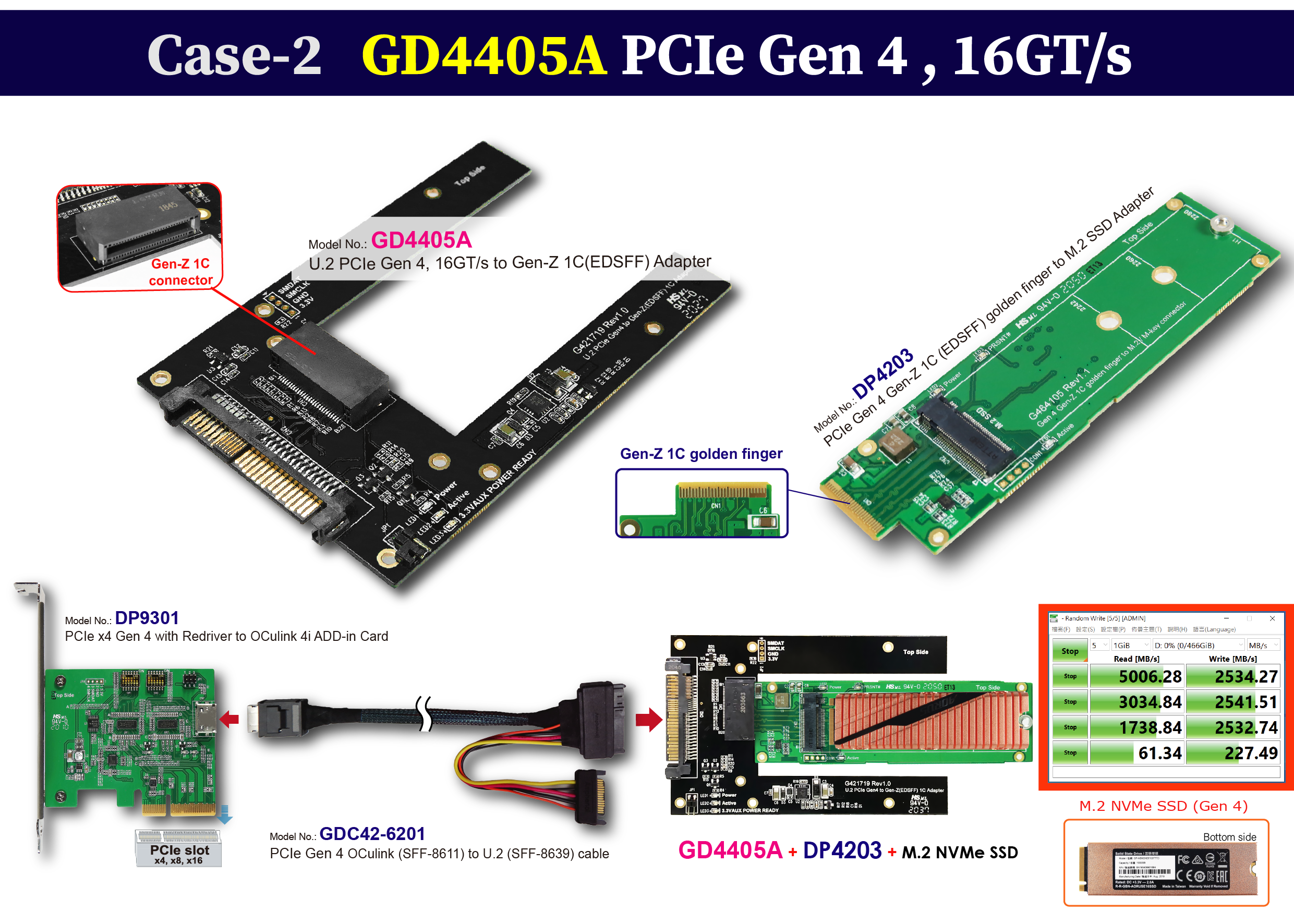

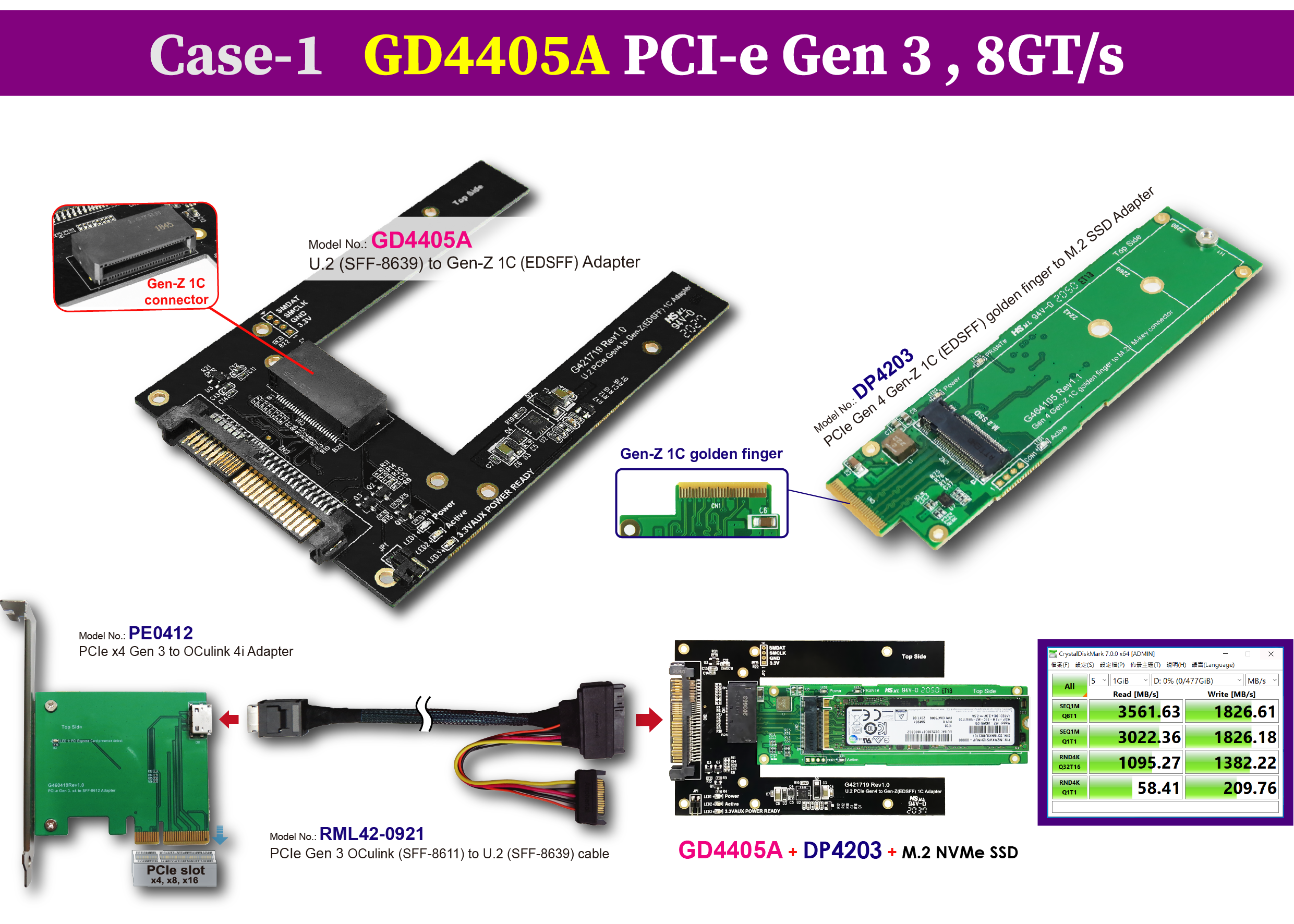

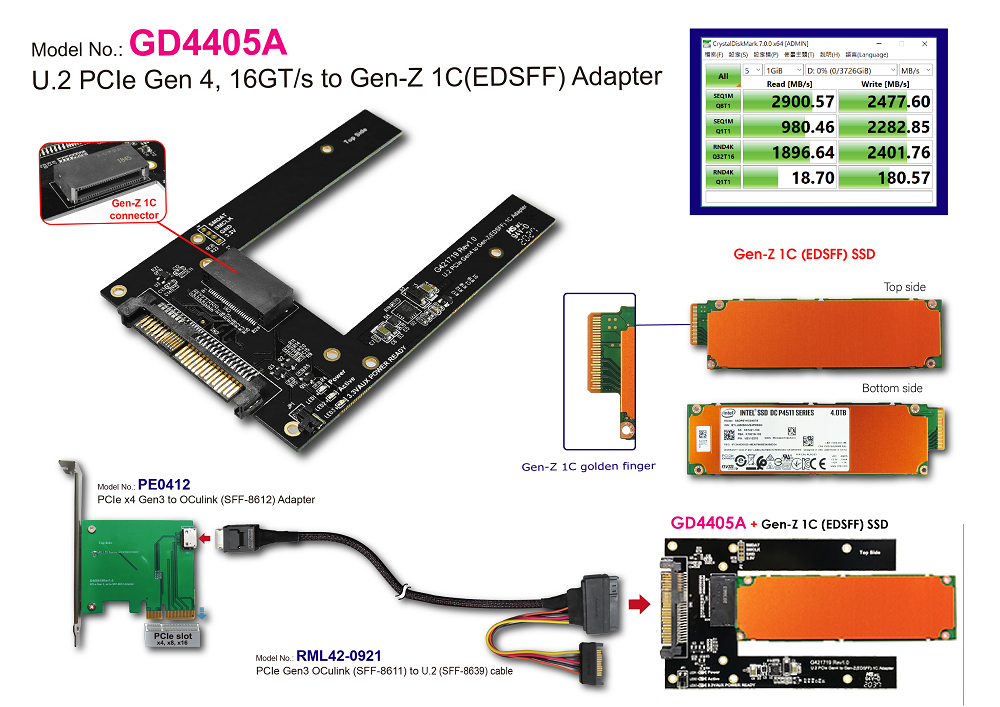

Application











Application
