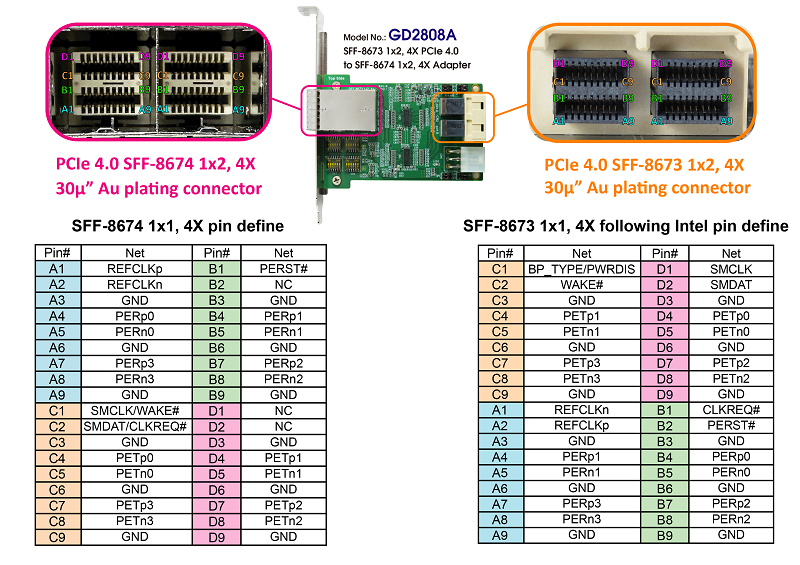

SFF-8673 1x2, 4X(Internal Mini SAS HD) dual port to SFF-8674 1x2, 4X(External Mini SAS HD) convert
Built-in SFF-8673 1x2, 4X, 30” connector
Built-in SFF-8674 1x2, 4X, 30u” connector

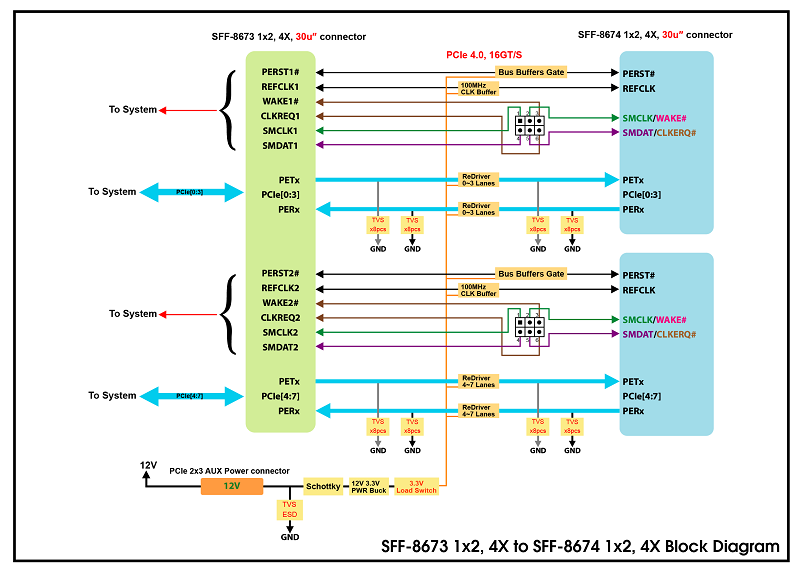

Built-in two 12V to 3.3V PWR Buck Power controller
◆ Programmable Current Limit: 6.5A
Built-in 3.3V Load Switch protection for ReDriver controller
Supports PCIe CLKREQ#, WAKE# connection
Supports SMBus connection from SFF-8673 to SFF-8674
LED1, LED2 Red OFF indicates PERST# Normal (Function intentionally inverted)
