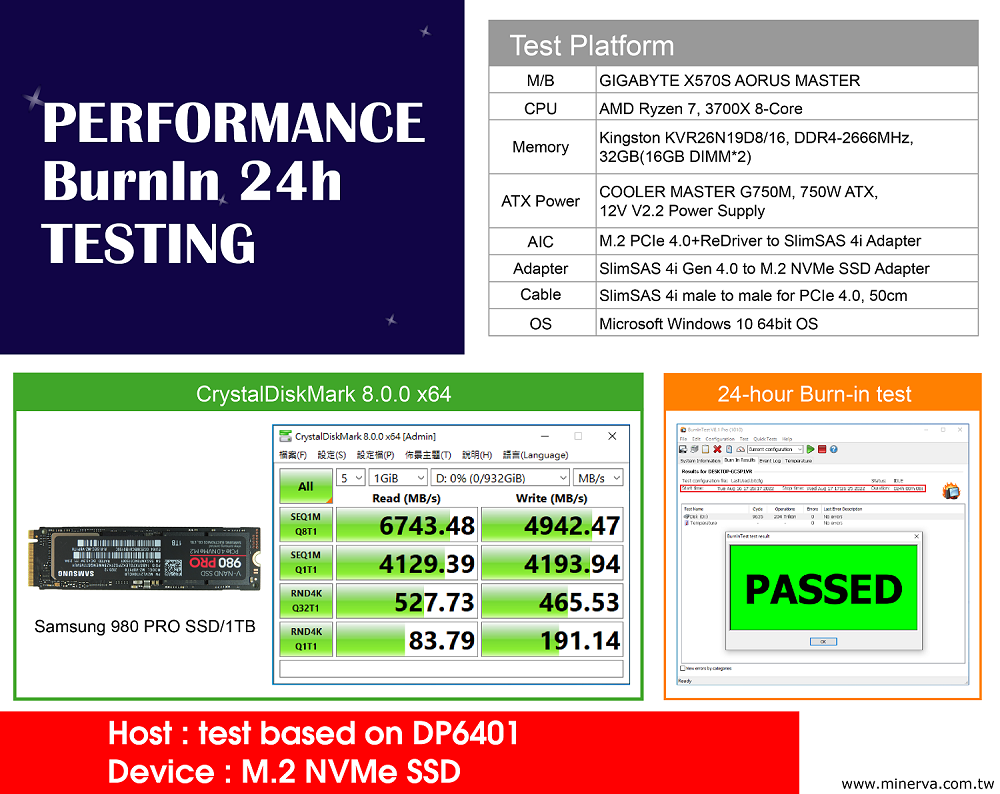

Test report
2D drawing

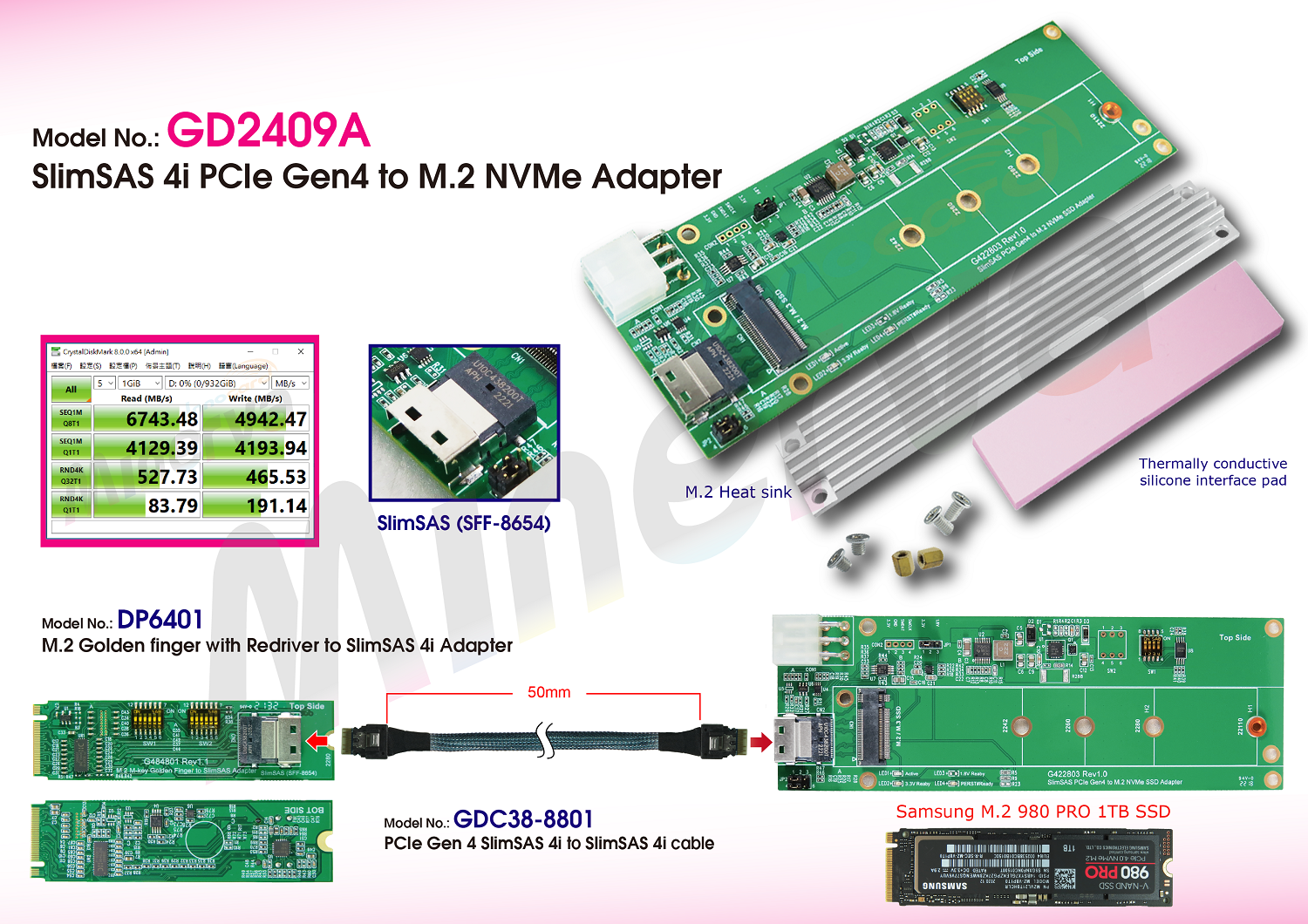

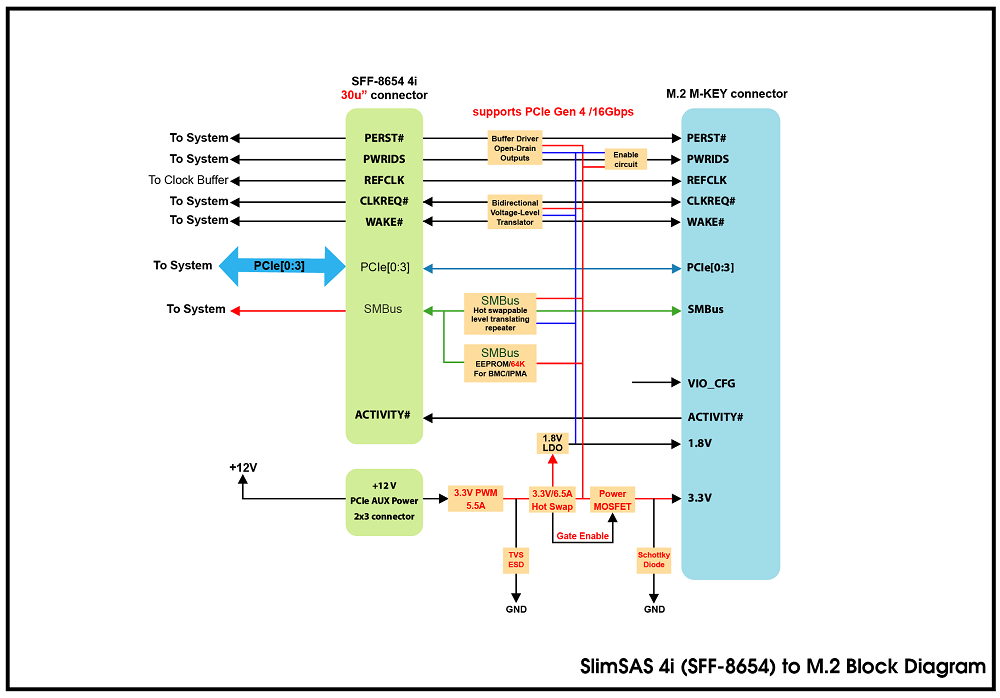

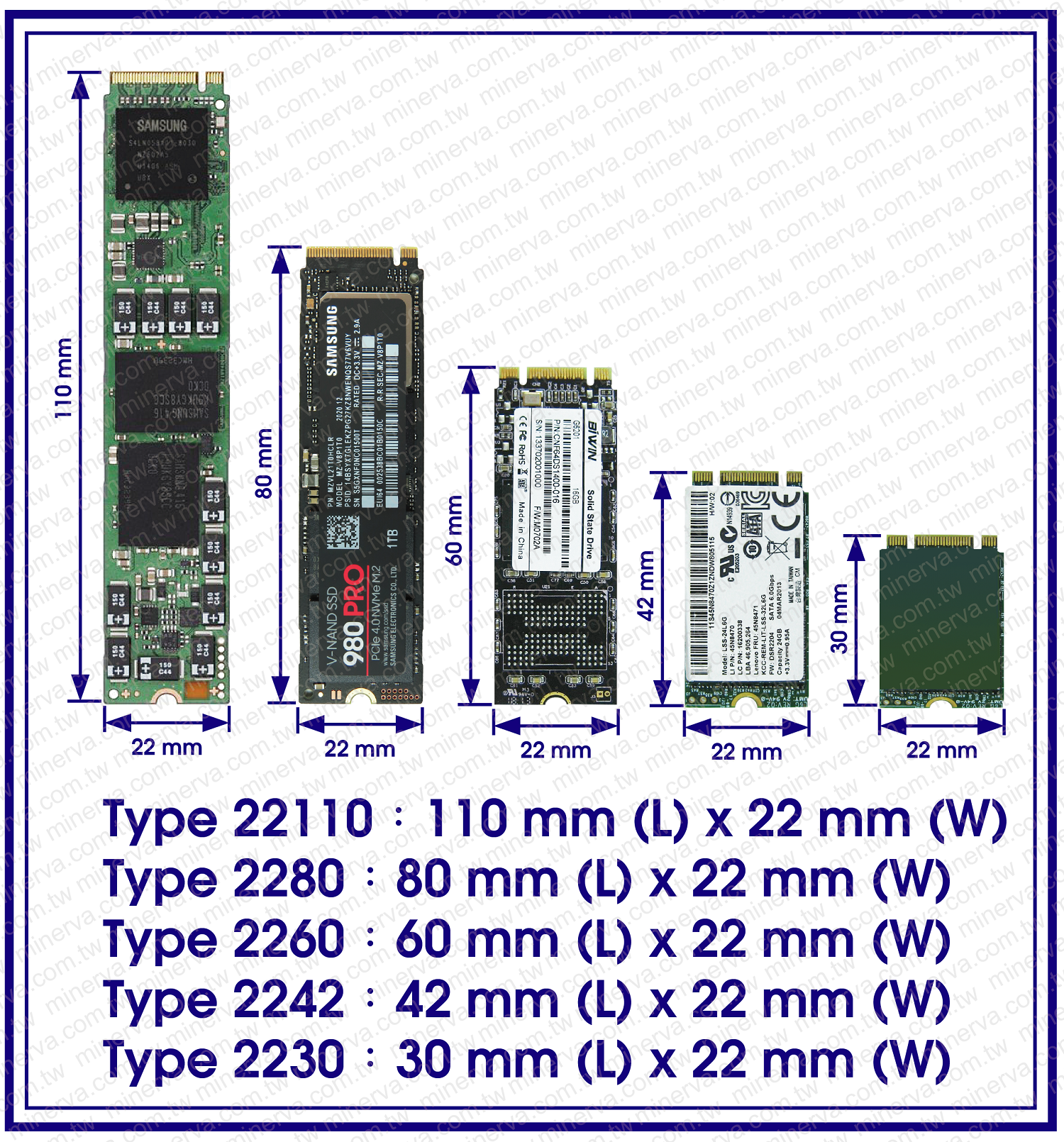

- M.2 NVMe to SlimSAS 4i(SFF-8654) convert
- Built-in SFF-8654 connector, pin-out defined by SFF-9402 Rev1.1

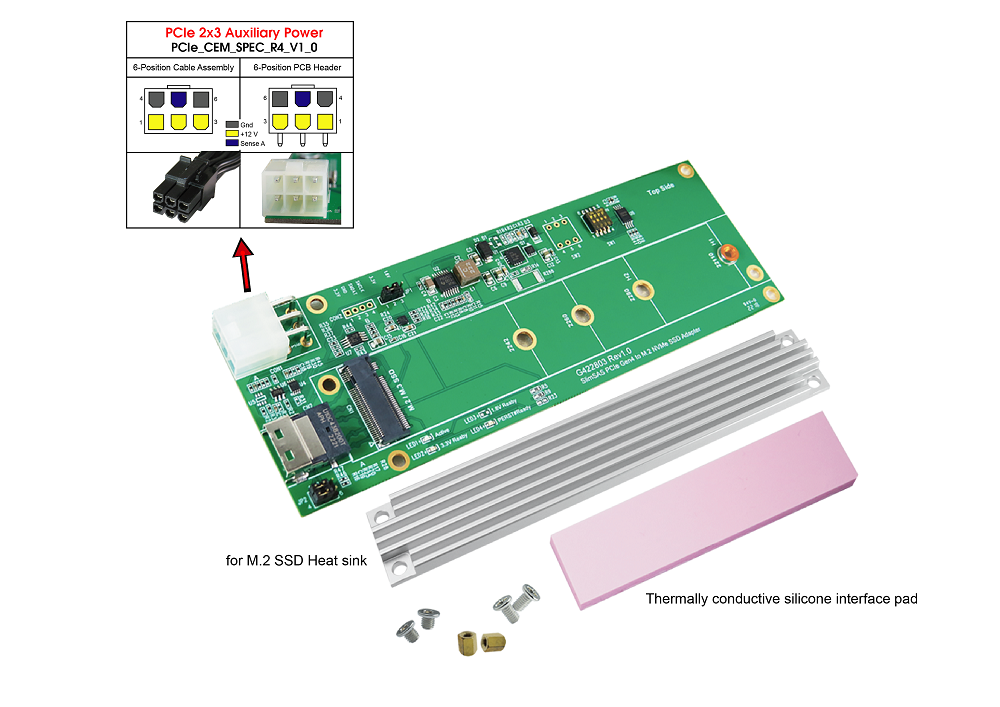

- Built-in PCIe 2x3 Auxiliary Power Connector for 12V, 6.5A MAX.curerent input
- 12V to 3.3V PWM synchronous buck converter Power for M.2 NVMe SSD
- ◆ 5.5A maximum output current
- ◆ Output Discharge Control
- ◆ The output overcurrent protection(OCP)
- ◆ Uundervoltage lock out protection(UVLO) monitor
- ◆ Over/Under Voltage Protection
- ◆ Thermal shutdown protection
- ◆ ESD HBM (Human Body Mode)/500V
- Built-in 3.3V Hotswap Power controller with programmable Inrush Slew rate, support a maximun continuous current of 6.5A for M.2 SSD protection
- Built-in 3.3V input with 400W TVS(TRANSIENT VOLTAGE SUPPRESSOR) ESD protection
- Built-in 3.3V output with 30-V, N channel NexFET power MOSFET protection
- Built-in 3.3V output with SCHOTTKY BARRIER Power Rectifier
- Supports 3.3V&1.8V power rail for sideband signals
- Supports M.2 VIO_CFG Signal
- Supports M.2 PERST# Signal 3.3V and 1.8V voltage level shift
- Supports M.2 CLKREQ# Signal 3.3V and 1.8V voltage level shift
- Supports M.2 WAKE# Signal 3.3V and 1.8V voltage level shift
- Supports PWRDIS Signal from SlimSAS 4i(SFF-8654) to M.2 pin out
- Supports M.2 /1.8V to SlimSAS 4i /3.3V SMBus Hot Swap, Level Shift
- Supports M.2 /1.8V to SlimSAS 4i /3.3V SMBus isolated, repeater

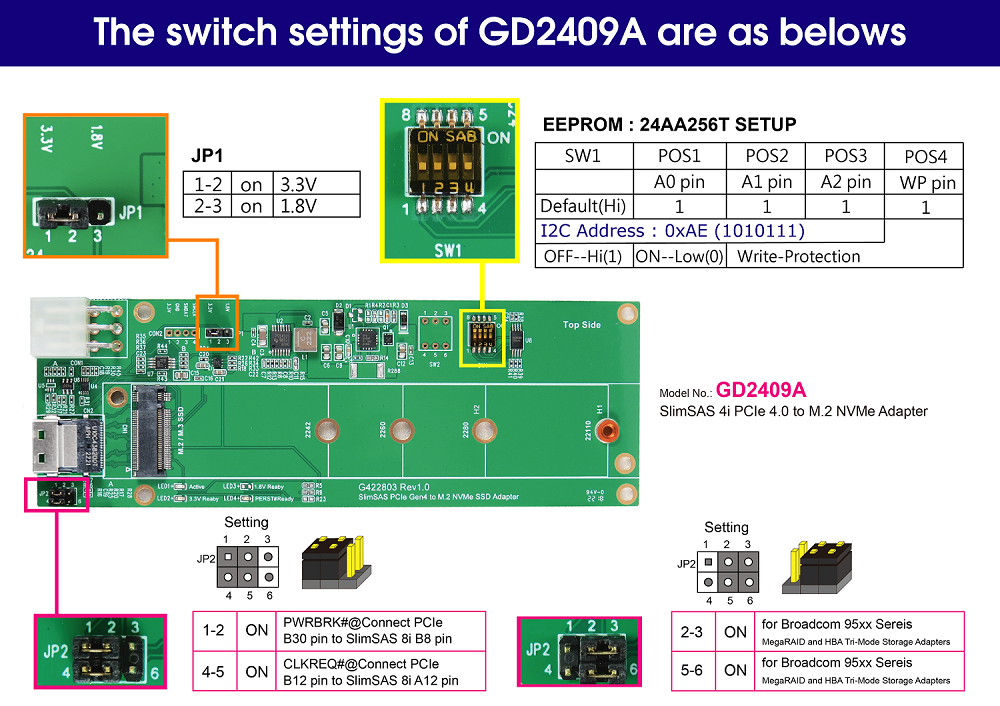

- Built-in SMBus EEPROM 64KB
- LED1 RED Blinking indicates M.2 active
- LED2 Green ON indicates 3.3V Power Ready
- LED4 Green OFF indicates PERST# Normal (Function intentionally inverted)
