Datasheet
2D drawing

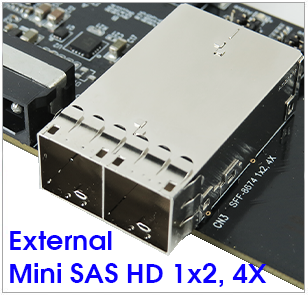

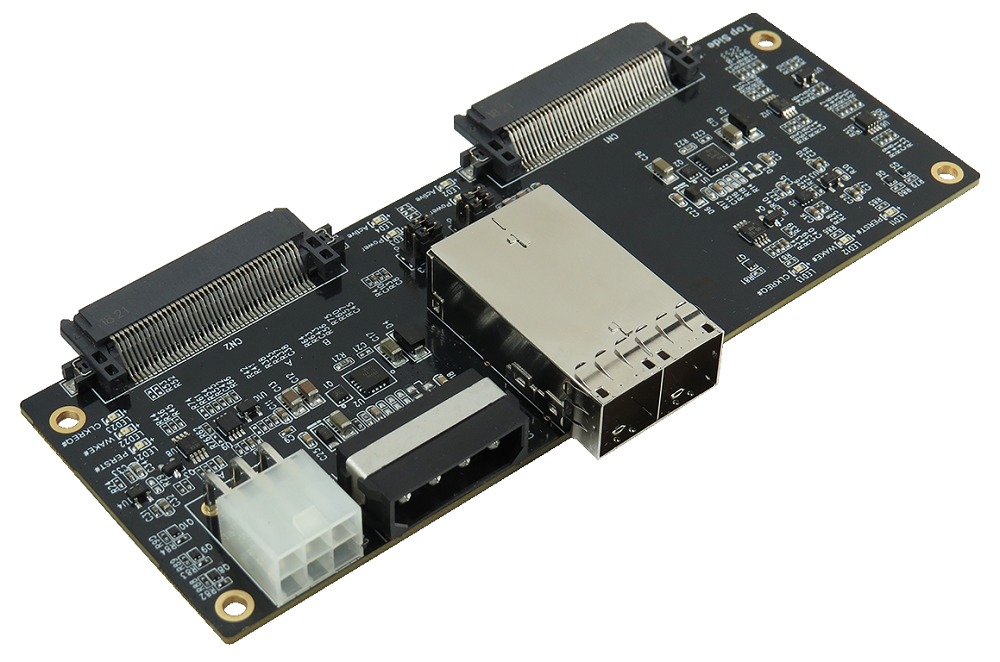

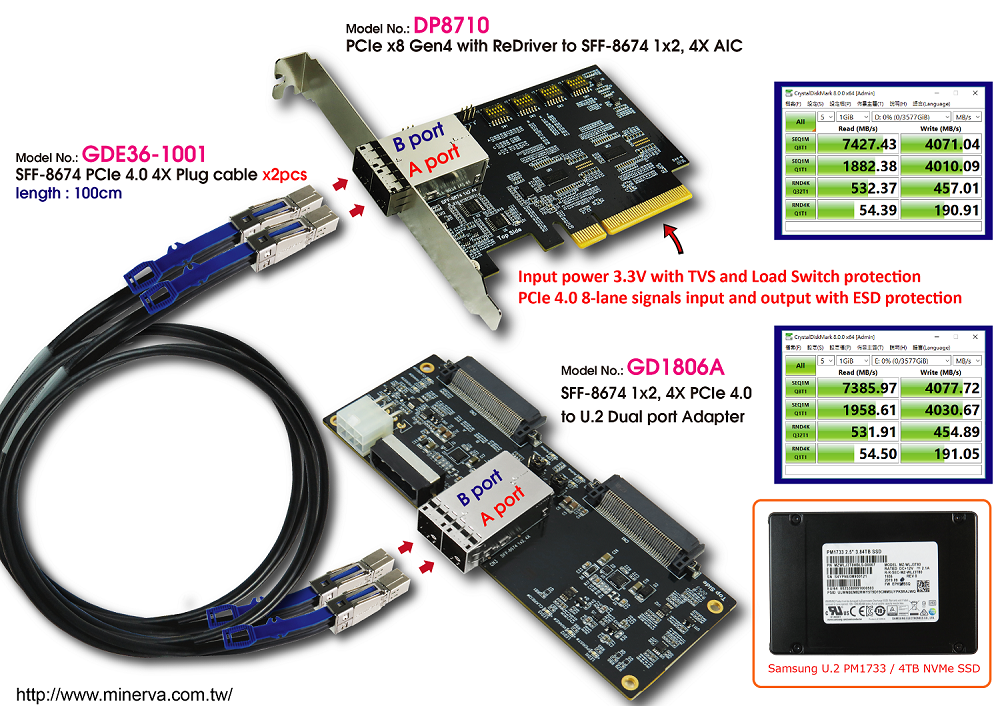

- U.2 dual port to SFF-8674 1x2, 4X(external Mini SAS HD) convert

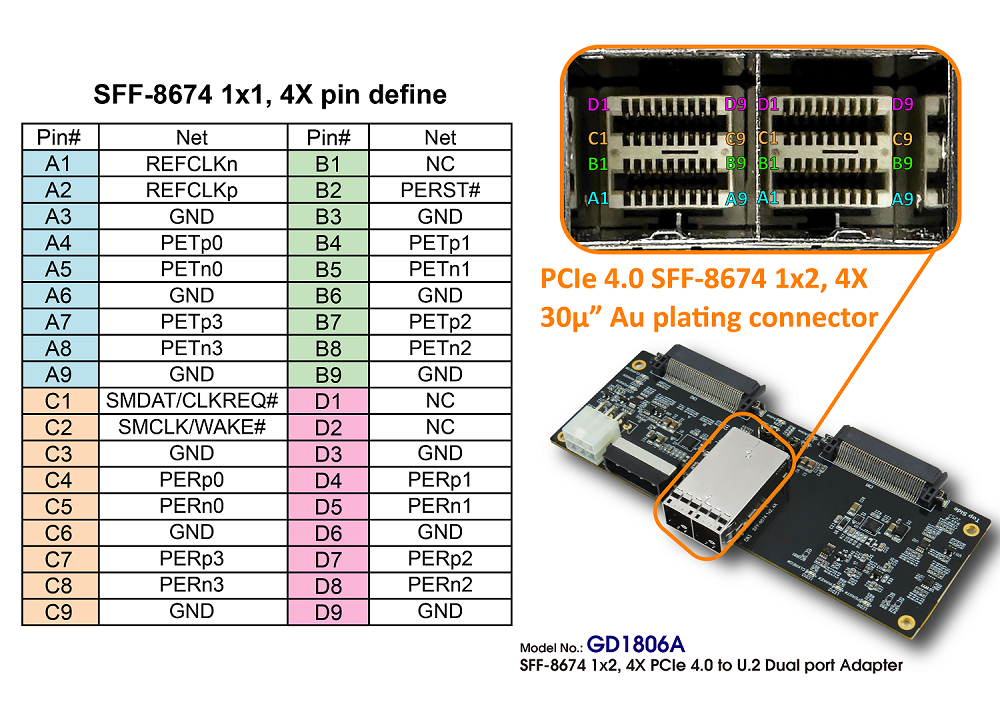

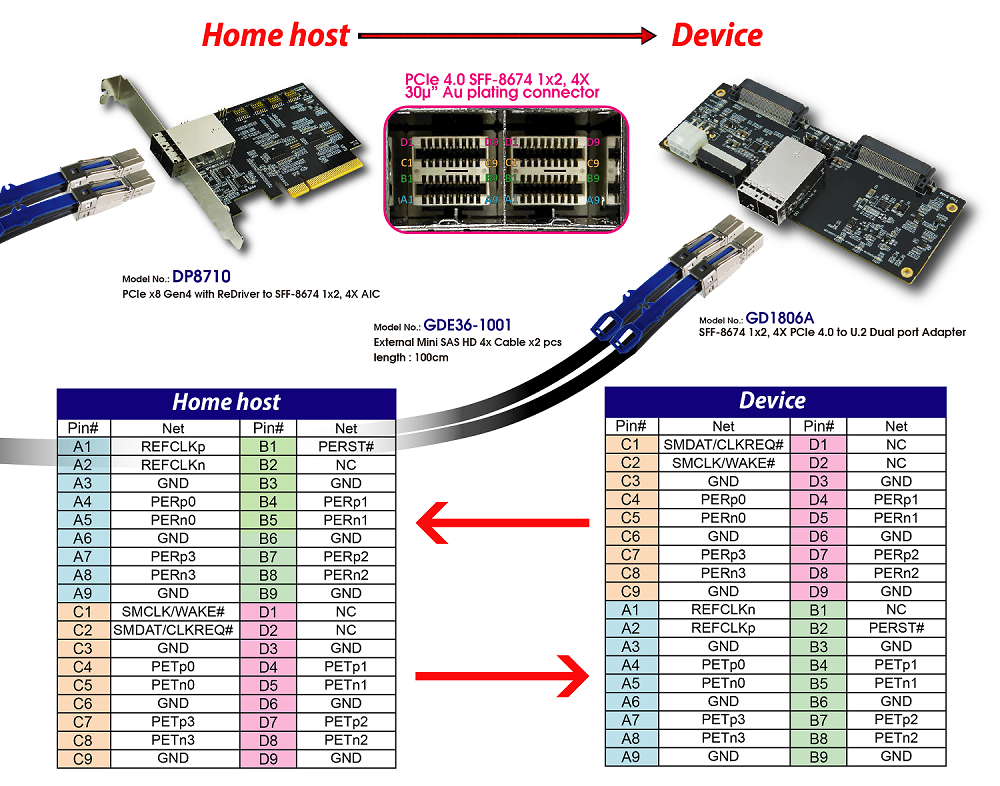

- Built-in SFF-8674 1x2, 4X, 30” connector

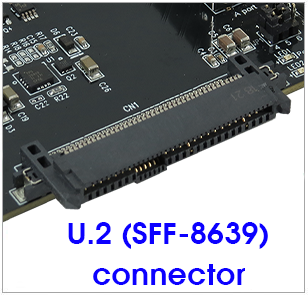

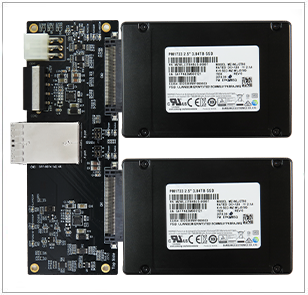

- Built-in two U.2 SFF-8639, 30u” connector
- Built-in two 12V Hot Plug Power with eFuse protection for U.2 dual port
- ◆ Programmable Current Limit: 6.5A
- ◆ Programmable Inrush Current Slew Rate
- ◆ Thermal shutdown protection and fault alert
- ◆ Back-to-Back (B2B) FET Operation
- Built-in two 3.3V Load Switch protection for U.2 dual port 3.3Vaux

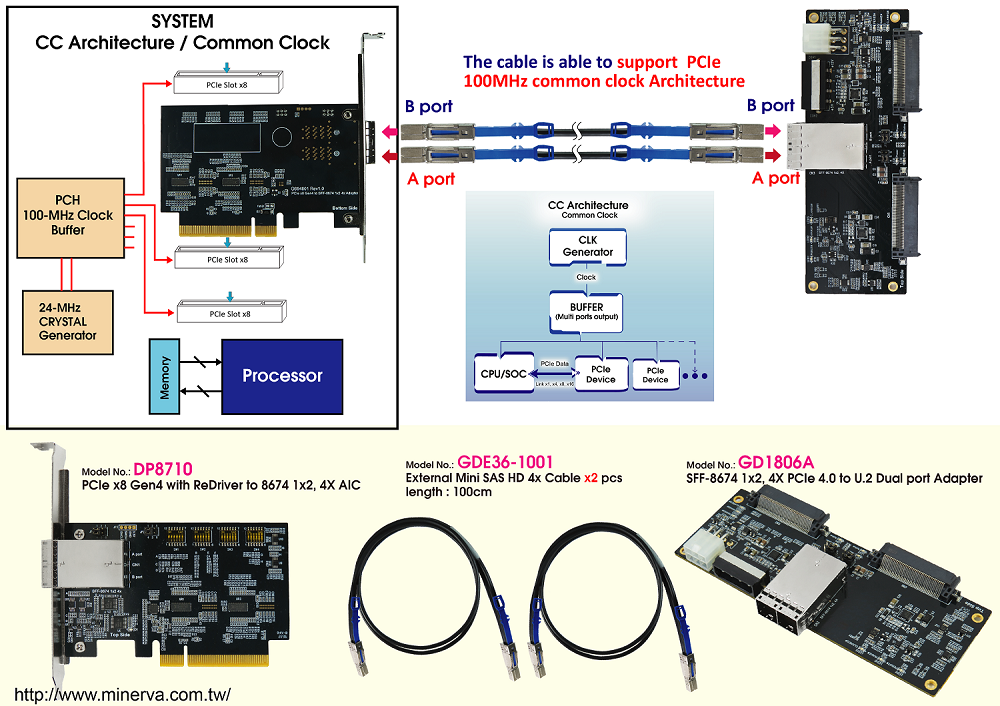

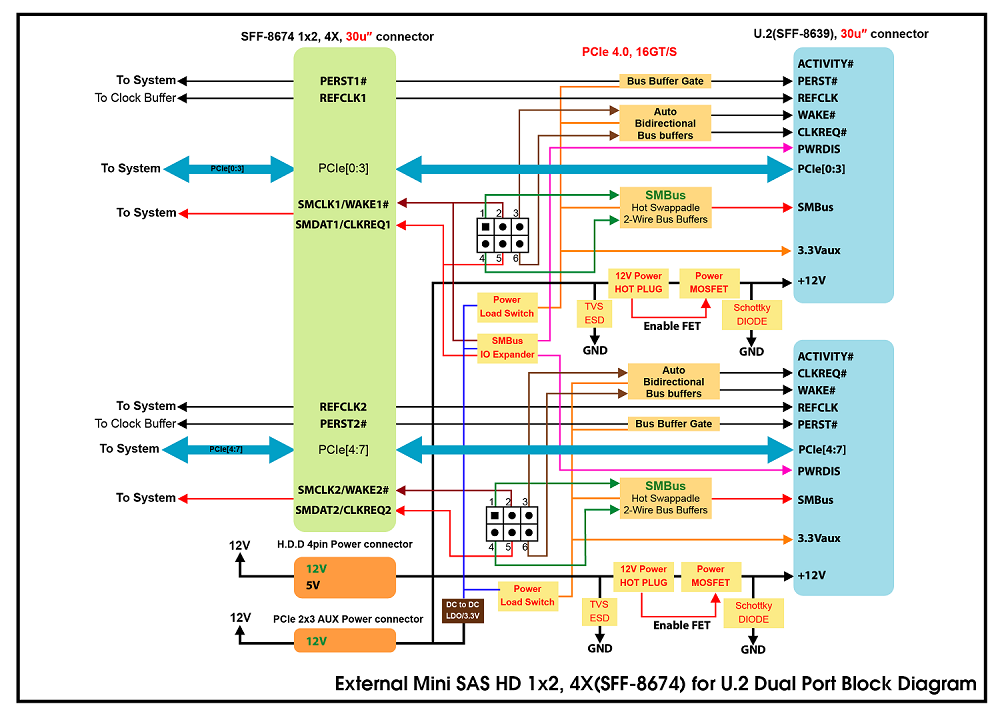

- Supports U.2 to PCIe CLKREQ#, WAKE# connection with Buffers
- Supports U.2 PWRDIS function Implementation

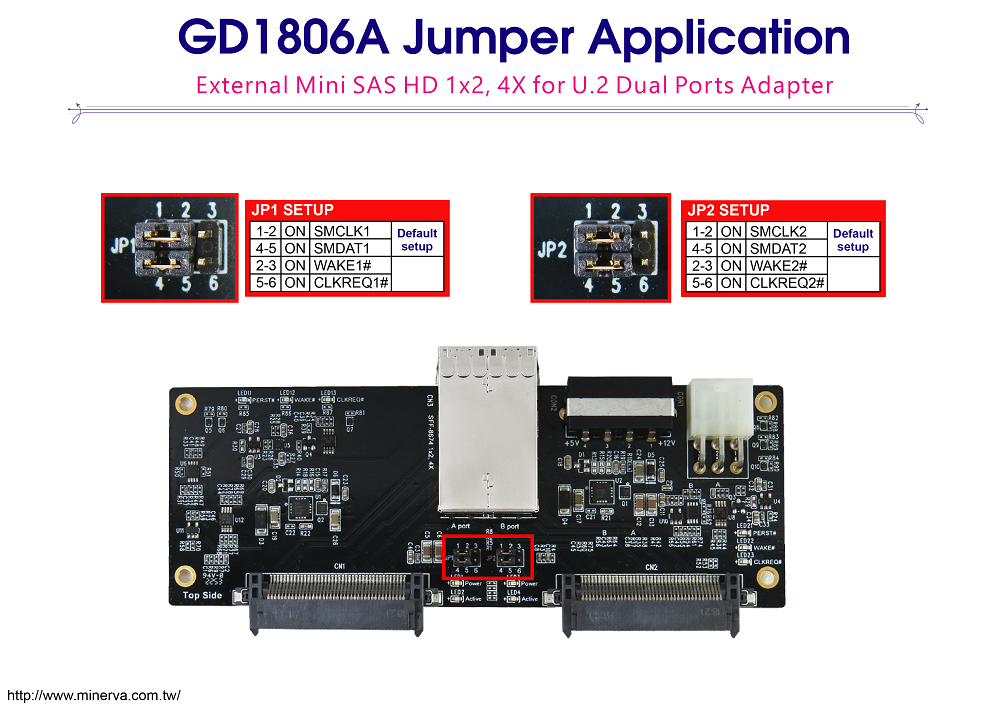

- Built-in SMBus Hot Swappable 2-Wire Bus Buffer
- LED1, LED3 Green LED on indicates U.2 NVMe SSD power ready
- LED2, LED4 Red LED Blinking indicates U.2 active status
- LED11, LED21 Red OFF indicates PERST# Normal (Function intentionally inverted)
- LED12, LED22 Red OFF indicates WAKE# Normal (Function intentionally inverted)
- LED13, LED23 Red OFF indicates CLKREQ# Normal (Function intentionally inverted)
