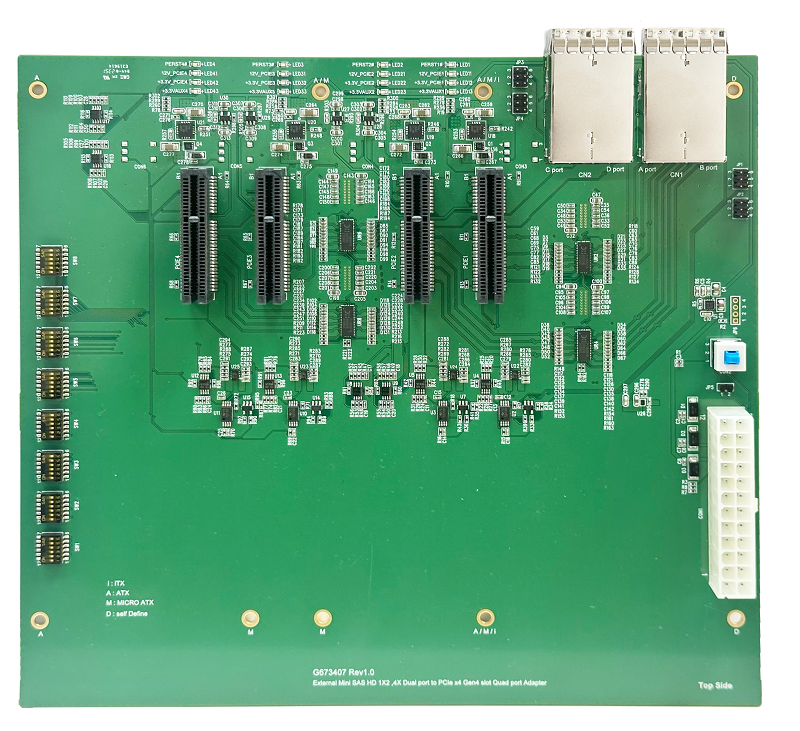

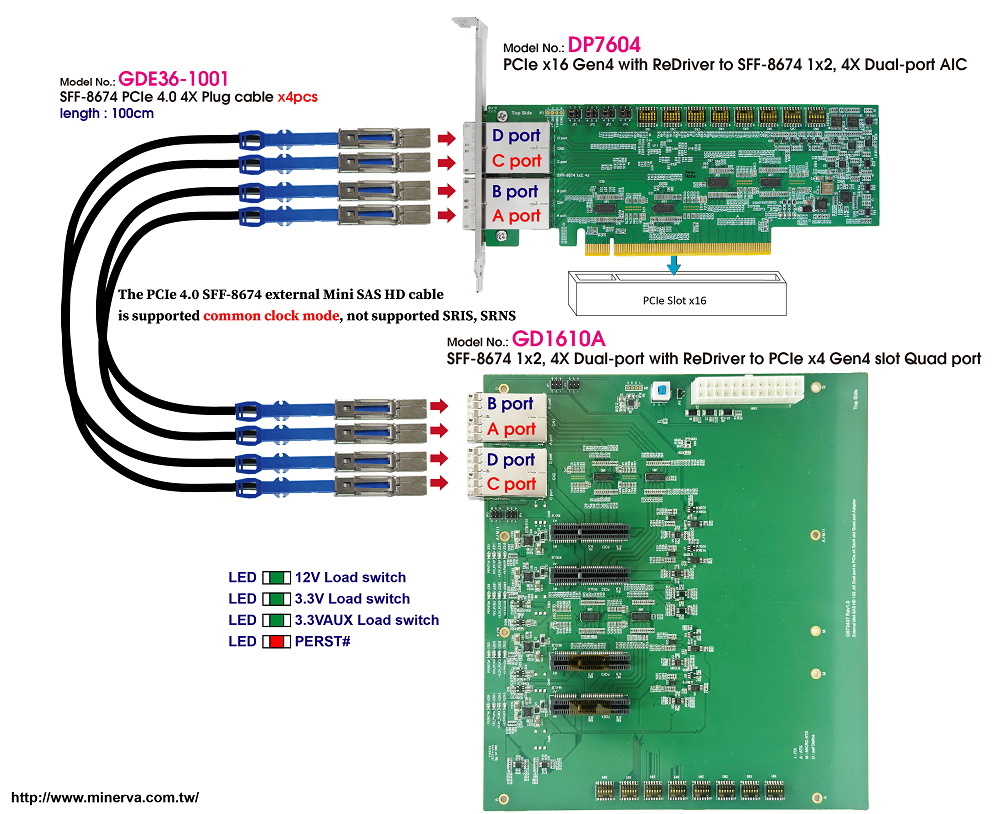

- SFF-8674 1x2, 4X dual port to PCIe 4.0 quad ports signals extension

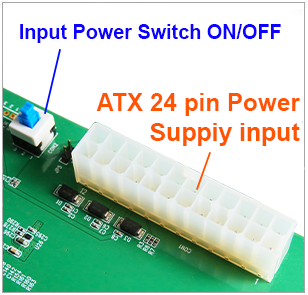

- Built-in ATX 24-pin Power supply connector
- +5VSB Input with Bidirectional TVS
- Manul Switch ON or Jumper Short for ATX 24-pin Power supply ON

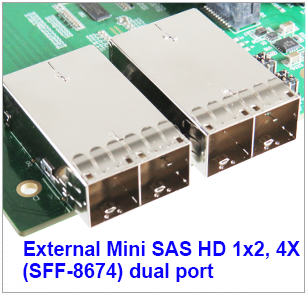

- Built-in SFF-8674 1x2, 4X(External MiniSAS HD) with 30u”(0.76um) min Au mating area plating x2 pcs

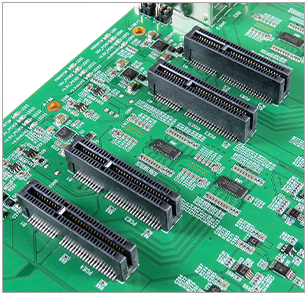

- Built-in PCIe 4.0 x4 Slot with 15 u”(0.38um) min Au mating area plating x4 pcs

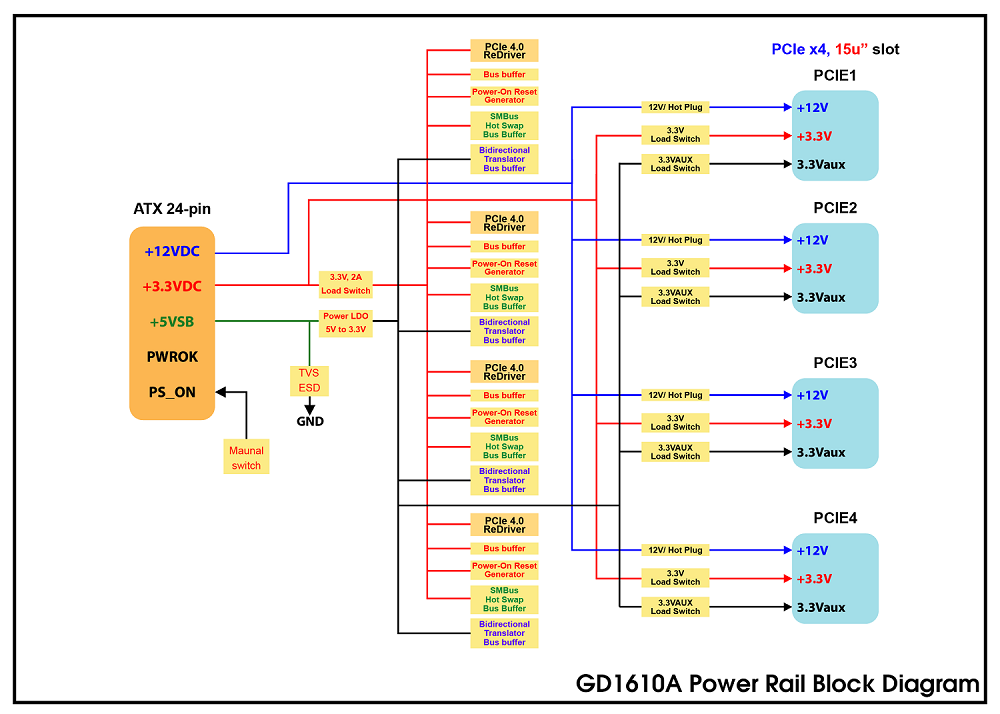

- PCIe quad port x4 Slot Built-in separate +12V, +3.3V, 3.3VAUX Power Controller
- +12V , 5.5A Hot Swap
- +3.3V, 5A Load Switch
- 3.3VAUX, 500mA Load Switch

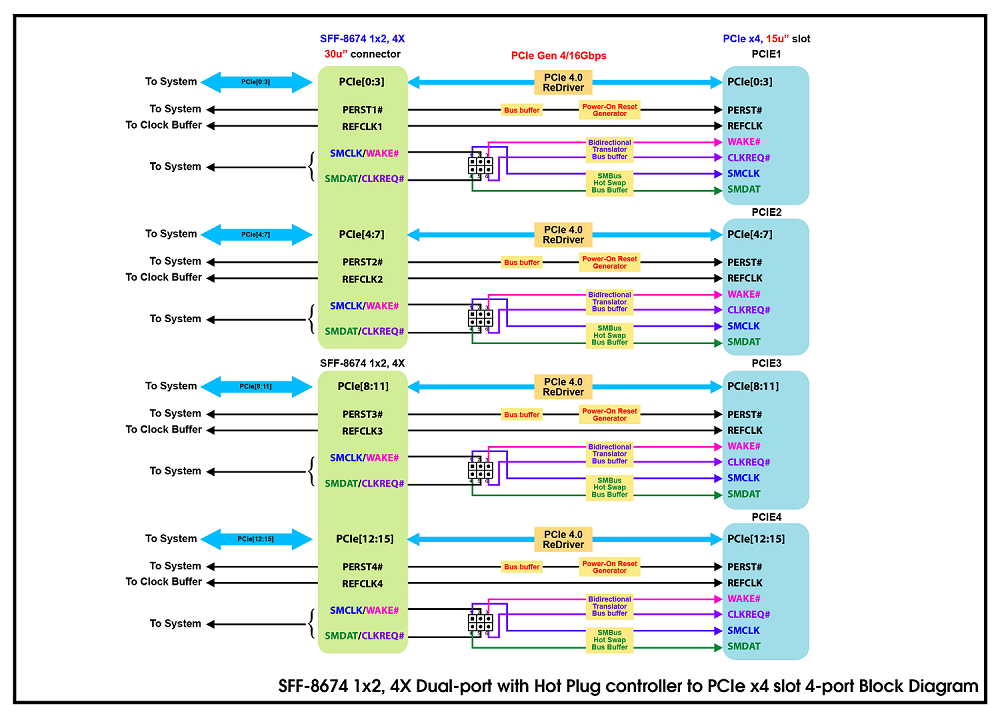

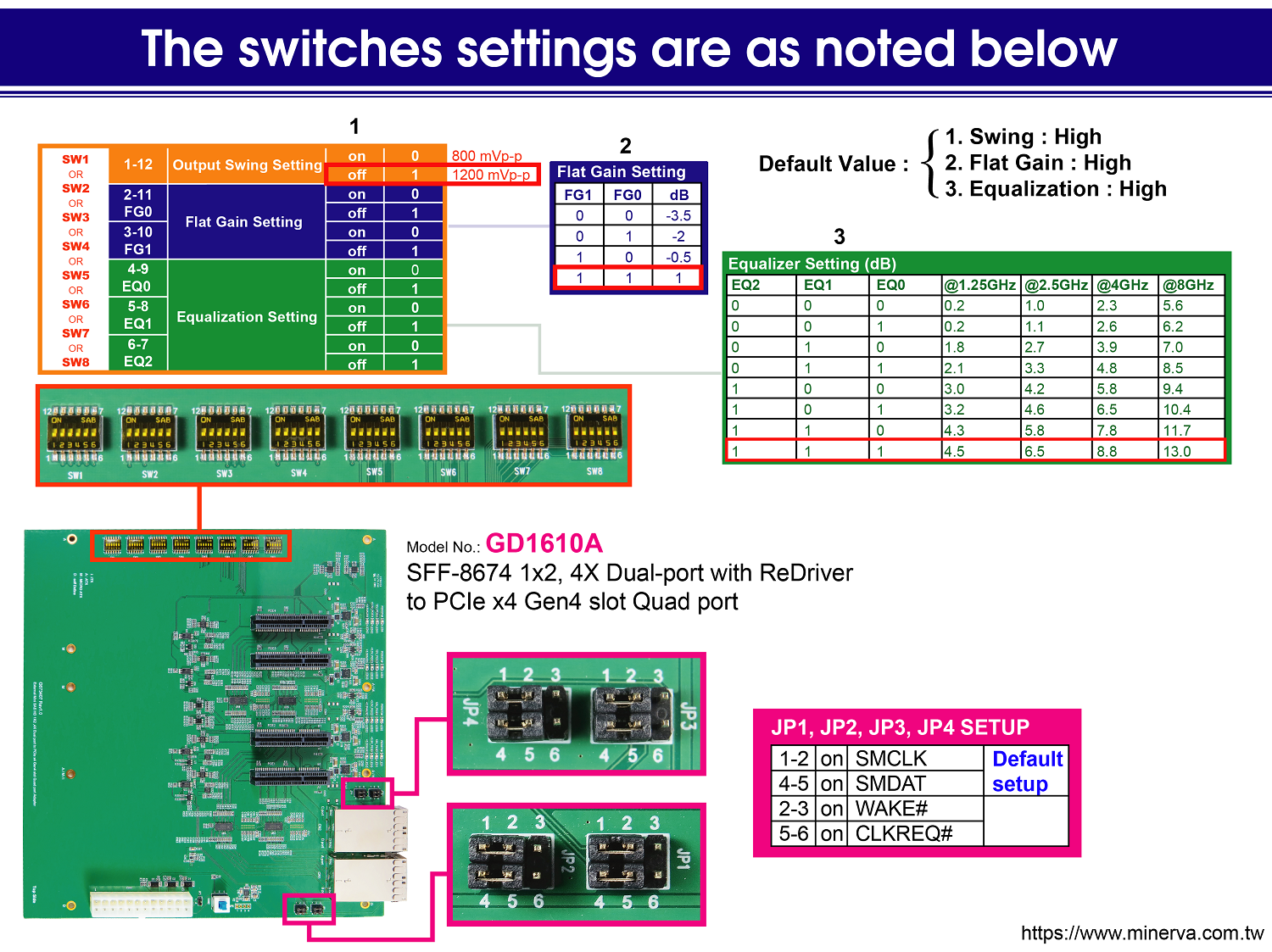

- Built-in PCIe 4.0 Redriver to drive PCIe signals reach.
- Built-in SMBus Hot Swappable 2-Wire Bus Buffer for separate port
- Built-in PCIe PERST# Bus Buffer and manul switch for separate port
- Built-in PCIe WAKE# Bidirectional Translator Bus Buffer for separate port
- Built-in PCIe CLKREQ# Bidirectional Translator Bus Buffer for separate port
- LED1 Red On to OFF indicates PCIE1 PERST# Normal (Function intentionally inverted)
- LED11 Green On indicates PCIE1 +12V power ready
- LED12 Green On indicates PCIE1 +3.3V power ready
- LED13 Green On indicates PCIE1 3.3VAUX power ready
- LED2 Red On to OFF indicates PCIE2 PERST# Normal (Function intentionally inverted)
- LED21 Green On indicates PCIE2 +12V power ready
- LED22 Green On indicates PCIE2 +3.3V power ready
- LED23 Green On indicates PCIE2 3.3VAUX power ready
- LED3 Red On to OFF indicates PCIE3 PERST# Normal (Function intentionally inverted)
- LED31 Green On indicates PCIE3 +12V power ready
- LED32 Green On indicates PCIE3 +3.3V power ready
- LED33 Green On indicates PCIE3 3.3VAUX power ready
- LED4 Red On to OFF indicates PCIE4 PERST# Normal (Function intentionally inverted)
- LED41 Green On indicates PCIE4 +12V power ready
- LED42 Green On indicates PCIE4 +3.3V power ready
- LED43 Green On indicates PCIE3 3.3VAUX power ready
