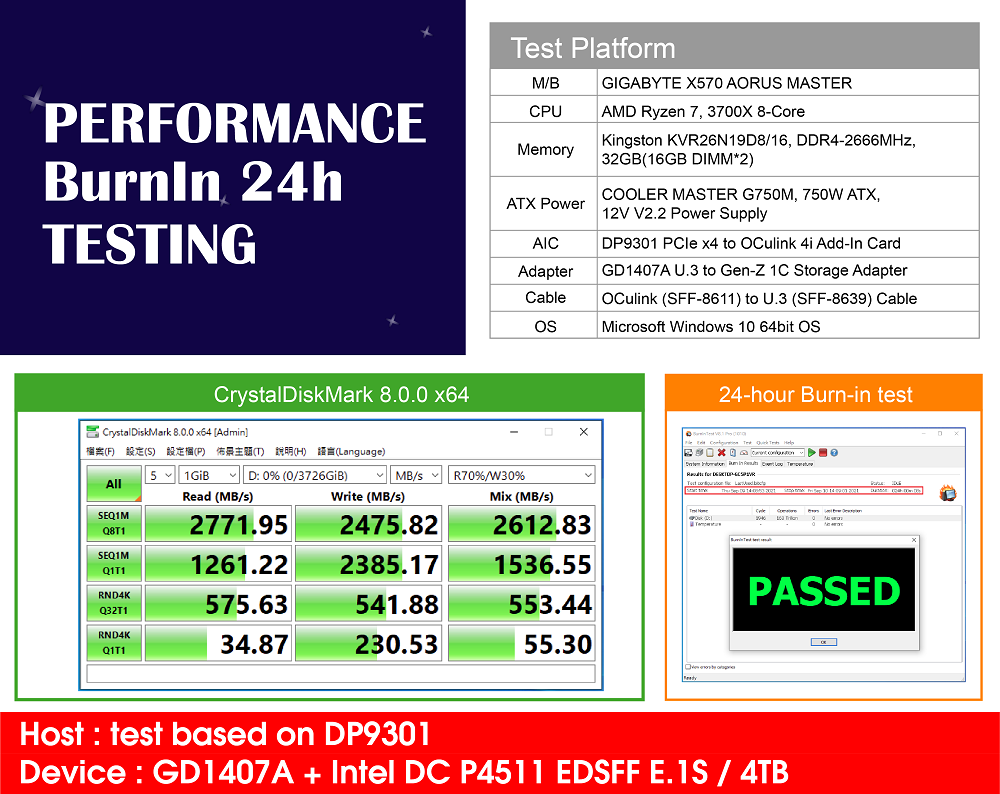

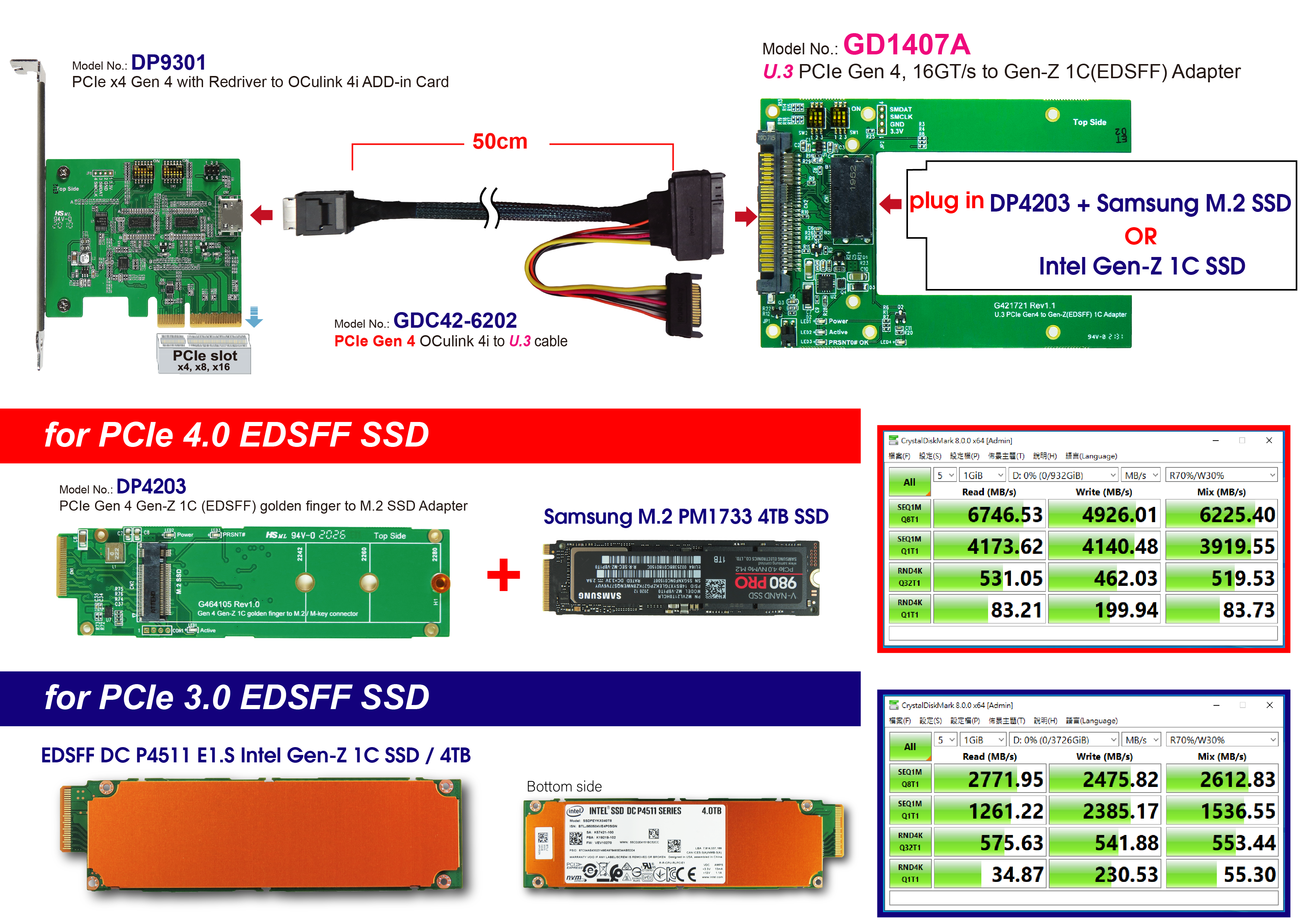

GD1407A Test report for Intel EDSFF 4TB SSD (PCIe Gen 3)

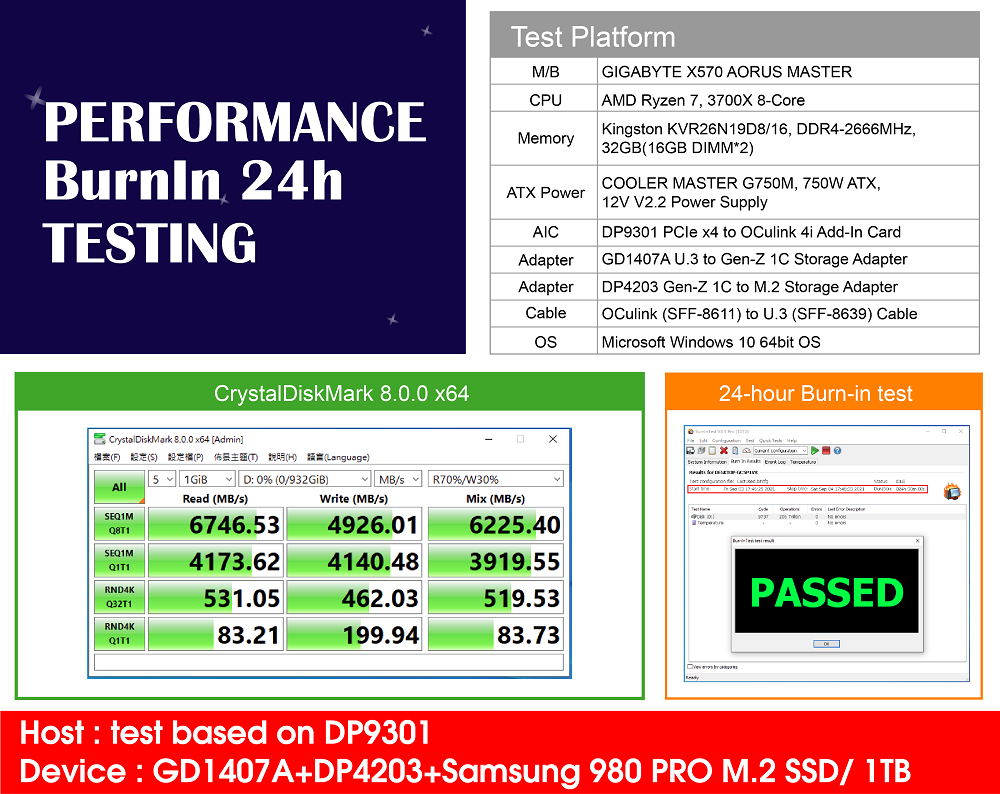

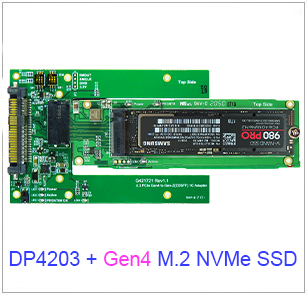

GD1407A Test report for DP4203+PCIe Gen 4 M.2 NVMe SSD

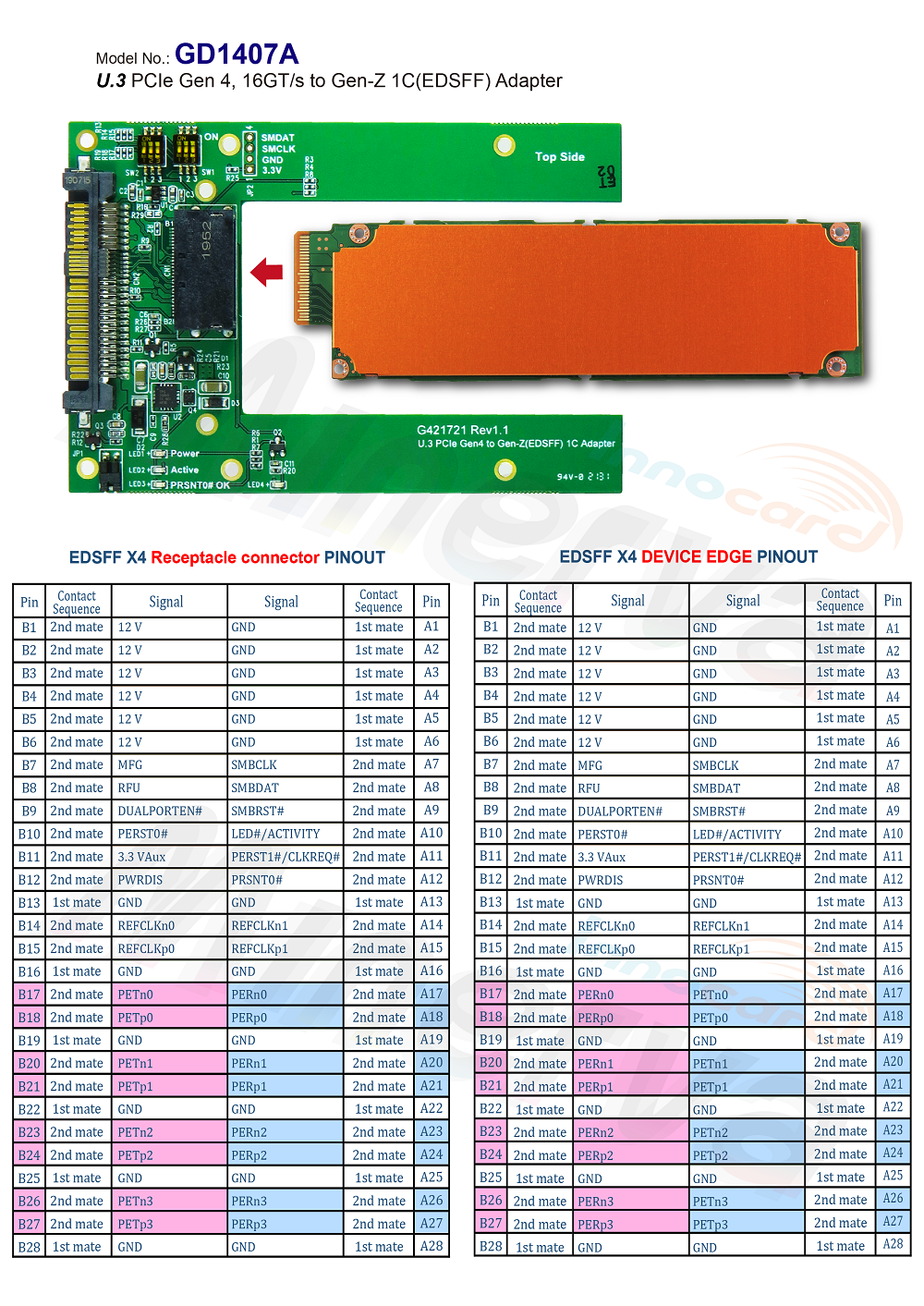

GD1407A-2D drawing

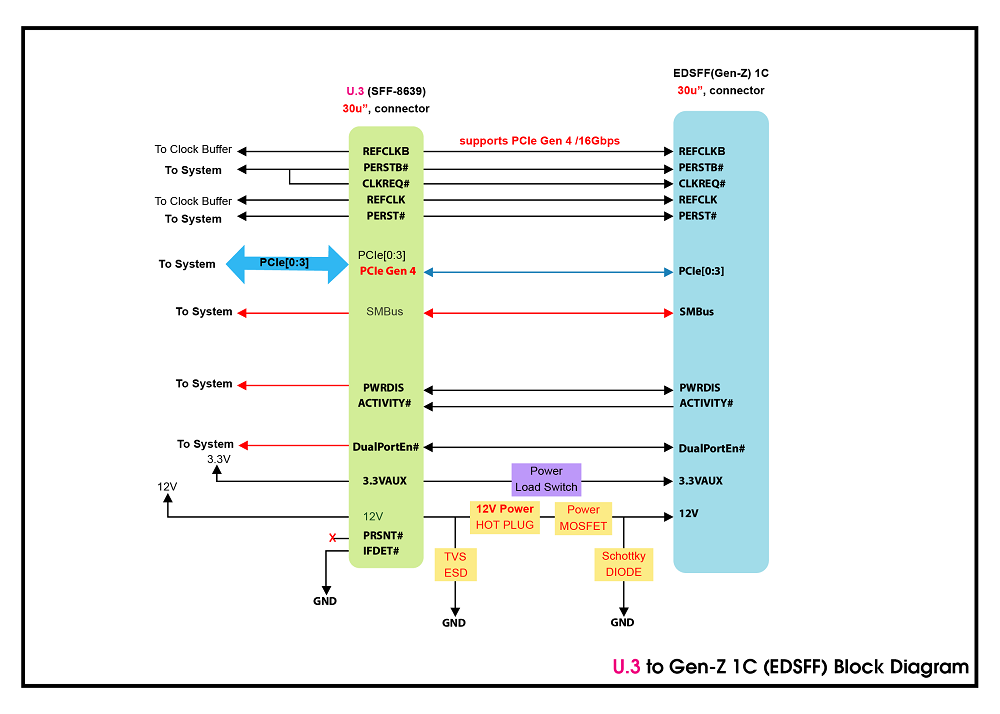

- Built-in 12V Hot Plug Power IC with eFuse protection circuit
- Built-in U.3(SFF-8639) Male connector

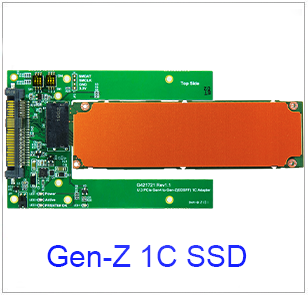

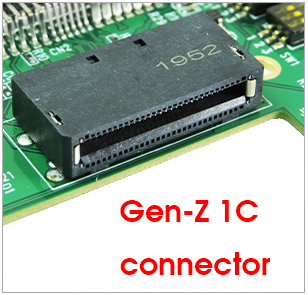

- Built-in EDSFF (Gen-Z) 1C Connector
- Supports SMB_CLK/ SMB_DATA
- Supports PWRDIS
- Supports DualPortEn
- LED1 GREEN indicates 12V Power Ready
- LED2 RED LED Blinking indicates Gen-Z SSD active status
- LED3 GREEN indicates PRSNT0# OK
- LED4 GREEN indicates 3.3Vaux Power Ready
- JP1 pin header must be to setup on, when Host does not supply 3.3Vaux

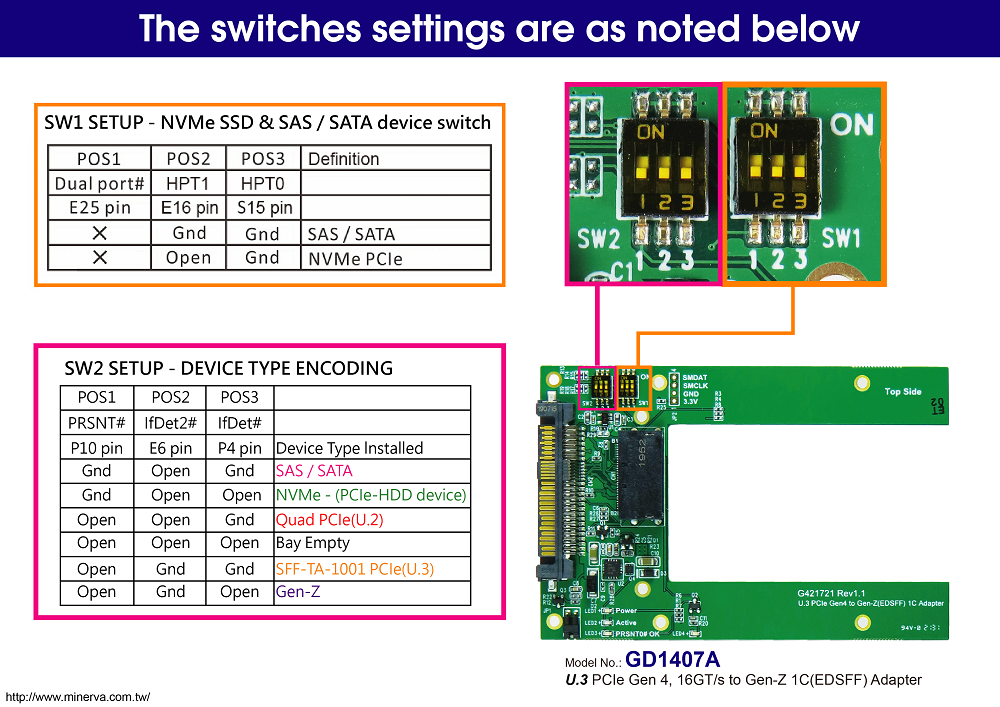

- U.3 Device Type Encording setup switch on board
