Datasheet

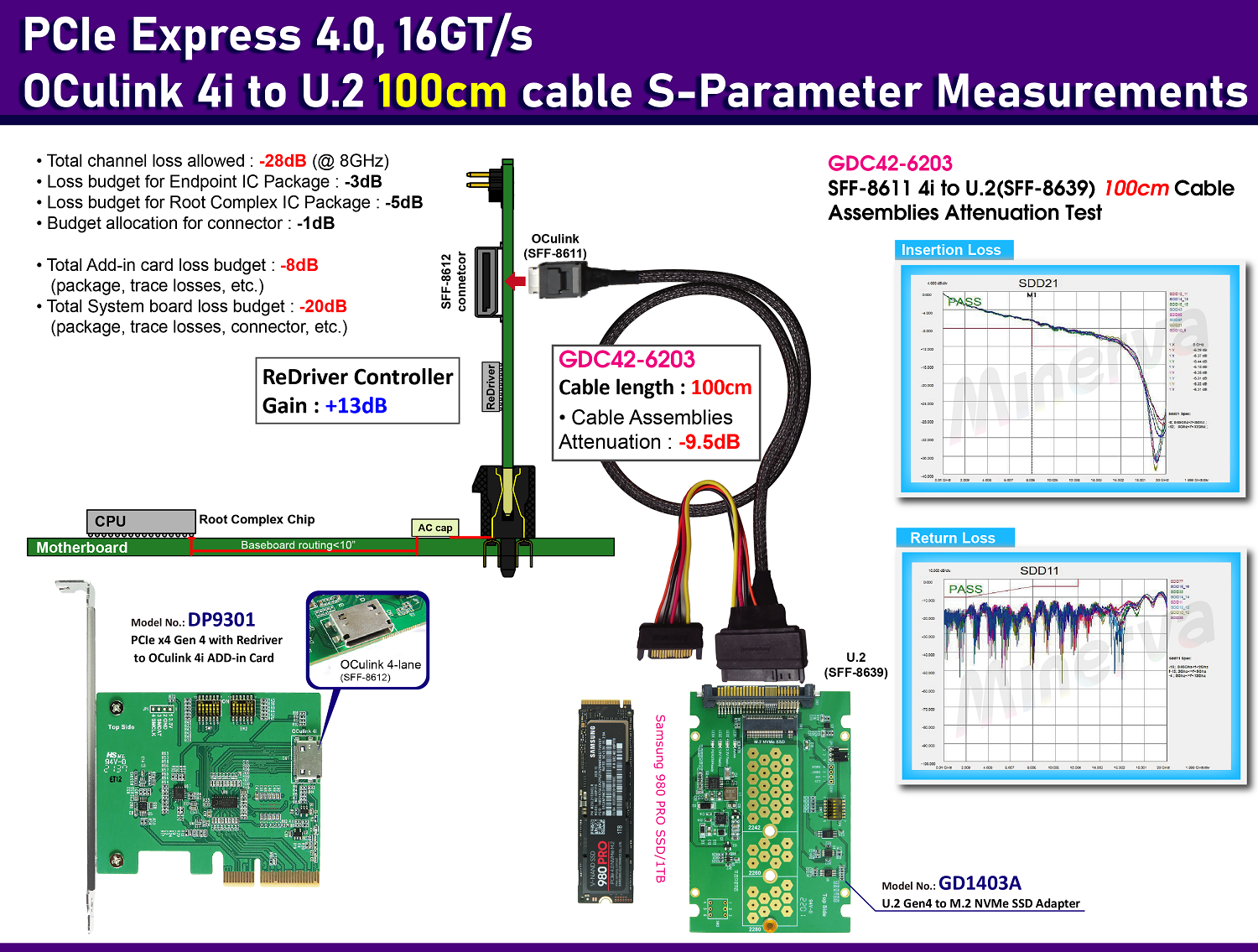

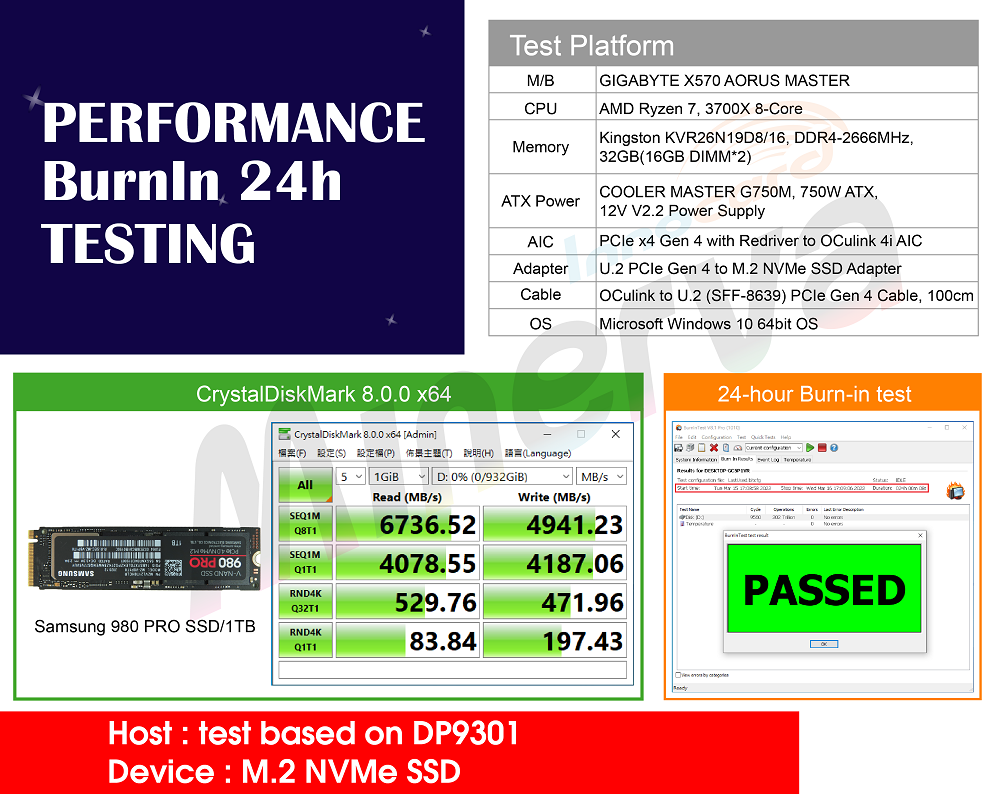

Test report
2D drawing

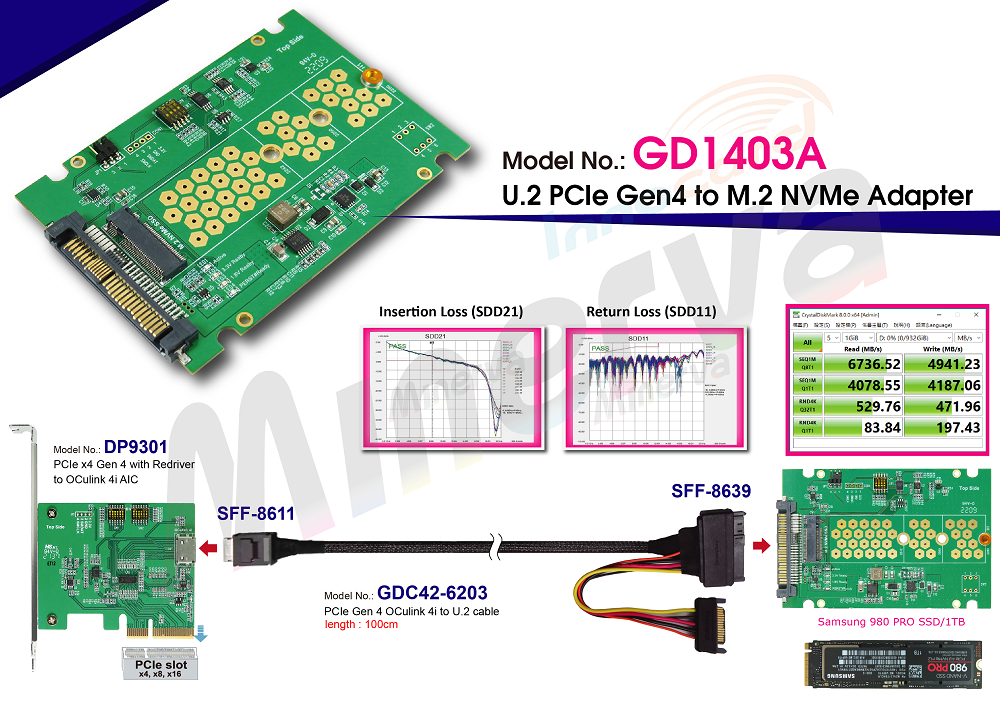

- M.2 NVMe to U.2(SFF-8639) convert

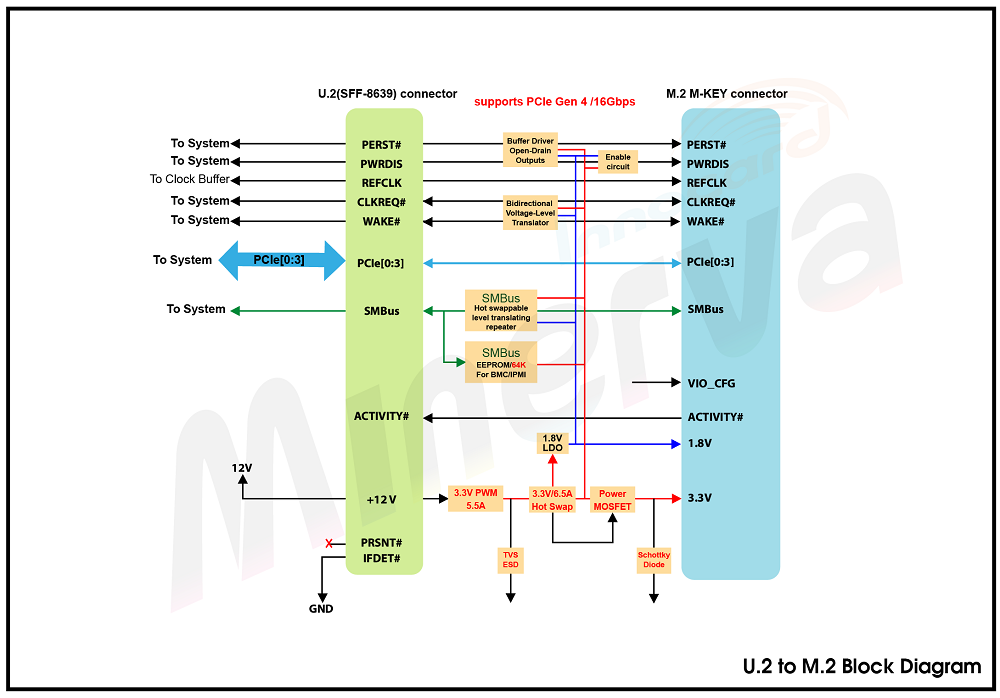

- Built-in SFF-8639 connector, pin-out defined by SFF-9402 Rev1.1
- PWM 12V to 3.3V synchronous buck converter Power for M.2 NVMe SSD
- ◆ 5.5A maximum output current
- ◆ Output Discharge Control
- ◆ The output overcurrent protection(OCP)
- ◆ Uundervoltage lock out protection(UVLO) monitor
- ◆ Over/Under Vlotage Protection
- ◆ Thermal shutdown protection
- ◆ ESD HBM (Human Body Mode)/500V
- Built-in 3.3V Hotswap Power controller with programmable Inrush Slew rate, support a maximun continuous current of 6.5A for M.2 SSD protection
- Built-in 3.3V input with 400W TVS(TRANSIENT VOLTAGE SUPPRESSOR) ESD protection
- Built-in 3.3V output with 30-V, N channel NexFET power MOSFET, 32 m ohm
- Built-in 3.3V output with SCHOTTKY BARRIER Power Rectifier
- Supports M.2 3.3V&1.8V supply
- Supports M.2 VIO_CFG Signal
- Supports M.2 PERST# Signal 3.3V and 1.8V voltage level shift
- Supports M.2 CLKREQ# Signal 3.3V and 1.8V voltage level shift
- Supports M.2 WAKE# Signal 3.3V and 1.8V voltage level shift
- Supports PWRDIS Signal from U.2 pin to M.2 pin
- Supports M.2 /1.8V to U.2/3.3V SMBus Hot Swap, Level Shift
- Supports M.2 /1.8V to U.2 /3.3V SMBus isolated, repeater
- Built-in SMBUS EEPROM 64KB

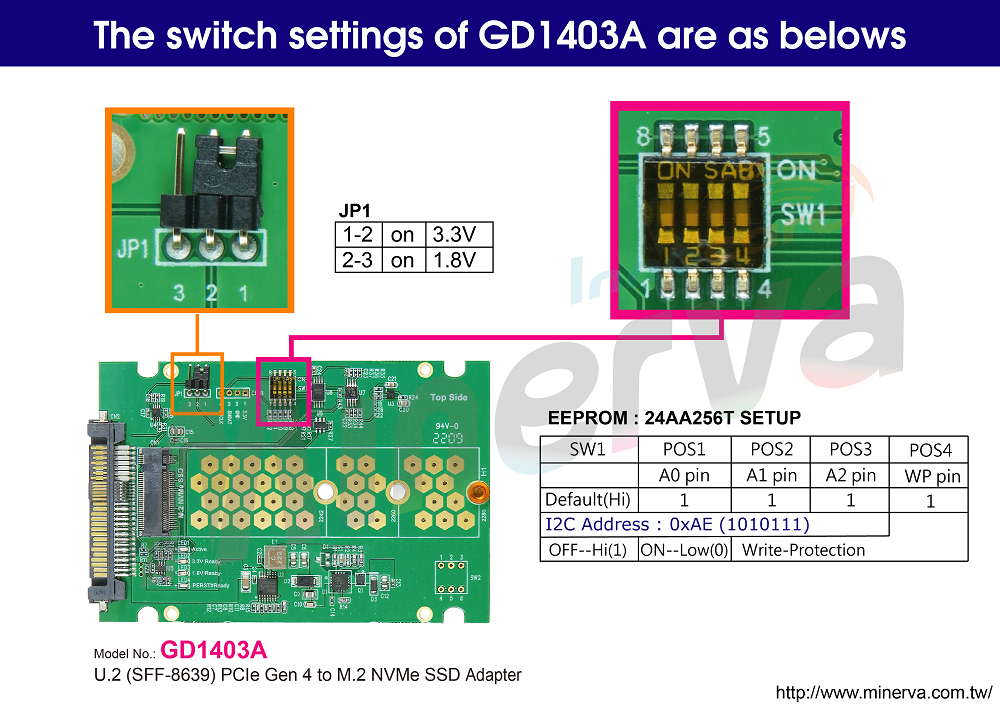

- LED1 RED Blinking indicates M.2 active
- LED2 Green ON indicates 3.3V Power Ready
- LED3 Green ON indicates 1.8V Power Ready
- LED4 Green OFF indicates PERST# Normal (Function intentionally inverted)
