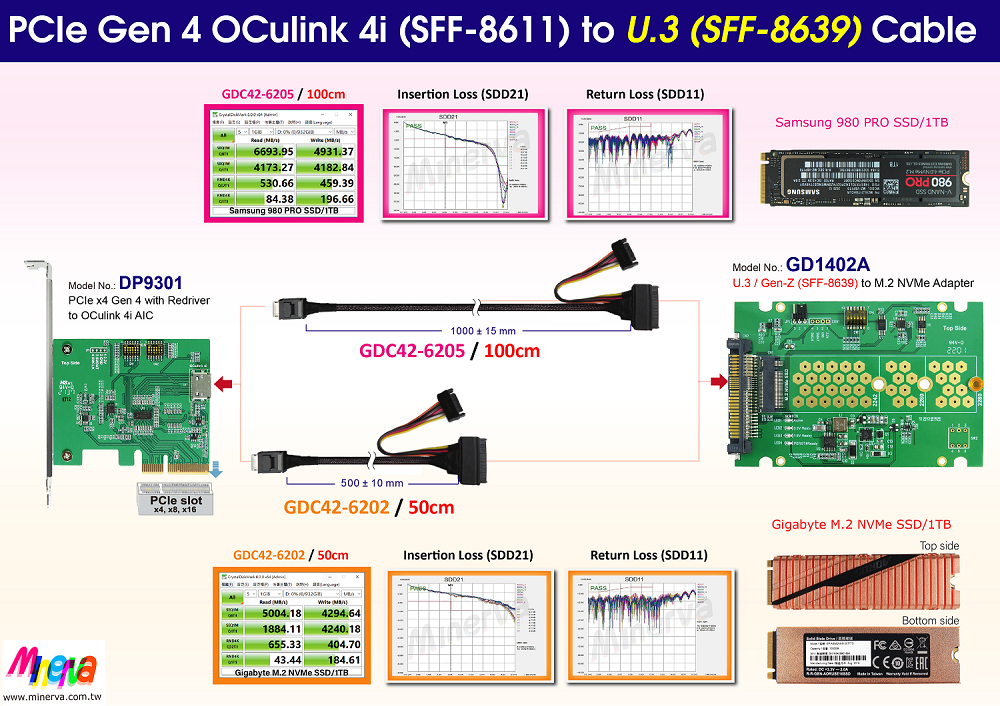

Test report for GDC42-6201 / 50cm
Test report for GDC42-6202 / 100cm
2D drawing

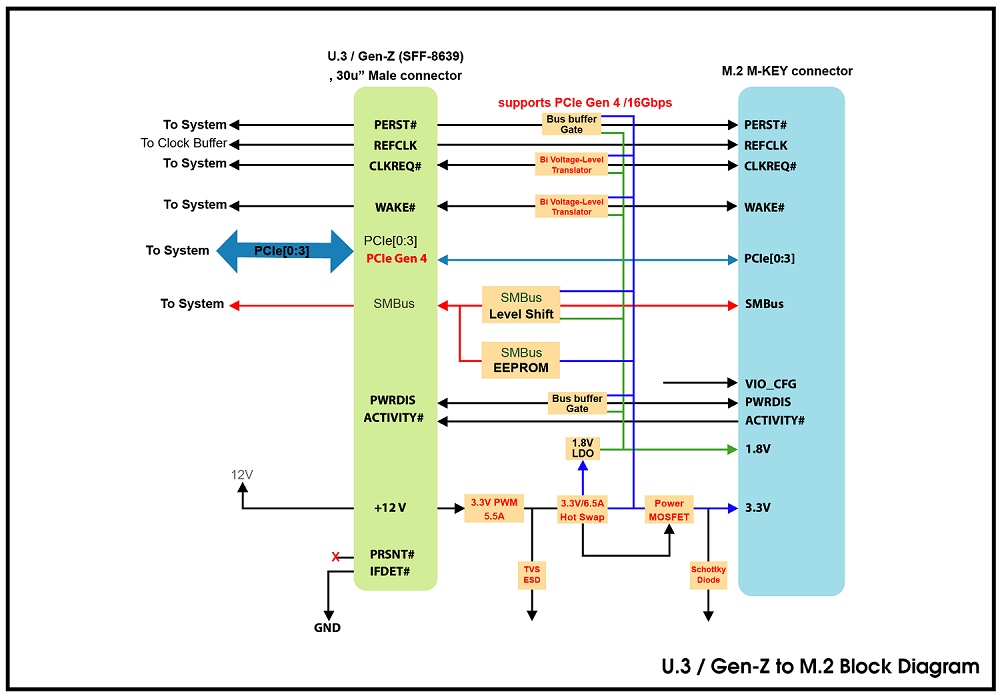

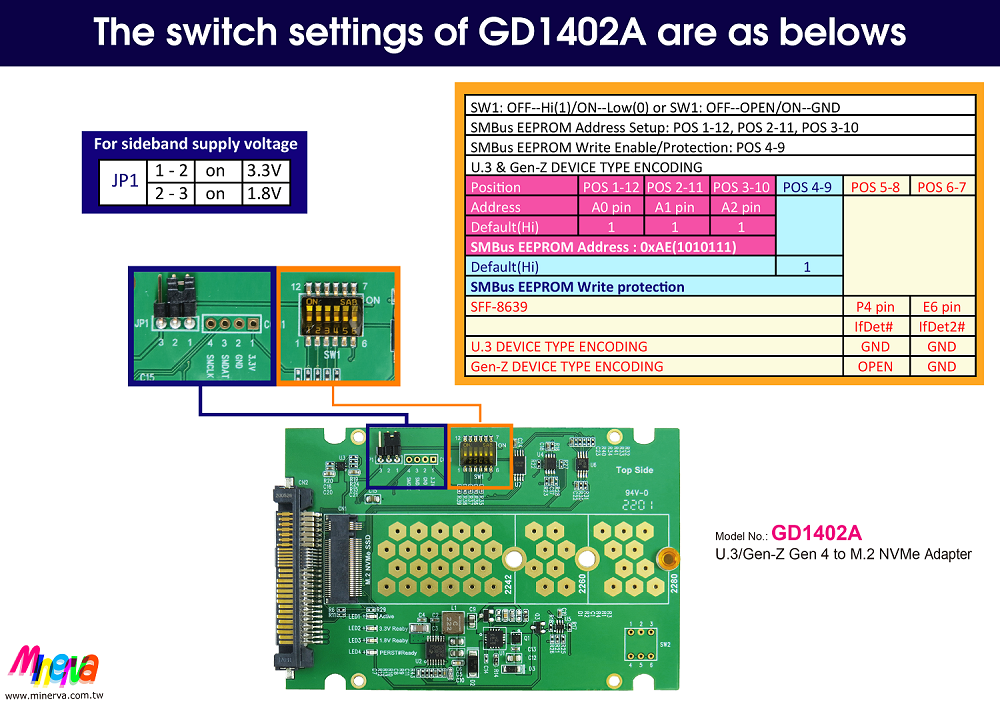

- M.2 NVMe to U.3(SFF-8639) convert
- Built-in SFF-8639, 30u” connector, pin-out defined by SFF-9402 Rev1.1
- PWM 12V to 3.3V synchronous buck converter Power for M.2 NVMe SSD
- ◆ 5.5A maximum output current
- ◆ Output Discharge Control
- ◆ The output overcurrent protection(OCP)
- ◆ Uundervoltage lock out protection(UVLO) monitor
- ◆ Over/Under Voltage Protection
- ◆ Thermal shutdown protection
- ◆ ESD HBM (Human Body Mode)/500V
- Built-in 3.3V Hot Plug Power with eFuse protection for M.2 NVMe SSD
- ◆ Programmable Current Limit: 6.5A
- ◆ Programmable Inrush Current Slew Rate
- ◆ Thermal shutdown protection and fault alert
- ◆ Back-to-Back (B2B) FET Operation
- Built-in 3.3V input with 400W TVS(TRANSIENT VOLTAGE SUPPRESSOR) ESD protection
- Built-in 3.3V output with 30-V, N channel NexFET power MOSFET, 32 m ohm
- Built-in 3.3V output with SCHOTTKY BARRIER Power Rectifier

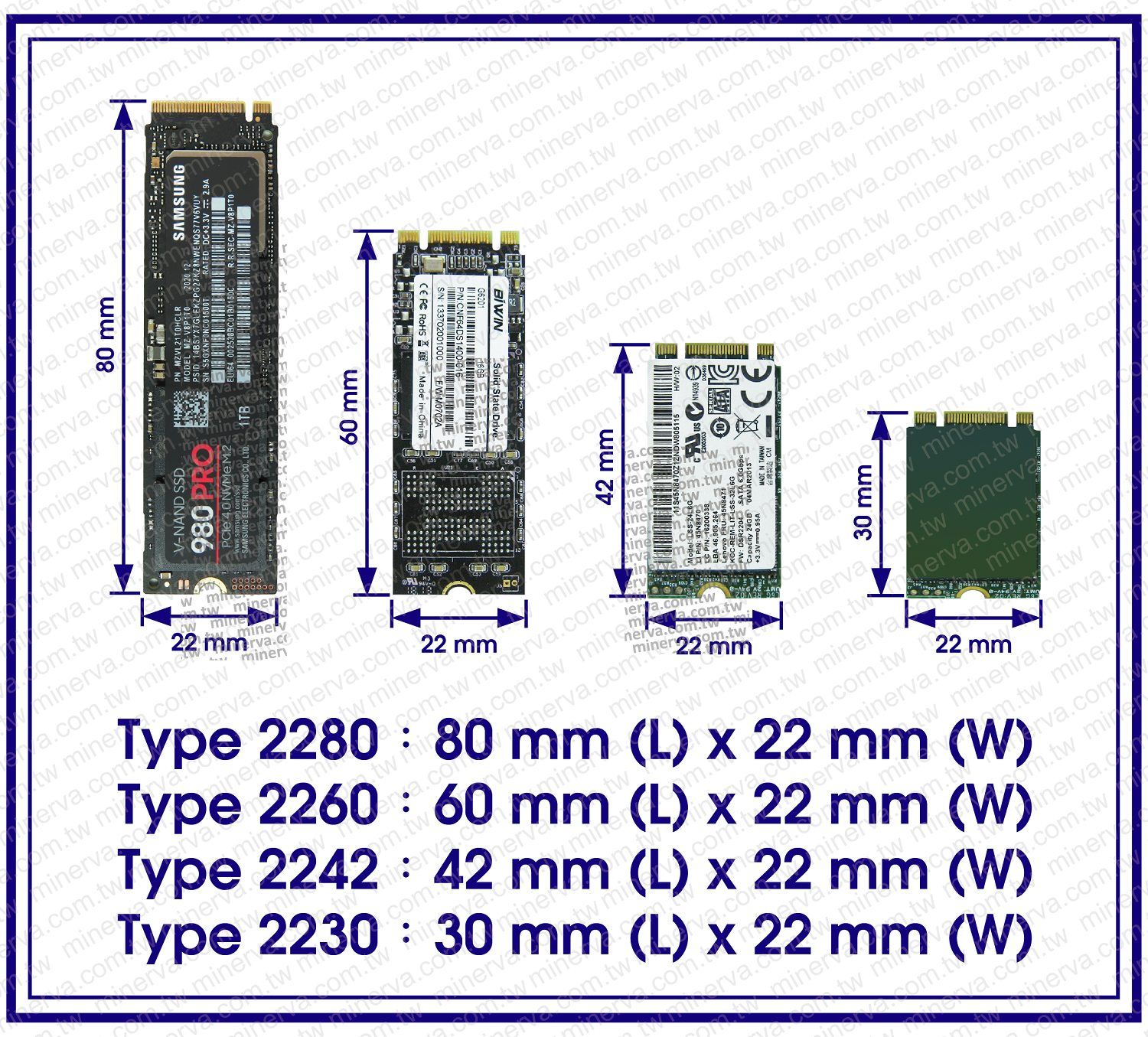

- Supports M.2 3.3V&1.8V supply
- Supports M.2 VIO_CFG Signal
- Supports M.2 PERST# Signal 3.3V and 1.8V Voltage-Level Translator
- Supports M.2 CLKREQ# Signal 3.3V and 1.8V Switching Translator
- Supports M.2 WAKE# Signal 3.3V and 1.8V Translator
- Supports PWRDIS Signal from U.3 pin to M.2 pin
- Supports M.2 /1.8V to U.3/3.3V SMBCLK, SMBDATA Level Shift
- Supports M.2 /1.8V to U.3 /3.3V SMBCLK, SMBDATA isolated, repeater
- Supports M.2 /1.8V to U.3 /3.3V SMBCLK, SMBDATA Hot-Swap
- Built-in SMBus EEPROM 64KB
- LED1 RED Blinking indicates M.2 active status
- LED2 GREEN ON indicates 3.3V power ready
- LED3 GREEN ON indicates 1.8V power ready
- LED4 RED ON indicates PERST# signals ready
