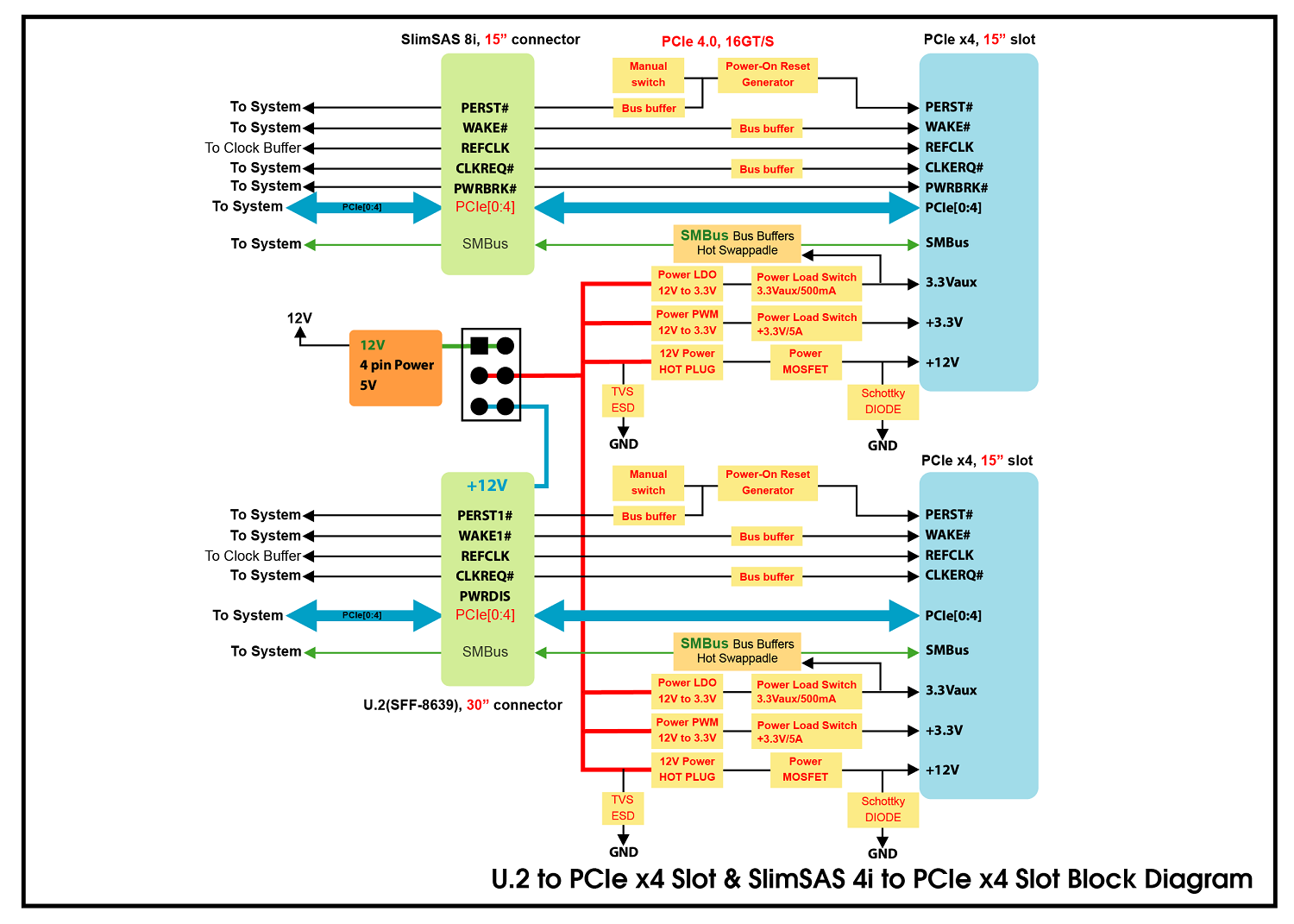

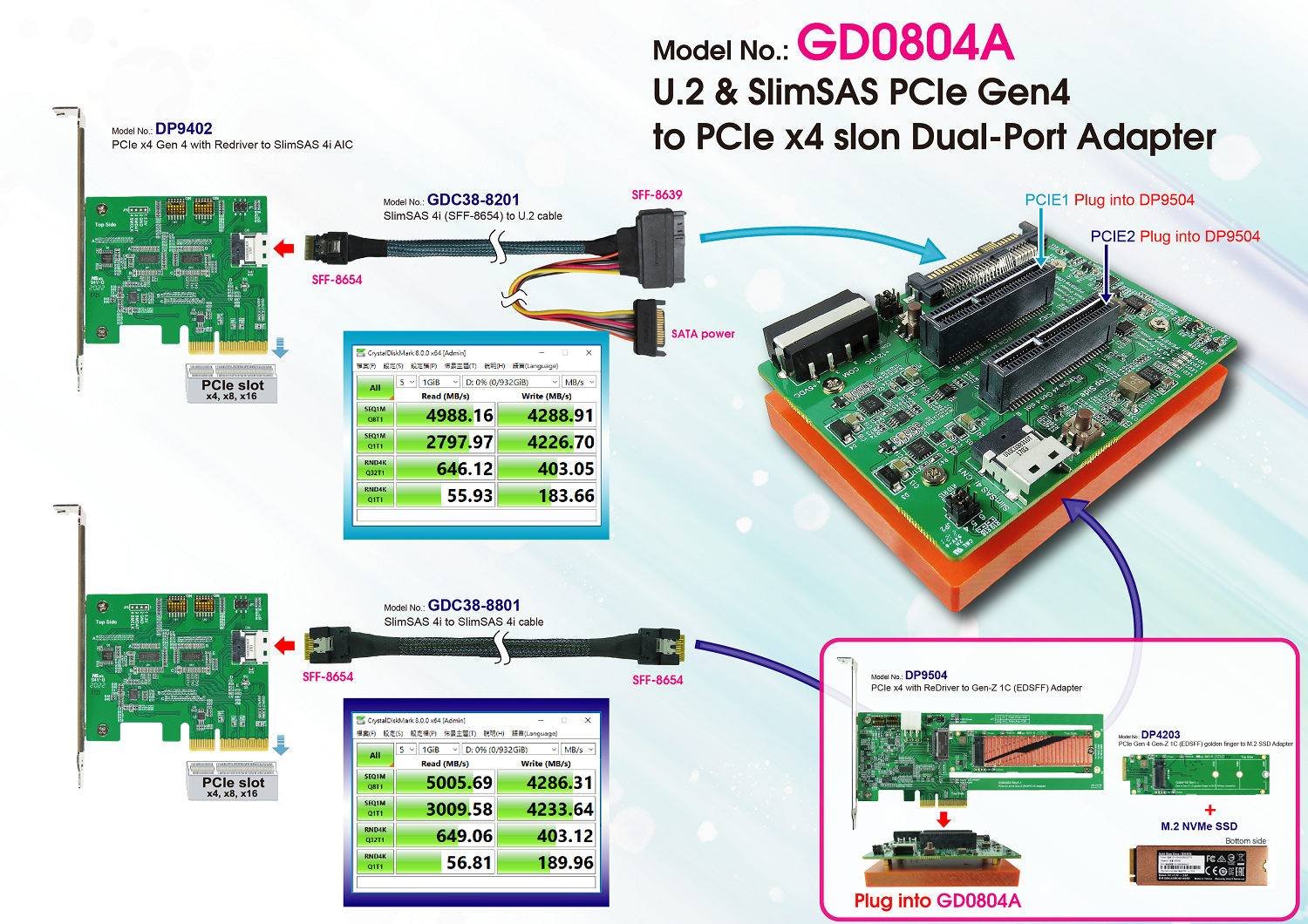

U.2(SFF-8639) to PCIe x4 convert
SlimSAS 4i(SFF-8654) to PCIe x4 convert
Built-in SFF-8639 connector, pin-out defined by SFF-9402 Rev1.1
Built-in SFF-8654 4i connector, pin-out defined by SFF-9402 Rev1.1
Built-in PCIe x4 Slot x2
Built-in +12V Hot Plug Power with eFuse protection for PCIe +12V
◆ Programmable Current Limit: 6.5A
◆ Programmable Inrush Current Slew Rate
◆ Thermal shutdown protection and fault alert
◆ Back-to-Back (B2B) FET Operation
PWM synchronous 12V to 3.3V buck converter Power
◆ 4A maximum output current
◆ Over Current Protection
◆ Under Voltage Protection
◆ Under voltage lock out protection (UVLO) monitors
◆ Thermal shutdown protection
◆ ESD Human Body Mode(HBM)/2KV
Built-in 3.3V Power Load Switch for PCIe +3.3V
12V to 3.3V LDO buck converter Power
Built-in 3.3V Power Load Switch for PCIe 3.3Vaux
Built-in SMBus Hot Swappable 2-Wire Bus Buffer

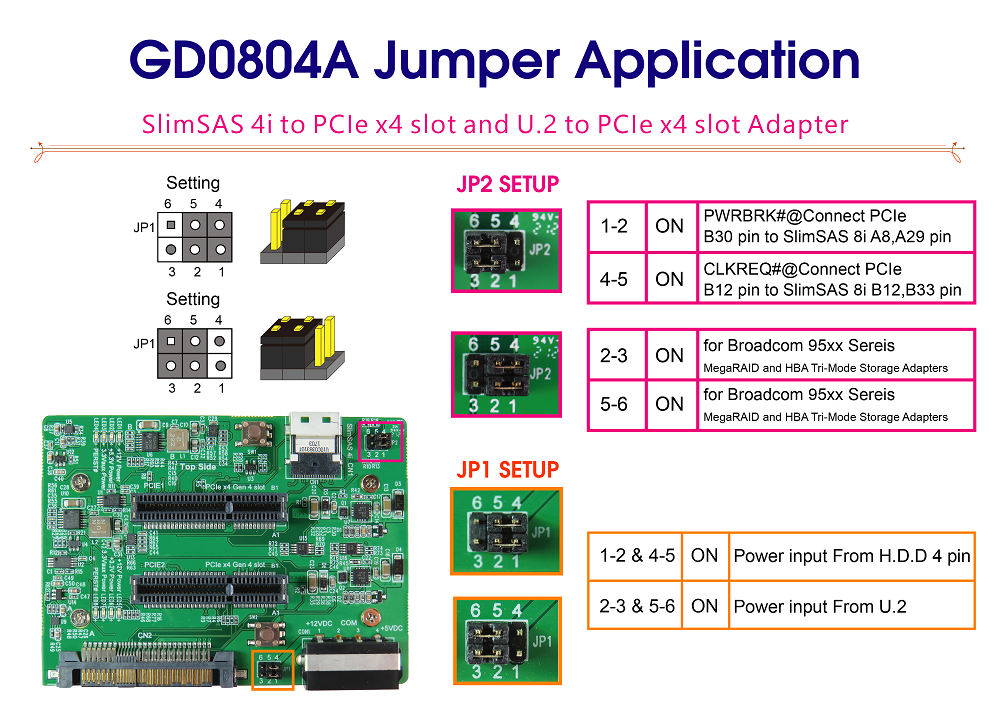

Supports SlimSAS 4i BP_TYPEA, BP_TYPEB Pull up for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
Supports SlimSAS 4i CPRSNTA#, CPRSNTB# Pull Low for Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters
LED1, LED5 PCIe +12V power ready
LED2, LED6 PCIe +3.3V power ready
LED3, LED7 PCIe 3.3Vaux power ready
LED4, LED8 PCIe PERST#
