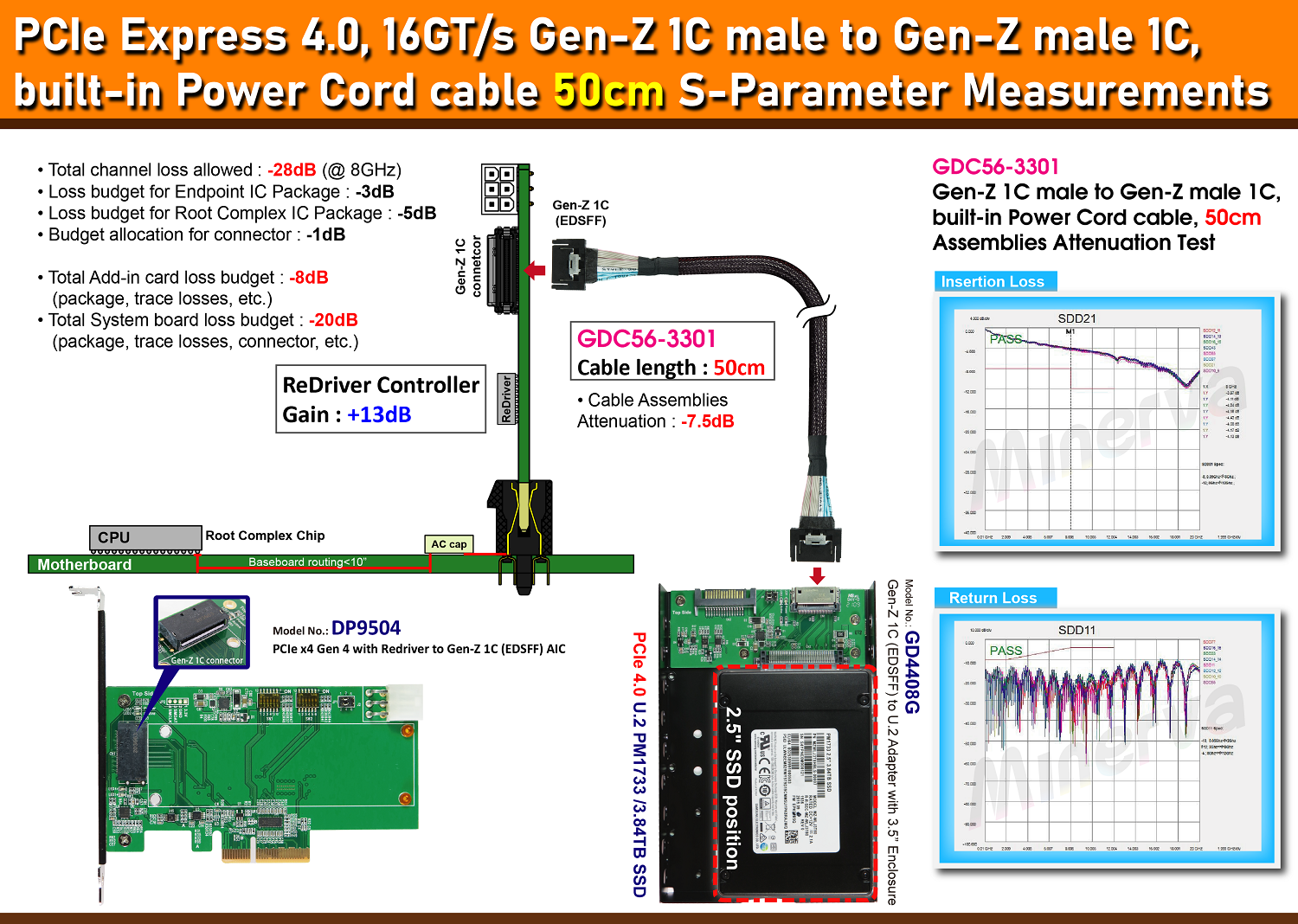

GD4408G Test report for GDC56-3301/50cm
GD4408G Test report for GDC56-3302/50cm
GD4408G-2D drawing

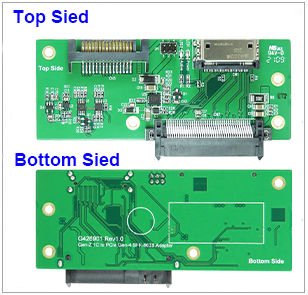

PCB-2D drawing

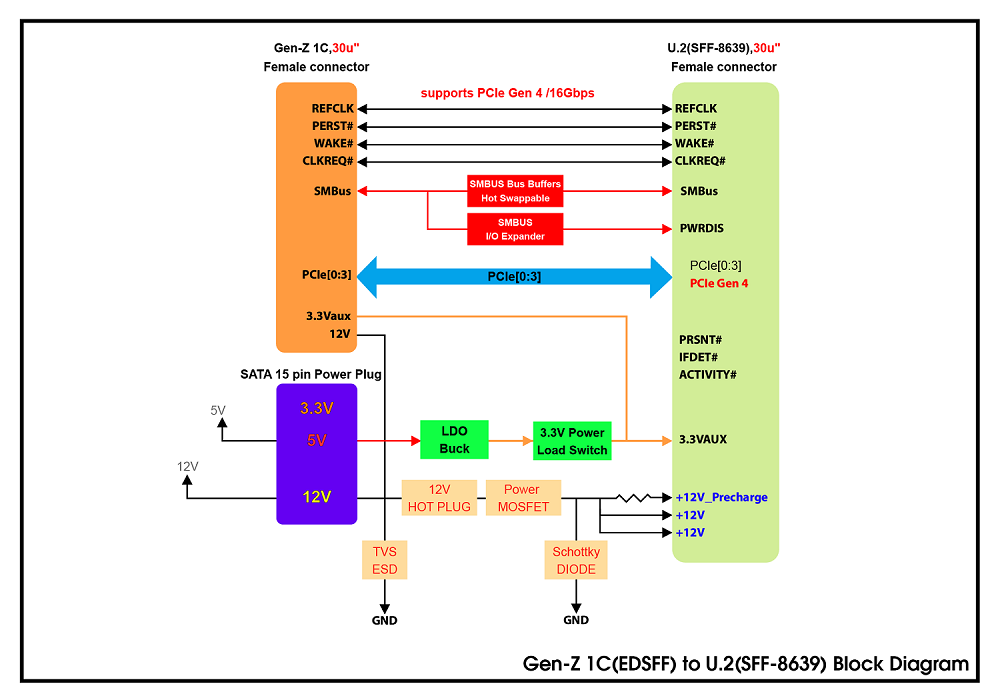

- U.2(SFF-8639) to Gen-Z 1C convert
- Build-in SATA 15-pin power connector
- Build-in SFF-8639 connector, contact finish : 30”GOLD

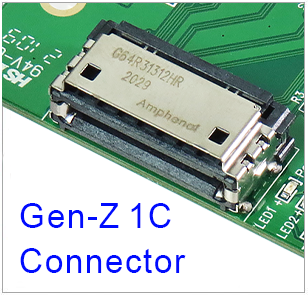

- Build-in Gen-Z 1C connector, contact finish : 30”GOLD
- Built-in SMBus Bidirectional Hot Swappable Bus Buffers controller
- Built-in SMBus I/O Expander for PWRDIS control
- Built-in 12V Hot Plug Power controller with eFuse protection circuit
- Built-in 3.3V Power load switch protection circuit
- Supports CLKREQ# for Gen-Z 1C to U.2 connection
- Supports WAKE# for Gen-Z 1C to U.2 connection
- LED 1 Green LED Blinking indicates SSD power ready
- LED 2 Red LED on indicates SSD active status
