specifications

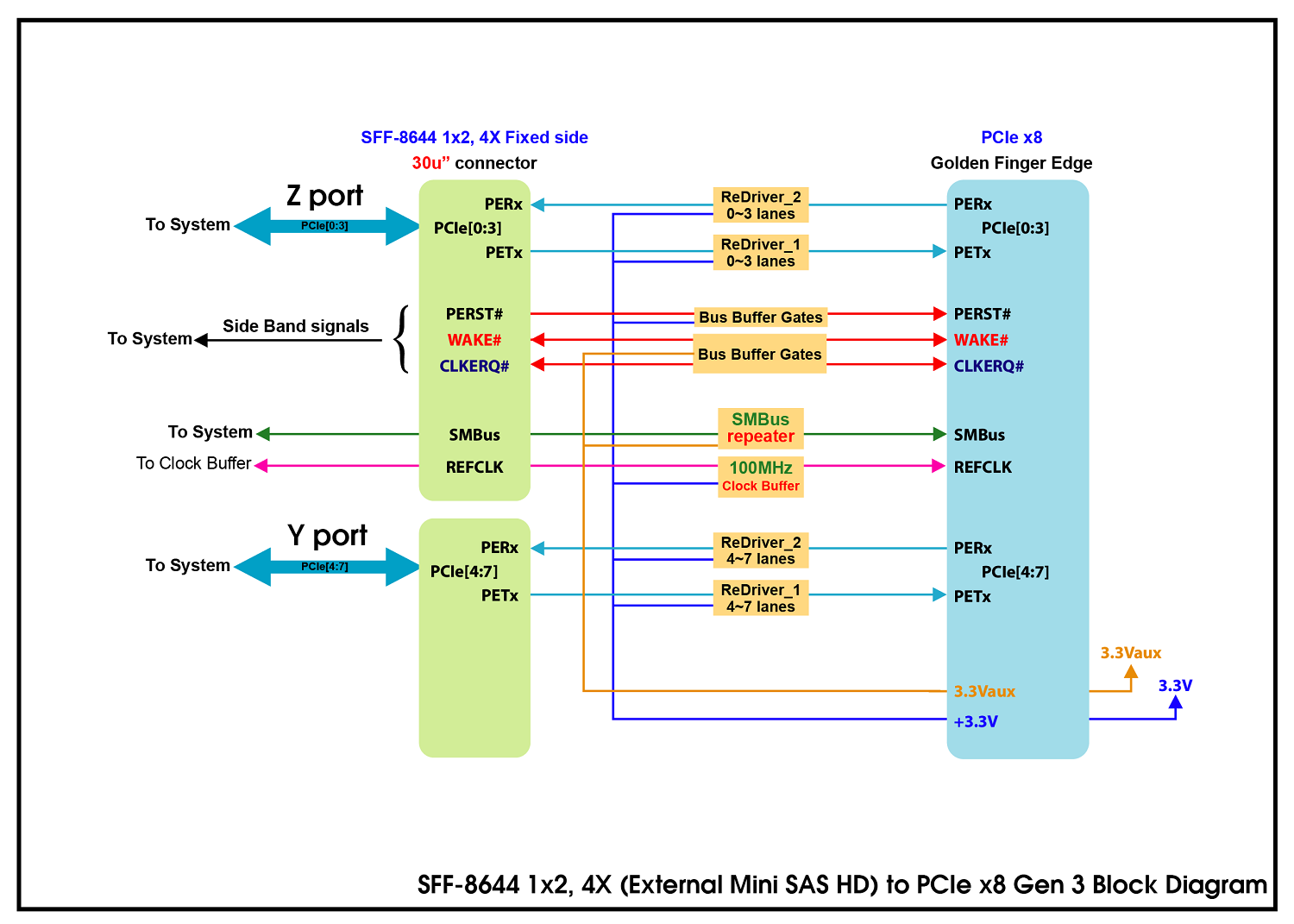

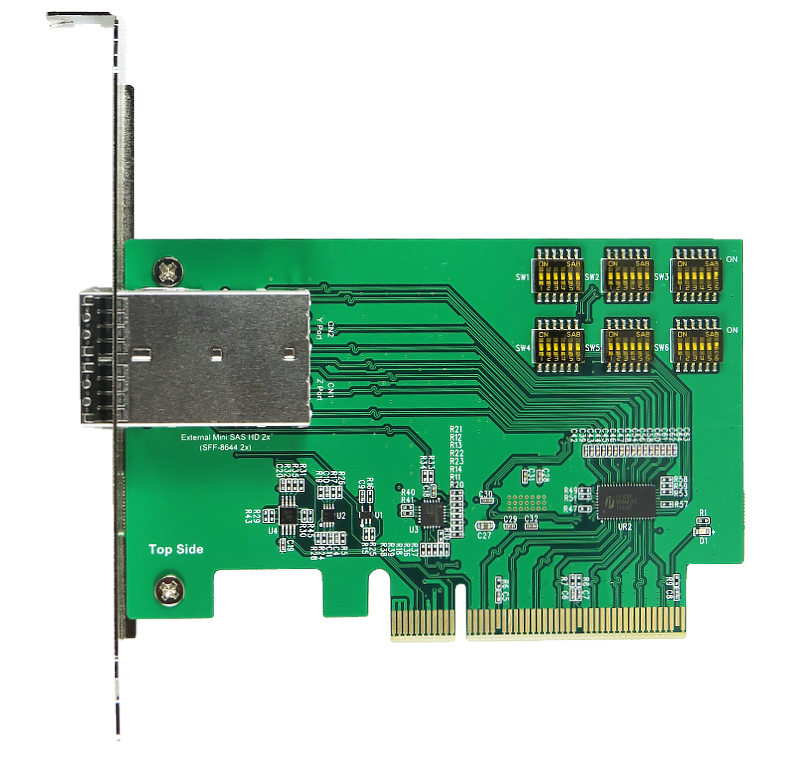

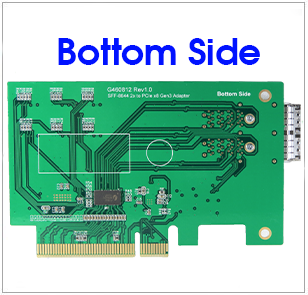

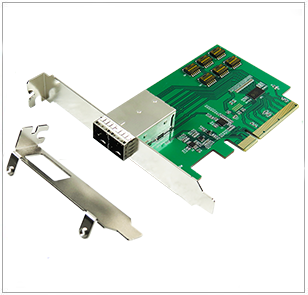

  • External Mini SAS HD 1x2(4X) to PCIe x8 GF Gen 3 convert

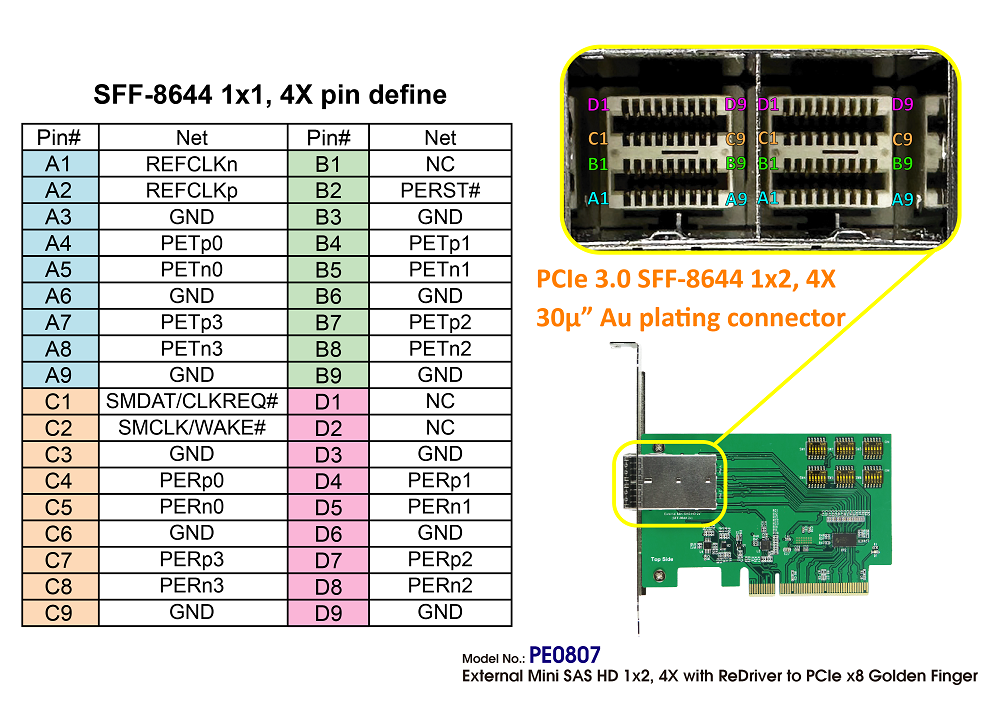

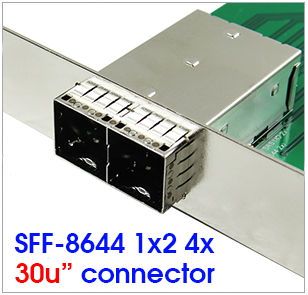

  • Built-in SFF-8644 1x2(4X), 30 microinches connector

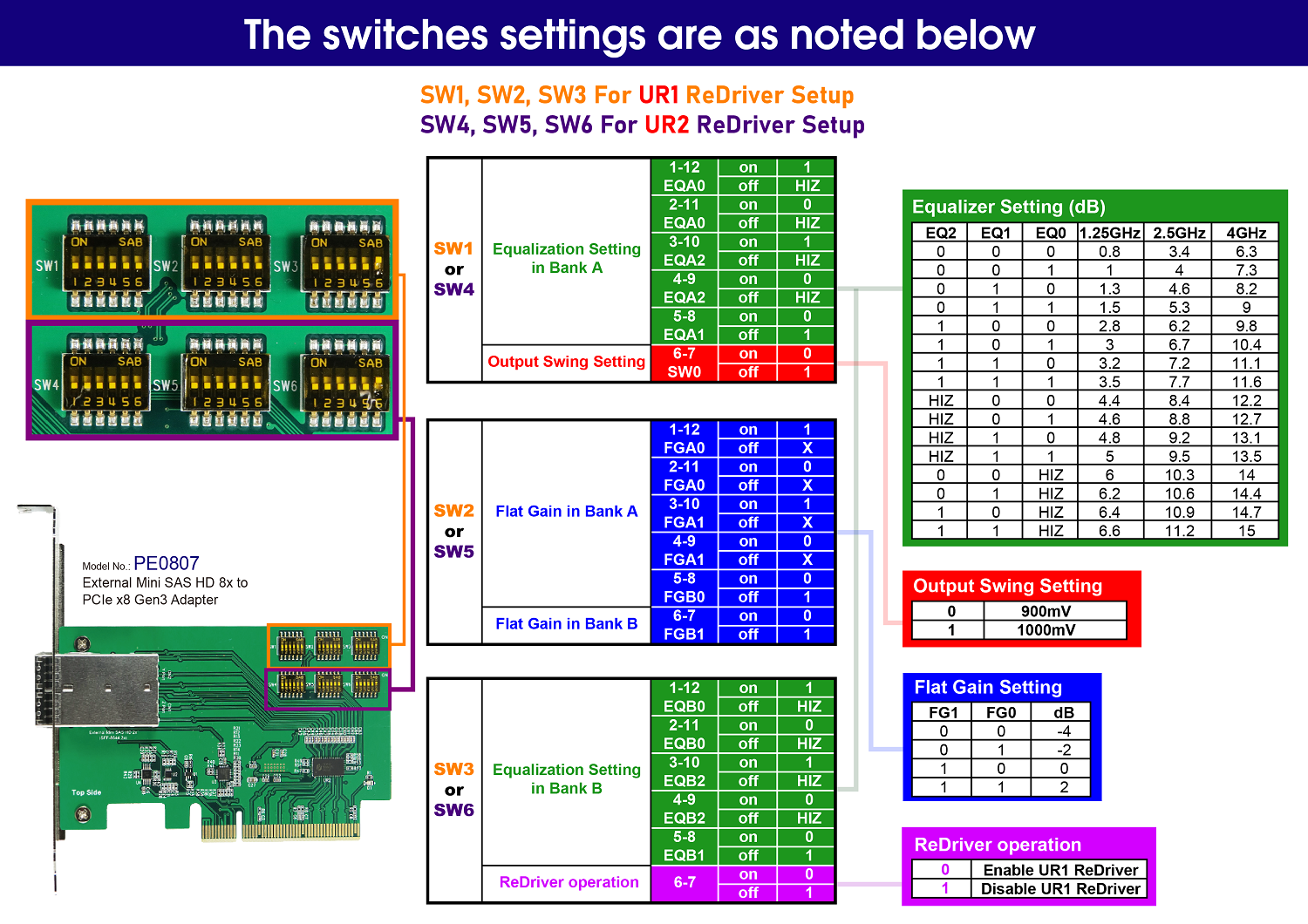

  • Built-in ReDriver to extend PCIe 3.0, 8GT/s differential pair signals 8 lanes data link widths and provides programmable linear equalization, output swing and gain
  • Built-in PCIe 100MHz Clock buffer to drive longer trace length and longer cable length
  • Built-in PCIe SMCLK, SMDAT bidirectional buffer repeater
  • Built-in PERST# Bus Buffer Gate to be used over longer trace length and over longer cable length
  • Built-in WAKE# Bus Buffer Gate to be used over longer trace length and over longer cable length
  • Built-in CLKREQ# Bus Buffer Gate to be used over longer trace length and over longer cable length.
  • D1 Green LED on indicates AIC ready

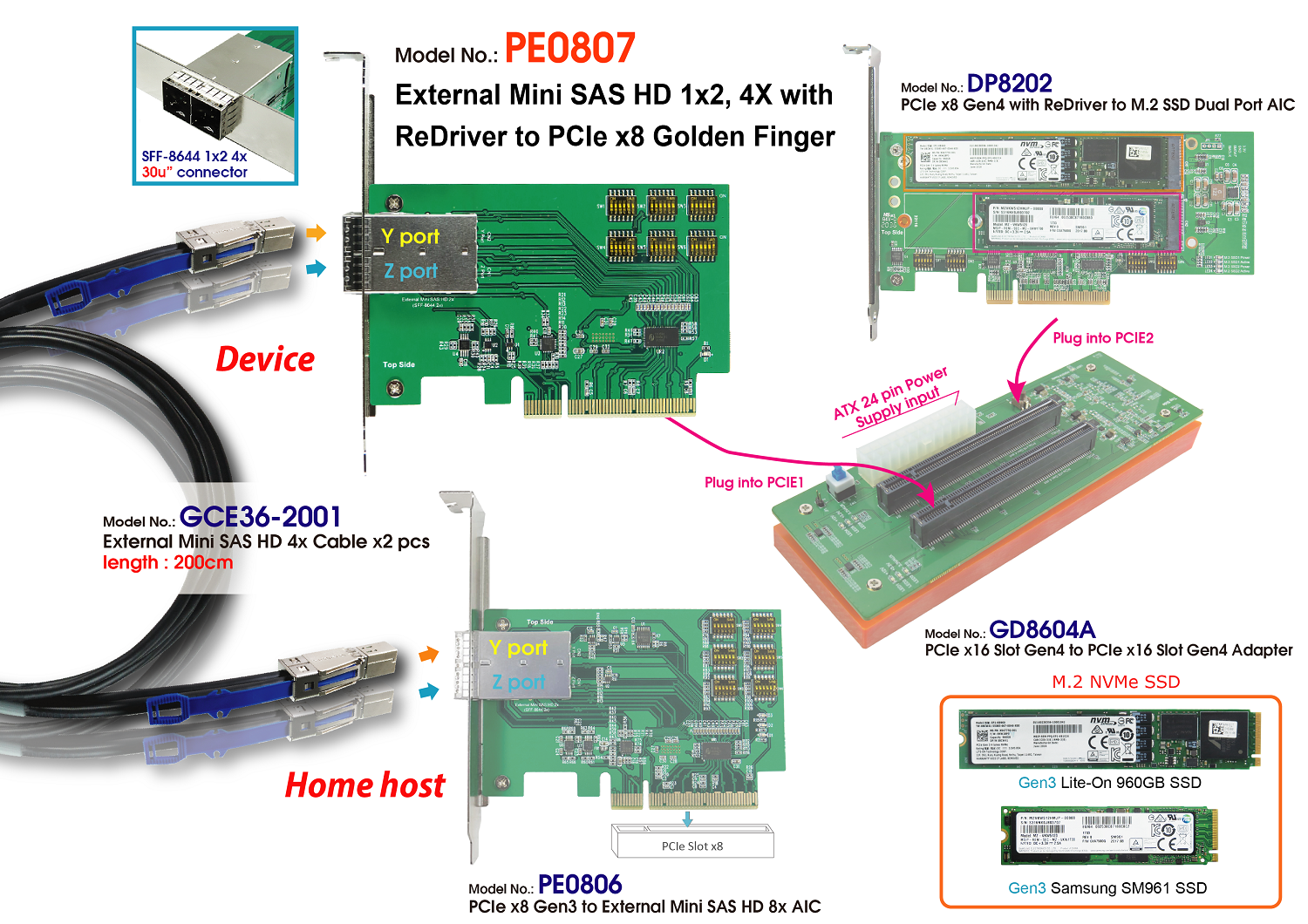

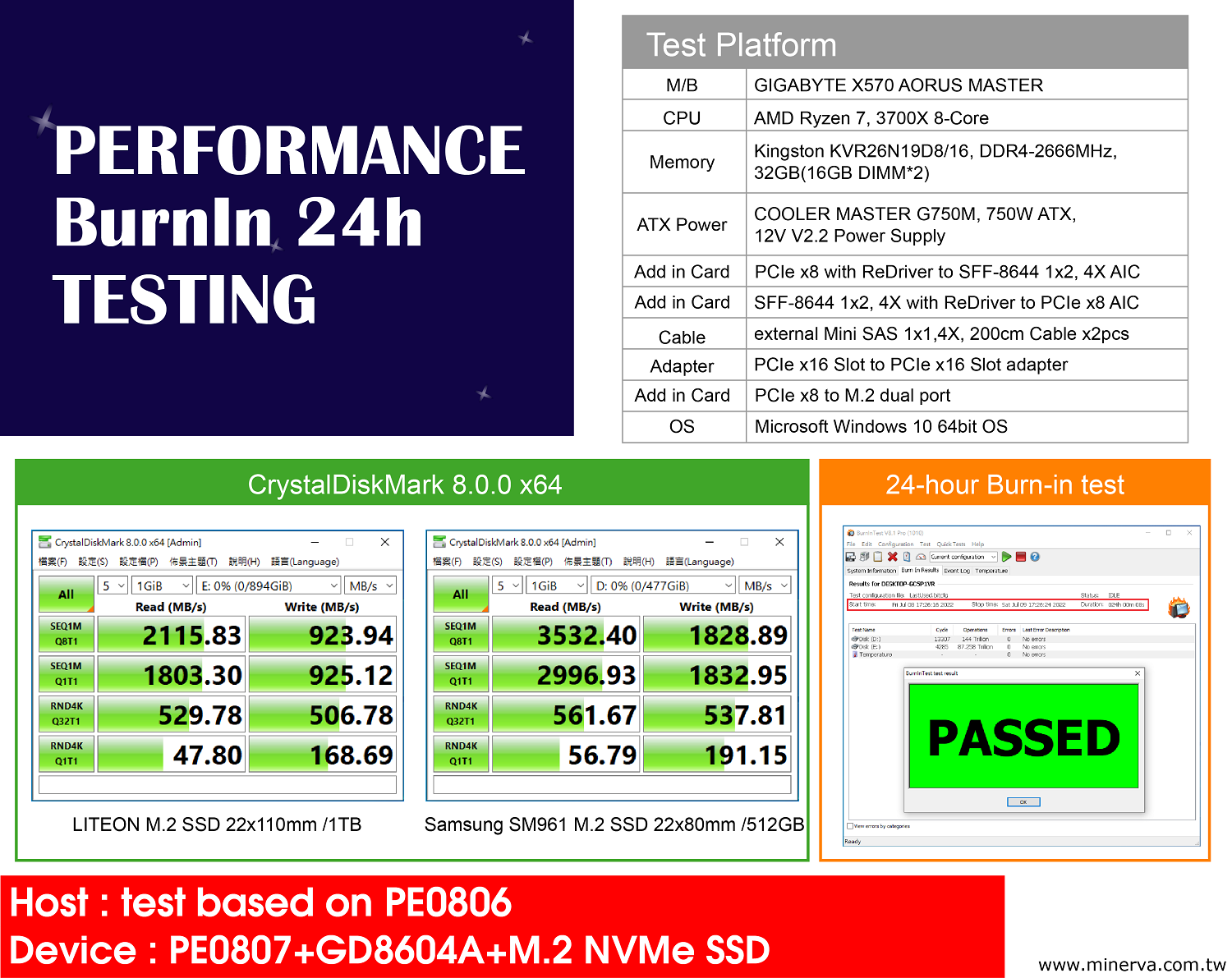

Application



CB963Fx9



CB963Fx9



CB963Fx9



Application



CB963Fx9
