Datasheet

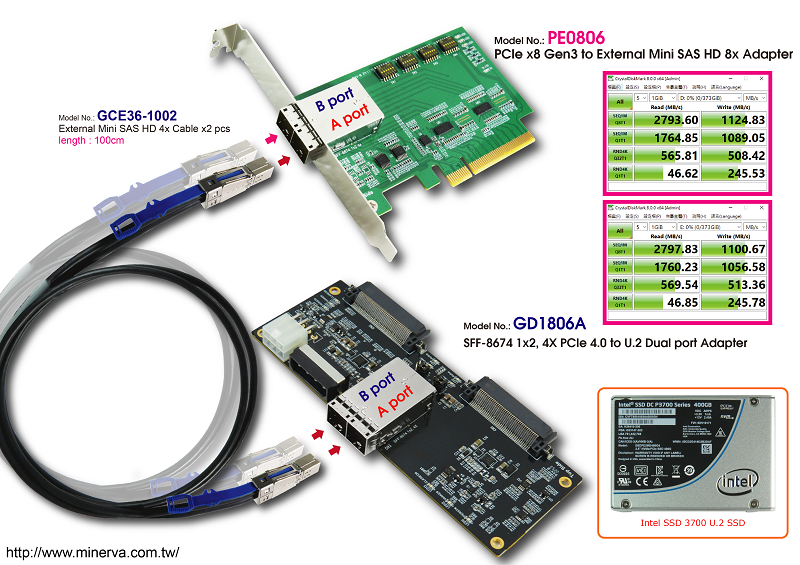

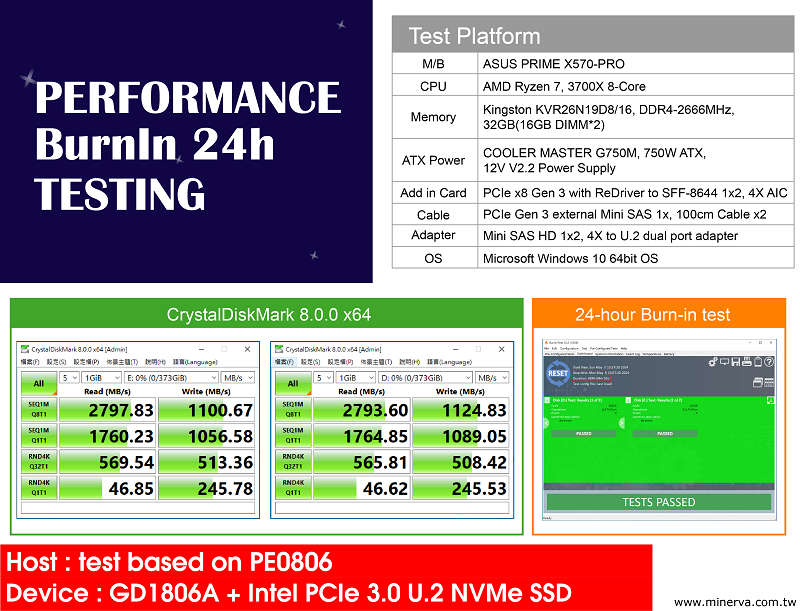

Test report for GCE36-1002 Cable, 100cm+GD1806A
2D drawing

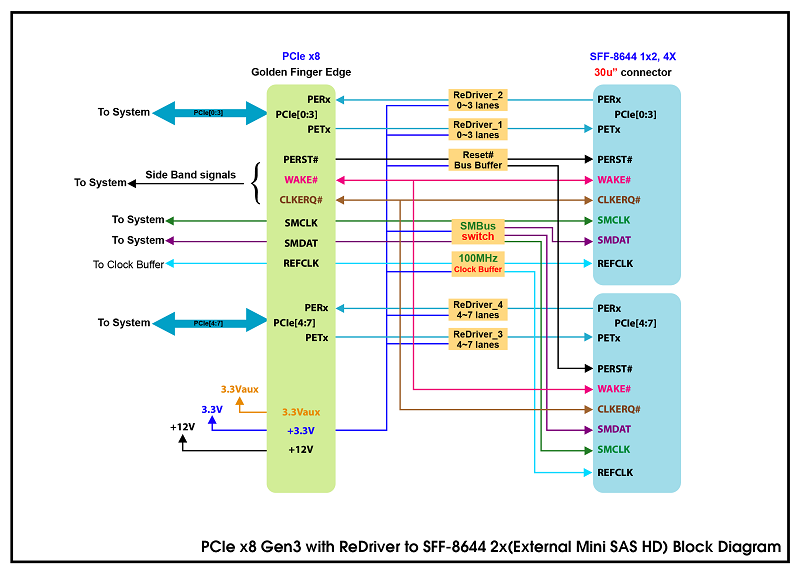

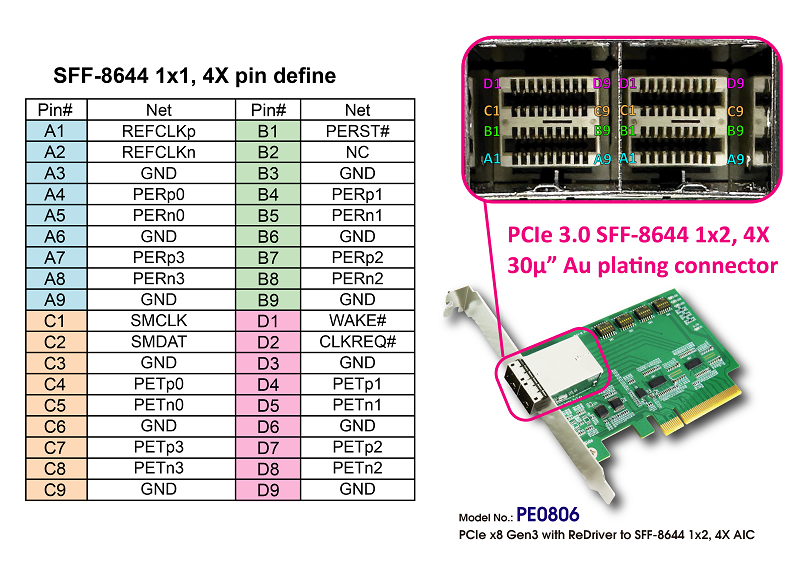

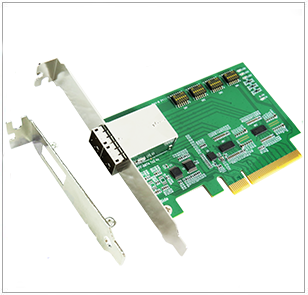

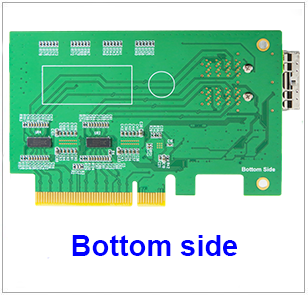

- External Mini SAS HD 1x2, 4X(SFF-8674) to PCIe x8 Gen3 convert

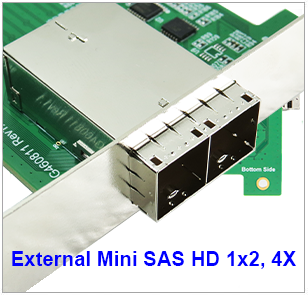

- Built-in SFF-8674 1x2, 4X connector with 30u”(0.38um) min Au mating area plating

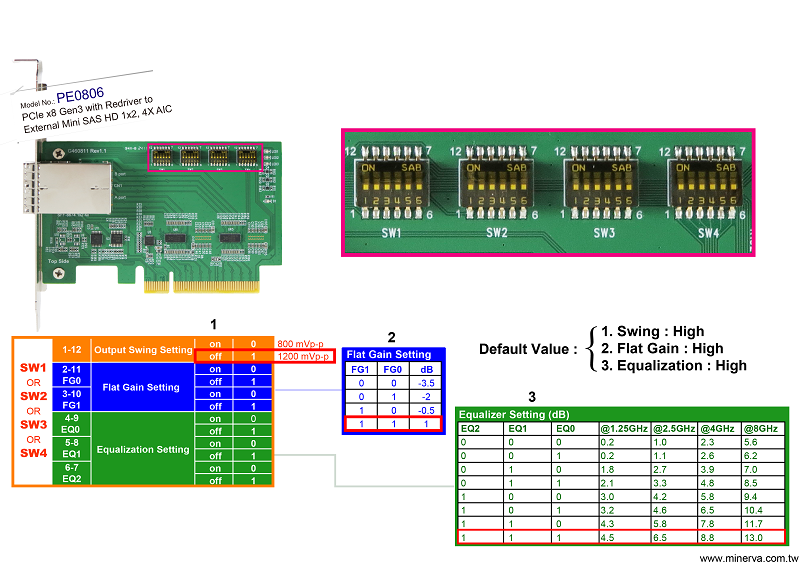

- Built-in ReDriver to extend PCIe 4.0, 16GT/s 8 lanes signals data link width, and may provides programmable linear equalization, output swing and flat gain
- The PCIe 8 lanes can be bifurcated into two x4 link width to support different system topologies
- Built-in PCIe 100MHz Clock buffer for SFF-8674 1x2, 4X to drive longer cable length
- Built-in SMBus Switch(Address: 0x70) with Reset Funtion for SFF-8674 1x2, 4X SMBus communication
- Built-in PERST# Bus Buffer Gate to be used for longer trace lengths and longer cable lengths.

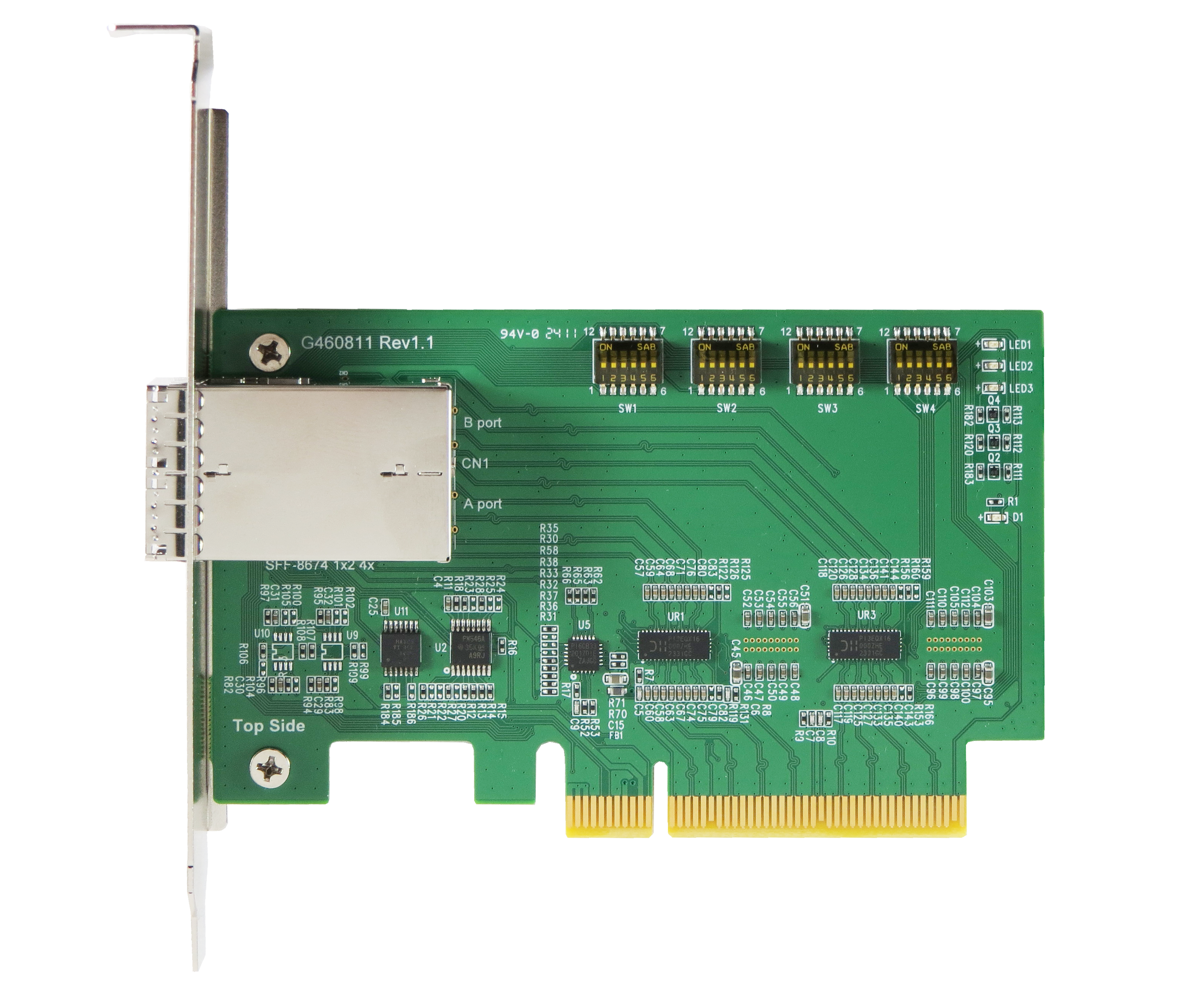

- D1 Green LED ON indicates AIC ready
- LED1Green OFF indicates PERST# Normal (Function intentionally inverted)
- LED2 Green OFF indicates WAKE# Normal (Function intentionally inverted)
- LED3 Green OFF indicates CLKREQ# Normal (Function intentionally inverted)
