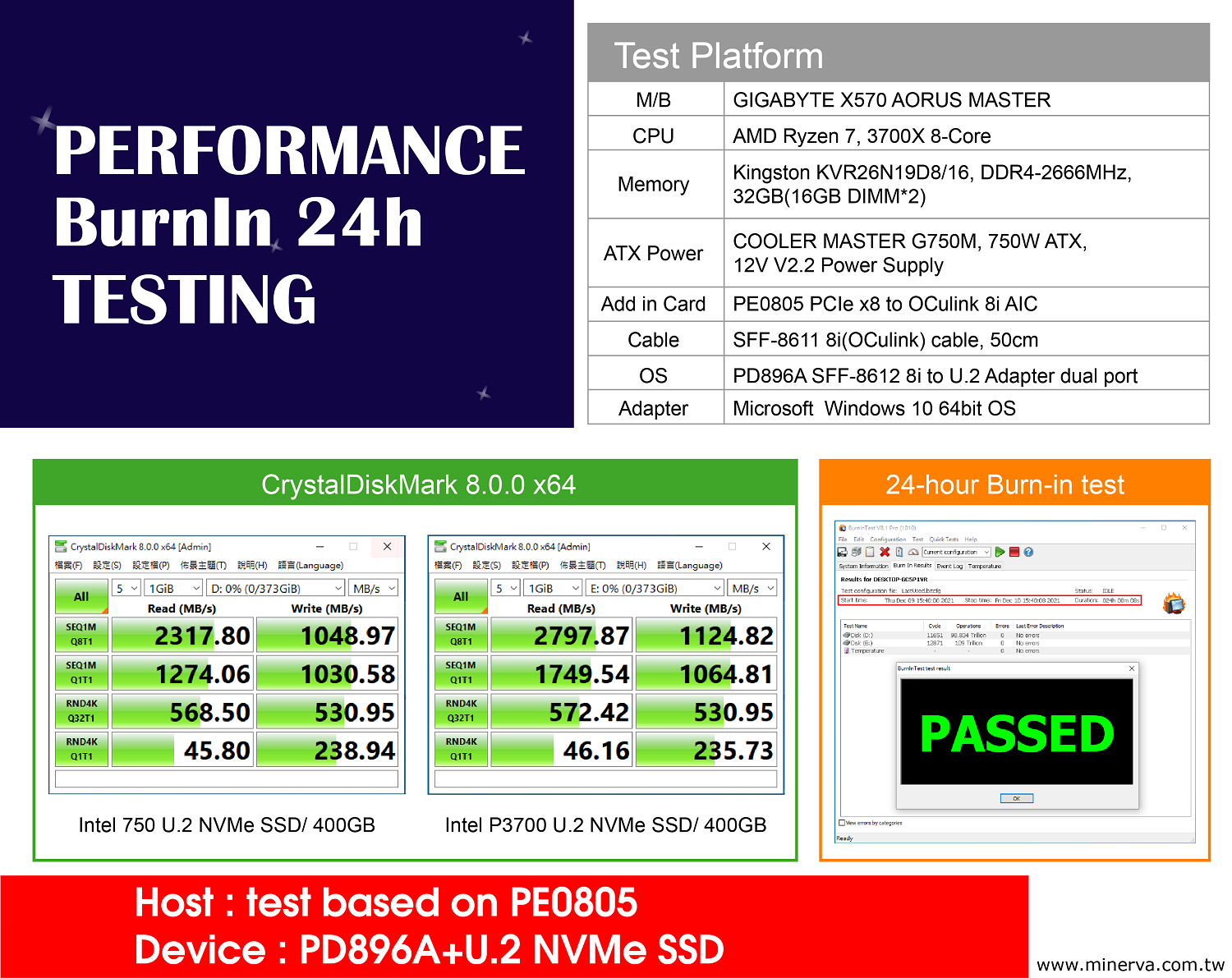

Test report
2D drawing

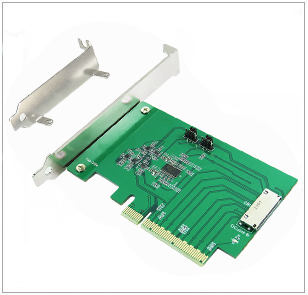

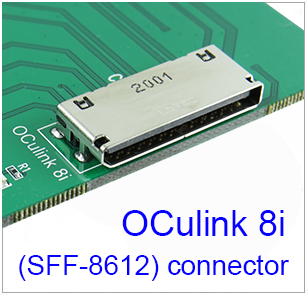

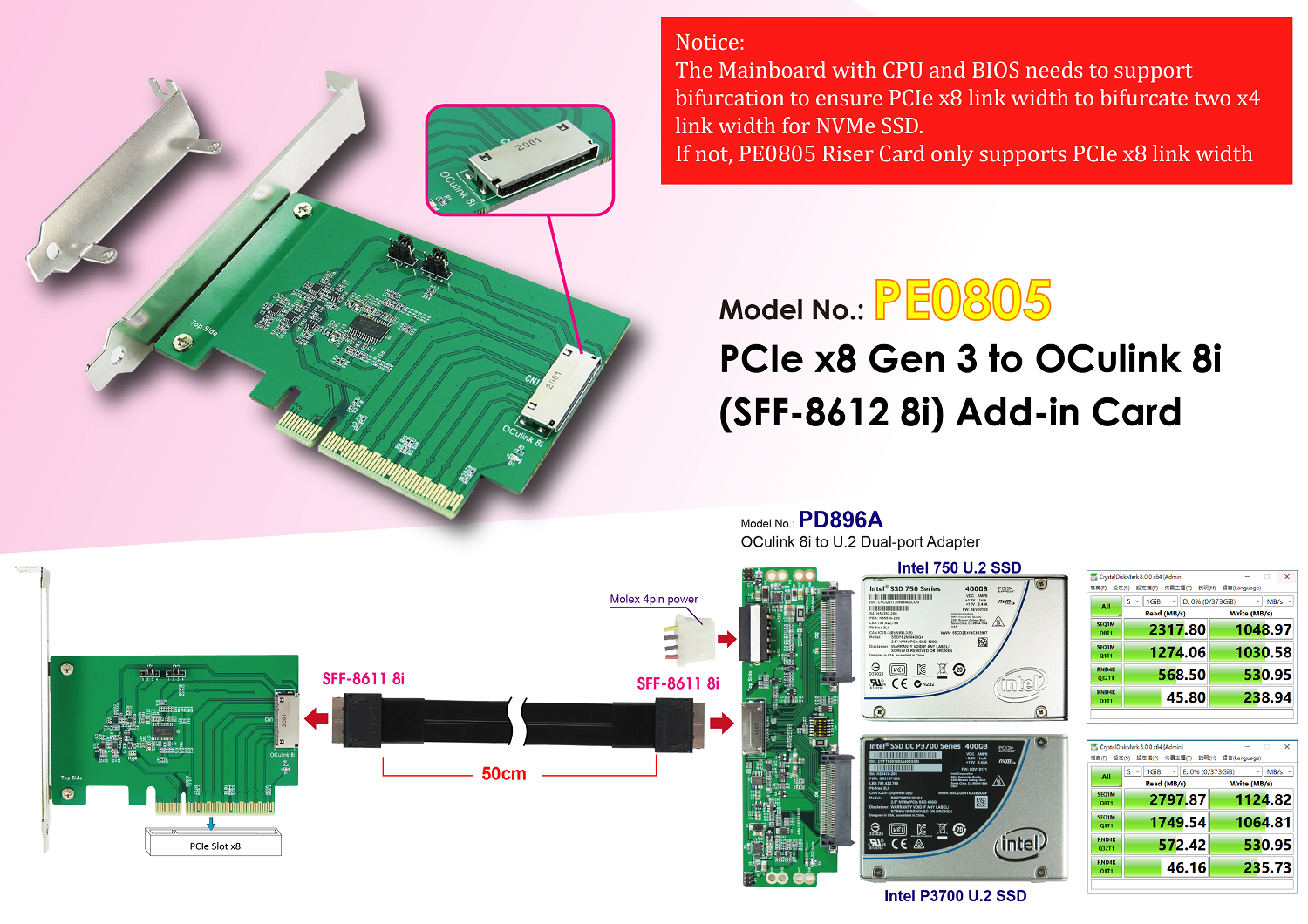

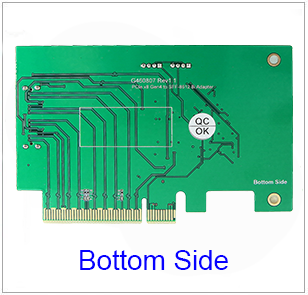

- OCulink 8i (SFF-8612) to PCIe x8 Gen 4 convert

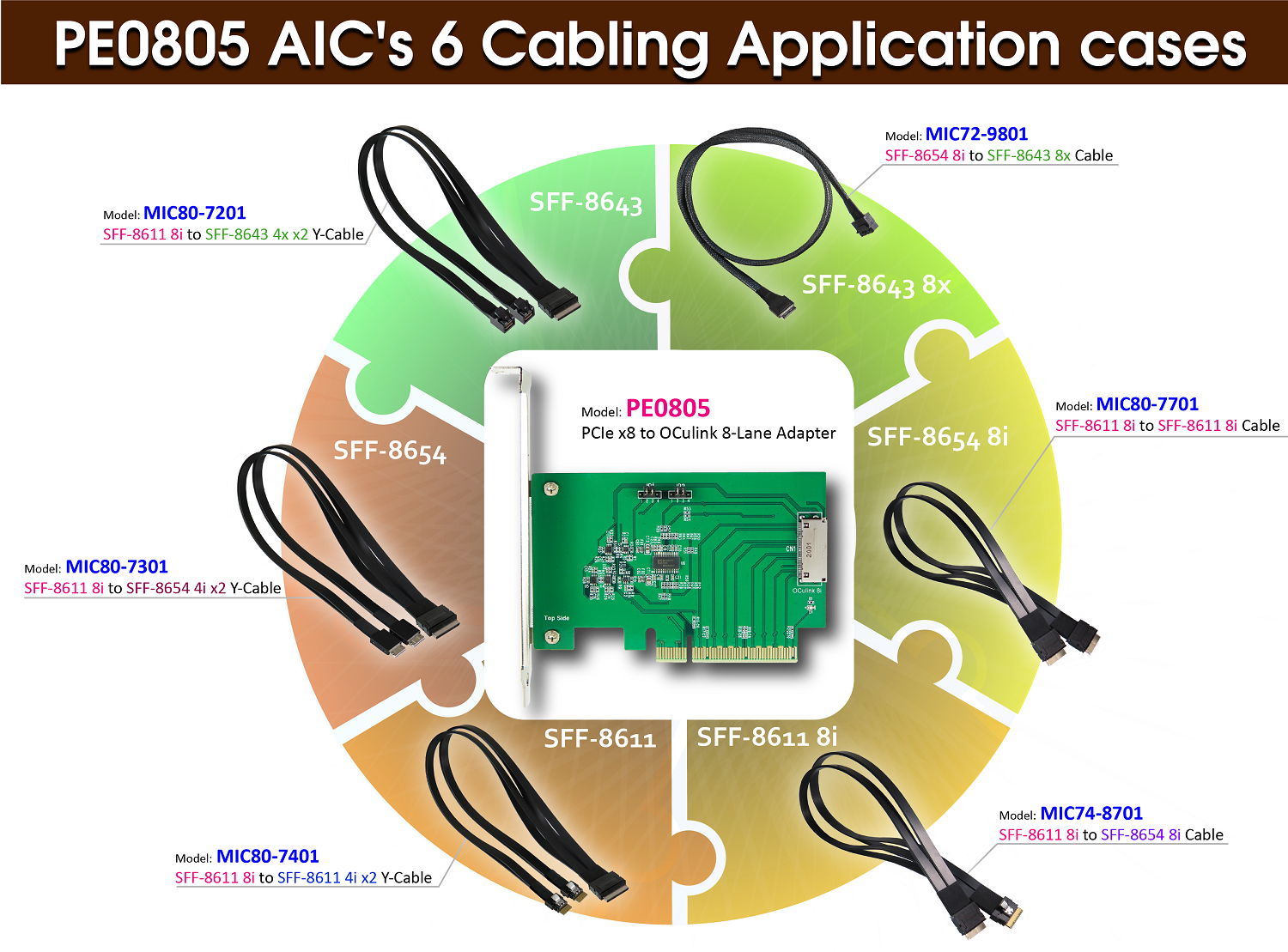

- The PE0805 AIC can be offered in two x4(need CPU and BIOS both support) or can be extended PCIe x8 data width link.

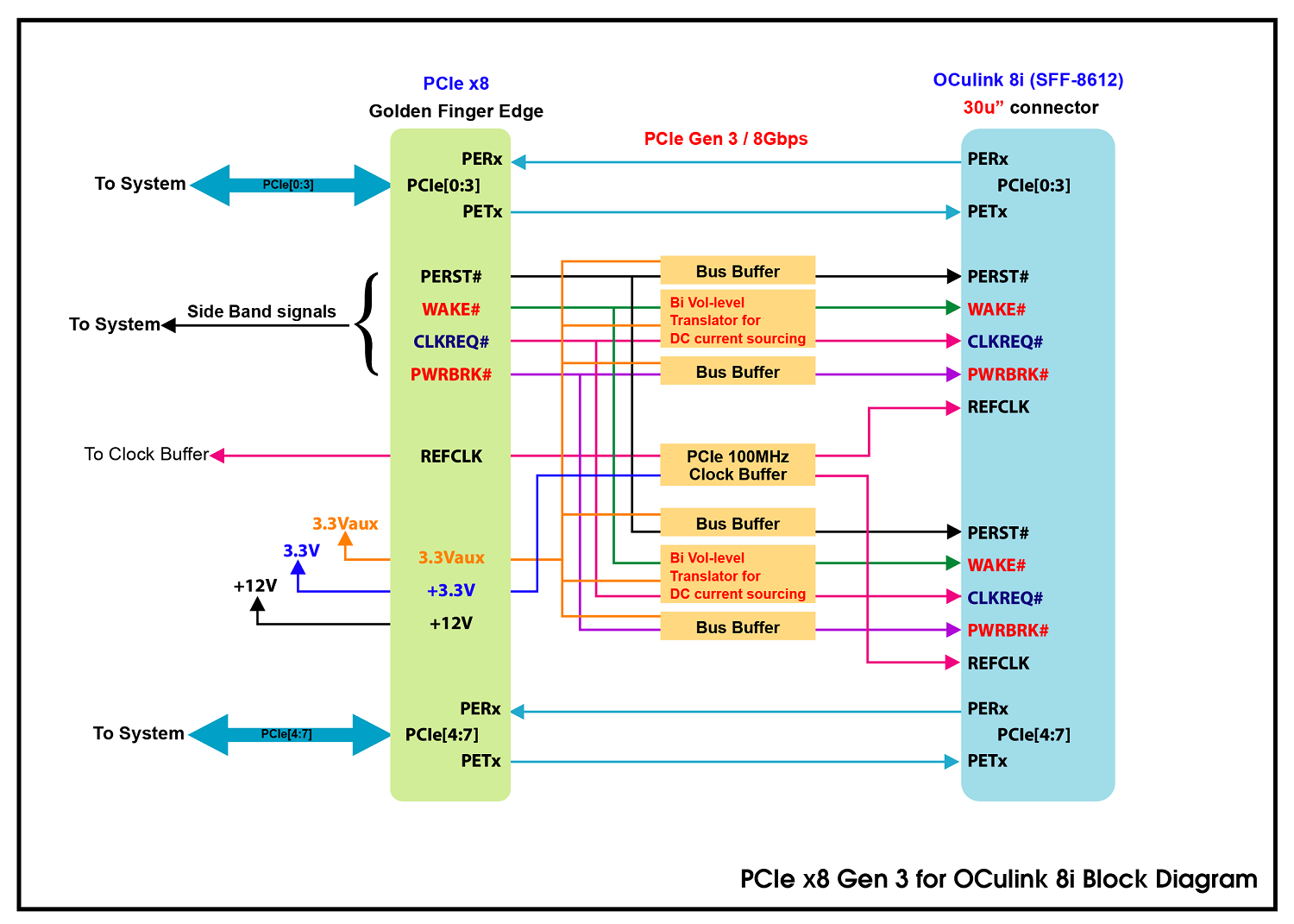

- Built-in PCIe 100MHz Clock buffer, default Zout=100 ohm to drive longer trace length and longer cable length.
- Built-in PERST# Bus Buffer Gate to be used over longer trace lengths and over longer cable length
- Built-in WAKE# Bidirectional Voltage-Level for dc current sourcing capability to be used over longer trace lengths and longer over cable length.
- Built-in CLKREQ# Bidirectional Voltage-Level for dc current sourcing capability to be used over longer trace lengths and longer over cable length

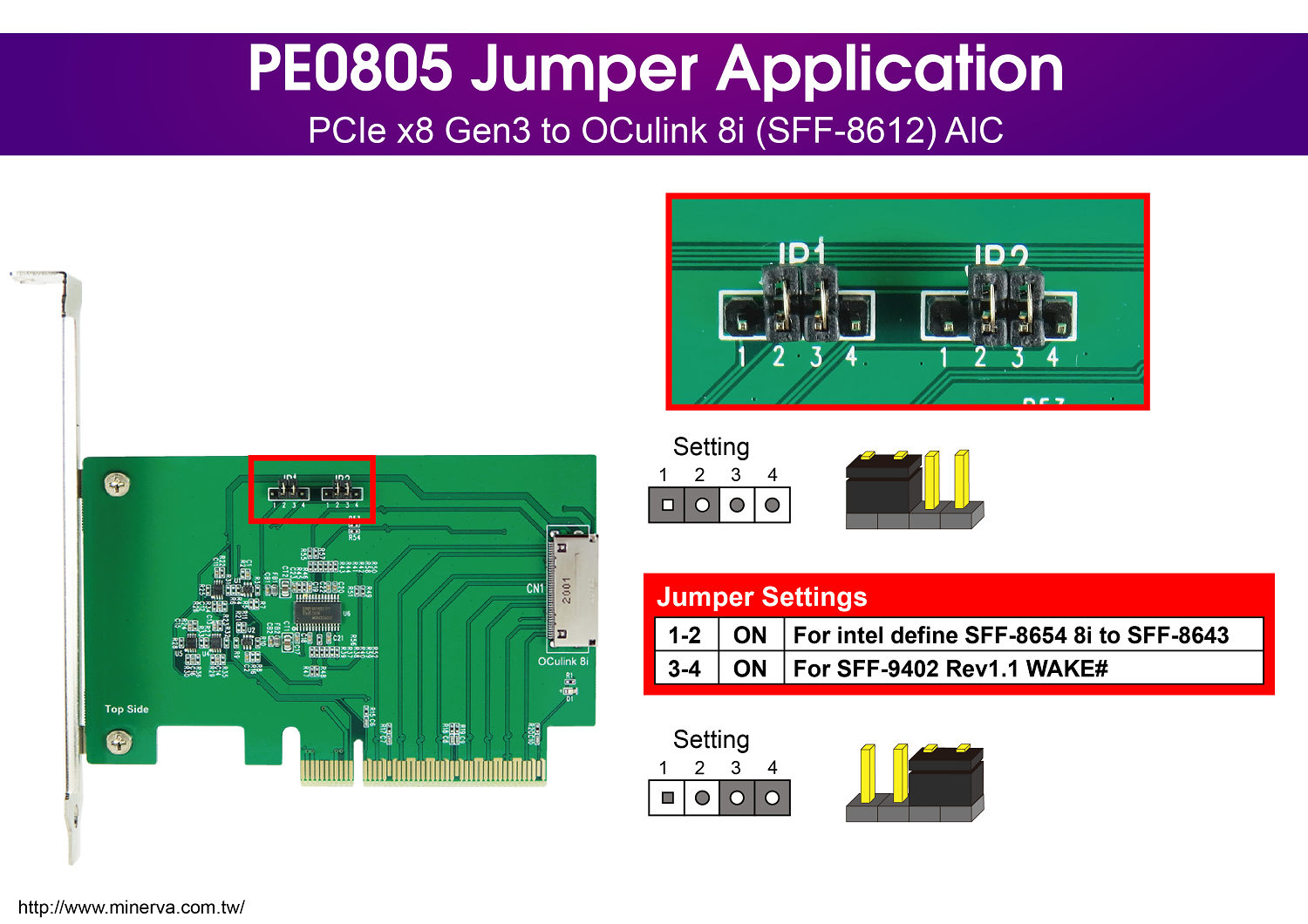

- Support SFF-9402 Define Mini SAS HD(SFF-8643) Sideband signals(PERST#, CLKREQ#, WAKE#) pin out
- Support Intel Sideband signals(PERST#, CLKREQ#, WAKE#) pin out
