Datasheet

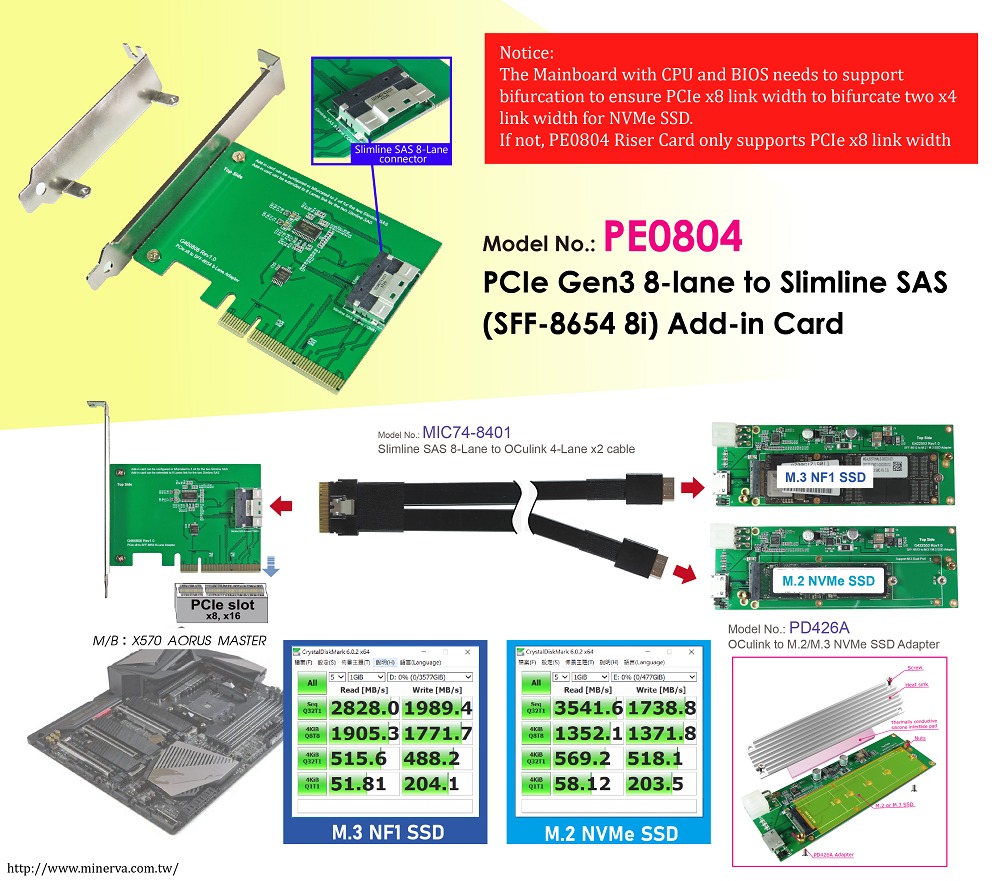

Test report with M.2 NVMe SSD & M.3 NF1 SSD
2D drawing

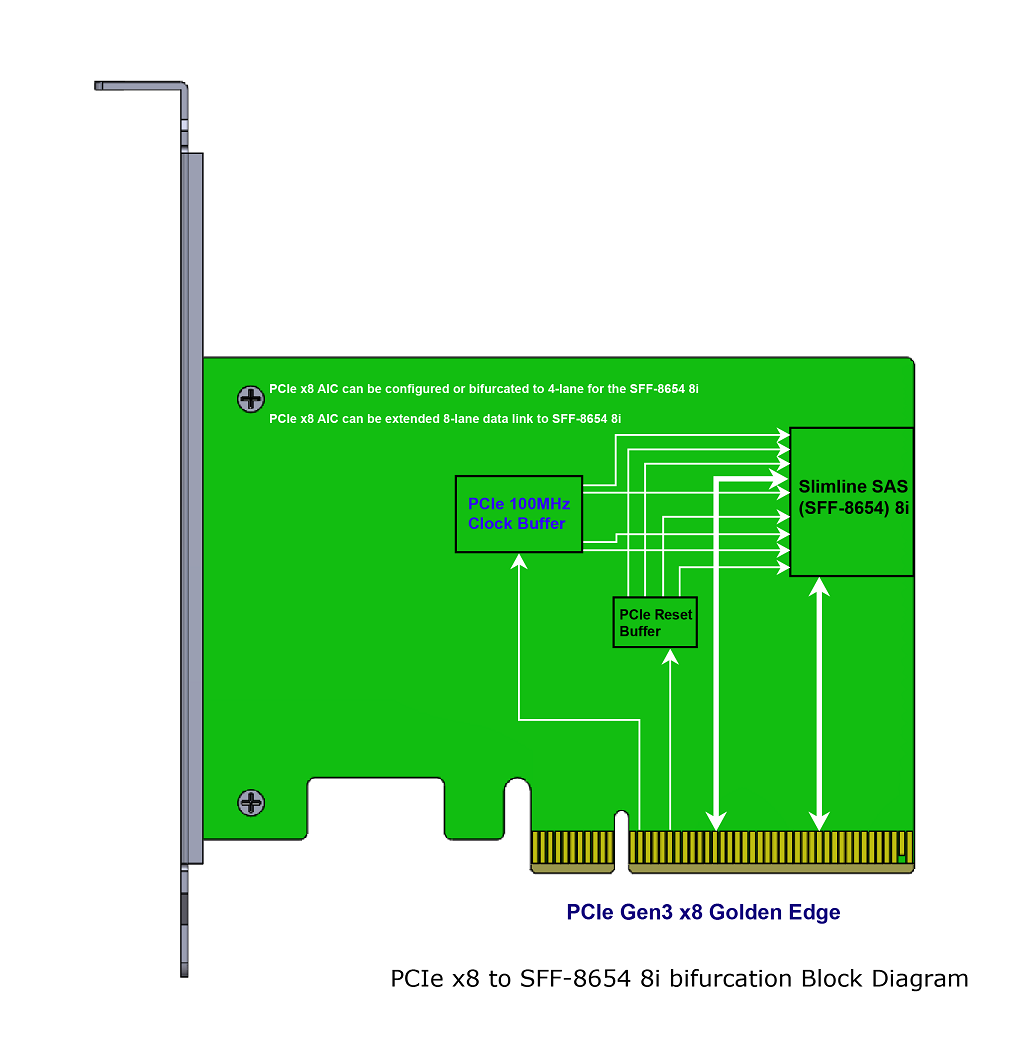

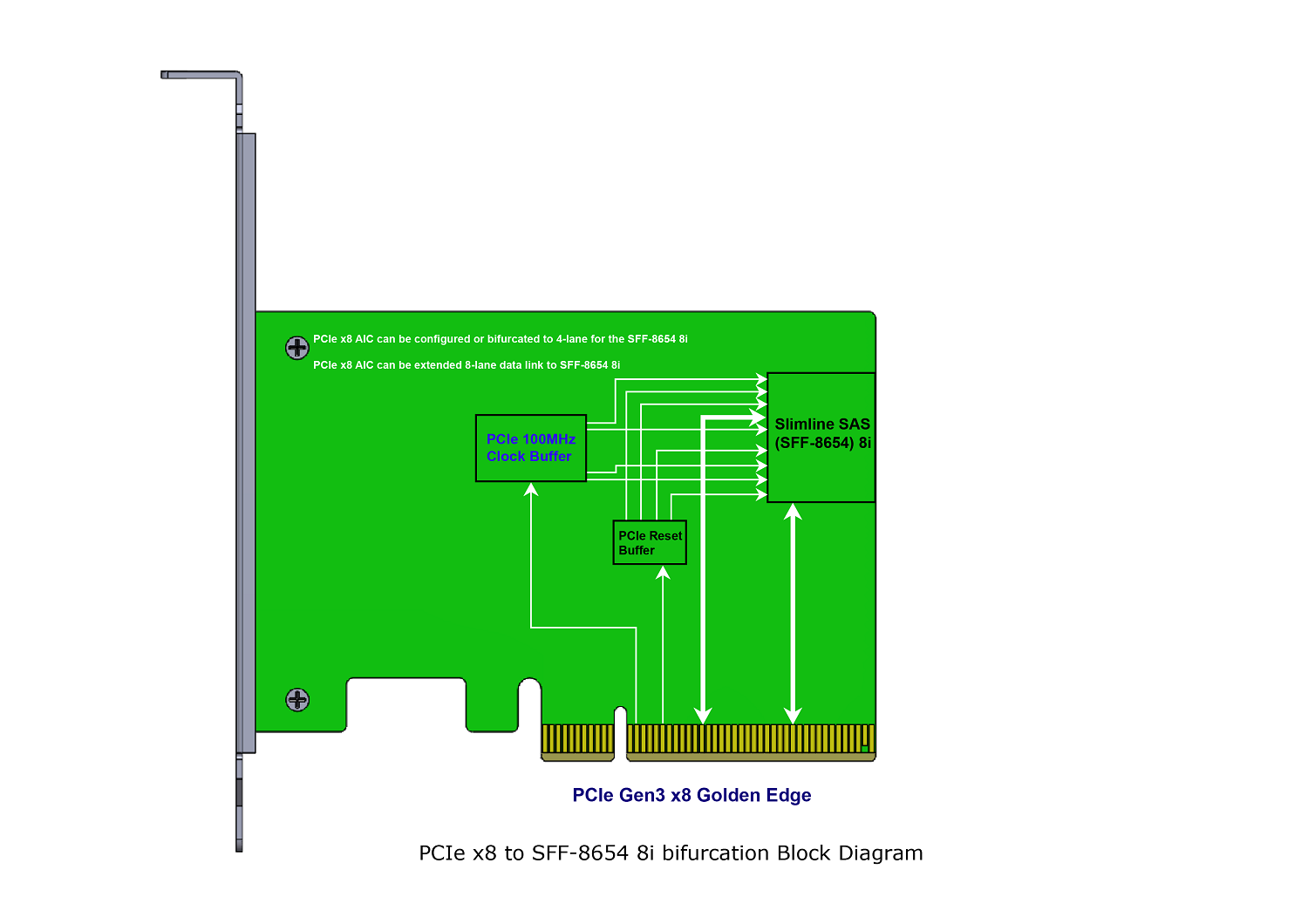

PCIe x8 to SFF-8654 8x Block Diagram
- PE0804 can be offered in two x4(need CPU and BIOS both support) or can be extended x8 data width configurations.

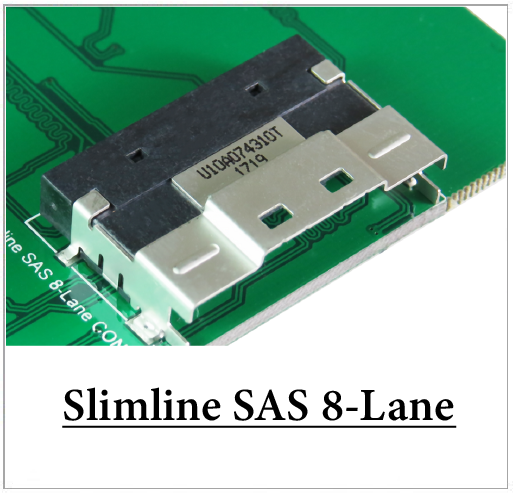

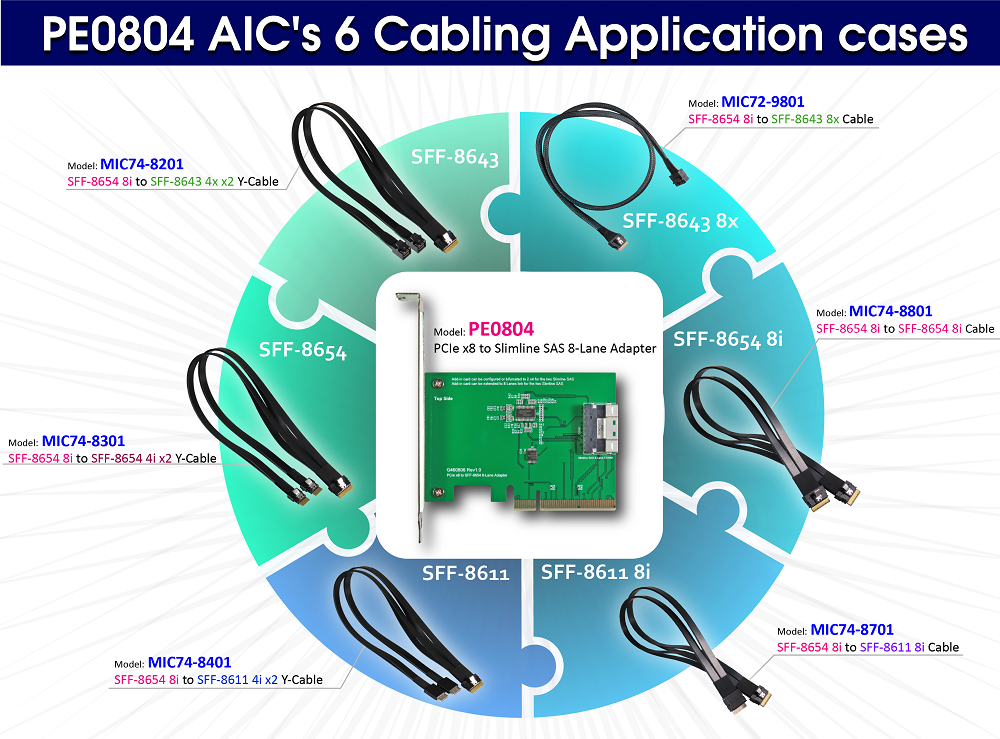

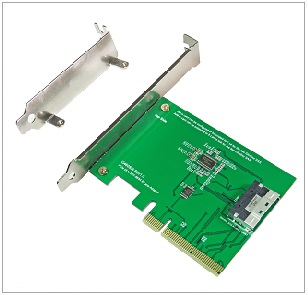

- PE0804 features one internal Slimline SAS connector(SFF-8654 8i) for high-perfoemace storage connectivity.
- Build in SFF-8654 8i Slimline SAS connector, pin-out defined by PCIe
- Dual-port PCIe Gen 3 NVMe controller
- Eight internal lanes for SFF-8654 8i, 6.4GB/s
- Supports two physical NVMe devices
- Supports SFF-9402 clock & perst# pin out
- Support Intel Define Slimline SAS SFF-8654 clock & perst# pin out
- Enables the system perst# signal to be used over longer trace lengths and over a cable
- Compliant with NVM Express 1.2a
- Support PCI Express Base Specification Rev 3.0
- Support SSD_Form_Factor_Version1_a
- Compliant with SFF-8654 Specification Version 1.2
