Datasheet

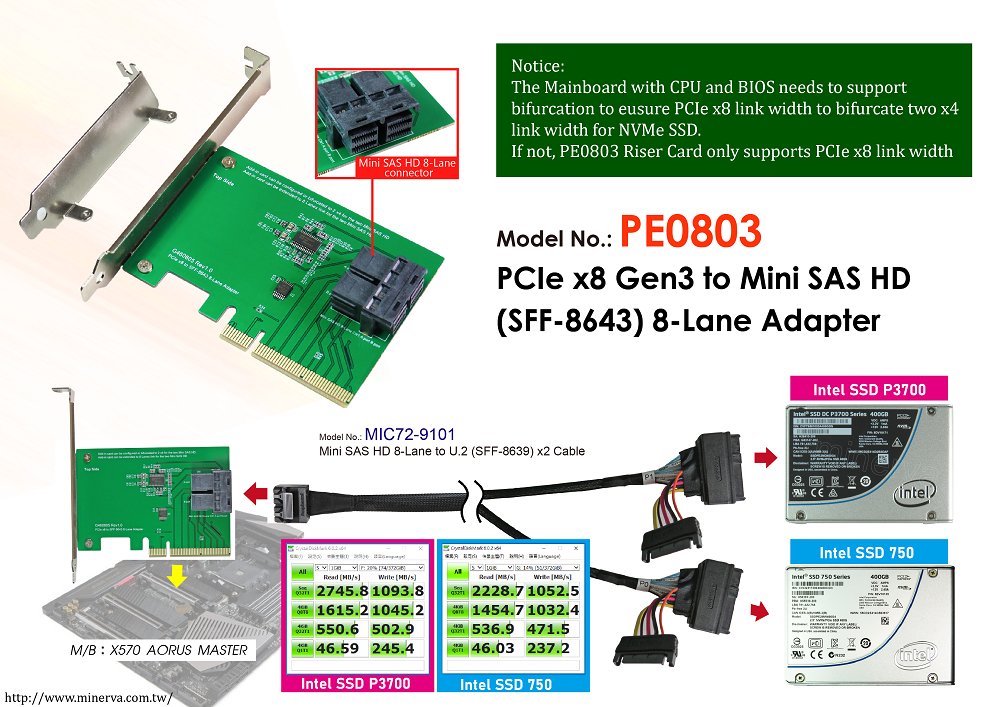

Test report with U.2 NVMe SSD & Mini SAS HD 8-Lane cable
2D drawing

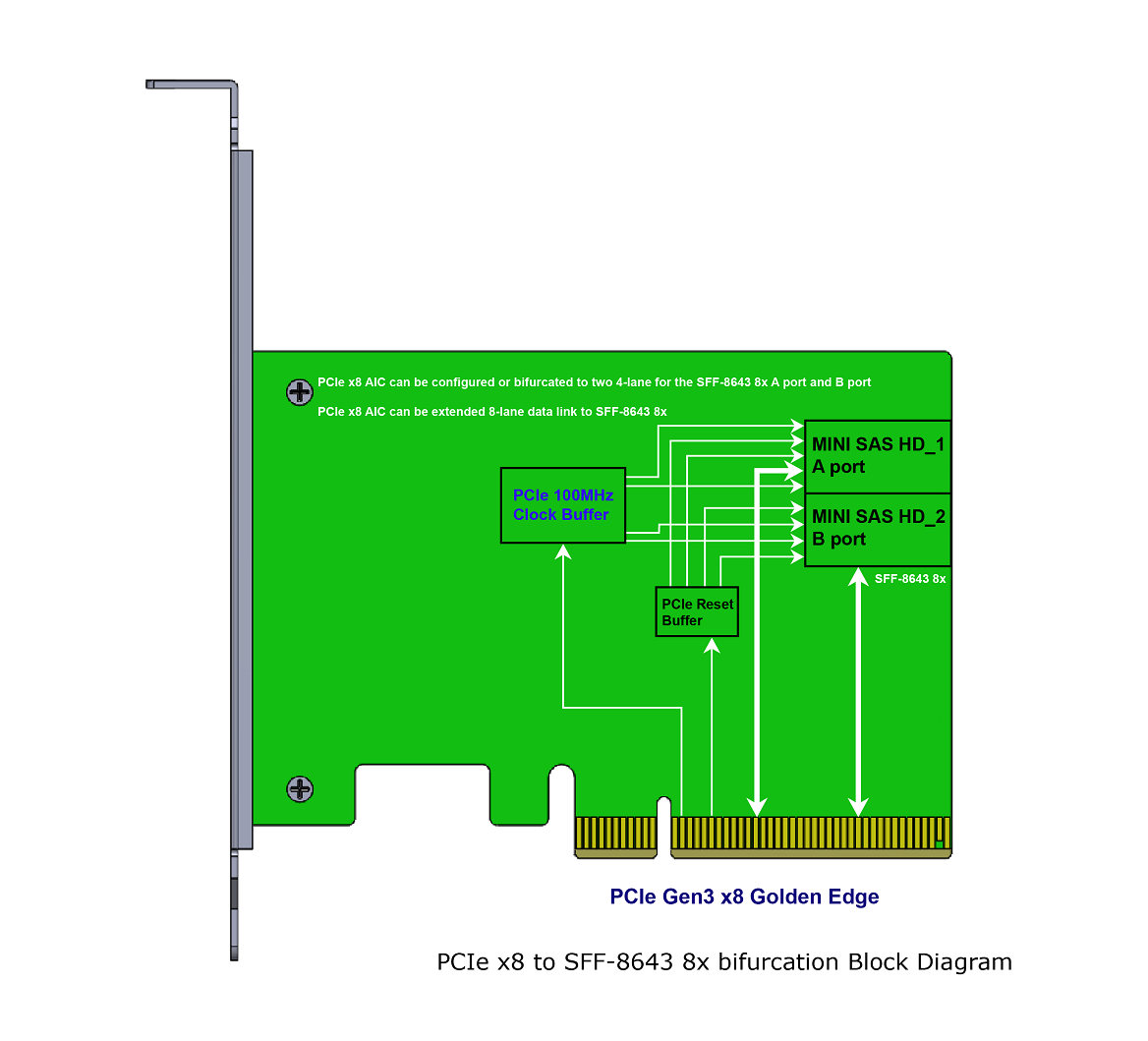

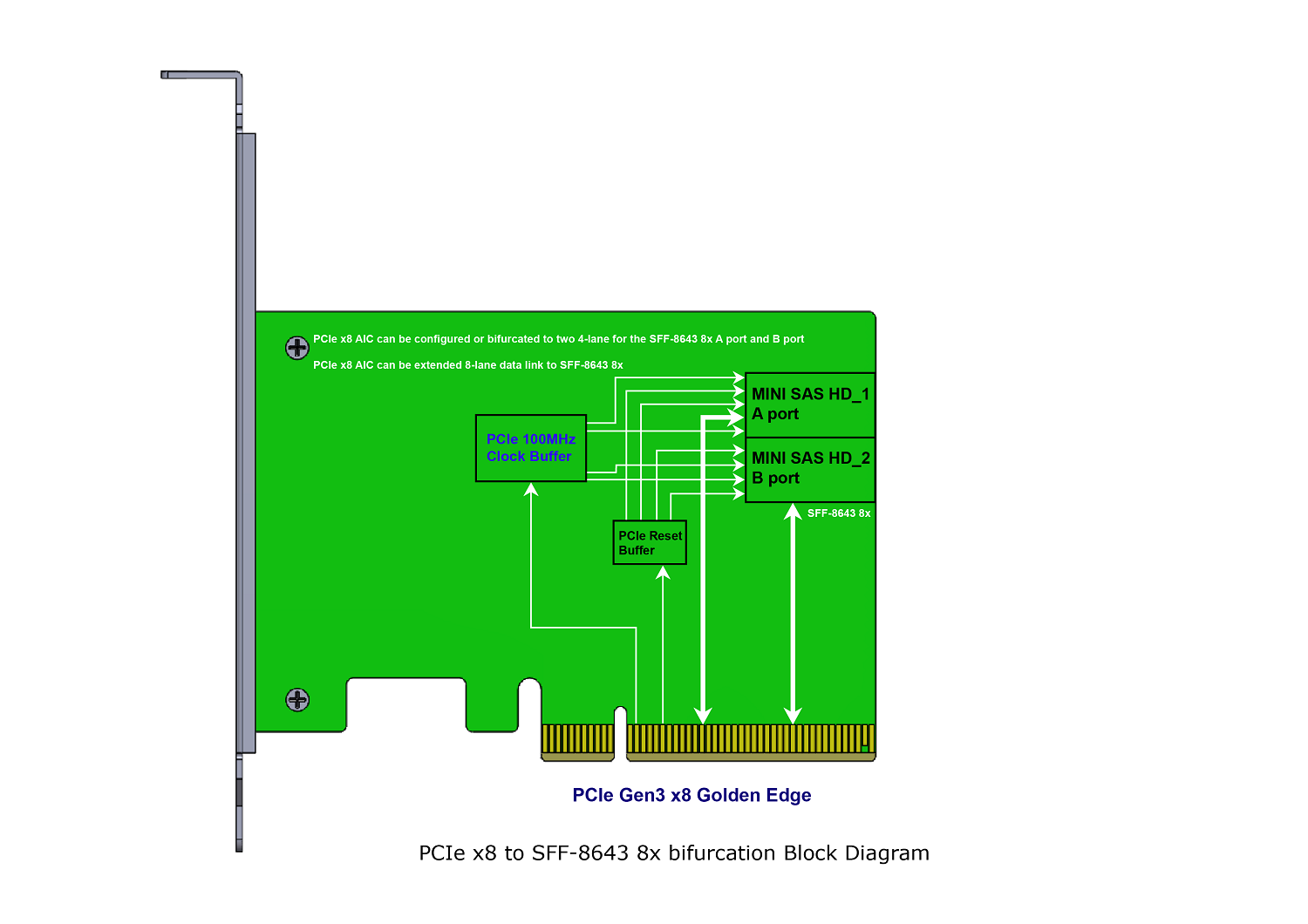

PCIe x8 to SFF-8643 8x Block Diagram

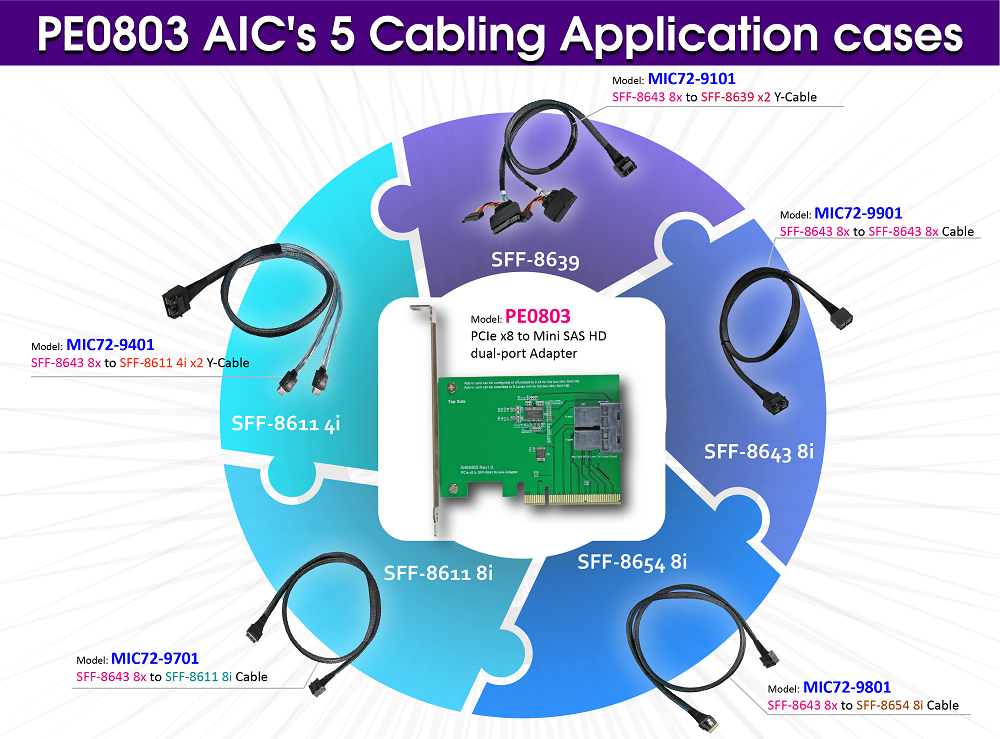

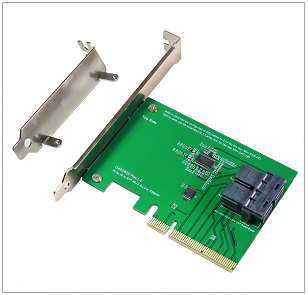

- PE0803 can be offered in two x4(need CPU and BIOS both support) and x8 configurations
- PE0803 features two internal NMVe(SFF-8643) for high-perfoemace storage connectivity

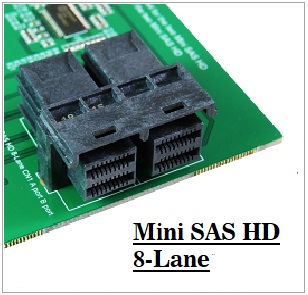

- Build in 8x Mini SAS SFF-8643 connector 1 sets, pin-out defined by PCIe
- Dual-port PCIe Gen 3 NVMe controller
- Four internal lanes per Mini SAS HD port, 3.2B/s per port
- Supports two physical NVMEe devices
- Supports SFF-9402 clock pin out
- Support Intel Define Mini SAS HD SFF-8643 clock pin out
- Supports SFF-9402 perst# pin out
- Supports Intel Define Mini SAS HD SFF-8643 perst# pin out
- Enables the system perst# signal to be used over longer trace lengths and over a cable
- Compliant with NVM Express 1.2a
- Support PCI Express Base Specification Rev 3.0
- Support SSD_Form_Factor_Version1_a
- Compliant with SFF-8643 Specification Version 3.5
