Datasheet

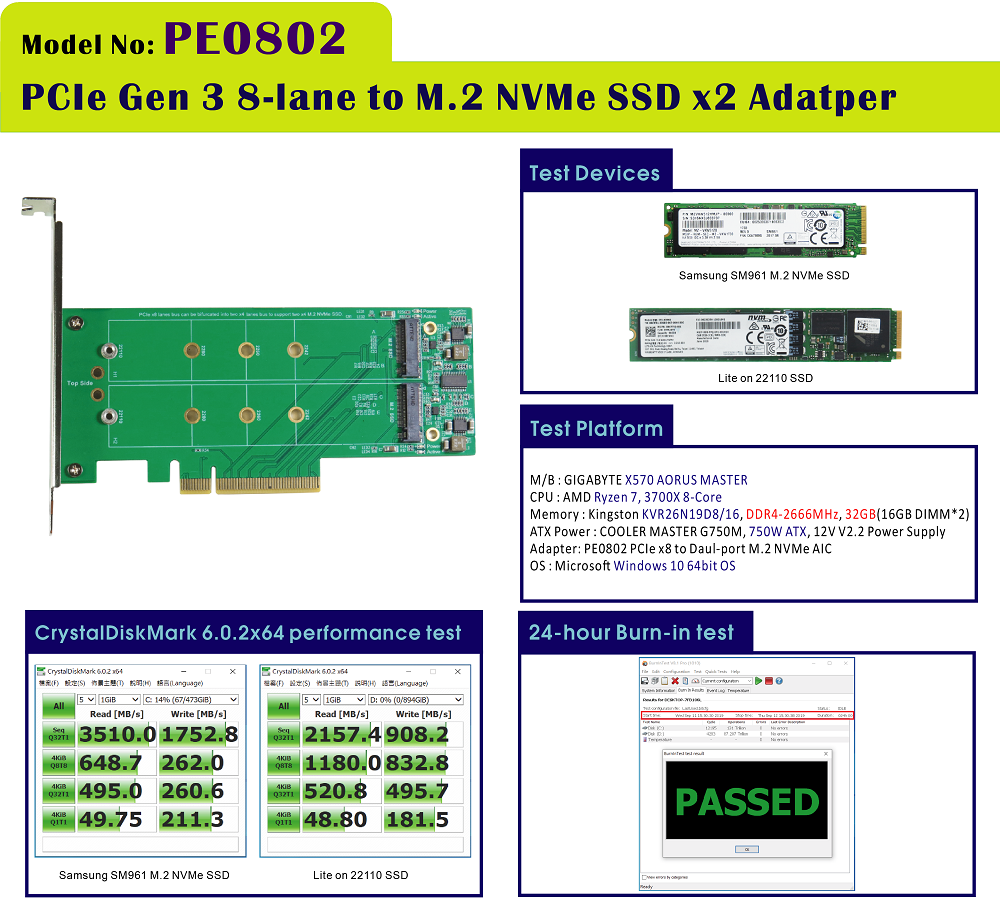

Test report with M.2 NVMe SSD

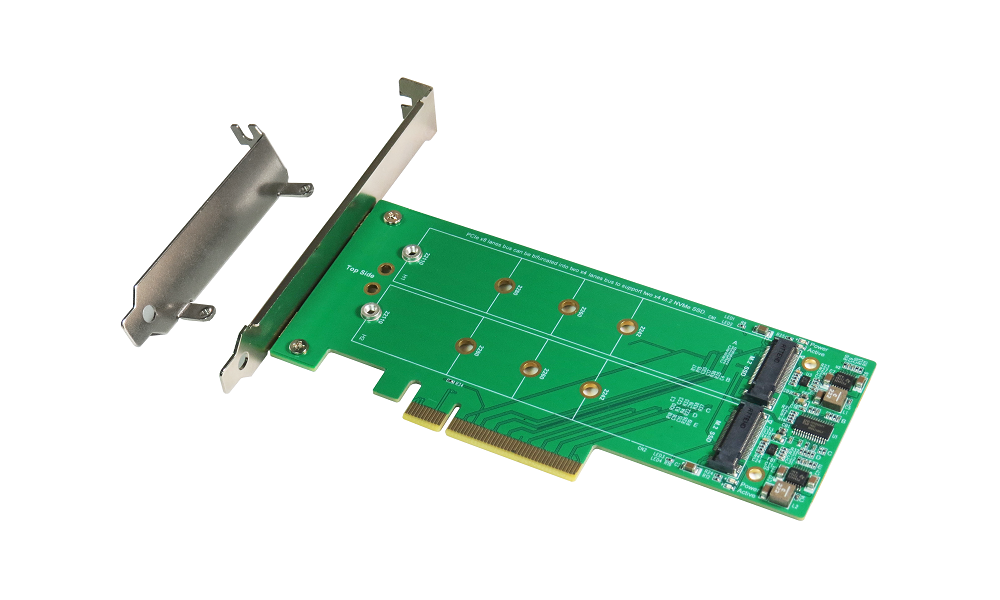

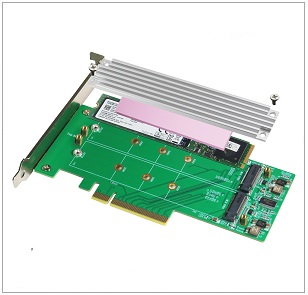

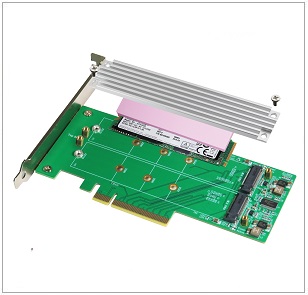

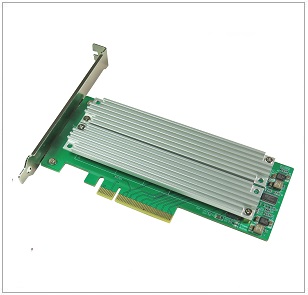

- Build in 2 sets M.2 M-key Female connector

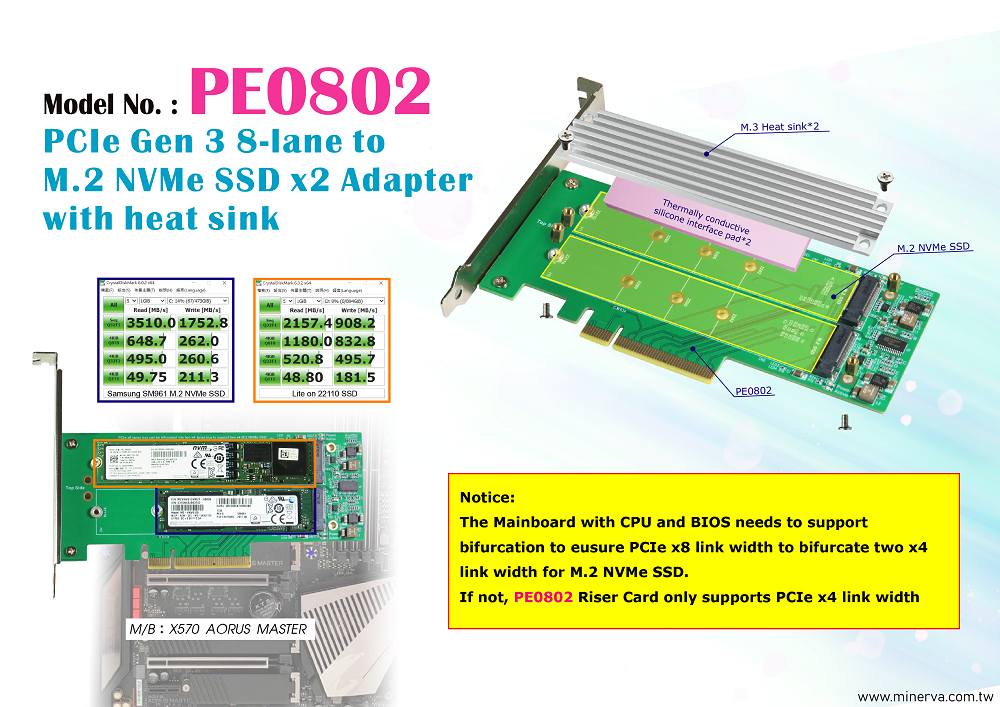

- PE0802 can be offered in two x4 data width configurations (need CPU and BIOS both support) for dual-port M.2 connector.
- PWM synchronous buck converter Power IC 2 sets for dual-port
- 4A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
- Load switch Power IC 2 sets to protect M.2 NVMe SSD
- D1,D3 Green LED on indicates M.2 NVMe SSD power ready
- D2,D4 RED LED Blinking indicates M.2 SSD active status
- Compliant with NVM Express 1.0a
- Support SSD_Form_Factor_Version1_a
- Compliant with PCI Express M.2 Specification Version 1.1
- Compliant with PCI Express Base Specification Reversion 3.1a
