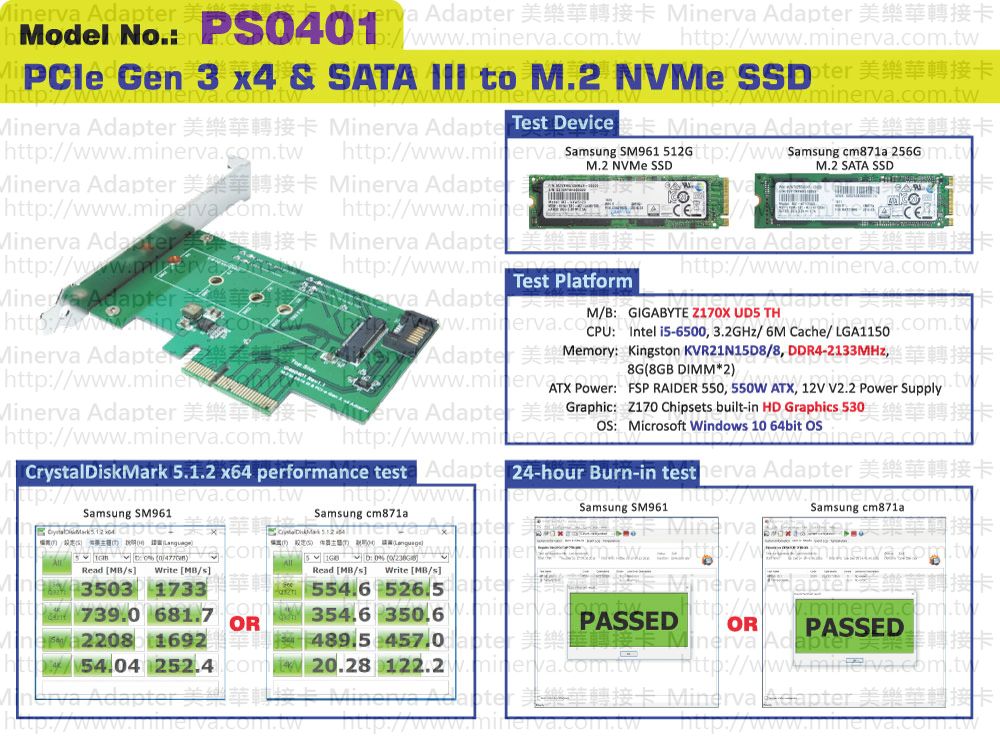

Test report with Samsung SM961 & CM871a SSD
Test report - SATA / PCI-e x2 / PCI-e x4
Test report with Samsung SM951 AHCI SSD
Assembly guide
Accessory Package
- 4-Layer PCB designed
- 4 Lanes of PCI-e designated
- M.2 (PCI-e I/F) to PCI-e convert
- M.2 (SATA I/F) to SATA III convert

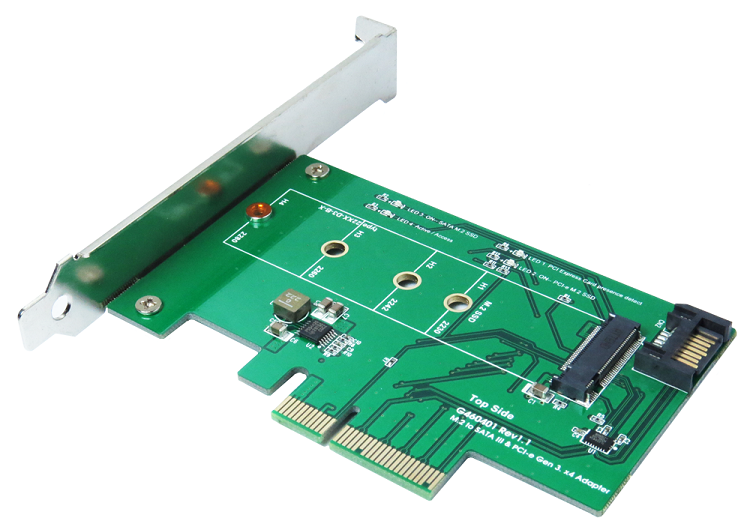

- Built-in M.2 (NGFF) M-key Female connector

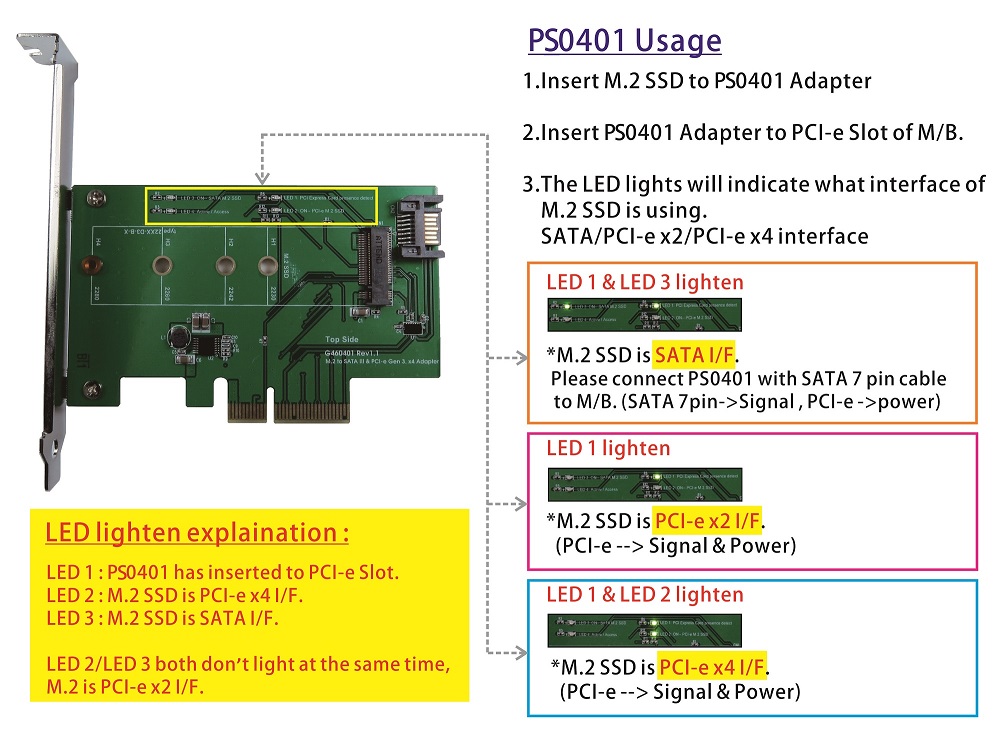

- LED1 ON indicate PS0401 adapter Ready

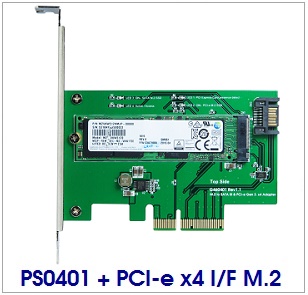

- LED2 ON indicate M.2 / PCI-e 4 Lanes device power OK

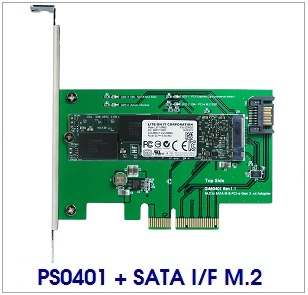

- LED3 ON indicate M.2 / SATA III device power OK

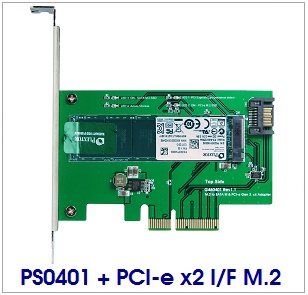

- LED2 & LED3 / OFF (both) indicate M.2 / PCI-e 2 Lanes device power OK
- LED4 indicate active status
- Support SATA Reversion 3.2
- PCI Express M.2 Spec. Revision 0.7, Version 1.0
- PWM synchronous buck converter Power IC
4A maximum output current
Short circuit protection
In-rush current suppression
Thermal shutdown protection
ESD HBM (Human Body Mode)/2KV
ESD CDM (Charged Device Model) /500V

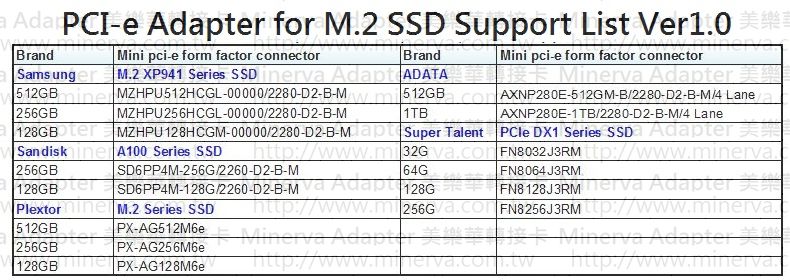

- Intel 530 Series M.2 SSD & compatible Storage
- Sandisk X110 M.2 SSD & compatible Storage
- Micron M500 Series M.2 SSD & compatible Storage
