Supports two lane of PCI Express Gen 2
Build in ASM1062R high performance processor
Fully hardware-accelerated RAID Engine
Supports RAID levels: 0 / 1 / JBOD
Supports Port Multiplier for two separate drives
Build in Mini PCI-e Female connector
Build in M.2 B-key Female connector
PCI Express Base Specification Rev 2.0
PCI Express Card Electromechanical Rev 2.0
Supports SATA Reversion 3.2
Serial ATA AHCI Spec. Rev1.3
PCI Express Mini Card Electromechanical Specification 1.2
PCI Express M.2 Spec. Revision 0.7, Version 1.0
PWM synchronous buck converter Power IC
- 4A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
- ESD CDM (Charged Device Model) /500V
 SSD.jpg){kind=small}
 SSD & SATA to mSATA SSD Adapter - SATA to M.2 (NGFF) & mSATA SSD Adapter - S2083A - Minerva - 2 in 1 - 15.jpg)

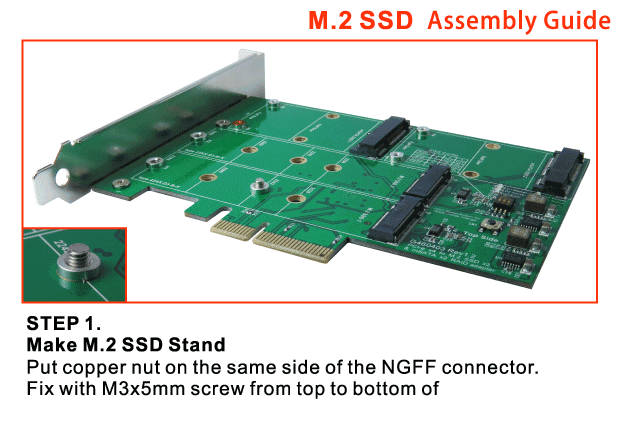

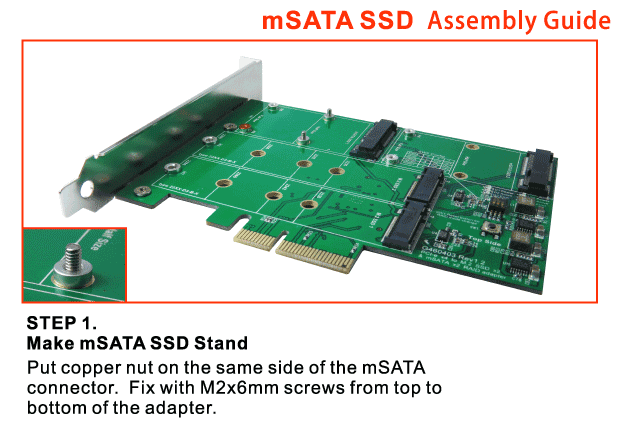

Assembly guide Download :
PR9401 Assembly guide.PDF
