Datasheet

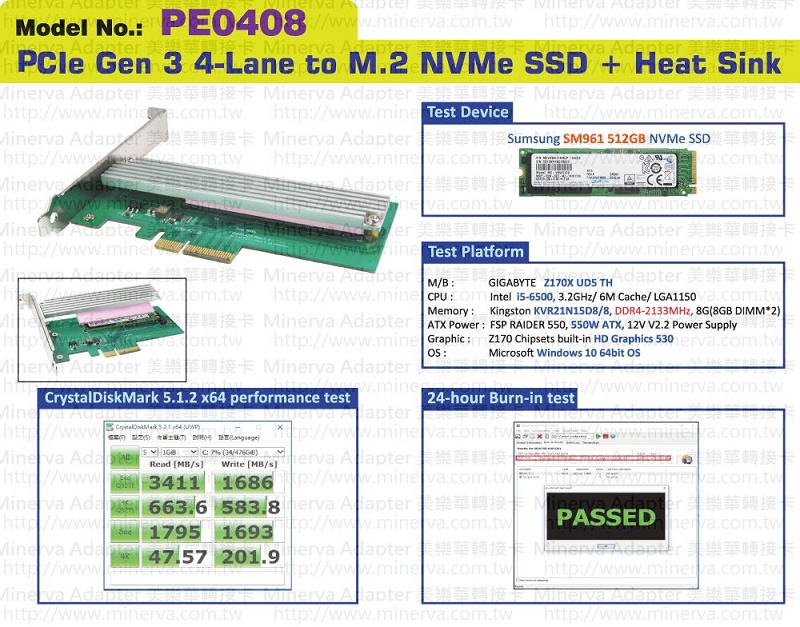

Test report-Samsung SM961 / 512GB

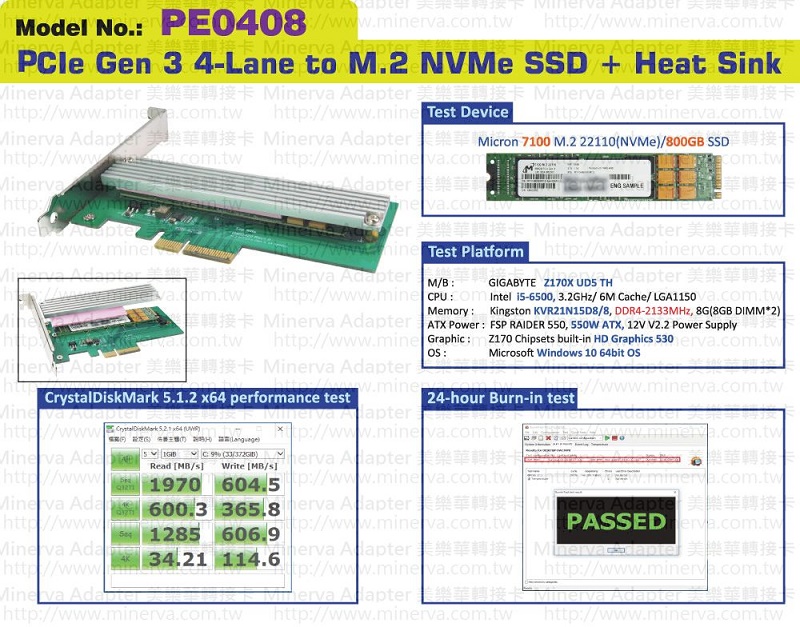

Test report-Micron / 800GB

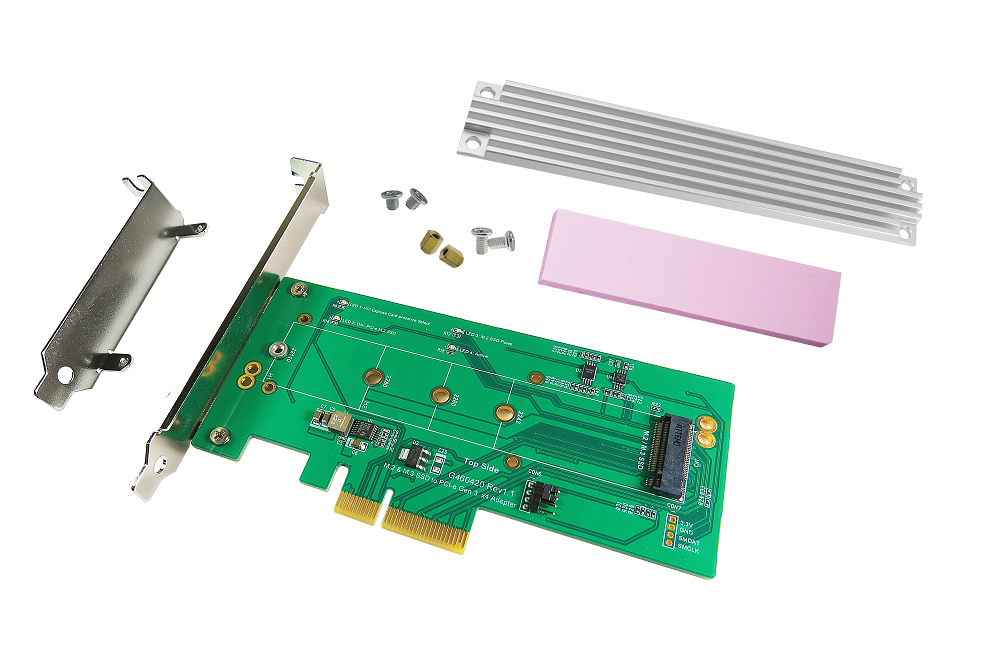

- M.2 NVMe to PCIex4 Gen3 convert
- Build in M.2 M-key Female connector
- PWM synchronous buck converter Power IC
- 4A maximum output current
- Short circuit protection
- In-rush current suppression
- Thermal shutdown protection
- ESD HBM (Human Body Mode)/2KV
- Supports 1.8V SMB_CLK
- Supports 1.8V SMB_DATA
- Supports 3.3V CLKREQ#
- D1 Green LED on indicates PE0408 Add-in cad ready
- D2 Green LED on indicates M.2 NVMe SSD power ready
- D3 RED LED Blinking indicates M.2 SSD active status
