Datasheet

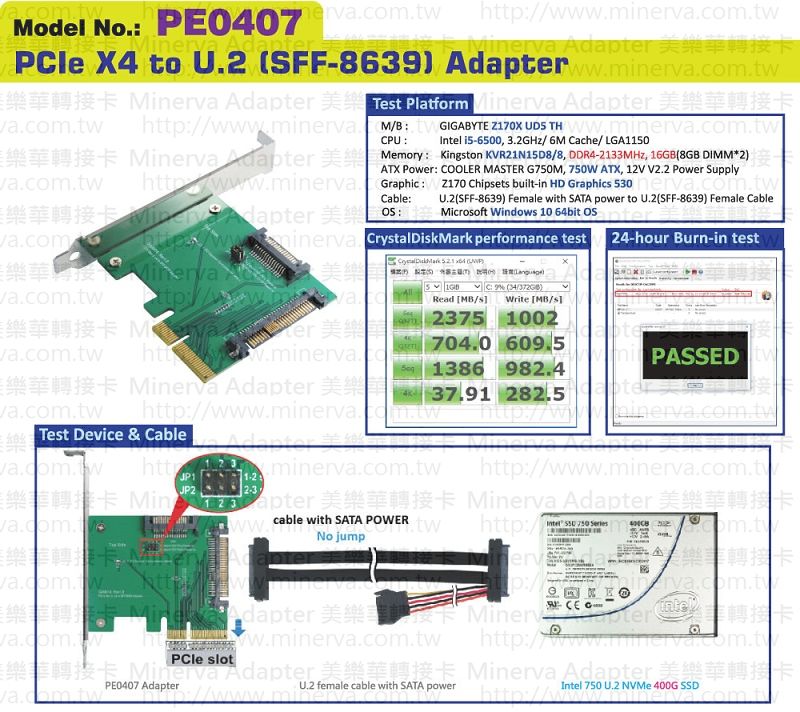

Test report - Intel 750 U.2 SSD with U.2 + 15pin power cable

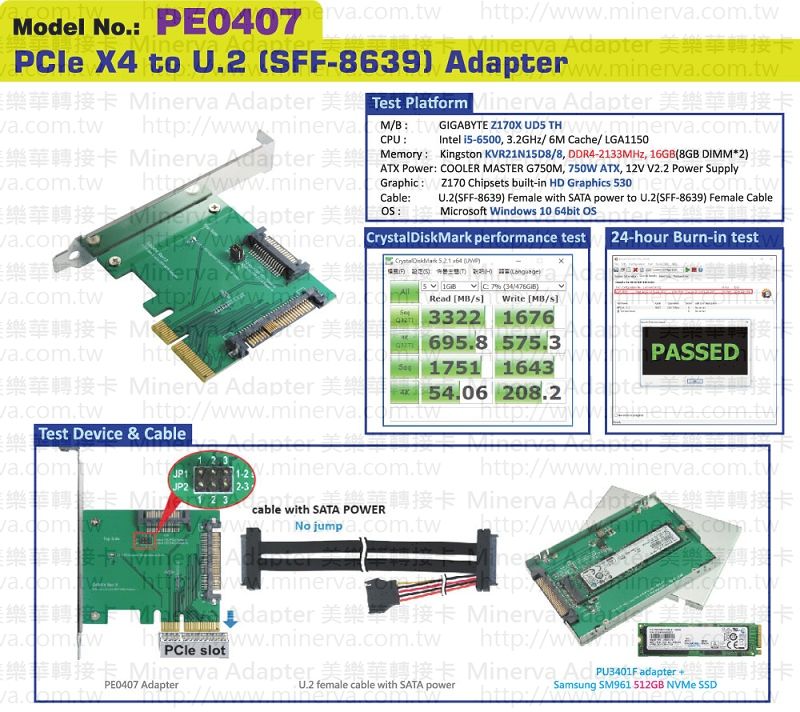

Test report - Samsung SM961 SSD with U.2 + 15pin power cable

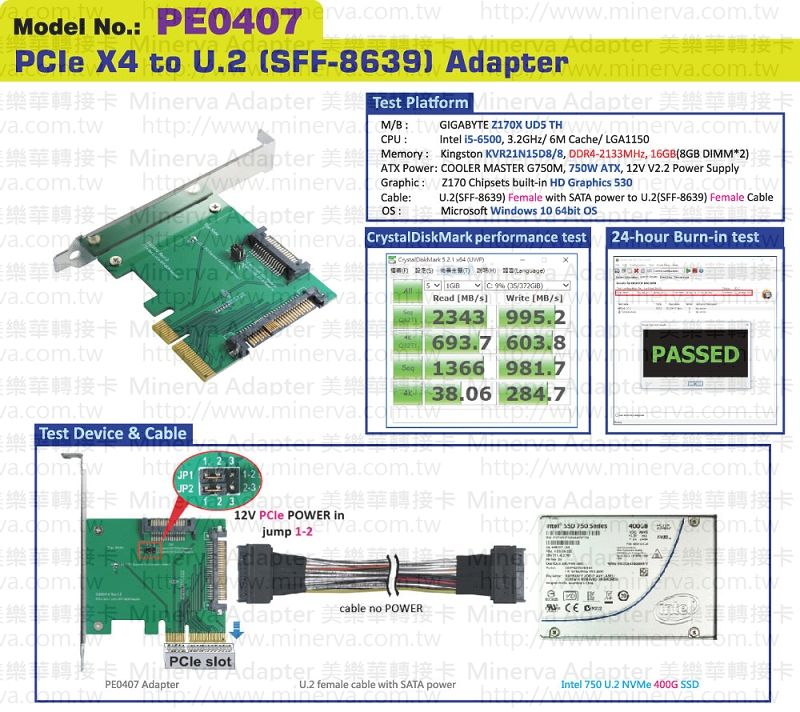

Test report - Intel 750 U.2 SSD with U.2 cable & PCIe power

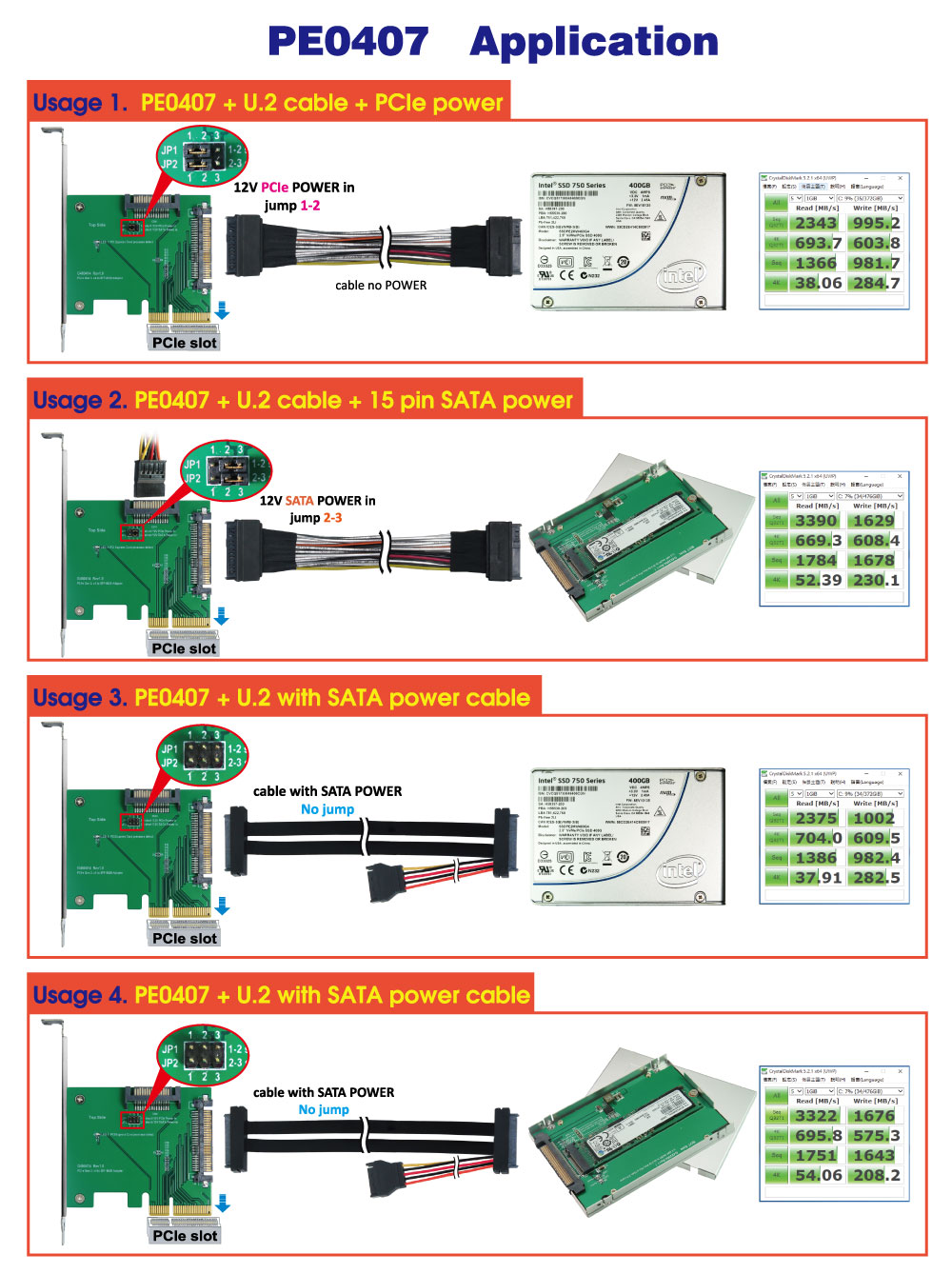

Test report - Samsung SM961 SSD with U.2 cable & SATA power

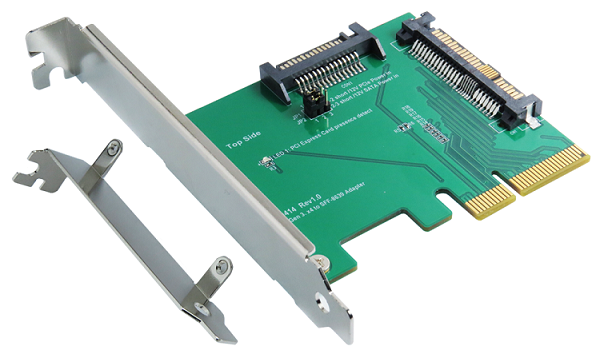

PE0407-2D drawing
- U.2(SFF-8639) to PCIe Gen 3/4-Lane convert
- Build in SFF-8639 connector, pin-out defined by PCIe
- Build in SATA power connector
- Supports 3.3V SMB_CLK
- Supports 3.3V SMB_DATA
- Supports 3.3V CLKREQ# for U.2(SFF-8639) DEVSLP
- LED1 Green LED on indicates PE0407 adapter ready
