specifications

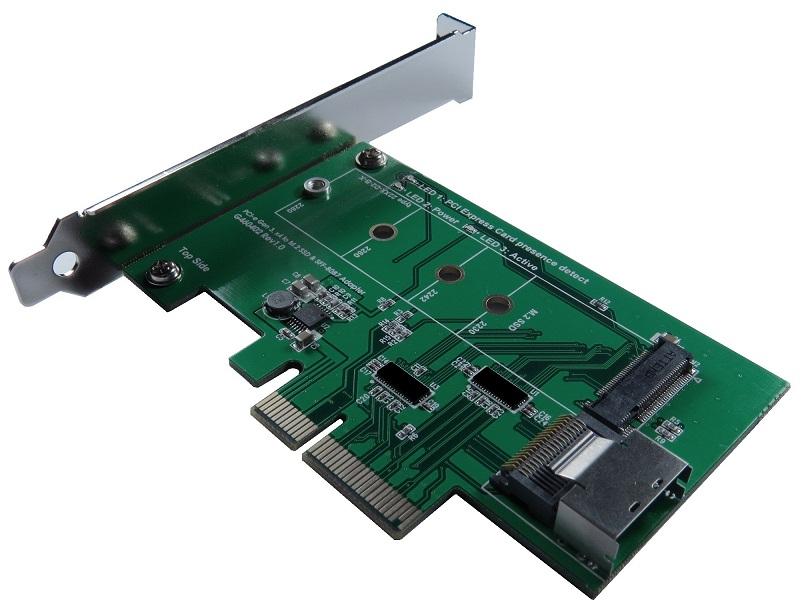

4-Layer PCB designed
4 Lanes of PCI-e designated
M.2 (PCI-e I/F) to PCI-e convert
M.2(PCI-e I/F) SSD via SFF-8087 Cable connected to PCI-e
Built-in M.2 (NGFF) M-key Female connector
Built-in SFF-8087 Mini SAS connector
LED1 ON indicate PE0402 adapter Ready
LED2 ON indicate M.2 / PCI-e 4 Lanes device power OK
LED3 indicate active status
PCI Express M.2 Spec. Revision 0.7, Version 1.0
SFF-8087 Rev 2.5
PWM synchronous buck onverter Power IC

4A maximum output current
Short circuit protection
In-rush current suppression
Thermal shutdown protection
ESD HBM (Human Body Mode)/2KV
ESD CDM (Charged Device Model) /500V

Application

specifications

specifications

Datasheet Download :

   PE0402.PDF

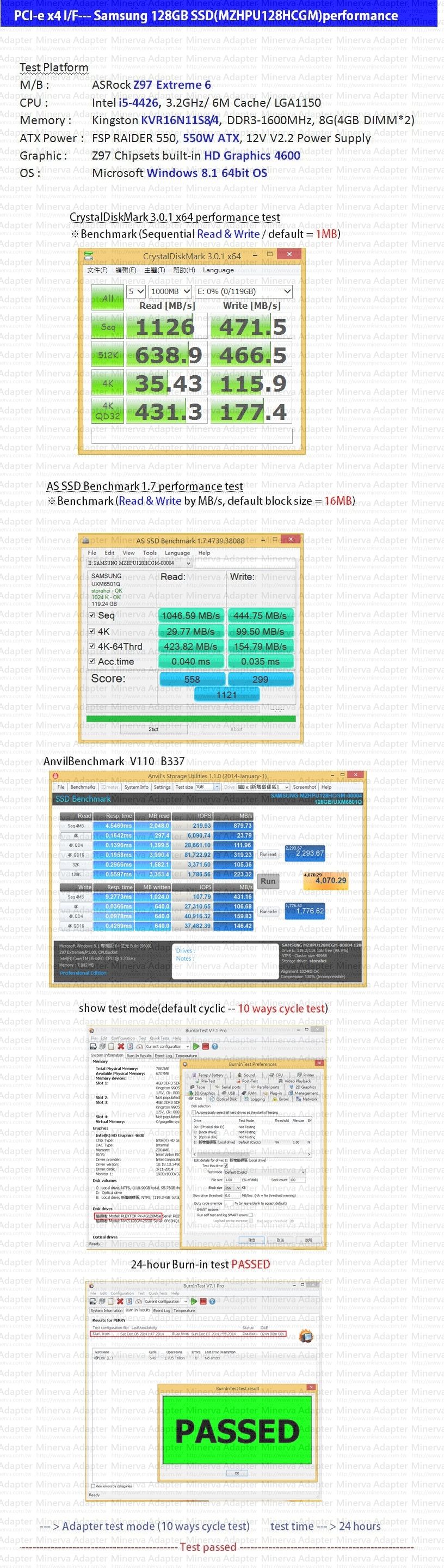

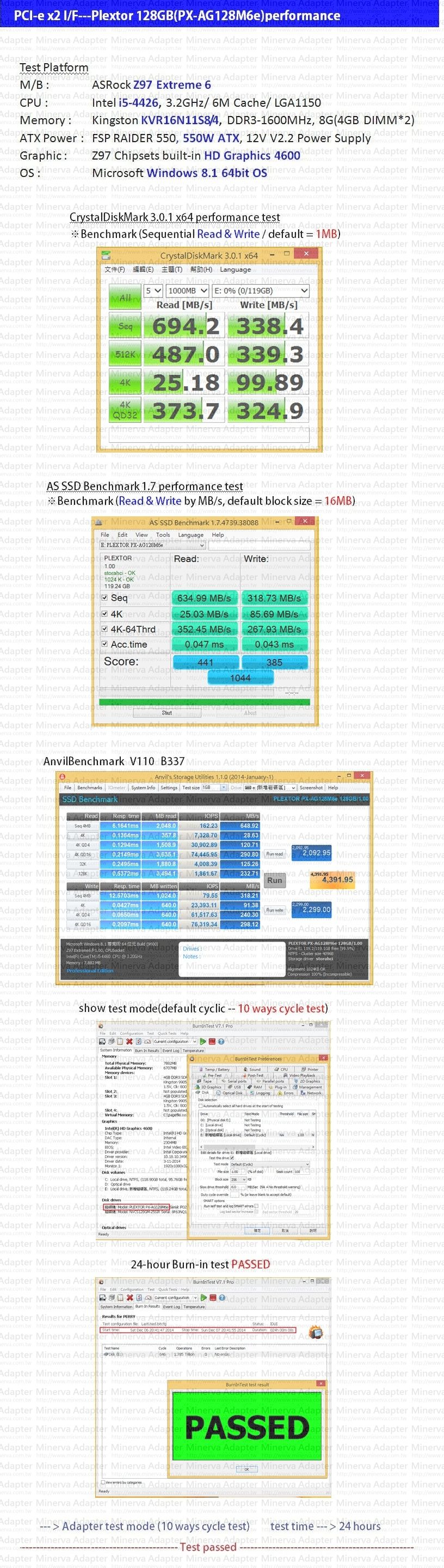

Test repoort Download :

PE0402 performance and burn in test report
