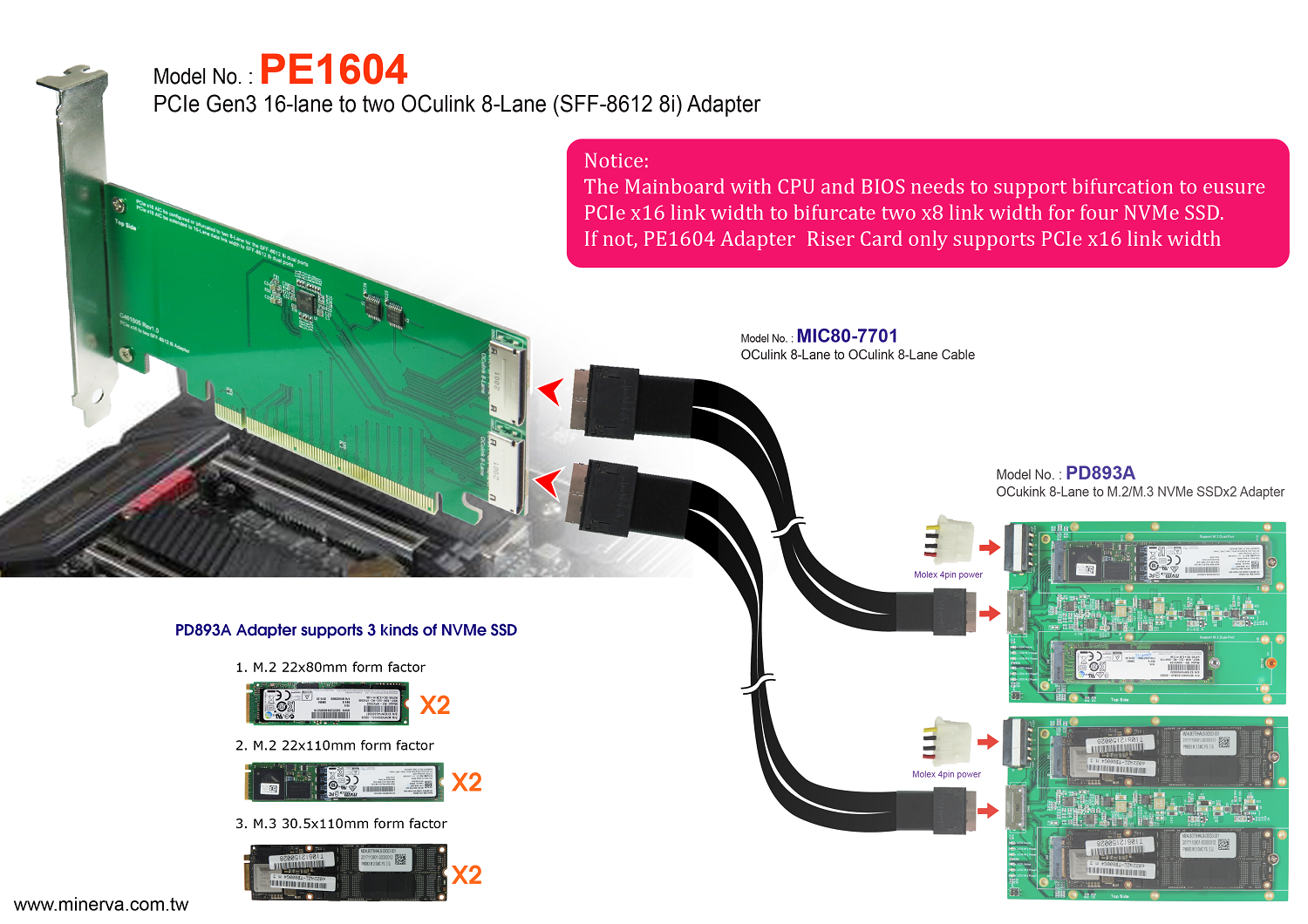

PE1604 can be bifurcated in quad x4 data link width configurations(need CPU and BIOS both support)
PE1604 can be bifurcated in two x8 data link width configurations(need CPU and BIOS both support)

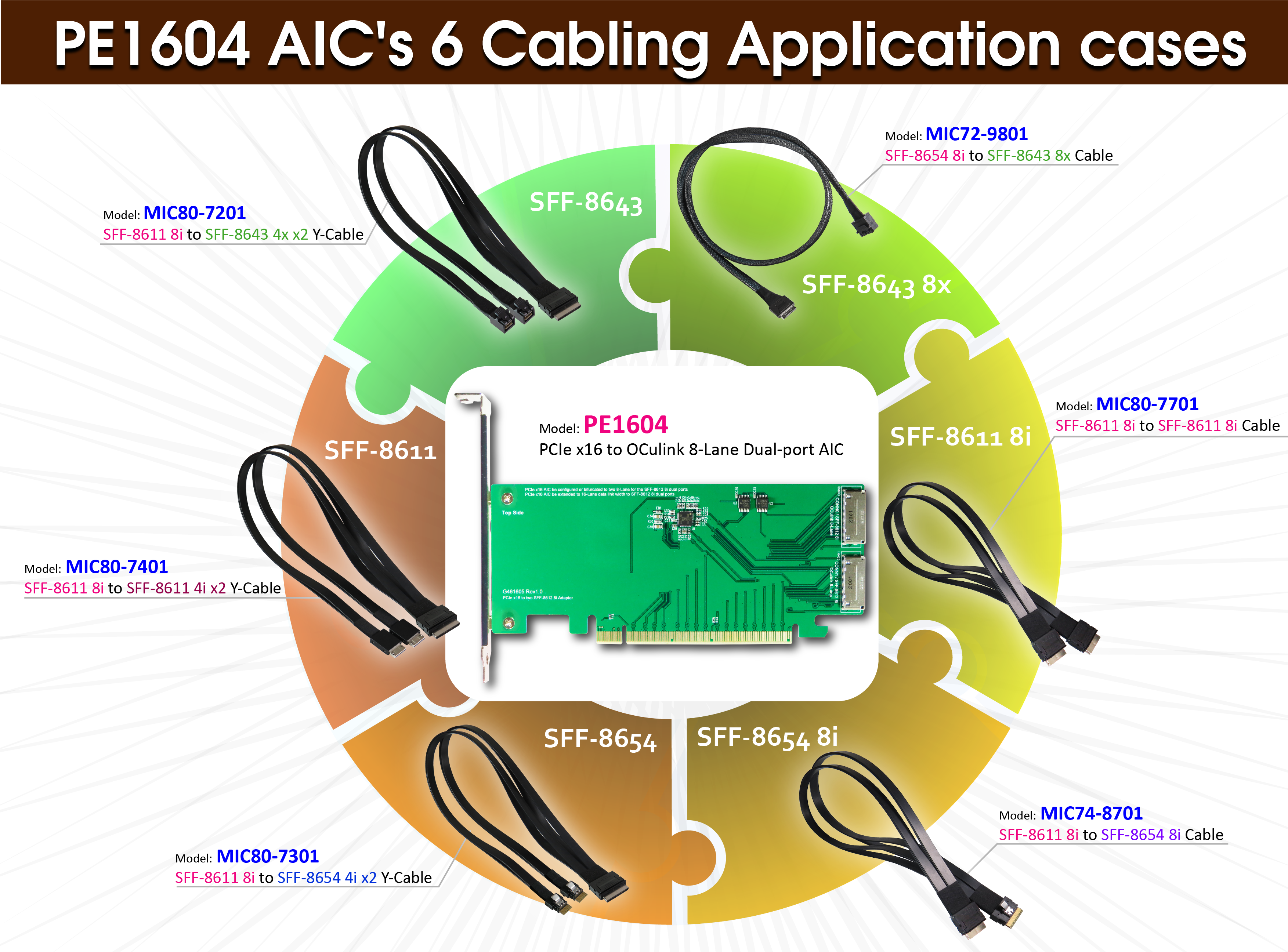

PE1604 can be used over a cable to extend x16 data link width
PE1604 features four internal NVMe(SFF-8612 8i x2) for high-perfoemace storage connectivity.

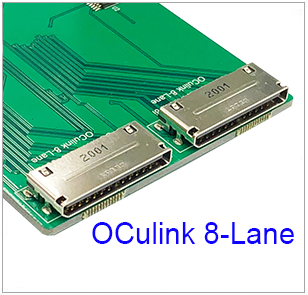

Build in OCulink(SFF-8612) 8i connector 2 sets, pin-out defined by SFF-9402
Eight internal lanes per OCulink 8i port, 6.4Gb/s per port
Supports four physical NVMe devices

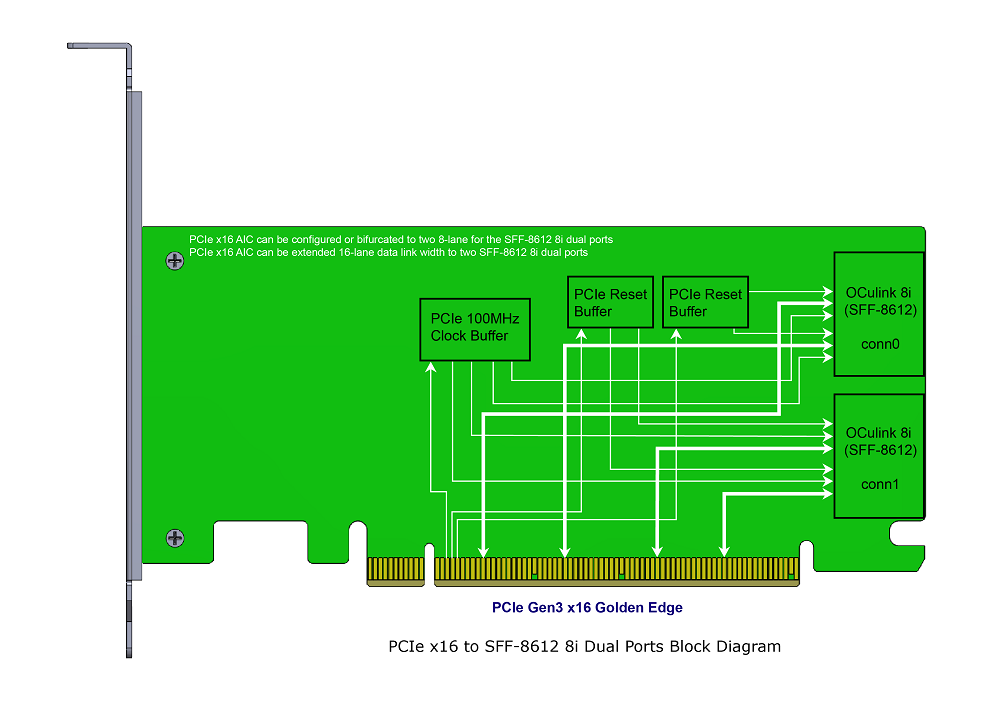

Supports SFF-9402 clock pin out
Supports Intel define Mini SAS HD(SFF-8643) clock pin out
Enables the system clock signal to be used over longer trace lengths and over a cable
Supports SFF-9402 perst# pin out
Supports Intel Define Mini SAS HD(SFF-8643) perst# pin out
Enables the system perst# signal to be used over longer trace lengths and over a cable
