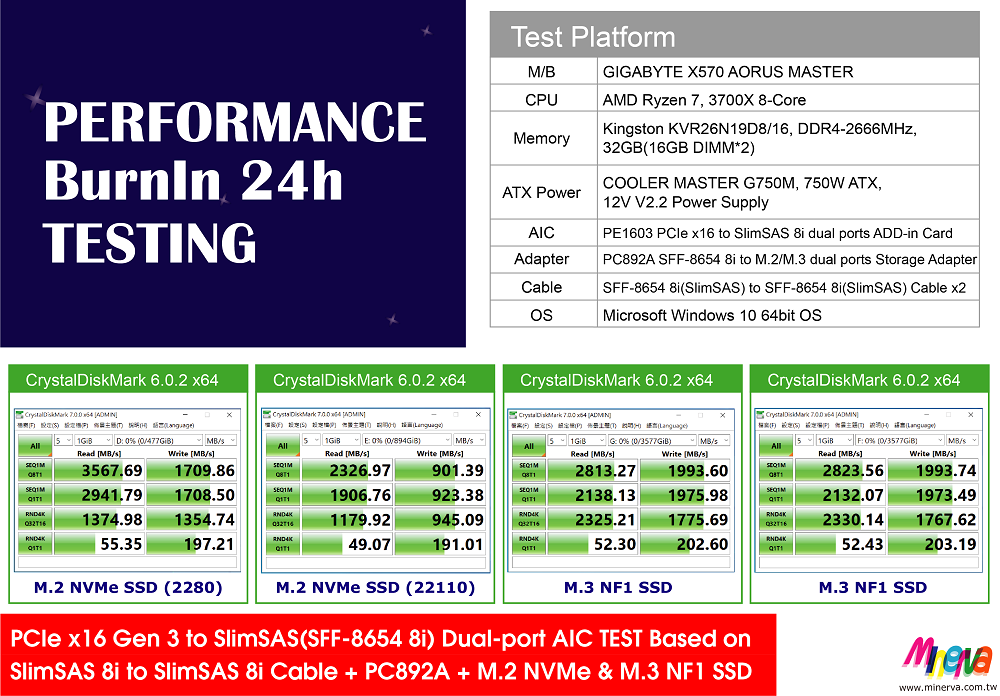

Test report - Test base on PC892A adapter (M.2 & M.3 NF1 SSD)
2D drawing

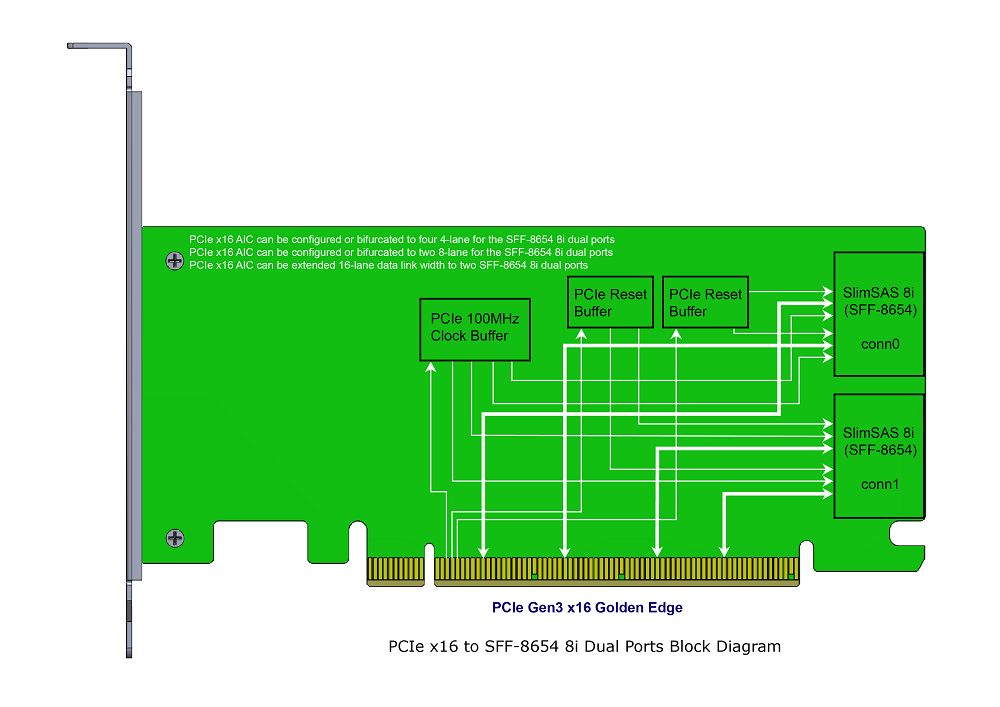

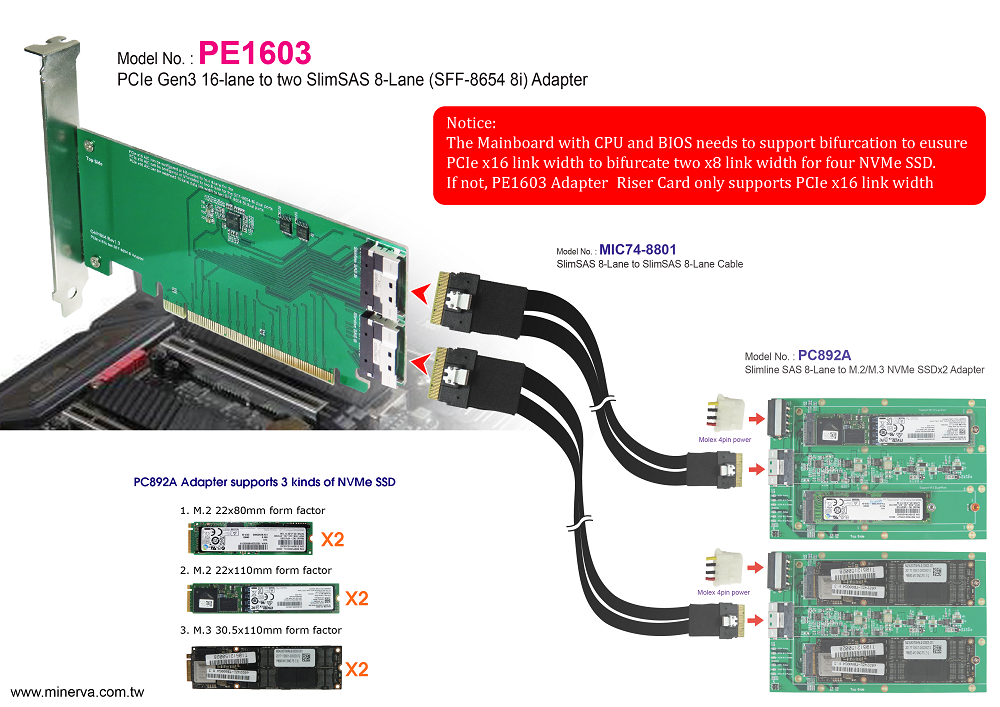

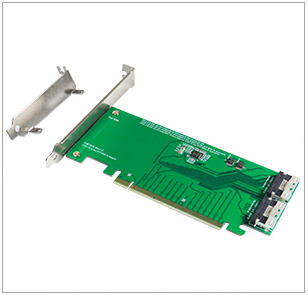

- PE1603 can be bifurcated in quad x4 data link width configurations(need CPU and BIOS both support)
- PE1603 can be bifurcated in two x8 data link width configurations(need CPU and BIOS both support)

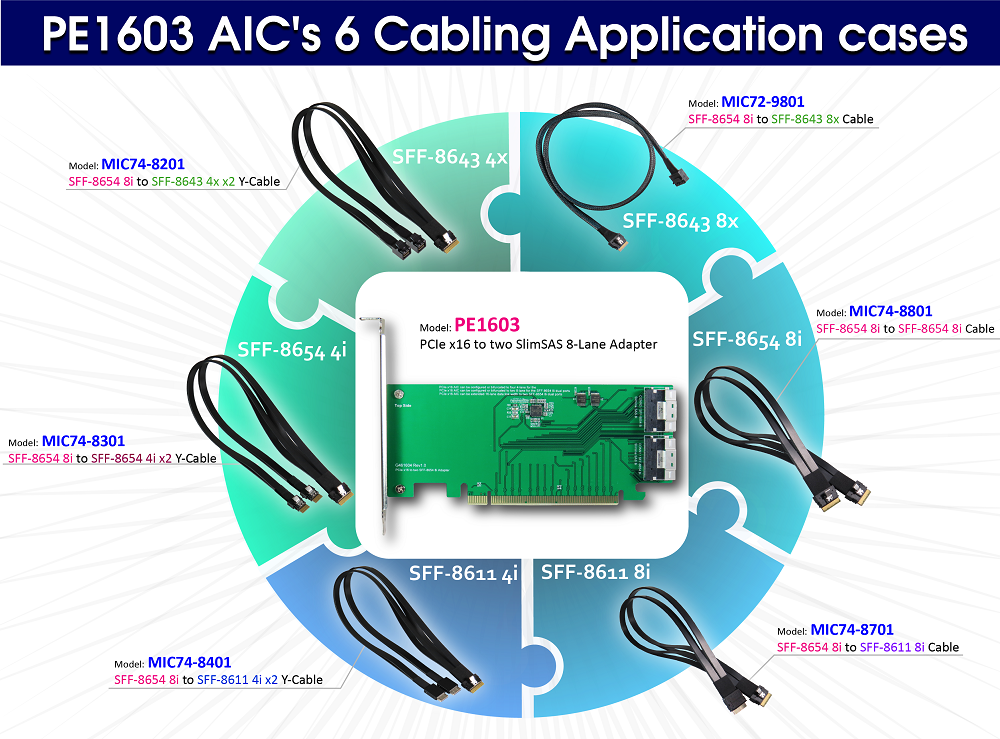

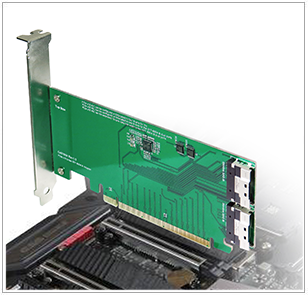

- PE1603 can be used over a cable to extend x16 data link width
- PE1603 features four internal NVMe(SFF-8654 8i x2) for high-perfoemace storage connectivity

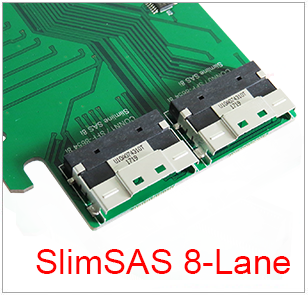

- Build in SlimSAS(SFF-8654) 8i connector 2 sets, pin-out defined by SFF-9402
- Eight internal lanes per SlimSAS 8i port, 6.4Gb/s per port
- Supports four physical NVMe devices
- Supports SFF-9402 clock pin out
- Supports Intel define SlimSAS (SFF-8654) clock pin out
- Supports SFF-9402 perst# pin out
- Supports Intel Define SlimSAS (SFF-8654) perst# pin out
- Enables the system clock signal to be used over longer trace lengths and over a cable
- Enables the system perst# signal to be used over longer trace lengths and over a cable
- Compliant with NVM Express 1.2a
- Support PCI Express Base Specification Rev 3.1
- Support SSD_Form_Factor_Version1_a
- Compliant with SFF-8654 Specification Version 1.2
