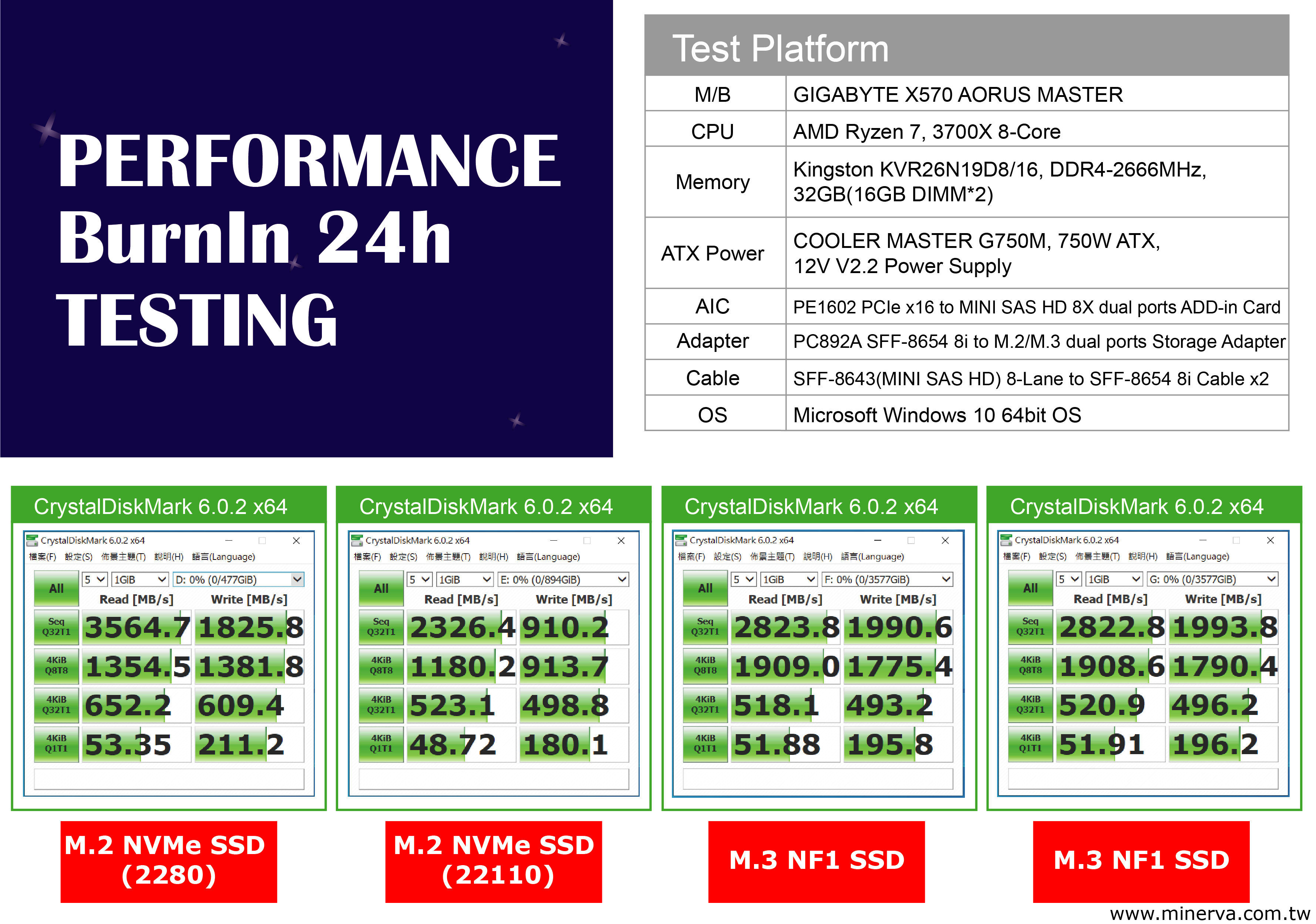

Test report - Test base on PC892A adapter (M.2 & M.3 NF1 SSD)
2D drawing

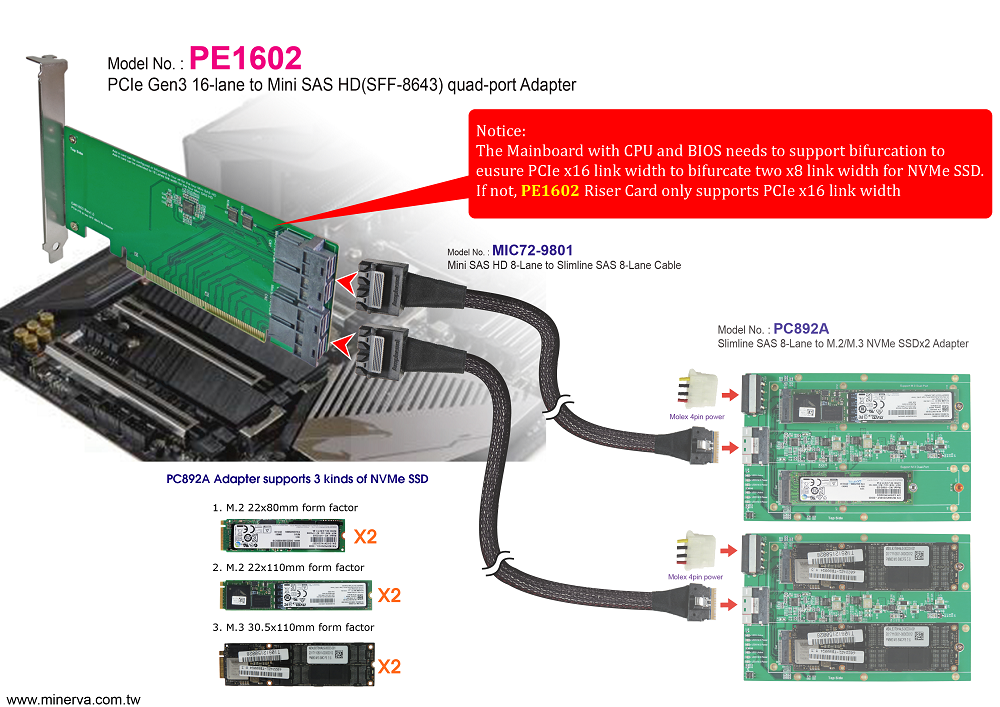

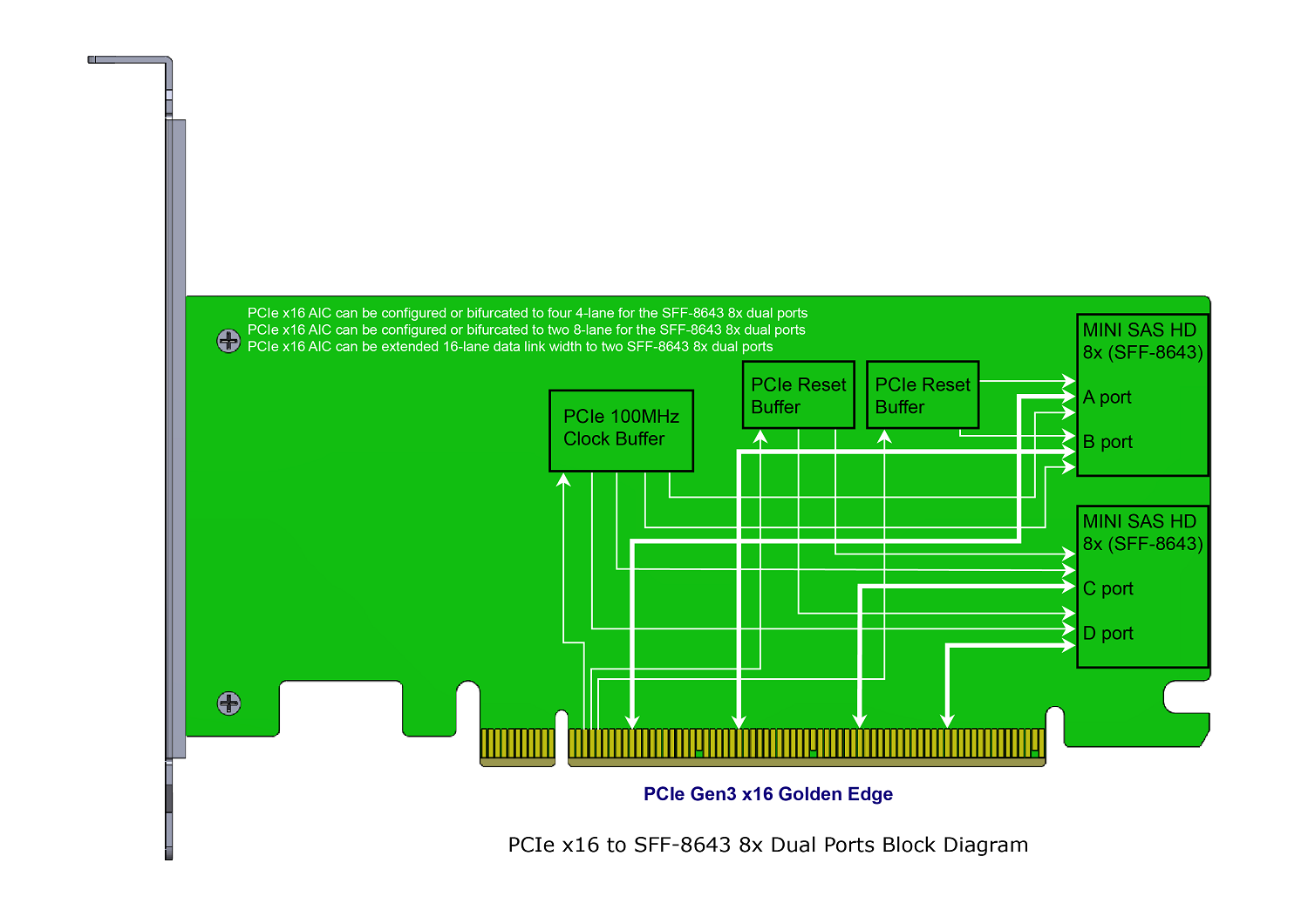

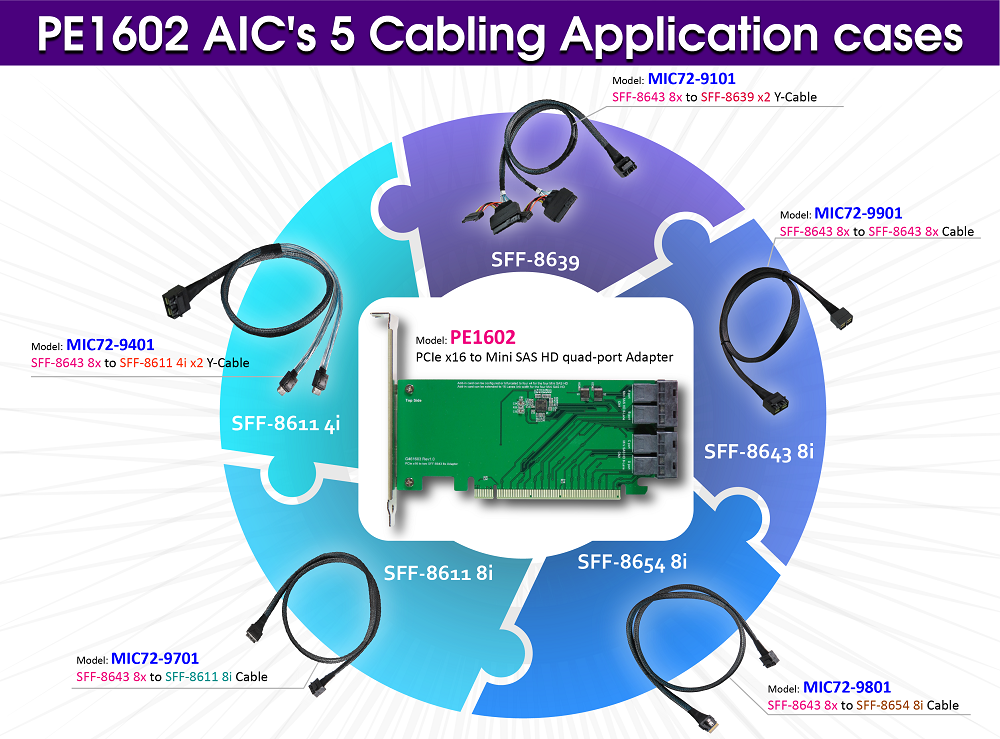

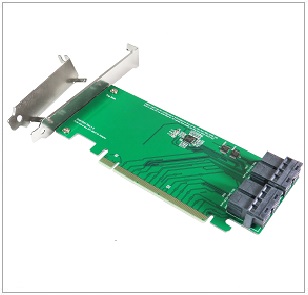

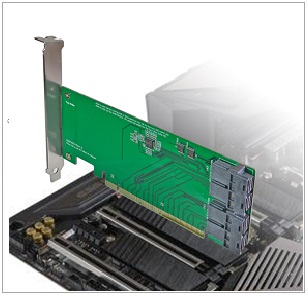

- PE1602 can be bifurcated in quad x4(need CPU and BIOS both support) and x4 data link width configurations
- PE1602 features four internal NVMe(SFF-8643) for high-perfoemace storage connectivity

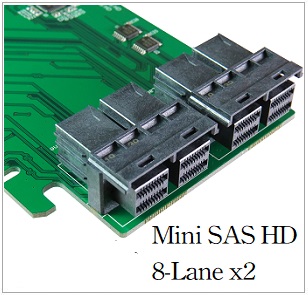

- Build in Mini SAS HD(SFF-8643) 8x connector 2 sets, pin-out defined by SFF-9402
- Four internal lanes per Mini SAS HD port, 3.2Gb/s per port
- Supports four physical NVMe devices
- Supports SFF-9402 clock pin out
- Supports Intel define Mini SAS HD(SFF-8643) clock pin out
- Supports SFF-9402 perst# pin out
- Supports Intel Define Mini SAS HD(SFF-8643) perst# pin out
- Enables the system clock signal to be used over longer trace lengths and over a cable
- Enables the system perst# signal to be used over longer trace lengths and over a cable
- Compliant with NVM Express 1.2a
- Support PCI Express Base Specification Rev 3.1
- Support SSD_Form_Factor_Version1_a
- Compliant with SFF-8643 Specification Version 3.5
