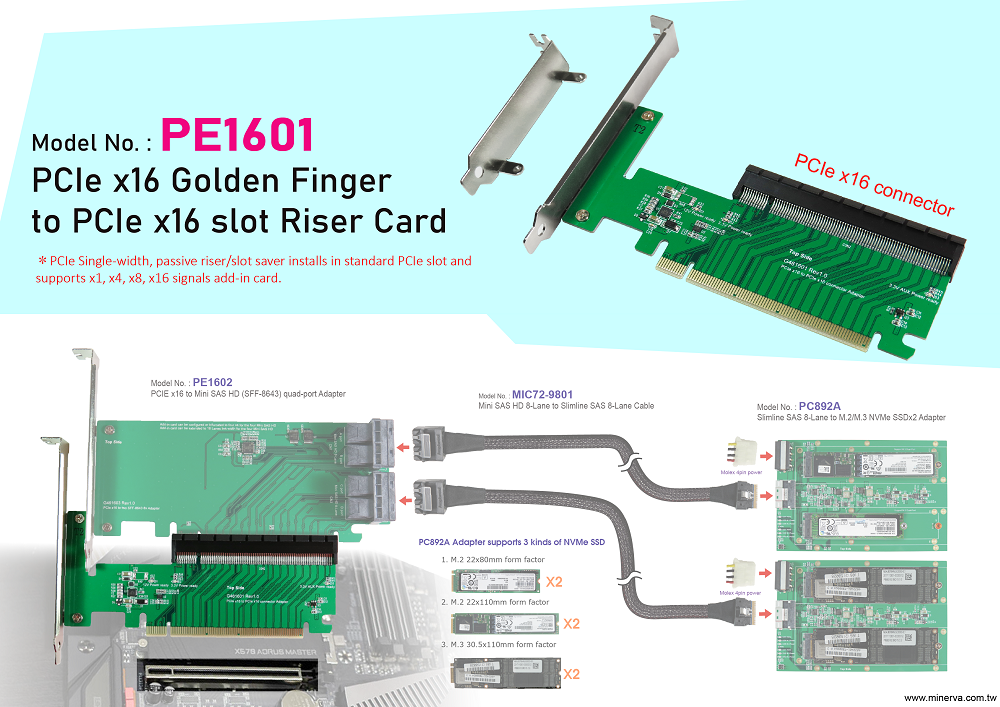

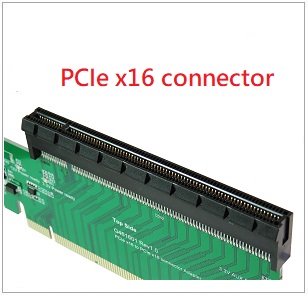

- PCIe x16 card edge / PCIe x16 slot
- PCIe Gen 3 / 16 lanes signals of PCIe designated
- 4 Layer PCB designed
- +12V Hotswap power protection, Maximum Programmable Current Limit: 6.5A
- +3.3V Load Switch power protection, 5A Maximum Continuous Switch Current
- 3.3Vaux Hop plug power IC protection, 500mA Continuous Current

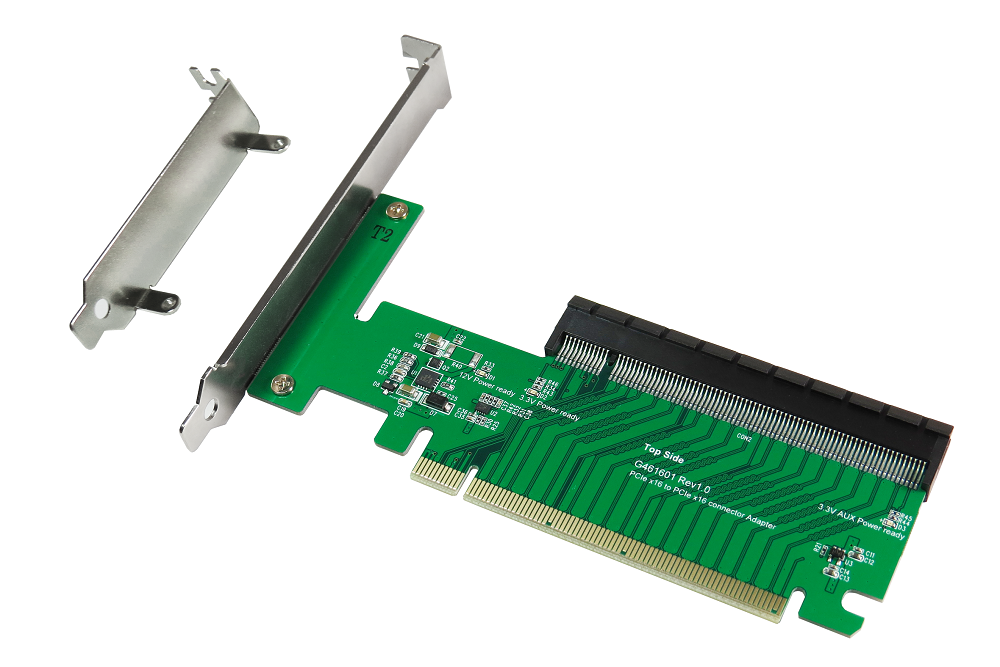

- D1 Green led on indicates +12V Power ready
- D2 Green led on indicates +3.3V Power ready
- D3 Green led on indicates 3.3Vaux Power ready
