Datasheet

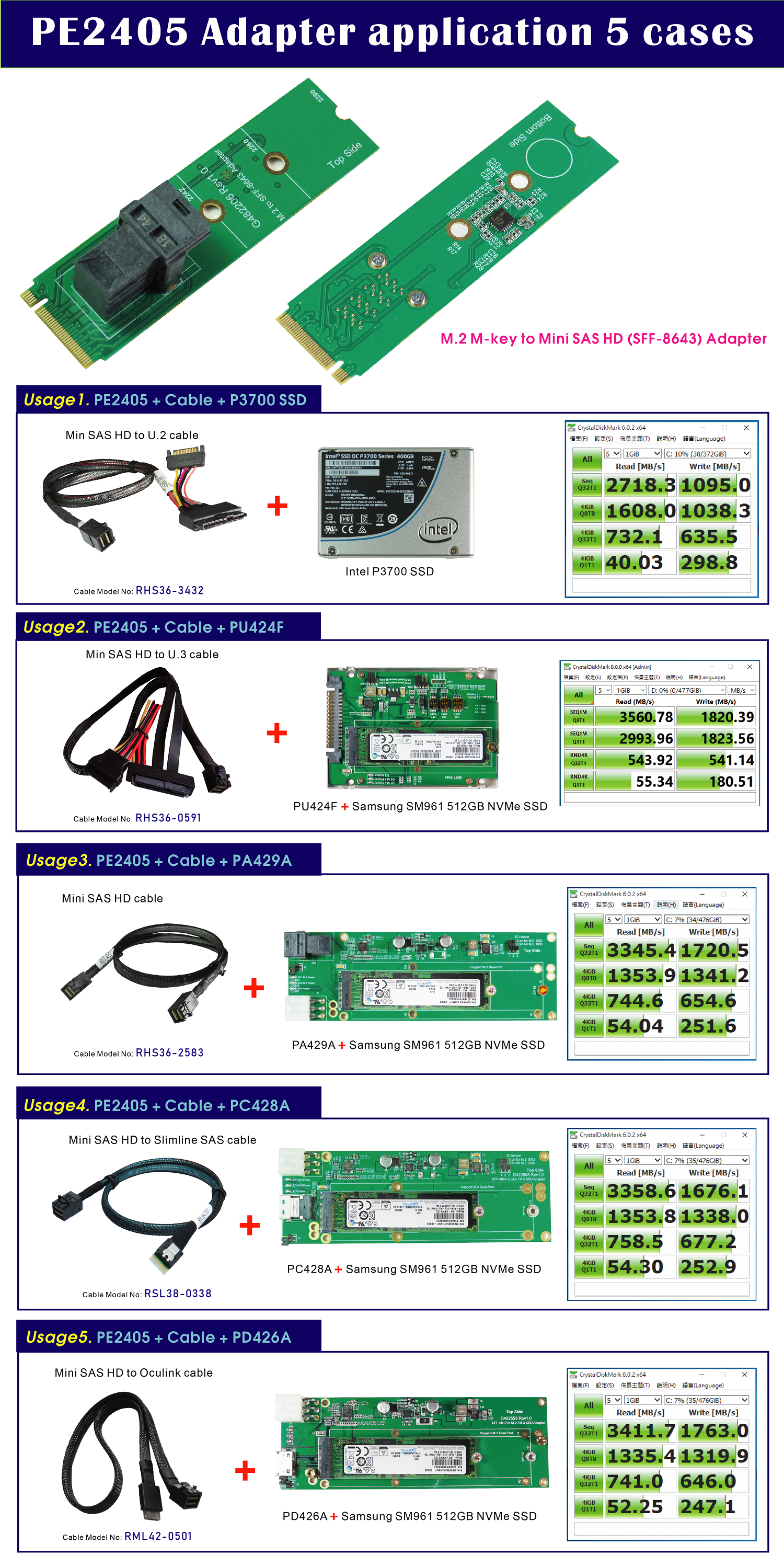

Test report - with U.2 to Mini SAS HD Cable + Intel P3700 SSD
Test report - Mini SAS HD to Oculink Cable + PA426A
Test report - Mini SAS HD to SlimSAS Cable + PC428A
Test report - Mini SAS HD Cable + PA429A
Test report - Mini SAS HD to U.3 Cable + PU424F
2D drawing

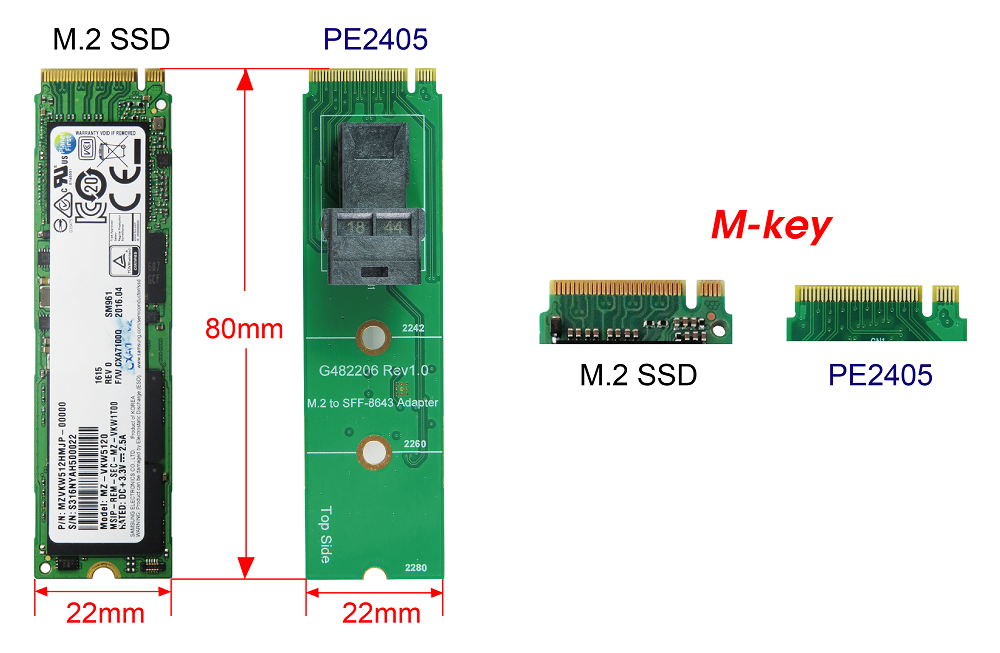

- 4 lanes of PCI-e designated

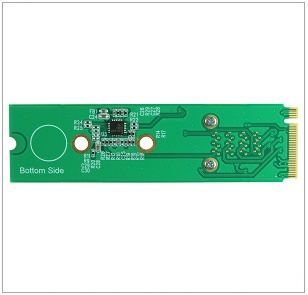

- 4 Layer PCB designed

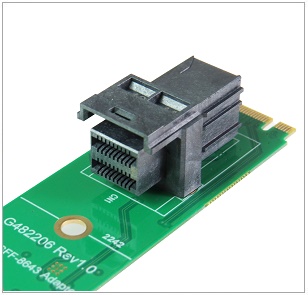

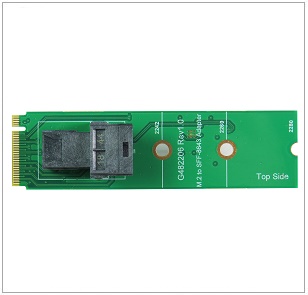

- Built-in mini SAS HD(SFF-8643) connector
- Connected PCIe 4 Lane signals, from M.2 golden finger to mini SAS HD(SFF-8643)
- Supports SFF-9402 Clock define
- Supports Intel Clock define
