CB963Fx9





CB963Fx9





specifications

CB963Fx9CB963Fx9





specifications

PDF

Datasheet



PDF

Test report





















specifications

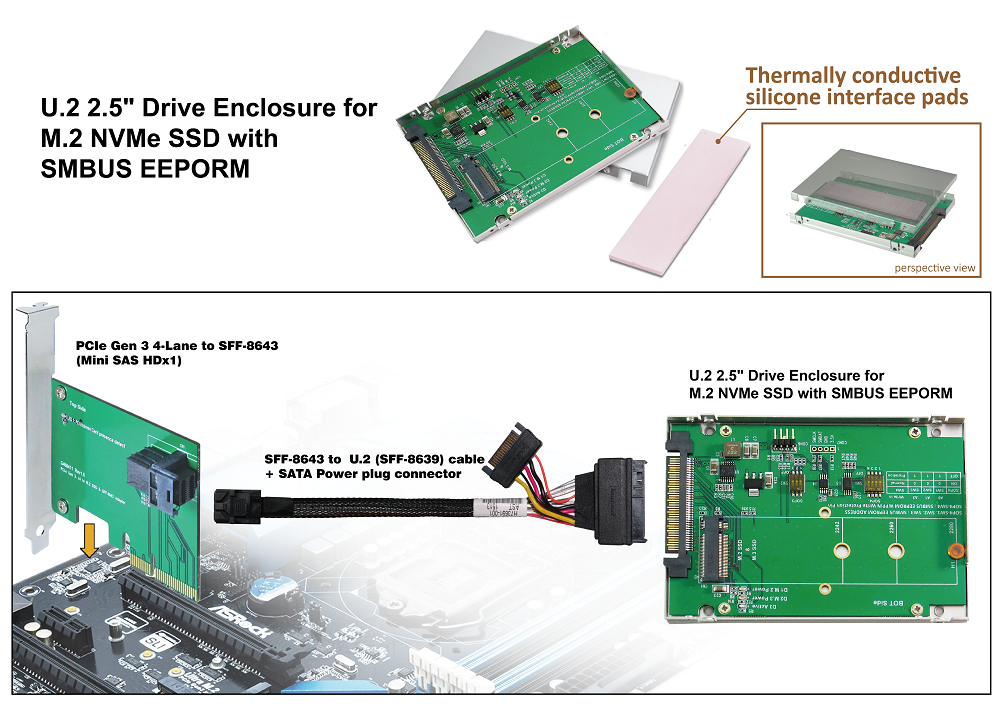

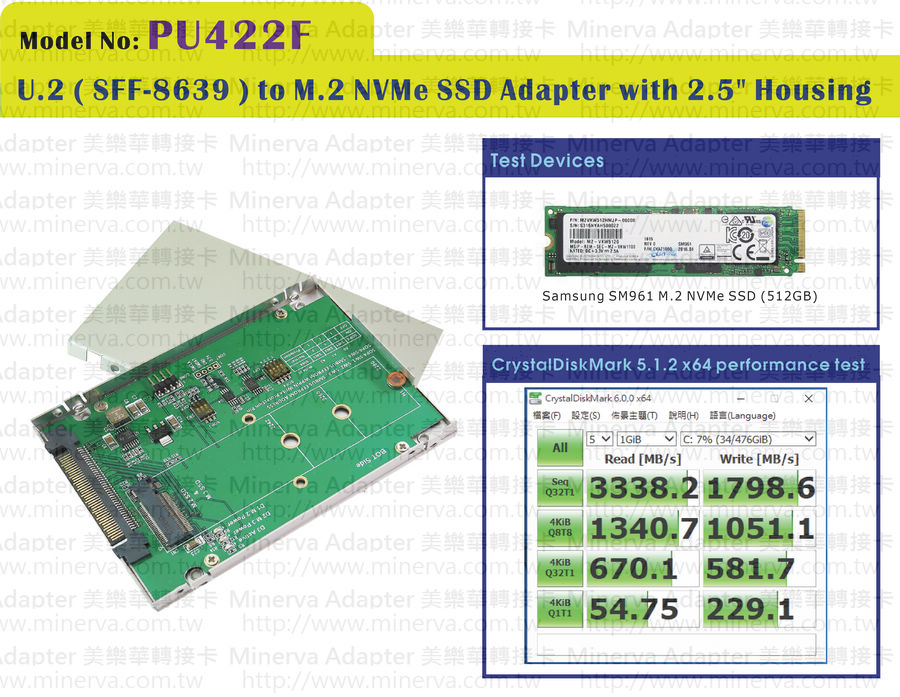

  • M.2 NVMe to U.2(SFF-8639) convert
  • M.3 NVMe to U.2(SFF-8639) convert

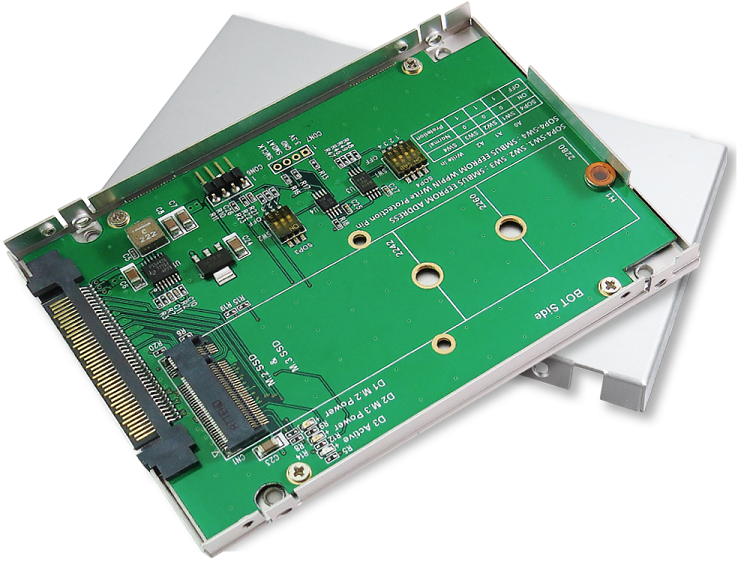

  • Build in M.2 M-key Female connector
  • Build in SFF-8639 connector, pin-out defined by PCIe
  • PWM synchronous buck converter Power for M.2 SSD
  • 4A maximum output current
  • Short circuit protection
  • In-rush current suppression
  • Thermal shutdown protection
  • ESD HBM (Human Body Mode)/2KV
  • Supports CLKREQ#, WAKE#
  • Supports M.2 /1.8V & M.3/ 3.3V SMB_CLK, SMB_DATA Level Shift
  • Supports M.2 /1.8V & M.3/ 3.3V SMB_CLK, SMB_DATA isolated
  • Builde in SMBUS EEPROM 256KB

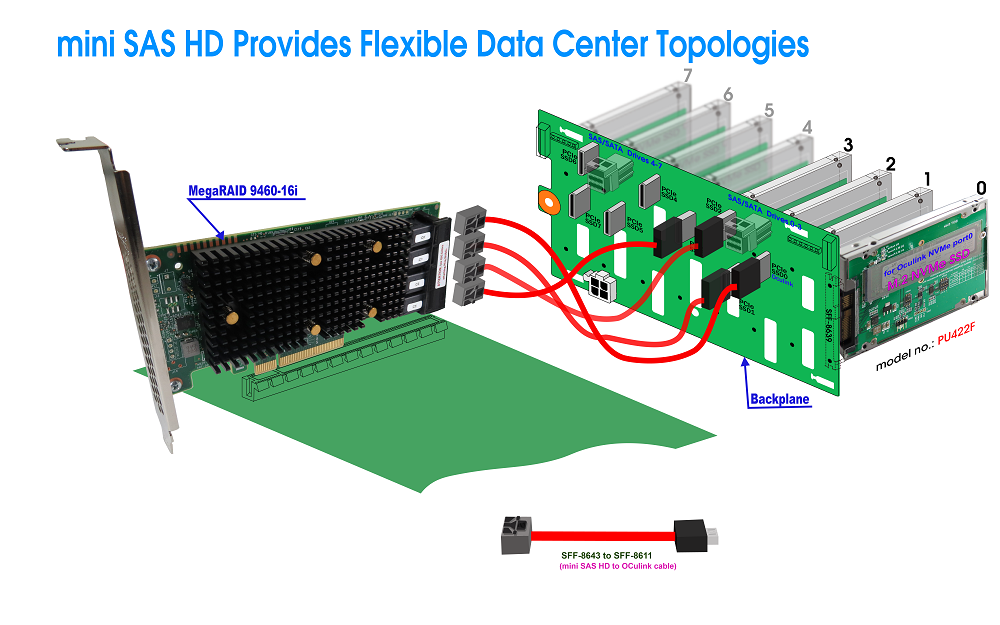

  • Supports M.3 Dual ports, U.2 Dual ports
  • D1 Green LED on indicates M.2 NVMe SSD power ready
  • D2 Green LED on indicates M.2 NVMe SSD power ready
  • D3 RED LED Blinking indicates M.2 & M.3 SSD active status





Application



CB963Fx9



Application

Application
