CB963Fx9





CB963Fx9



ApplicationApplication



specifications

Application





specifications

PDF

Datasheet

PDF

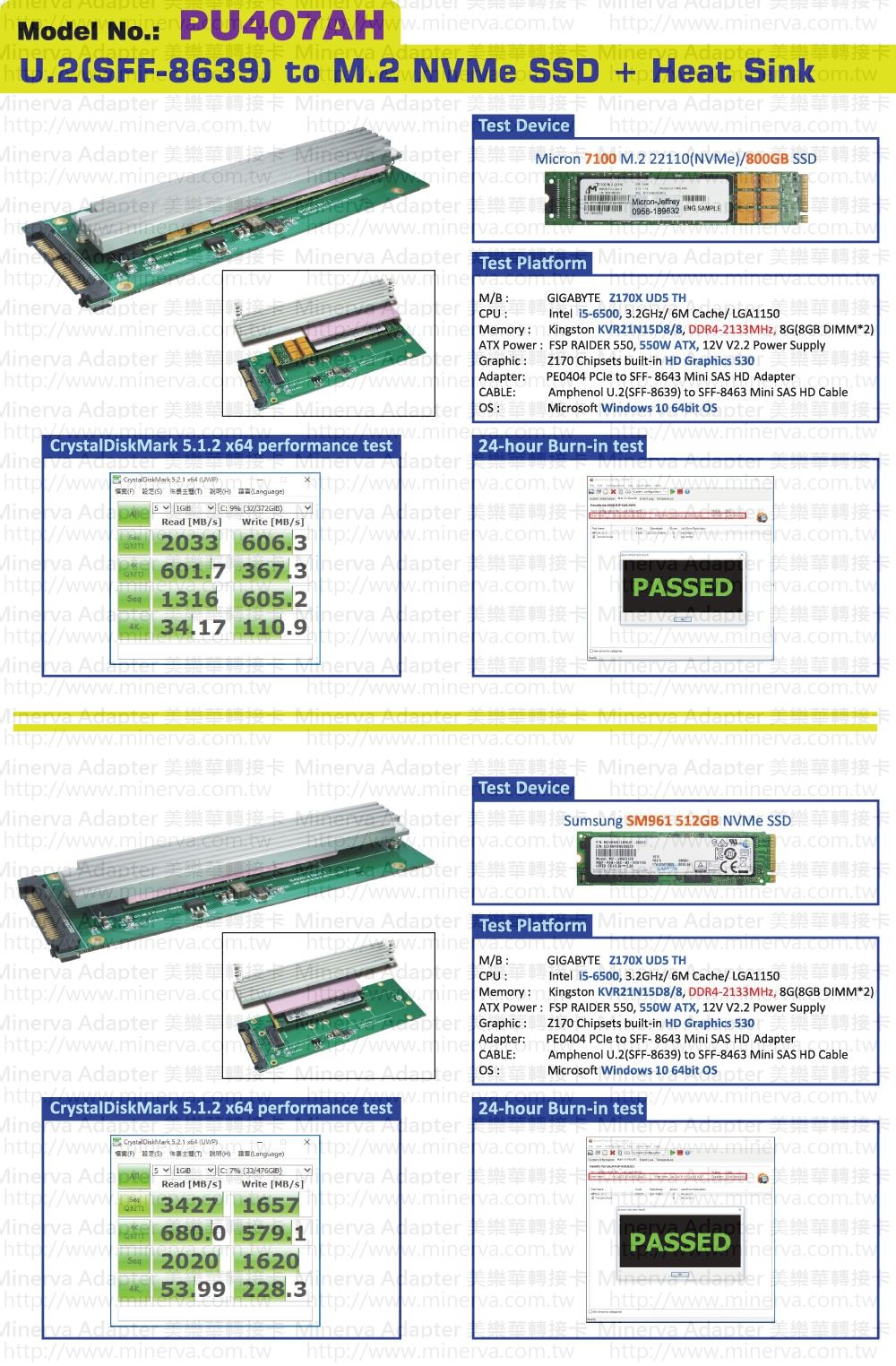

Test report-Samsung SM961 / 512GB

PDF

Test report-Micron / 800GB

PDF

2D-drawing

PDF

PU407AH + Heatsink- 2D drawing









specifications

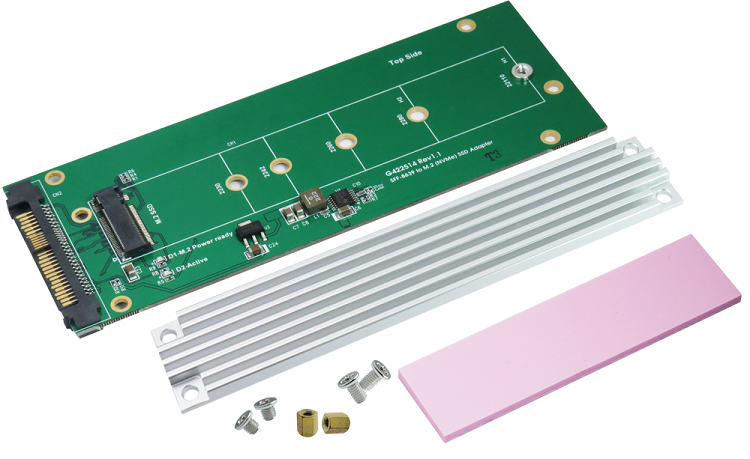

  • M.2 NVMe to U.2(SFF-8639) convert
  • Build in M.2 M-key Female connector
  • Build in SFF-8639 connector, pin-out defined by PCIe
  • PWM synchronous buck converter Power IC
  • 4A maximum output current
  • Short circuit protection
  • In-rush current suppression
  • Thermal shutdown protection
  • ESD HBM (Human Body Mode)/2KV
  • Supports 1.8V SMB_CLK
  • Supports 1.8V SMB_DATA
  • D1 Green LED on indicates M.2 NVMe SSD power ready
  • D2 RED LED Blinking indicates M.2 SSD active status
