- M.2 NVMe to U.2(SFF-8639) convert
- Build in M.2 M-key Female connector
- Build in SFF-8639 connector, pin-out defined by PCIe
- PWM synchronous buck converter Power IC
※4A maximum output current
※Short circuit protection
※In-rush current suppression
※Thermal shutdown protection
※ESD HBM (Human Body Mode)/2KV

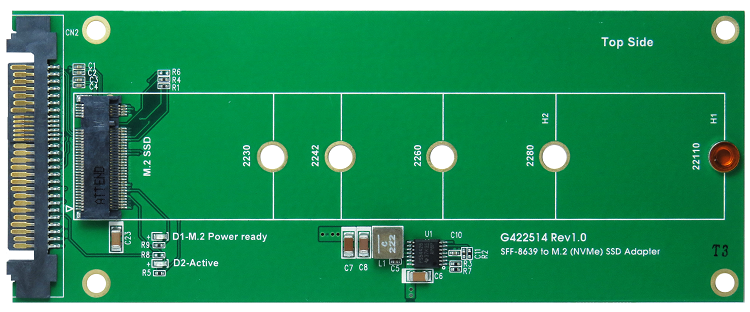

- D1 Green LED on indicates M.2 NVMe SSD power ready
- D2 RED LED Blinking indicates M.2 SSD active status
