- 4-Layer PCB designed

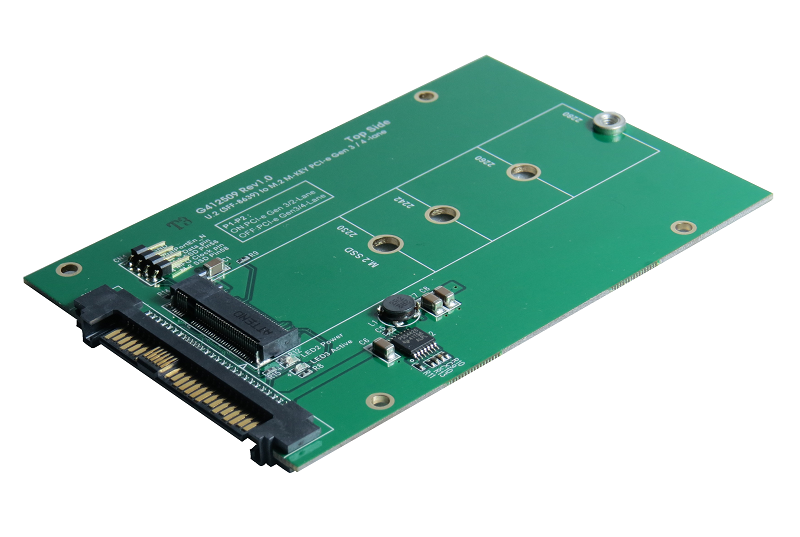

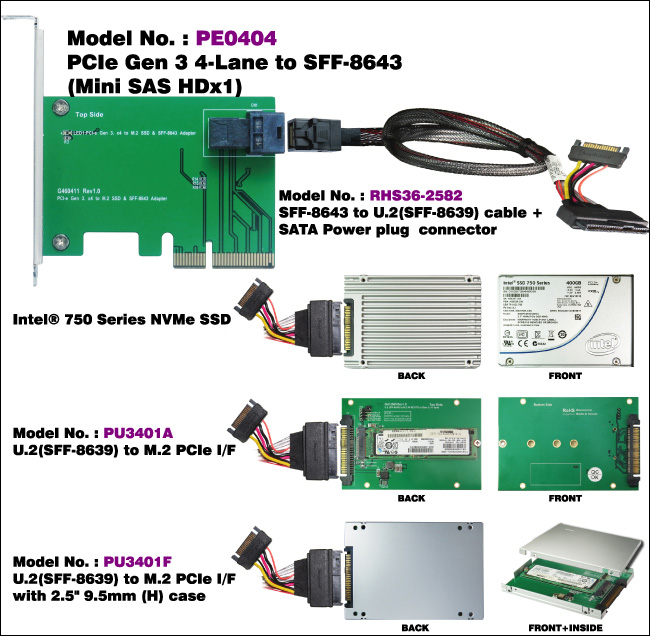

- Built-in SFF-8639 plug connector

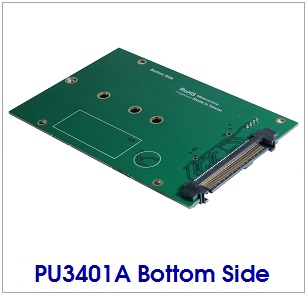

- Built-in M.2 (NGFF) M-key receptacle connector
- LED2 ON indicate M.2/PCI-e 4 Lanes device power OK
- LED3 indicate active status

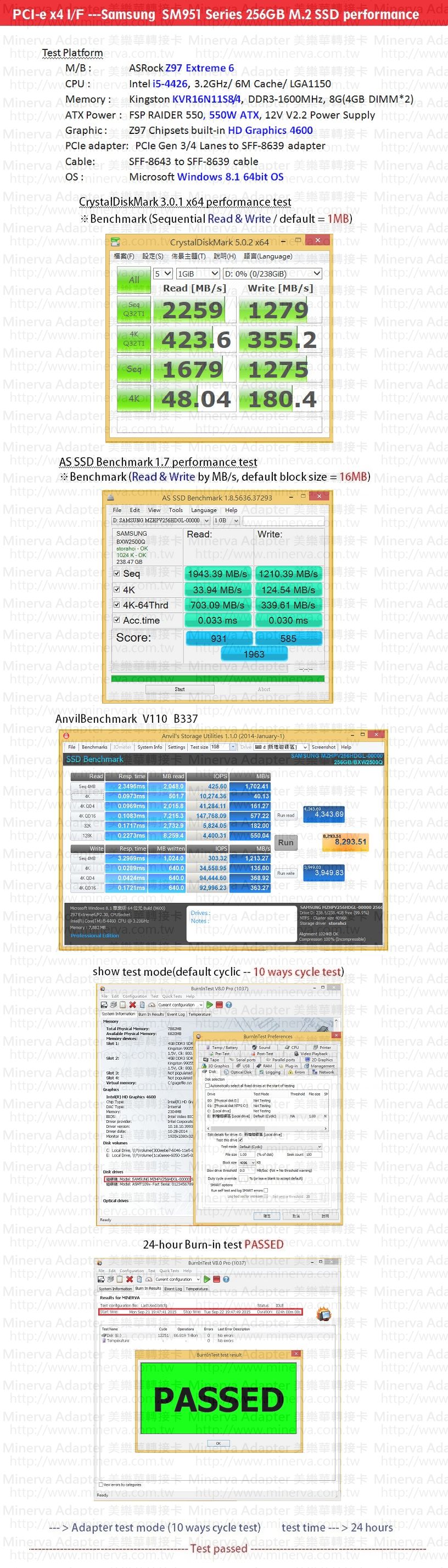

- PCI Express Base Specification Rev 3.0
- SFF-8639 Enterprise SSD Form Factor Version 1.0a
- PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
- PCI Express M.2 Spec. Revision 0.7, Version 1.0 NVM Express* 1.0
- PWM synchronous buck converter Power IC
※ 3.3V, 4A maximum output current
※ Short circuit protection
※ In-rush current suppression
※ Thermal shutdown protection
※ ESD HBM (Human Body Mode)/2KV
※ ESD CDM (Charged Device Model) /500V
