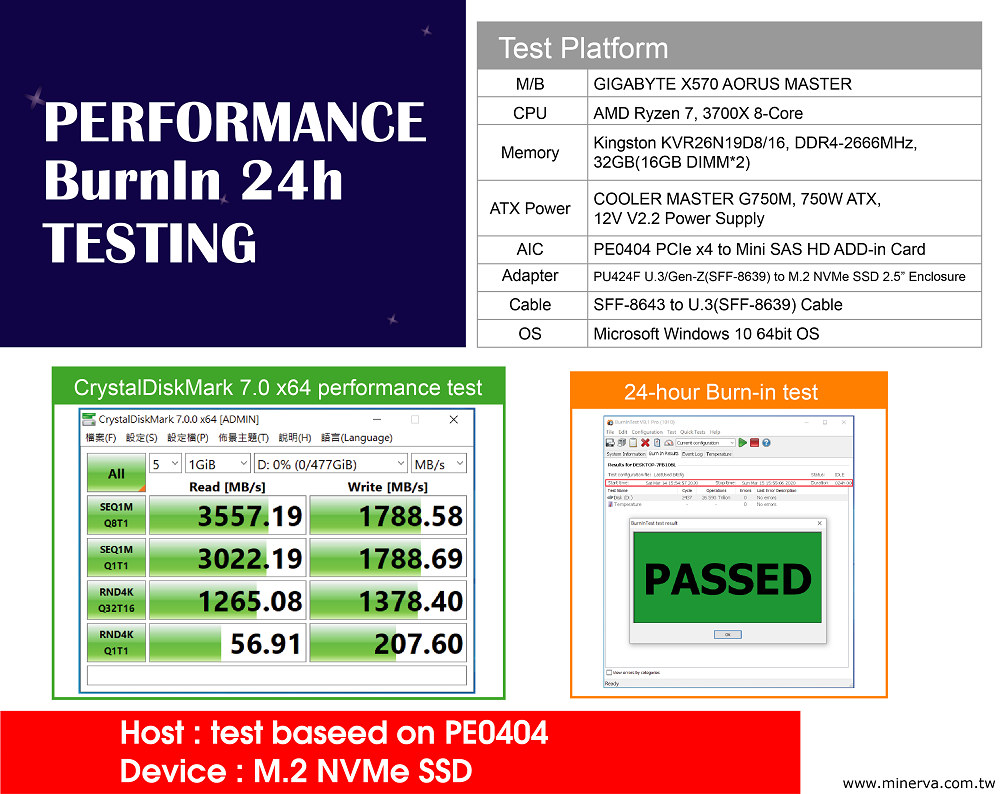

Test report

PDF

PU424F-2D drawing











specifications

  • M.2 NVMe to U.3(SFF-8639) convert
  • Build in SFF-8639 connector, pin-out defined by PCIe
  • M.2 NVMe to Gen-Z(SFF-8639) convert
  • Build in SFF-8639 connector, pin-out defined by SFF-TA-1001 Rev1.1
  • PWM synchronous buck converter Power for M.2 SSD
  • 4A maximum output current
  • Short circuit protection
  • In-rush current suppression
  • Thermal shutdown protection
  • ESD HBM (Human Body Mode)/2KV
  • Supports CLKREQ#, WAKE#

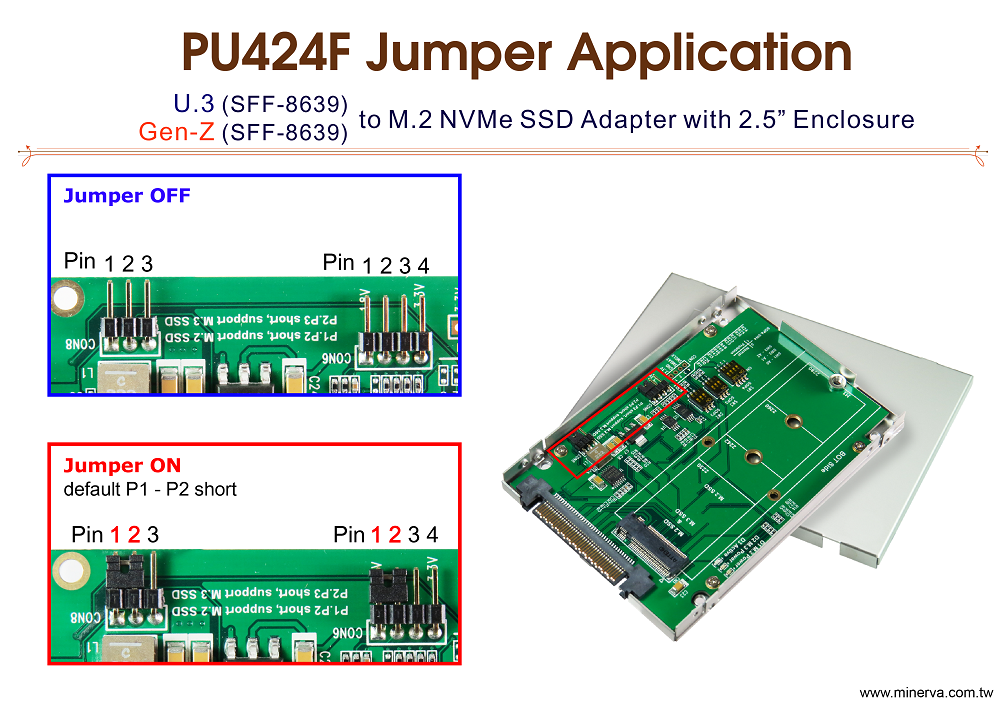

  • Supports M.2 /1.8V to 3.3V SMB_CLK, SMB_DATA Level Shift
  • Supports M.2 /1.8V to 3.3V SMB_CLK, SMB_DATA isolated

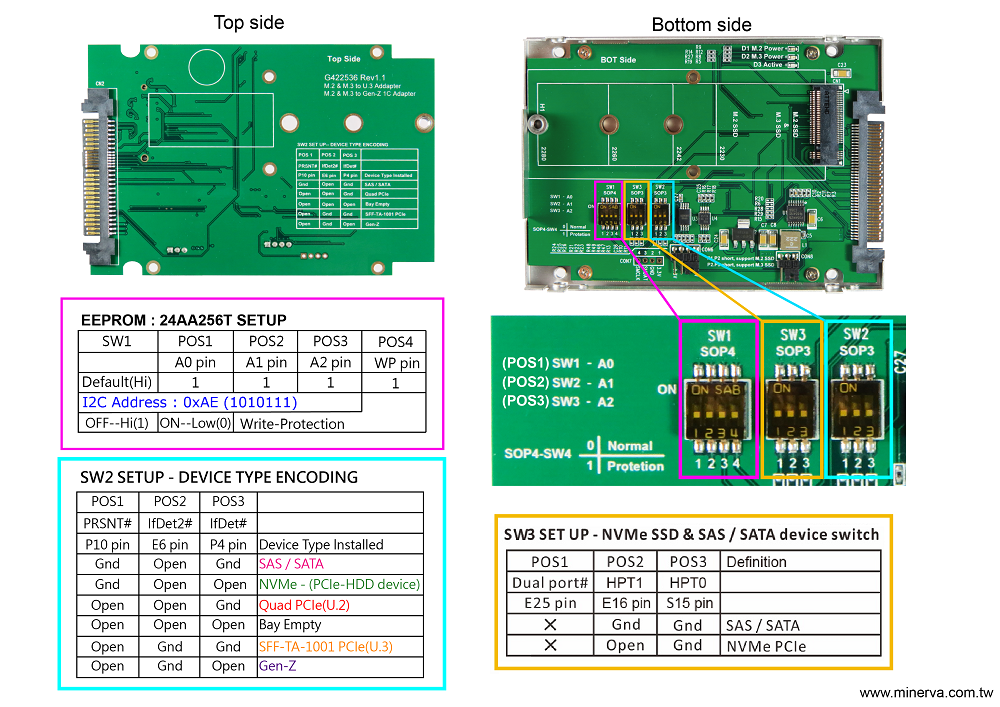

  • Builde in SMBUS EEPROM 256KB
  • D1 Green LED on indicates M.2 NVMe SSD power ready
  • D3 RED LED Blinking indicates M.2 active status
