Datasheet

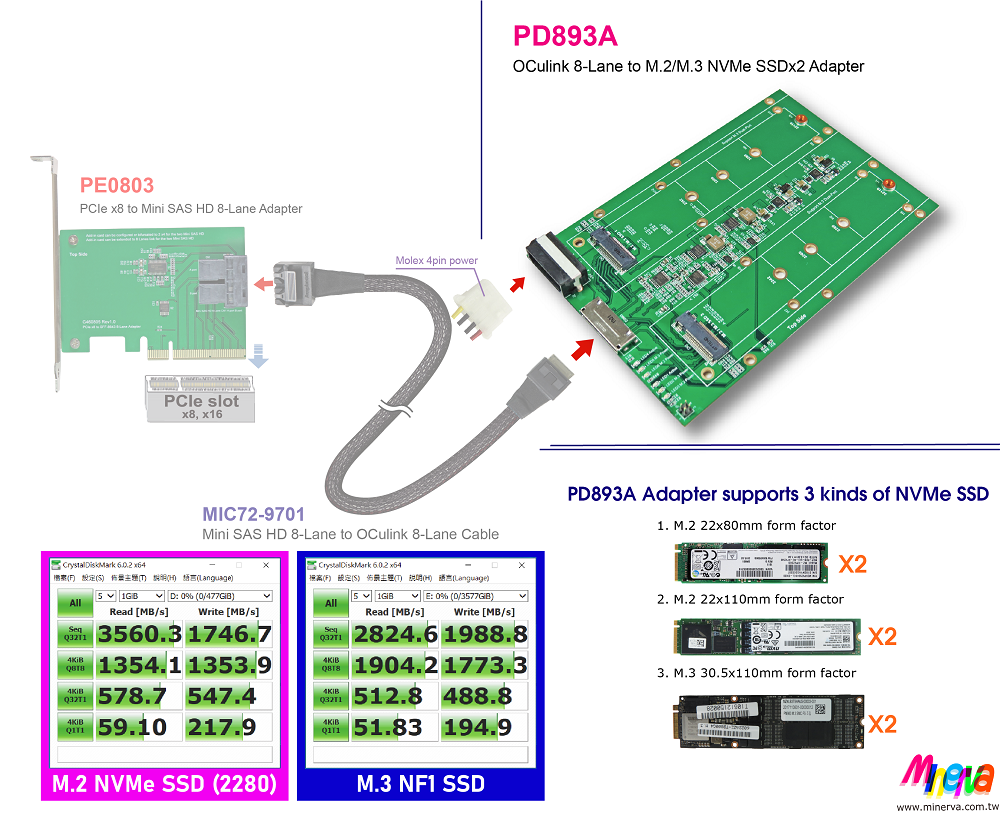

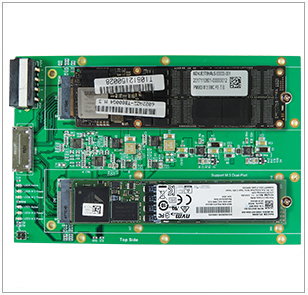

Test report with M.3 NF1 SSD & M.2 NVMe SSD (2280)

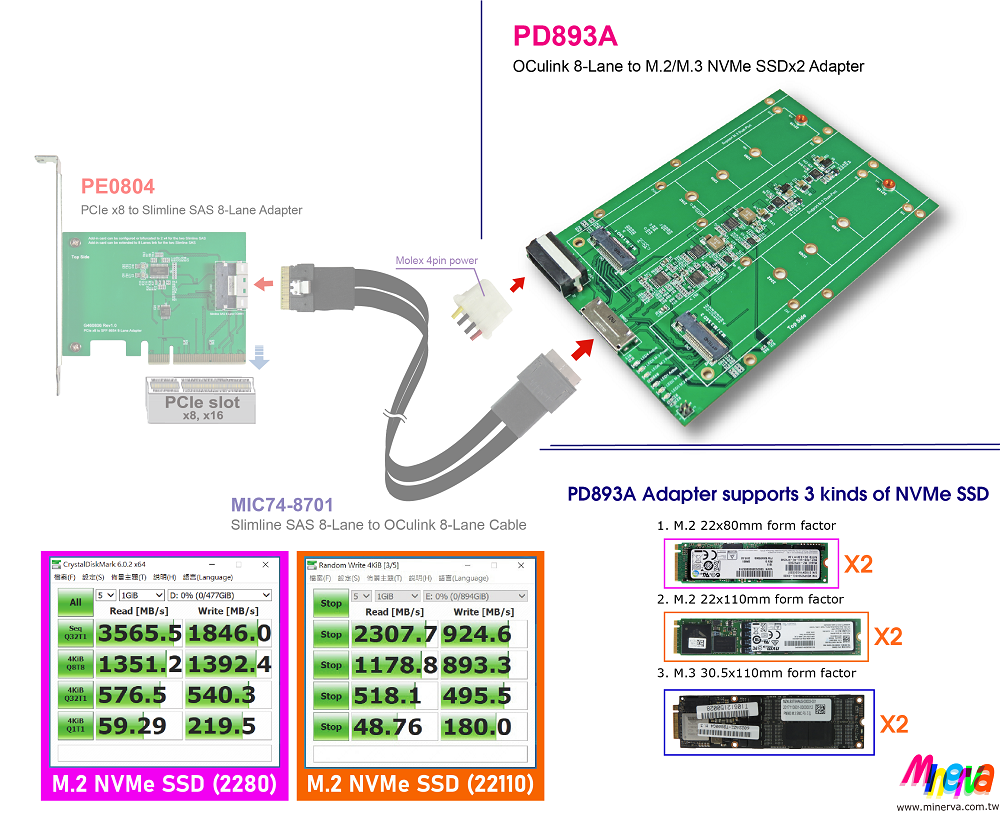

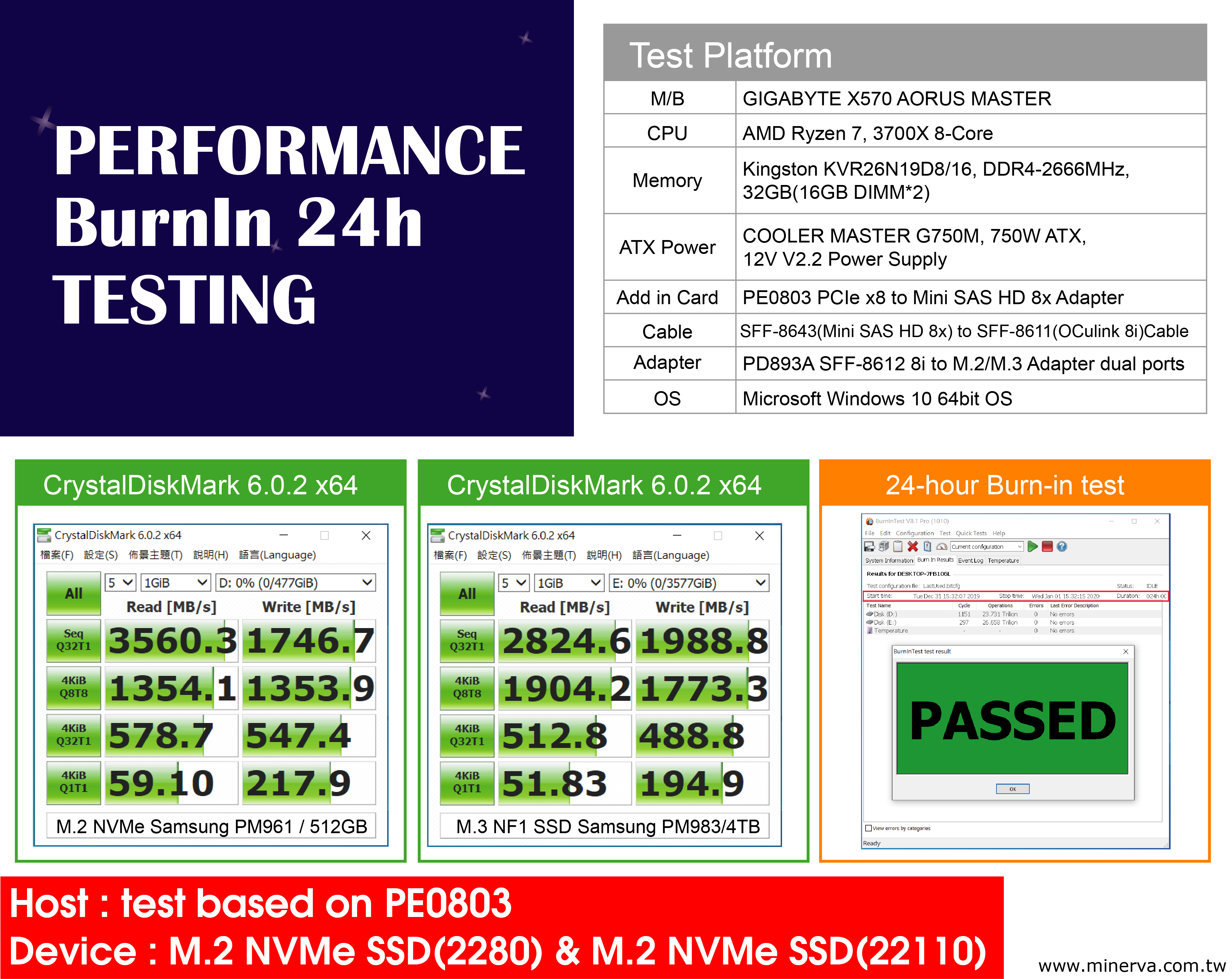

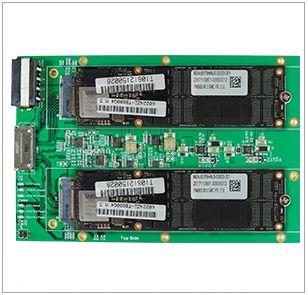

Test report with M.2 NVMe SSD (2280) & M.2 NVMe SSD (22110)
Test report with M.3 NF1 SSD & M.2 NVMe SSD (22110)
2D Drawing

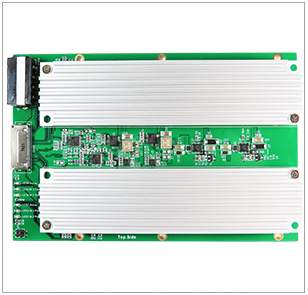

- Built-in +12V Hot Plug protection power module for M.3 NVMe SSD
- Built-in +3.3V Hot Plug protection power module for M.2 NVMe SSD

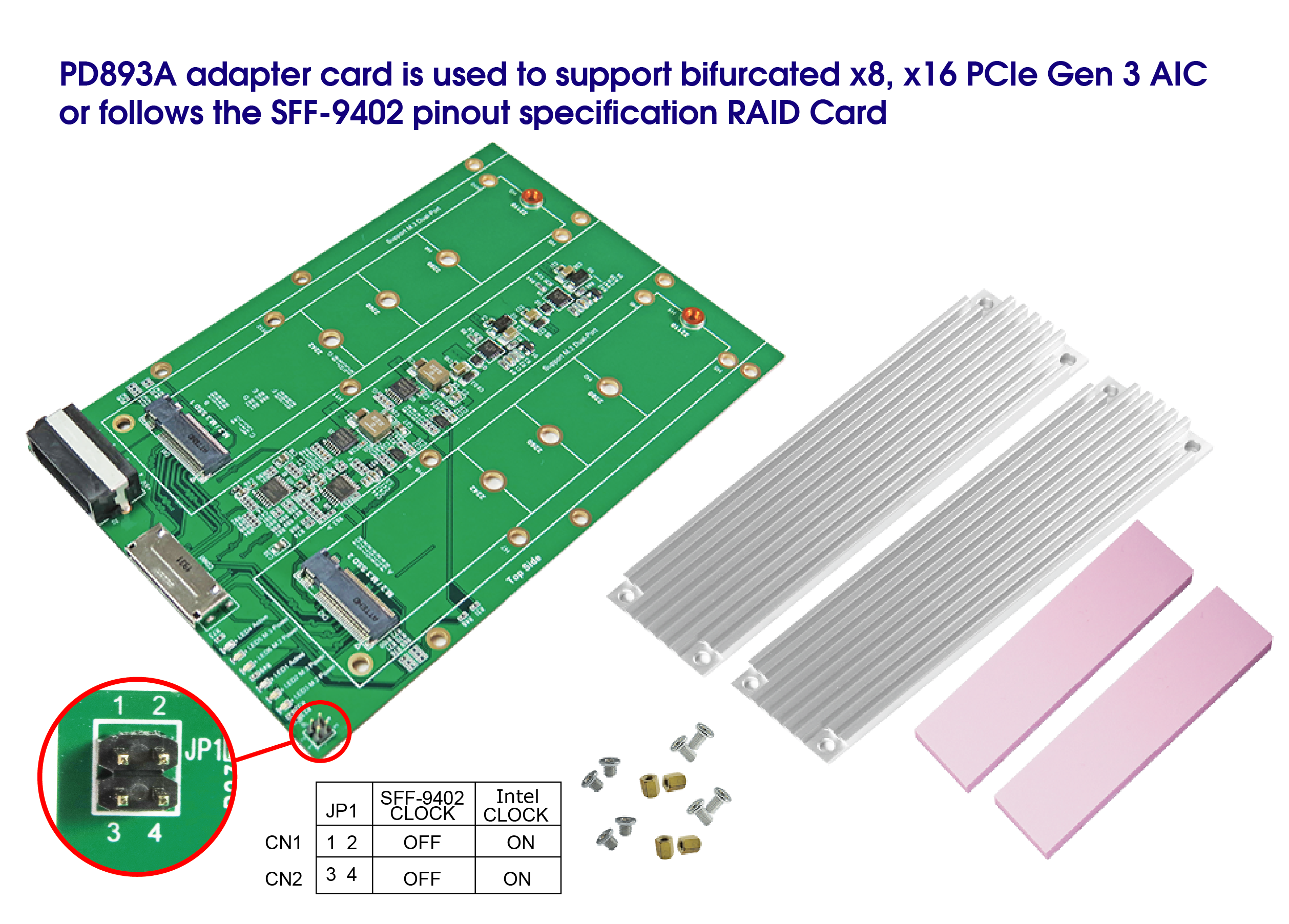

- SFF-8612 OCulink 8i to M.2, M.3 NVMe convert

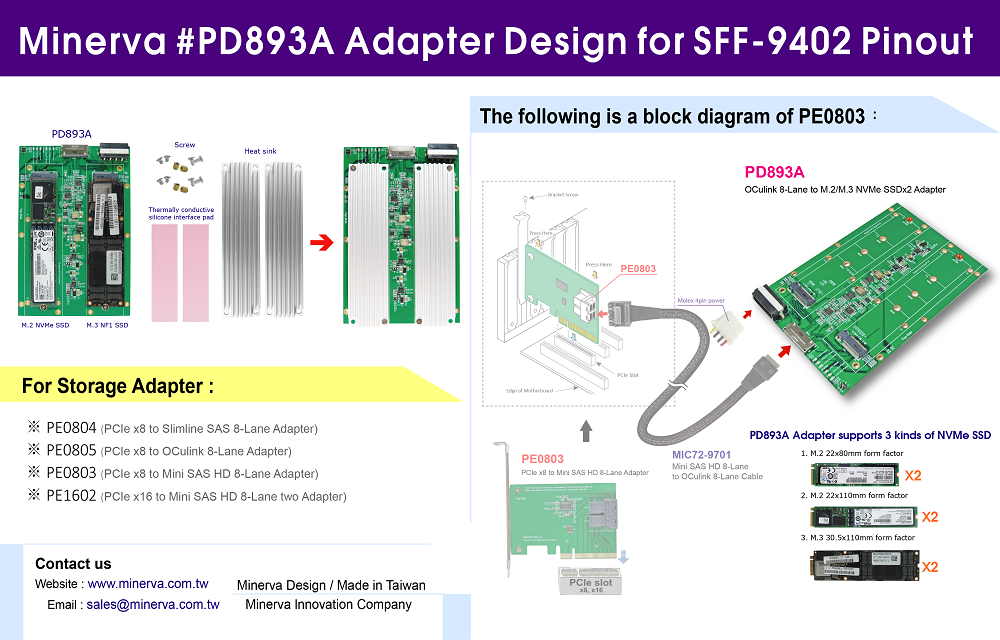

- Built-in SFF-8612 8i connector, pin-out defined by SFF-9402
- Built-in M.2 M-key connector, pin-out defined by PCI Express M.2 Specification
- LED 1, LED4 Red LED Blinking indicates SSD active status
- LED 2, LED 5 Green LED on indicates M.3 SSD power ready
- LED 3, LED 6 Green LED on indicates M.2 SSD power ready
- Compliant with NVM Express 1.2a
- Supports PCI Express Base Specification Rev 3.1
- Supports PCI Express M.2 Specification Revision 3.0, Version 1.2 _06262019
- Compliant with PCI_Express_OCuLink_1.0a
- Support Samsung M.3 NF1 Datasheet_v0.4
