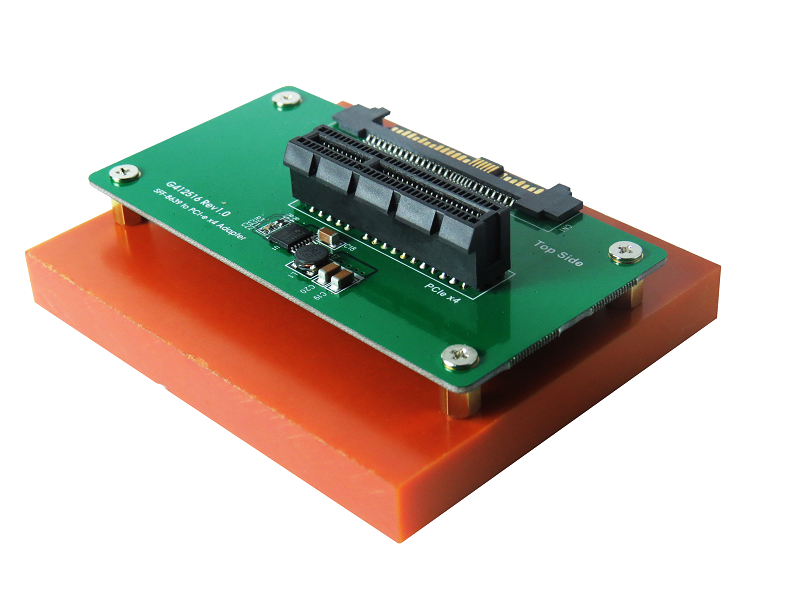

- 4-Layer PCB designed
- Built-in SFF-8639 plug connector
- Built-in PCI-e Gen 3 x4 slot connector
- PCI Express Base Specification Rev 3.0
- SFF 8639 Enterprise SSD Form Factor Version 1.0a
- PCI Express Card Electro-Mechanical* (CEM) Specification Rev 2.0
- NVM Express* 1.1
- PWM synchronous buck converter Power IC
※ 3.3V, 4A maximum output current
※Short circuit protection
※In-rush current suppression
※Thermal shutdown protection
※ESD HBM (Human Body Mode)/2KV
※ESD CDM (Charged Device Model) /500V
